Sayfa 0-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11128 - FTS(RHD)EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#66638) — 182 parça

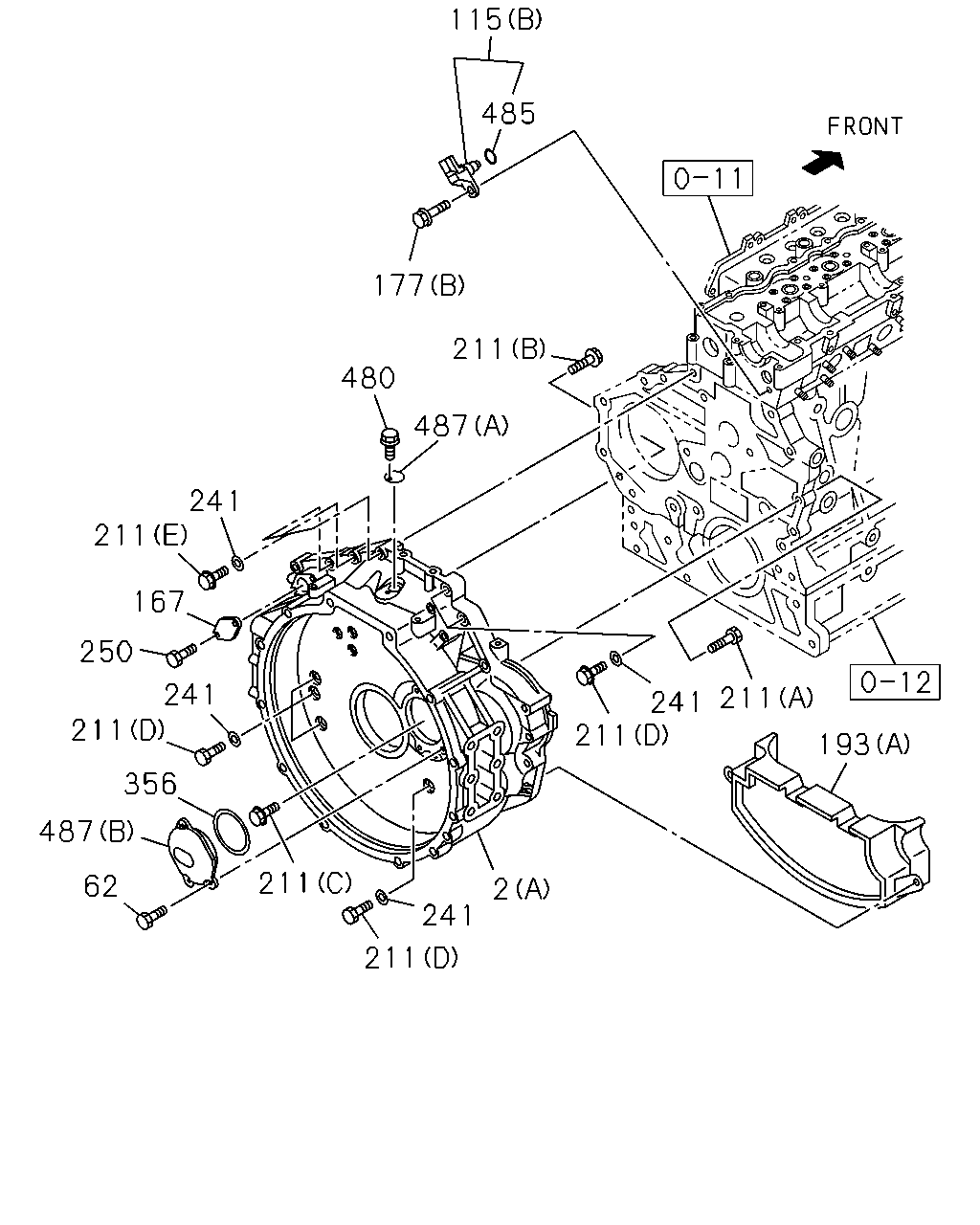

115 485 177 211 480 487 241 211 167 250 241 211 211 241 211 193 356 487 211 62 2 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> LCT2000 A/T ALLISON(Y4F) (A)	8-98067-930-6	01	1	1003-
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0812-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-4	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-9	01	1	0812-
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> (A)	8-97609-996-9	01	1	0812-
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	0712-
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97606-943-0	01	1	0712-
115	SENSOR; REVOLUTION,ENG SPD (B)	8-98019-024-0	01	1	0712-
167	COVER; OIL	1-11219-163-0	01	1	0712-
177	BOLT; SENSOR (B) M6X12 FLANGE	0-28050-612-0	01	1	0712-
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28050-616-0	02	1	0712-
193	SPACER; STAY TO OIL,PAN POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97617-330-0	01	1	0712-0811
193	SPACER; STAY TO OIL,PAN EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97617-330-1	01	1	0812-
193	SPACER; STAY TO OIL,PAN EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98019-738-0	01	1	0712-0811
193	SPACER; STAY TO OIL,PAN EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98019-738-1	01	1	0812-
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0712-
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0712-
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M12X185	8-94393-483-0	02	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (F) M12X185	8-94393-483-0	02	1	0812-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X128	8-94399-252-0	08	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X128	8-94399-252-0	08	1	0812-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X160	8-97388-159-0	01	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X160	8-97388-159-0	01	1	0812-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M12X75	9-01666-275-0	01	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (G) M12X75	9-01666-275-0	01	1	0812-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X70	0-16956-270-0	08	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X70	0-16956-270-0	08	1	0812-
211	BOLT; HSG EURO2 SPECIFICATION<NT2> (D) M12X70	0-16956-270-0	08	1	0812-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X90	0-16956-290-0	03	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X90	0-16956-290-0	03	1	0812-
211	BOLT; HSG EURO2 SPECIFICATION<NT2> (E) M12X90	0-16956-290-0	03	1	0812-
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0712-
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0712-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0712-
480	BOLT; COVER EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M6X12 FLANGE	0-28050-612-0	01	1	0712-0805
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	02	1	0712-
487	COVER; HOLE (B)	8-94394-513-1	01	1	0712-0805
487	COVER; HOLE (B)	8-98023-824-1	01	1	0806-
487	COVER; HOLE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97600-831-0	01	1	0712-0805

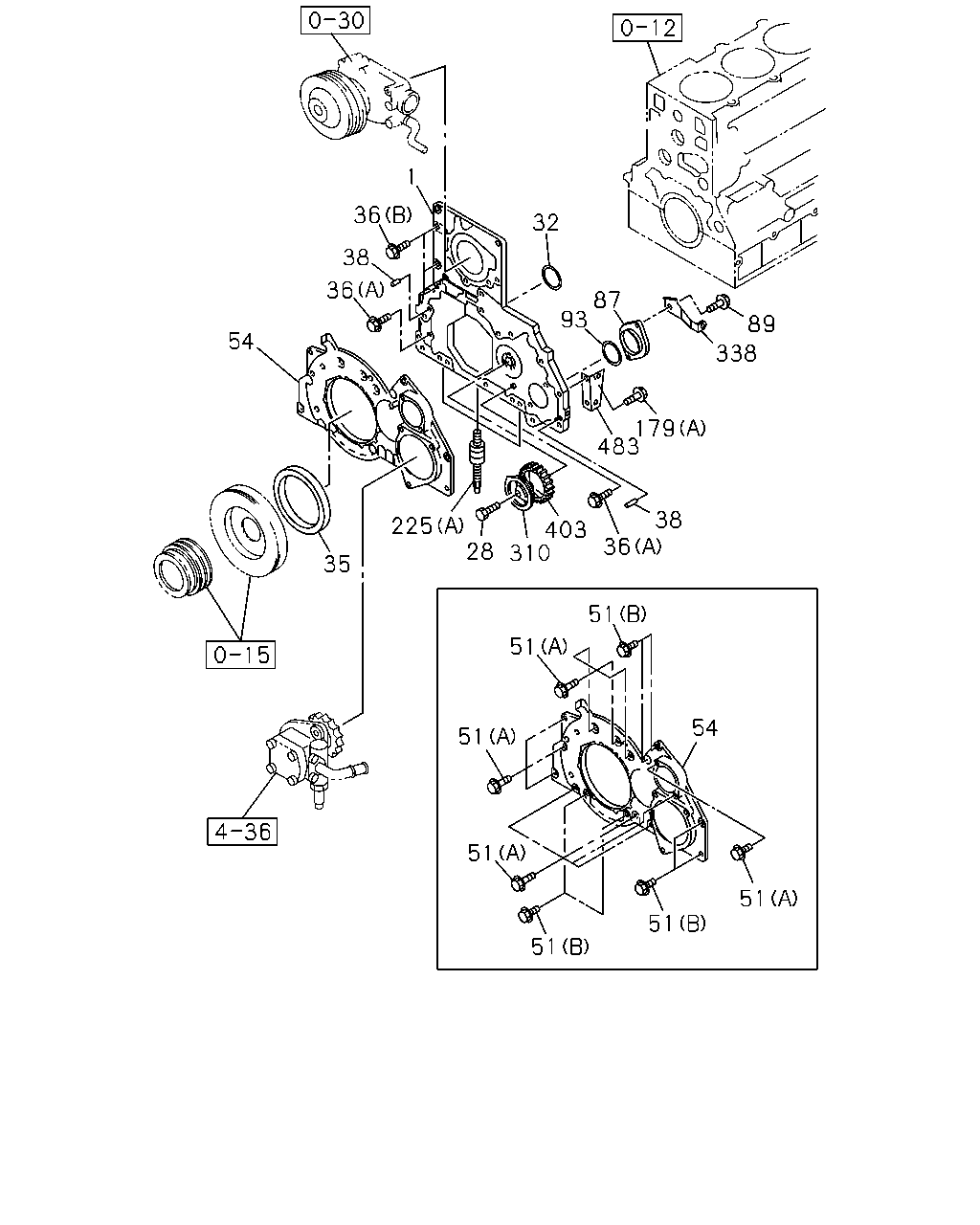

1 36 32 38 36 87 93 89 54 338 179 483 38 225 28 403 310 36 35 51 51 54 51 51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CASE; TIMING GEAR	8-94392-282-1	01	1	0712-
28	BOLT; DRIVE GEAR M8X28	8-94399-256-0	03	1	0712-
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.1	8-97028-748-1	01	1	0712-
35	SEAL; OIL,CRANKSHAFT FRT ID=104 OD=137	8-97602-378-3	01	1	0712-
36	BOLT; GEAR CASE (B) M8X35 FLANGE	0-28050-835-0	04	1	0712-
36	BOLT; GEAR CASE (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-
38	PIN; GEAR CASE COVER L=22	8-94483-674-0	02	1	0712-
51	BOLT; GEAR CASE COVER (A) M8X40 FLANGE	0-28050-840-0	11	1	0712-
51	BOLT; GEAR CASE COVER (B) M8X20 FLANGE	0-28650-820-0	06	1	0712-
54	COVER; GEAR CASE	8-94393-304-1	01	1	0712-
87	COVER; TACHOMETER DRIVE	8-94396-370-0	01	1	0712-
89	BOLT; ELBOW M8X18 FLANGE	0-28080-818-0	02	1	0712-
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). ID=47.7	1-09623-465-0	01	1	0712-
179	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0712-
179	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-
225	STUD; OIL PAN (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	04	1	0712-
225	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	03	1	0712-
310	SHAFT; IDLE GEAR	8-94394-806-0	01	1	0712-
338	BRACKET; CLIP,HARNESS	1-82699-889-0	01	1	0712-
403	GEAR; IDLE,FRONT Z=33	8-94395-943-1	01	1	0712-
483	BRACKET; WATER DUCT	8-94394-405-1	01	1	0712-

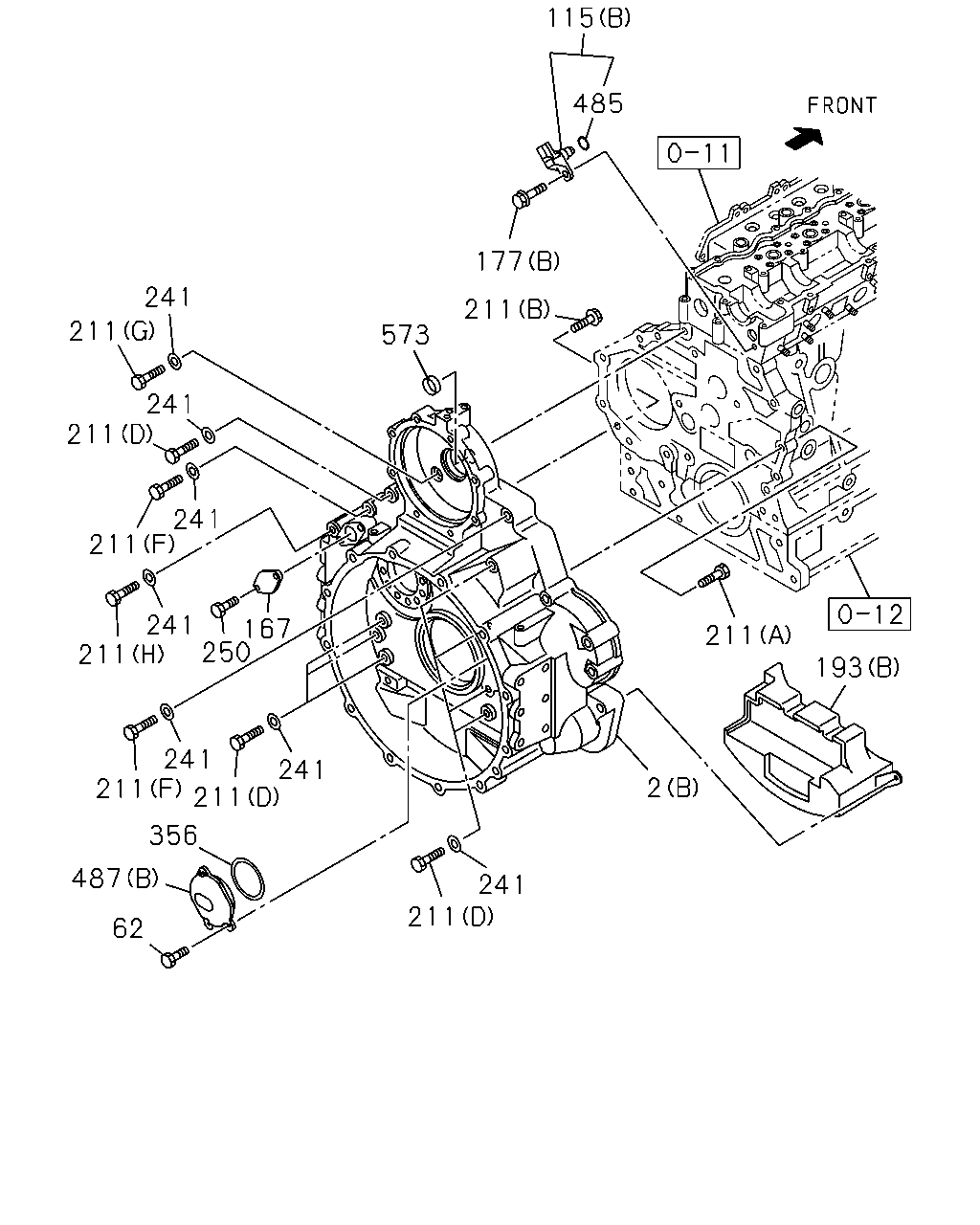

115 485 177 241 211 211 573 241 211 241 211 241 211 167 250 211 193 241 241 211 211 2 356 487 241 211 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> LCT2000 A/T ALLISON(Y4F) (A)	8-98067-930-6	01	1	1003-
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0812-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-4	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-9	01	1	0812-
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> (A)	8-97609-996-9	01	1	0812-
62	BOLT; COVER M8X14 FLANGE	0-28080-814-0	03	1	0712-
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97606-943-0	01	1	0712-
115	SENSOR; REVOLUTION,ENG SPD (B)	8-98019-024-0	01	1	0712-
167	COVER; OIL	1-11219-163-0	01	1	0712-
177	BOLT; SENSOR (B) M6X12 FLANGE	0-28050-612-0	01	1	0712-
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28050-616-0	02	1	0712-
193	SPACER; STAY TO OIL,PAN POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97617-330-0	01	1	0712-0811
193	SPACER; STAY TO OIL,PAN EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97617-330-1	01	1	0812-
193	SPACER; STAY TO OIL,PAN EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98019-738-0	01	1	0712-0811
193	SPACER; STAY TO OIL,PAN EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98019-738-1	01	1	0812-
211	BOLT; HSG (A) M12X60	0-16856-260-0	01	1	0712-
211	BOLT; HSG (B) M10X50 FLANGE	0-28151-050-0	01	1	0712-
211	BOLT; HSG (C) M14X27 FLANGE	8-94393-995-0	01	1	0712-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (F) M12X185	8-94393-483-0	02	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (F) M12X185	8-94393-483-0	02	1	0812-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X128	8-94399-252-0	08	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X128	8-94399-252-0	08	1	0812-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X160	8-97388-159-0	01	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (H) M12X160	8-97388-159-0	01	1	0812-
211	BOLT; HSG POWER TAKE OFF-FLYWHEEL(6SZ) (G) M12X75	9-01666-275-0	01	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (G) M12X75	9-01666-275-0	01	1	0812-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X70	0-16956-270-0	08	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (D) M12X70	0-16956-270-0	08	1	0812-
211	BOLT; HSG EURO2 SPECIFICATION<NT2> (D) M12X70	0-16956-270-0	08	1	0812-
211	BOLT; HSG EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X90	0-16956-290-0	03	1	0712-0811
211	BOLT; HSG EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (E) M12X90	0-16956-290-0	03	1	0812-
211	BOLT; HSG EURO2 SPECIFICATION<NT2> (E) M12X90	0-16956-290-0	03	1	0812-
241	WASHER; PL,HSG ID=12.5 OD=22	8-94393-140-1	12	1	0712-
250	BOLT; COVER,OIL M8X18 FLANGE	0-28080-818-0	02	1	0712-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=110	8-94394-186-0	01	1	0712-
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	02	1	0712-
487	COVER; HOLE (B)	8-94394-513-1	01	1	0712-0805
487	COVER; HOLE (B)	8-98023-824-1	01	1	0806-
487	COVER; HOLE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97600-831-0	01	1	0712-0805
573	CUP; SEALING POWER TAKE OFF-FLYWHEEL(6SZ) OD=36	5-11219-018-0	01	1	0712-0811
573	CUP; SEALING EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) OD=36	5-11219-018-0	01	1	0812-

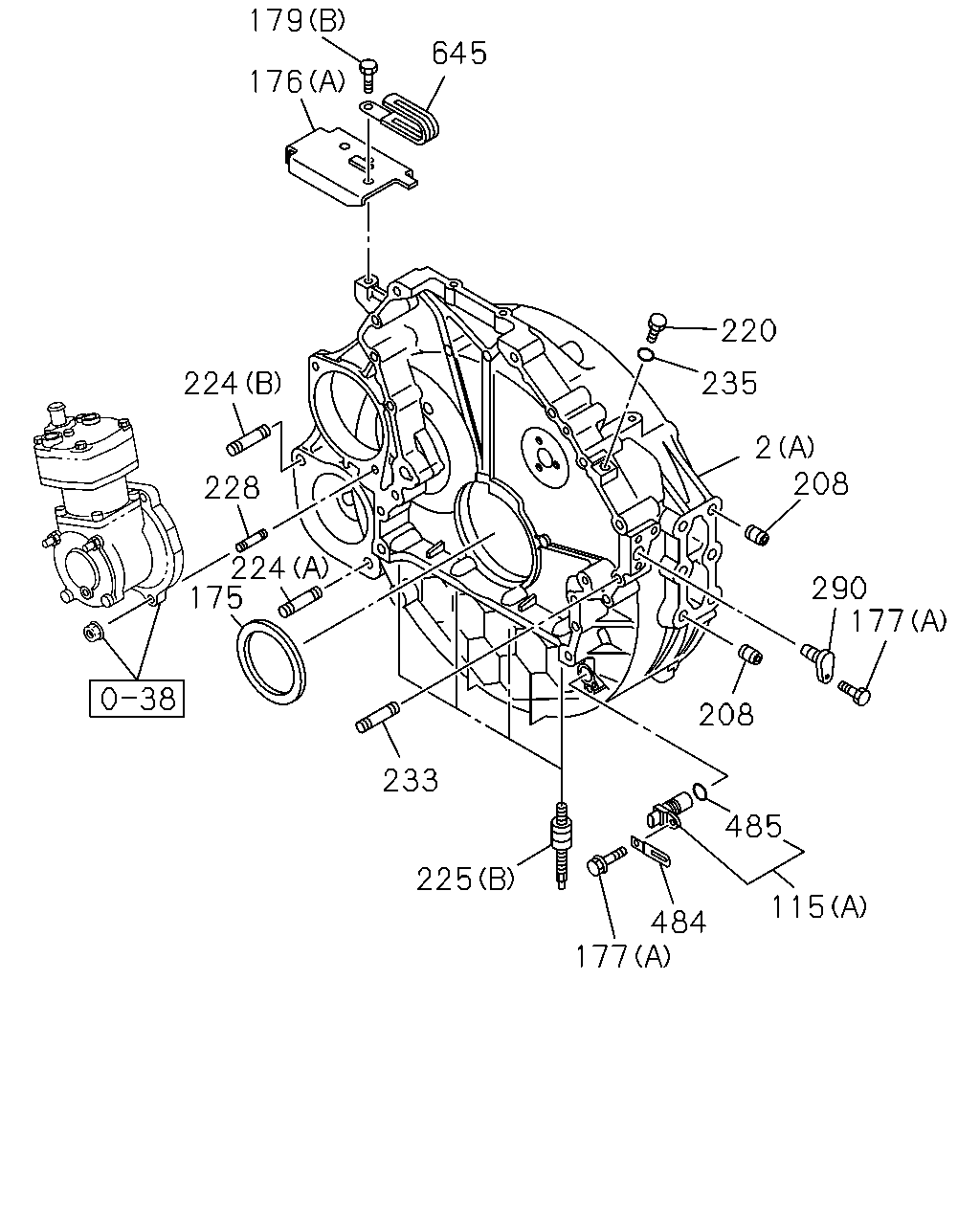

179 645 176 220 224 235 2 208 228 224 175 290 177 208 233 485 225 115 484 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> LCT2000 A/T ALLISON(Y4F) (A)	8-98067-930-6	01	1	1003-
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0812-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-4	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-9	01	1	0812-
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> (A)	8-97609-996-9	01	1	0812-
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97606-943-0	01	1	0712-
115	SENSOR; REVOLUTION,ENG SPD (B)	8-98019-024-0	01	1	0712-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0712-
176	BRACKET; HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98076-213-0	01	1	0712-0811
176	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98076-213-0	01	1	0812-
176	BRACKET; HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-212-0	01	1	0712-0811
176	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-212-0	01	1	0812-
176	BRACKET; HARNESS EURO2 SPECIFICATION<NT2> (A)	8-98076-212-0	01	1	0812-
177	BOLT; SENSOR (B) M6X12 FLANGE	0-28050-612-0	01	1	0712-
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28050-616-0	02	1	0712-
179	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0712-
179	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0712-
220	PLUG; GEAR CHECK HOLE M12X10	1-09605-125-0	01	1	0712-1008
220	PLUG; GEAR CHECK HOLE M12X10	5-13265-001-0	01	1	1009-
224	STUD; STARTER (A) M14X35 L=56	0-44011-435-0	01	1	0712-
224	STUD; STARTER (B) M14X45 L=66	0-44011-445-0	01	1	0712-
225	STUD; OIL PAN (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	04	1	0712-
225	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	03	1	0712-
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0712-
233	STUD; BRKT M12X67 L=82	1-09302-112-0	01	1	0712-
235	GASKET; PLUG GEAR CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0712-1312
235	GASKET; PLUG GEAR CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
290	PLUG; SENSOR HOLE	8-97101-974-0	01	1	0712-
484	CLIP; BAND L=80	5-09700-307-1	01	1	0712-0906
484	CLIP; BAND EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=80	5-09700-307-1	01	1	0907-1311
484	CLIP; BAND EURO2 SPECIFICATION<NT2> L=80	5-09700-307-1	01	1	0907-1311
484	CLIP; BAND EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> L=80	5-09700-307-1	01	1	1312-
484	CLIP; BAND EURO4 SPECIFICATION<NT4> L=80	5-09700-307-1	01	1	1312-
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	02	1	0712-
645	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	0712-0801
645	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-0811
645	CLIP; HARNESS EURO4 SPECIFICATION<NT4> ID=18 L=44	8-97367-985-1	01	1	0812-1308
645	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	1309-

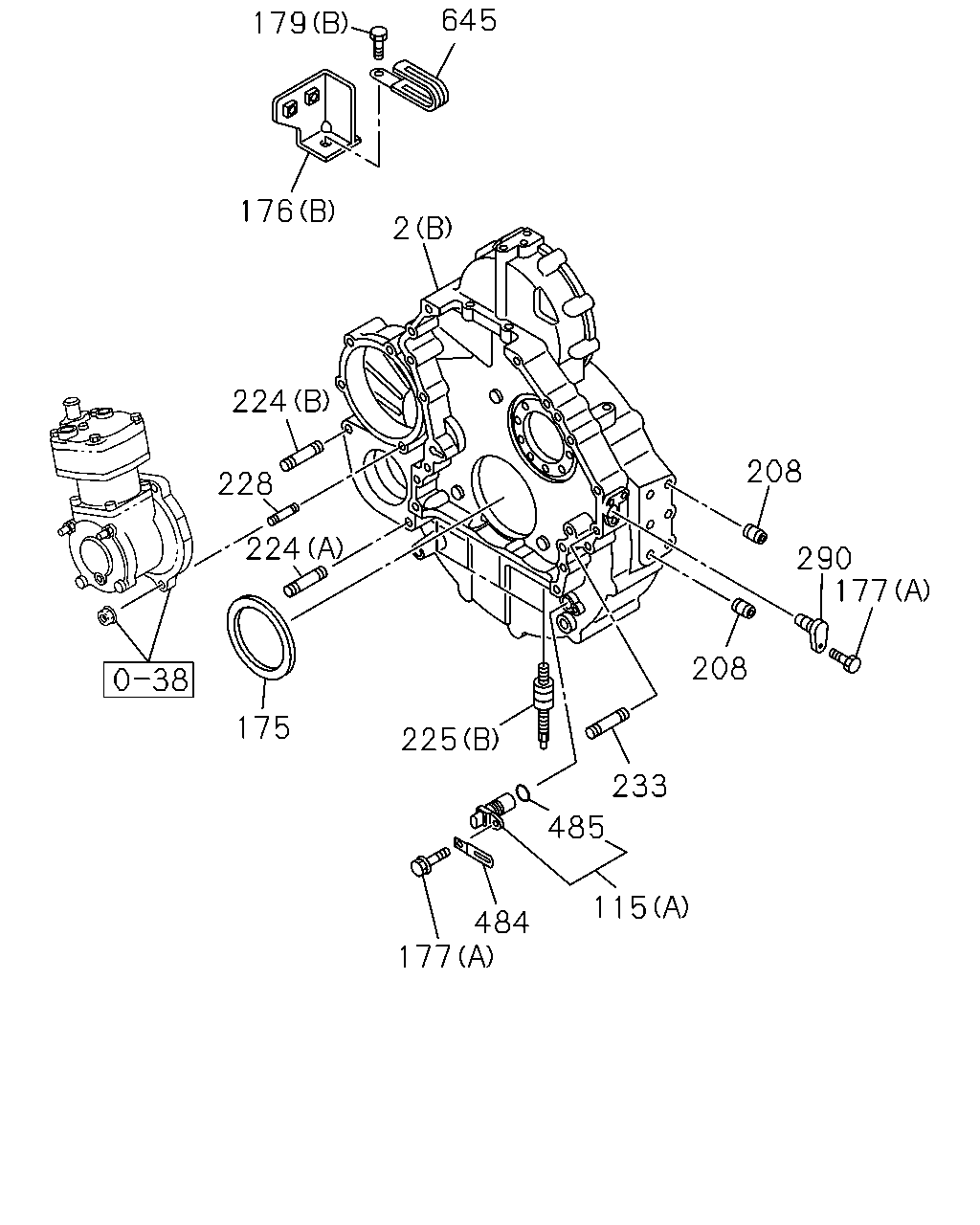

645 179 176 2 224 208 228 224 290 177 208 175 225 233 485 115 484 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> LCT2000 A/T ALLISON(Y4F) (A)	8-98067-930-6	01	1	1003-
2	HOUSING; FLYWHEEL POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98021-479-5	01	1	0812-
2	HOUSING; FLYWHEEL EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-4	01	1	0712-0811
2	HOUSING; FLYWHEEL EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97609-996-9	01	1	0812-
2	HOUSING; FLYWHEEL EURO2 SPECIFICATION<NT2> (A)	8-97609-996-9	01	1	0812-
115	SENSOR; REVOLUTION,ENG SPD (A)	8-97606-943-0	01	1	0712-
115	SENSOR; REVOLUTION,ENG SPD (B)	8-98019-024-0	01	1	0712-
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139	8-97602-379-0	01	1	0712-
176	BRACKET; HARNESS POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98076-213-0	01	1	0712-0811
176	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98076-213-0	01	1	0812-
176	BRACKET; HARNESS EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-212-0	01	1	0712-0811
176	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-98076-212-0	01	1	0812-
176	BRACKET; HARNESS EURO2 SPECIFICATION<NT2> (A)	8-98076-212-0	01	1	0812-
177	BOLT; SENSOR (B) M6X12 FLANGE	0-28050-612-0	01	1	0712-
177	BOLT; SENSOR (A) M6X16 FLANGE	0-28050-616-0	02	1	0712-
179	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0712-
179	BOLT; BRKT (B) M8X16 FLANGE	0-28050-816-0	01	1	0712-
208	DOWEL; ENG FOOT	9-43269-009-1	04	1	0712-
224	STUD; STARTER (A) M14X35 L=56	0-44011-435-0	01	1	0712-
224	STUD; STARTER (B) M14X45 L=66	0-44011-445-0	01	1	0712-
225	STUD; OIL PAN (A) M8X10.8 M8X16.5 L=41.1 W/WASHER&RUBBER	8-97087-680-2	04	1	0712-
225	STUD; OIL PAN (B) M8X12.8 M8X30 L=56.6 W/WASHER&RUBBER	8-97601-889-0	03	1	0712-
228	STUD; AIR CMPR M12X35 L=53	0-44011-235-0	01	1	0712-
233	STUD; BRKT M12X67 L=82	1-09302-112-0	01	1	0712-
290	PLUG; SENSOR HOLE	8-97101-974-0	01	1	0712-
484	CLIP; BAND L=80	5-09700-307-1	01	1	0712-0906
484	CLIP; BAND EURO4 SPECIFICATION<NT4> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=80	5-09700-307-1	01	1	0907-1311
484	CLIP; BAND EURO2 SPECIFICATION<NT2> L=80	5-09700-307-1	01	1	0907-1311
484	CLIP; BAND EURO2 SPECIFICATION<NT2> MANUAL TRANSMISSION<X9C> L=80	5-09700-307-1	01	1	1312-
484	CLIP; BAND EURO4 SPECIFICATION<NT4> L=80	5-09700-307-1	01	1	1312-
485	GASKET; SENSOR ID=14.2 OD=18.8	8-97369-404-0	02	1	0712-
645	CLIP; HARNESS ID=18 L=44	8-94225-185-0	01	1	0712-0801
645	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	0802-0811
645	CLIP; HARNESS EURO4 SPECIFICATION<NT4> ID=18 L=44	8-97367-985-1	01	1	0812-1308
645	CLIP; HARNESS ID=18 L=44	8-97367-985-1	01	1	1309-

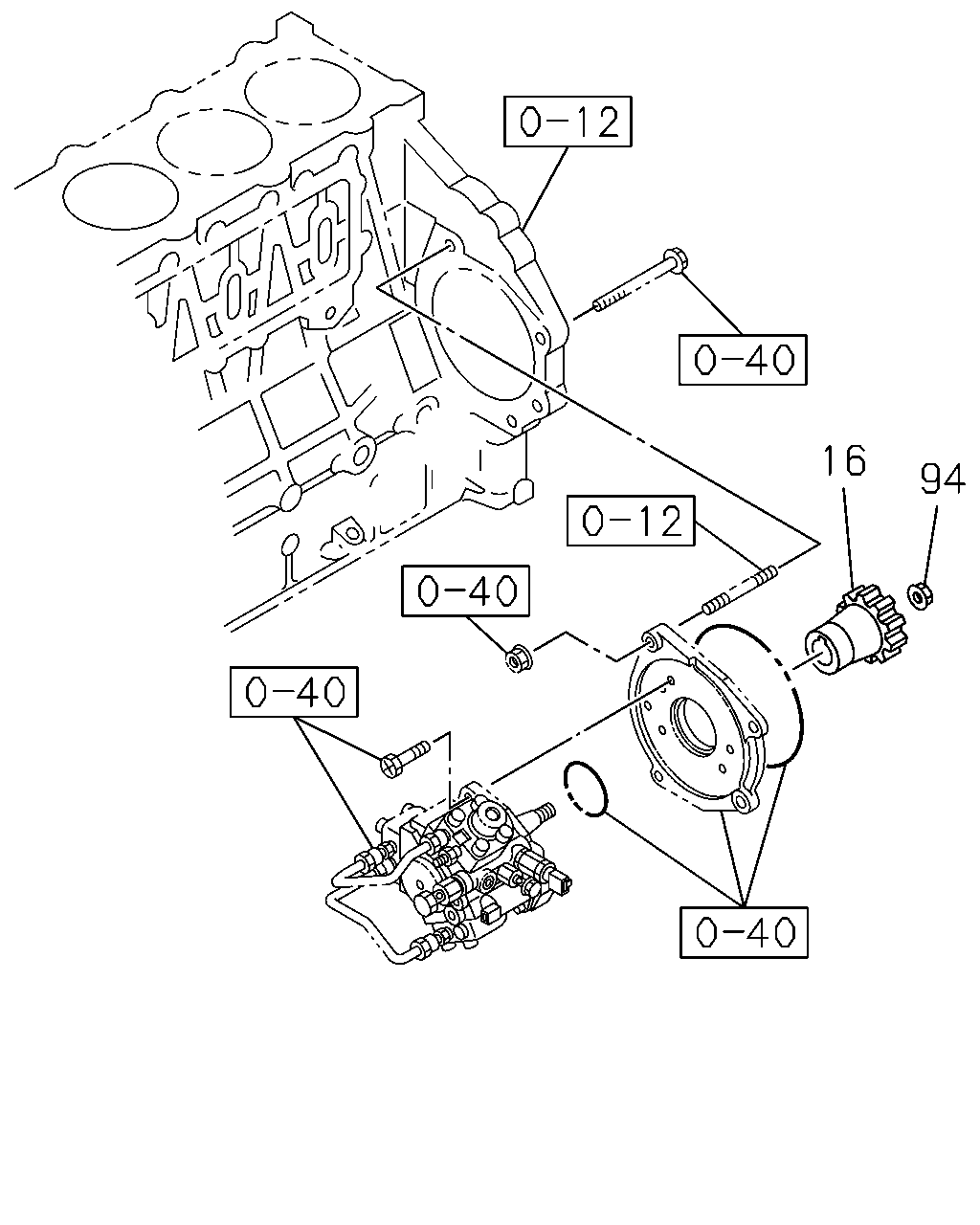

16 94

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	16	GEAR; INJ PUMP DRIVE Z=35	8-97601-153-1	01	1	0712-
	94	NUT; GEAR M14 FLANGE	0-91180-214-0	01	1	0712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
