0-12 — CYLINDER BLOCK (#66634) — 72 parça

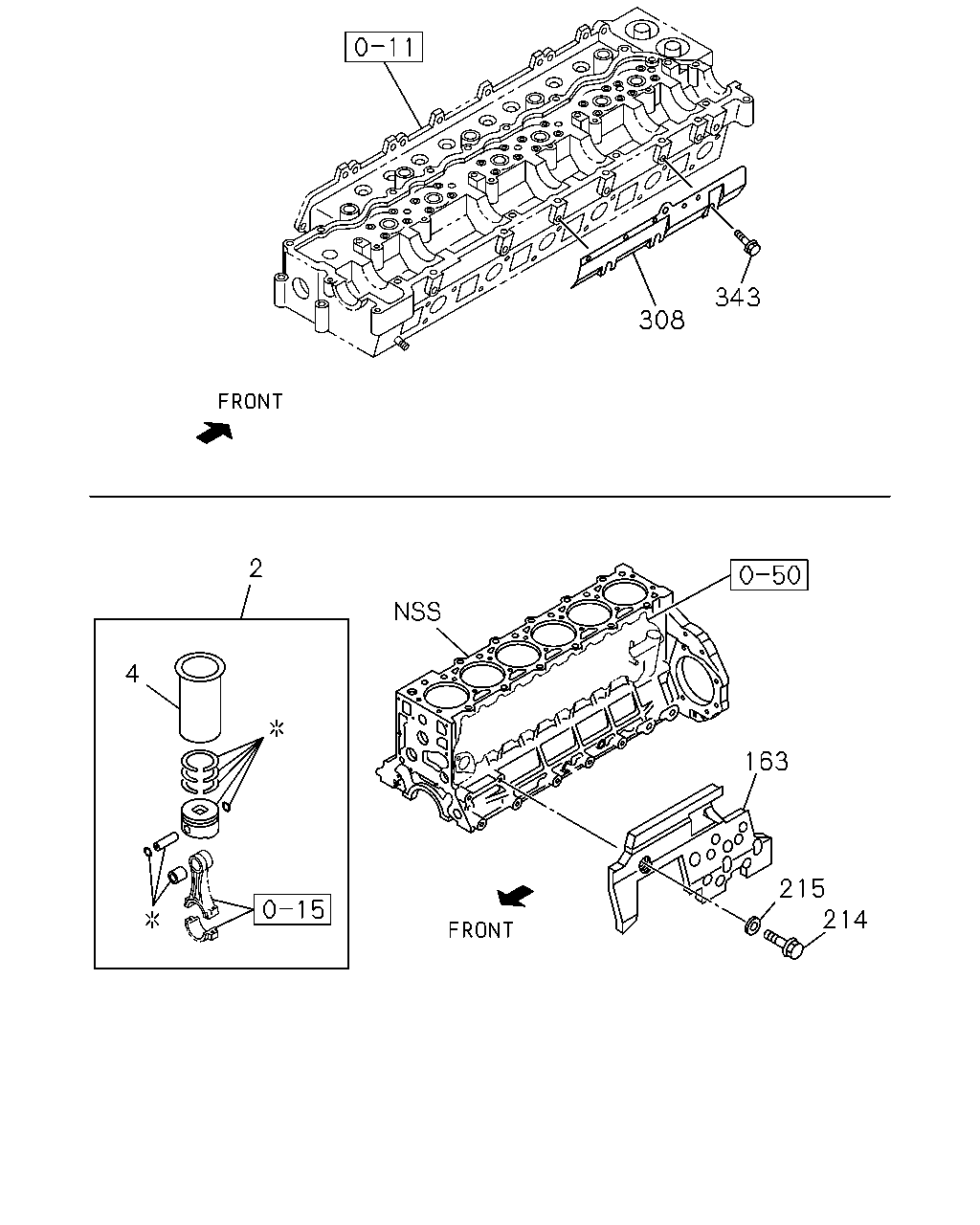

308 343 2 4 215 214 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	0712-
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	0712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0712-
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	0712-0811
163	COVER ASM; C/BL SKIRT EURO4 SPECIFICATION<NT4>	8-97601-248-0	01	1	0812-
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	0712-0811
214	BOLT; NOISE COVER EURO4 SPECIFICATION<NT4> M10X16 FLANGE	0-28151-016-0	03	1	0812-
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	0712-0811
215	WASHER; PL,NOISE COVER EURO4 SPECIFICATION<NT4> ID=10.5 OD=32	0-91614-810-0	02	1	0812-
308	PROTECTOR; HEAT,HD COVER EURO2 SPECIFICATION<NT2>	8-94390-997-0	01	1	0812-
343	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> M8X12 FLANGE	0-28050-812-0	03	1	0812-

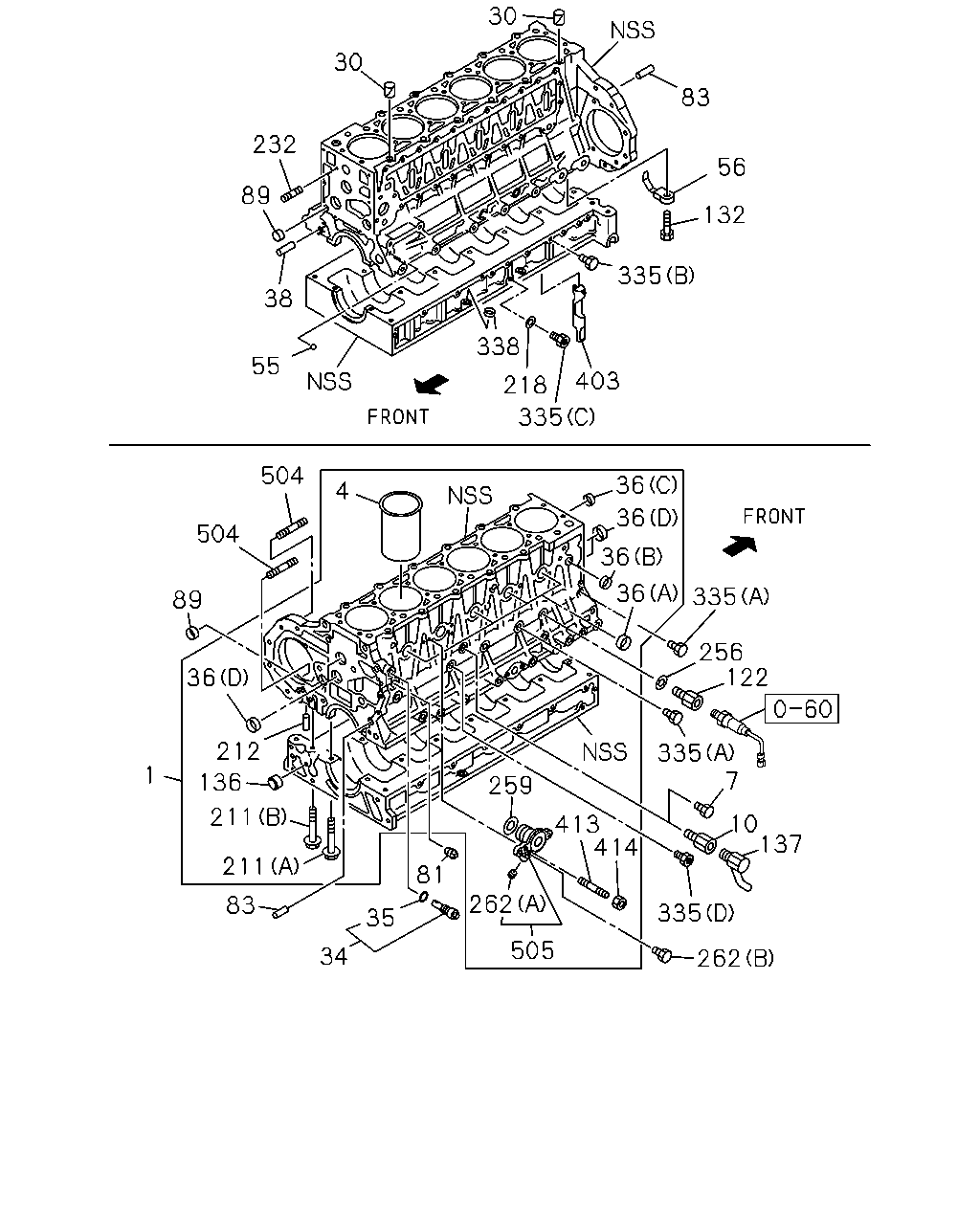

30 30 83 232 56 89 132 335 38 338 55 403 218 335 504 36 4 36 36 504 36 335 89 256 122 36 212 335 7 259 1 136 211 10 137 413 414 211 81 262 83 335 35 505 34 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-97618-663-3	01	1	0812-1209
1	BLOCK ASM; CYL EURO2 SPECIFICATION<NT2>	8-98206-966-0	01	1	1210-
1	BLOCK ASM; CYL	8-97618-664-1	01	1	0802-0811
1	BLOCK ASM; CYL EURO4 SPECIFICATION<NT4>	8-97618-664-3	01	1	0812-1209
1	BLOCK ASM; CYL EURO4 SPECIFICATION<NT4>	8-98206-967-0	01	1	1210-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	0712-
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	0712-
7	PLUG; WATER DRAIN EURO2 SPECIFICATION<NT2> M14X16.5	8-97329-617-0	01	1	1101-
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	0712-1012
10	CONNECTOR; WATER DRAIN EURO4 SPECIFICATION<NT4>	8-94396-378-0	01	1	1101-
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	0712-
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	0712-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0712-
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	0712-
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	0712-
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	0712-
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	0712-
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	0712-
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	0712-
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	0712-
56	JET; OIL,PISTON COOLING	8-98020-649-0	06	1	0712-1007
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1008-
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	0712-
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	0712-
89	CUP; SEALING,OIL GALLERY OD=20	9-11219-192-0	03	1	0712-0908
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0909-
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	0712-
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	0712-
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0712-0812
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	0712-1012
137	COCK; DRAIN,WATER EURO4 SPECIFICATION<NT4>	8-94393-716-1	01	1	1101-
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-94396-207-3	14	1	0712-0905
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	0906-
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	0712-
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0712-
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	0712-1312
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	0712-
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	0712-
259	GASKET; ADAPTER ID=38.7	1-09623-184-0	01	1	0712-
262	PLUG; ADAPTER EURO4 SPECIFICATION<NT4> (A)	1-13163-002-0	01	1	1101-
262	PLUG; ADAPTER EURO4 SPECIFICATION<NT4> (B) M14	8-94399-225-0	01	1	1101-
262	PLUG; ADAPTER EURO2 SPECIFICATION<NT2> (A) M14X14	9-09862-156-0	01	1	0812-
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	0712-
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	0712-
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	0712-
335	PLUG; C/BL,SIDE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M14 M10	8-94396-547-0	01	1	0712-0811
335	PLUG; C/BL,SIDE EURO4 SPECIFICATION<NT4> POWER TAKE OFF-FLYWHEEL(6SZ) (D) M14 M10	8-94396-547-0	01	1	0812-
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	0712-
403	GUIDE; GALLERY	8-94395-351-1	01	1	0712-
413	STUD; ADAPTER M8 FLANGE	0-91180-208-0	02	1	0712-1012
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1101-
414	NUT; ADAPTER M8X30 L=41	0-41010-830-0	02	1	0712-1012
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1101-
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0712-
505	ADAPTER; WATER FEED EURO2 SPECIFICATION<NT2>	8-97611-854-0	01	1	0812-
505	ADAPTER; WATER FEED	8-97607-409-0	01	1	0712-0811
505	ADAPTER; WATER FEED EURO4 SPECIFICATION<NT4>	8-97607-409-0	01	1	0812-1012
505	ADAPTER; WATER FEED EURO4 SPECIFICATION<NT4>	8-98145-412-1	01	1	1101-
