Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#66613) — 539 parça

48 48 48 48 48 48 48 48 48 48 305 305 305 305 305 305 305 305 306 16 16 16 16 16 16 16 16 16 581 223 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

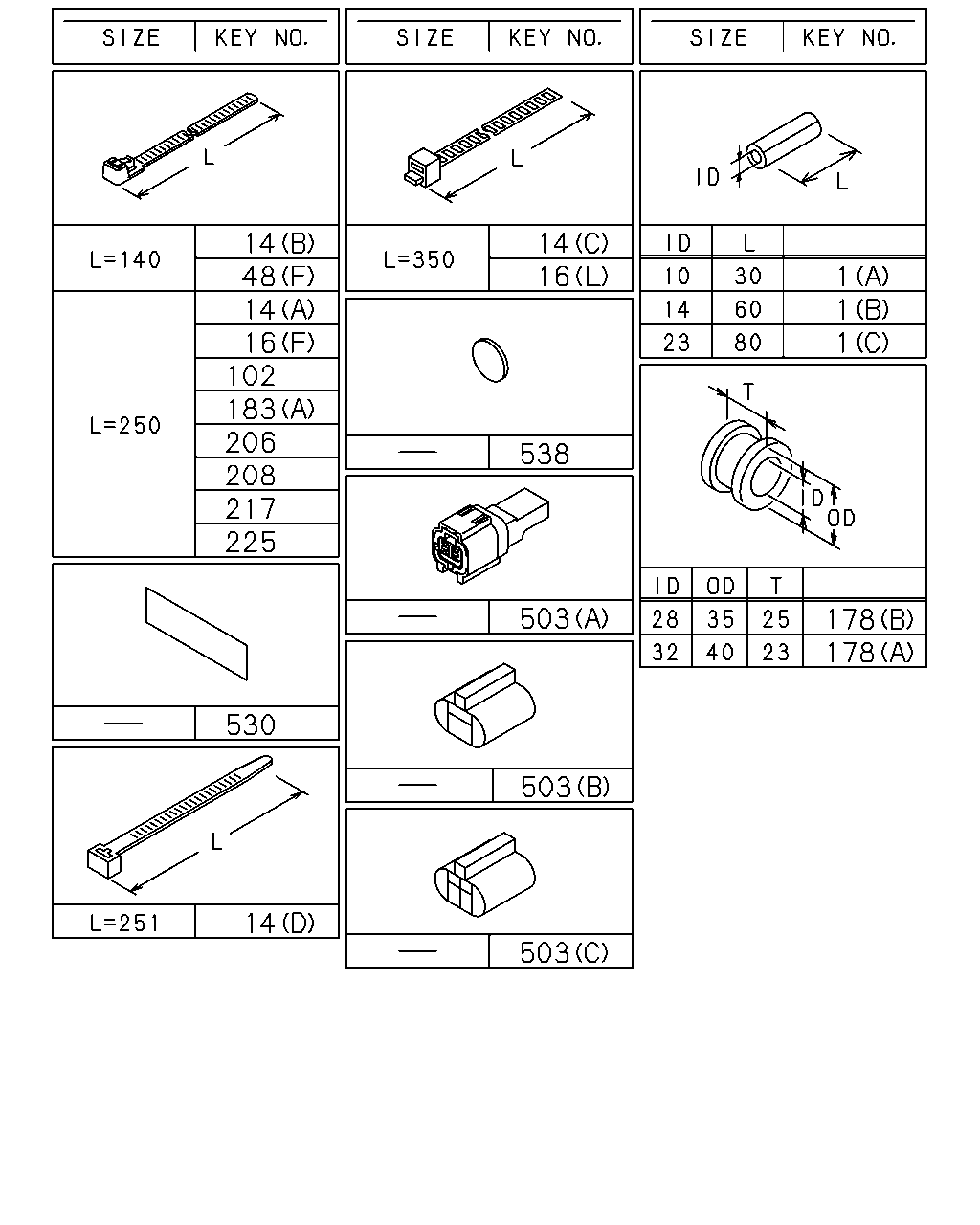

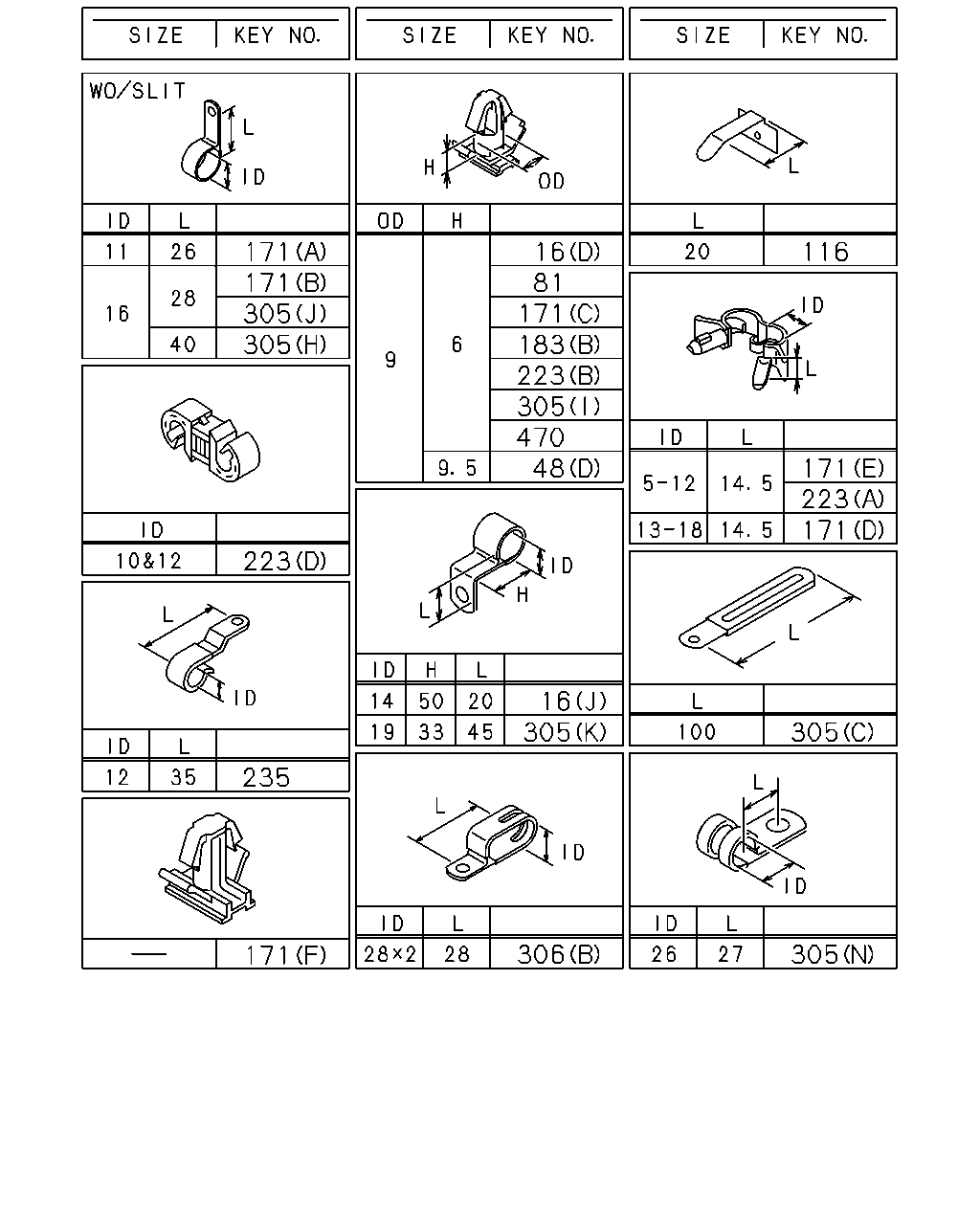

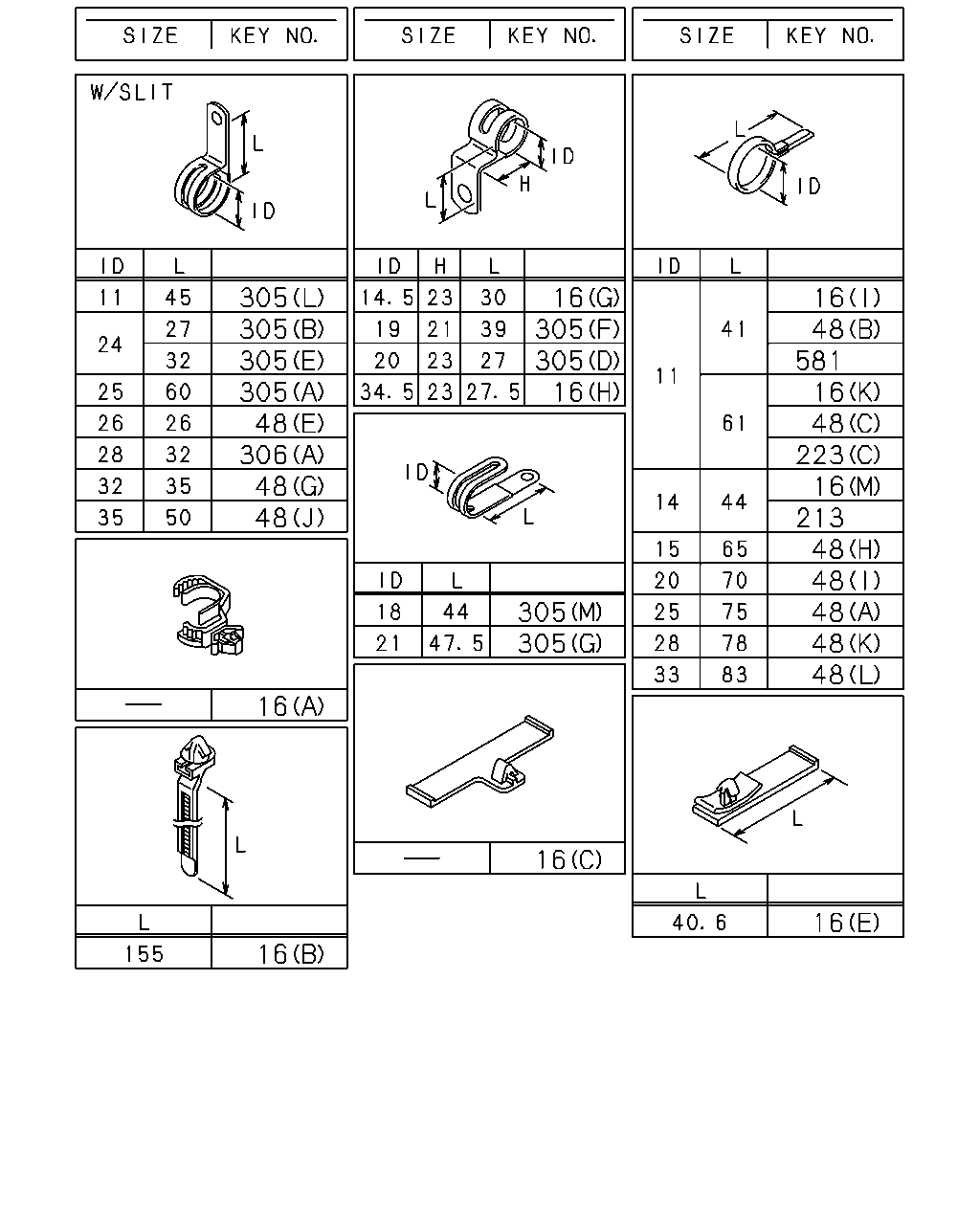

16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> (L) L=350	1-09707-183-0	01	1	0912-1001
16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (L) L=350	1-09707-183-0	01	1	0903-0907
16	CLIP; HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	0809-1011
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1012-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=11 L=41	1-09700-403-0	03	1	0809-0812
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=11 L=41	1-09700-403-0	03	1	0901-0905
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (I) ID=11 L=41	1-09700-403-0	03	1	0901-0905
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (I) ID=11 L=41	1-09700-403-0	03	1	0906-1007
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (M) ID=14 L=44	9-09917-427-0	03	1	1008-
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I) ID=20 L=70	1-09700-485-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (H) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	04	1	1008-1510
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	04	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	04	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0903-0905
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0906-1007
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	04	1	0906-1007
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	04	1	1008-1011
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (I) ID=20 L=70	1-09700-485-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	15	1	0901-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	13	1	1008-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=26 L=26	1-09701-236-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=32 L=35	1-09701-244-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (B) ID=11 L=41	1-09700-403-0	05	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	04	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=15 L=65	1-09700-466-0	01	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> (H) ID=15 L=65	1-09700-466-0	01	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	01	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (C) ID=11 L=61	1-09700-484-0	06	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=33 L=83	1-09701-291-0	03	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (L) ID=33 L=83	1-09701-291-0	03	1	1511-
48	CLIP; FRAME HARNESS ECUADOR EQUIPMENT(E46) (L) ID=33 L=83	1-09701-291-0	03	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (A) ID=25 L=75	1-09701-275-0	02	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (K) ID=28 L=78	1-09700-858-0	02	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (K) ID=28 L=78	1-09700-858-0	02	1	1511-
48	CLIP; FRAME HARNESS ECUADOR EQUIPMENT(E46) (K) ID=28 L=78	1-09700-858-0	02	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	04	1	0809-0812
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	04	1	0901-0902
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0901-0902
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	03	1	0903-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	12	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	05	1	1008-1510
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	05	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	05	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	13	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	14	1	0811-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	15	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	16	1	0811-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	08	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (I) ID=20 L=70	1-09700-485-0	18	1	0809-0812
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	18	1	0901-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	09	1	1008-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0809-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=10 & 12	1-09709-278-1	01	1	0809-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-0902
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0903-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (C) ID=11 L=61	1-09700-484-0	01	1	0809-0905
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=11 L=61	1-09700-484-0	01	1	0906-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	0901-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	0901-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (L) ID=11 L=45	8-94296-897-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	0901-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	0809-0812
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	0901-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0812
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	0901-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (N) ID=26 L=27	1-09701-006-0	01	1	1102-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-0812
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0901-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0901-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1101
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-
581	CLIP; HARNESS,REAR SUSP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) ID=11 L=41	1-09700-403-0	04	1	0809-0905

38 38 139 150 313 38 139 313 139 313 38 139 139 304 304 139 304 304 516 304 313 38 38 386 516 377 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

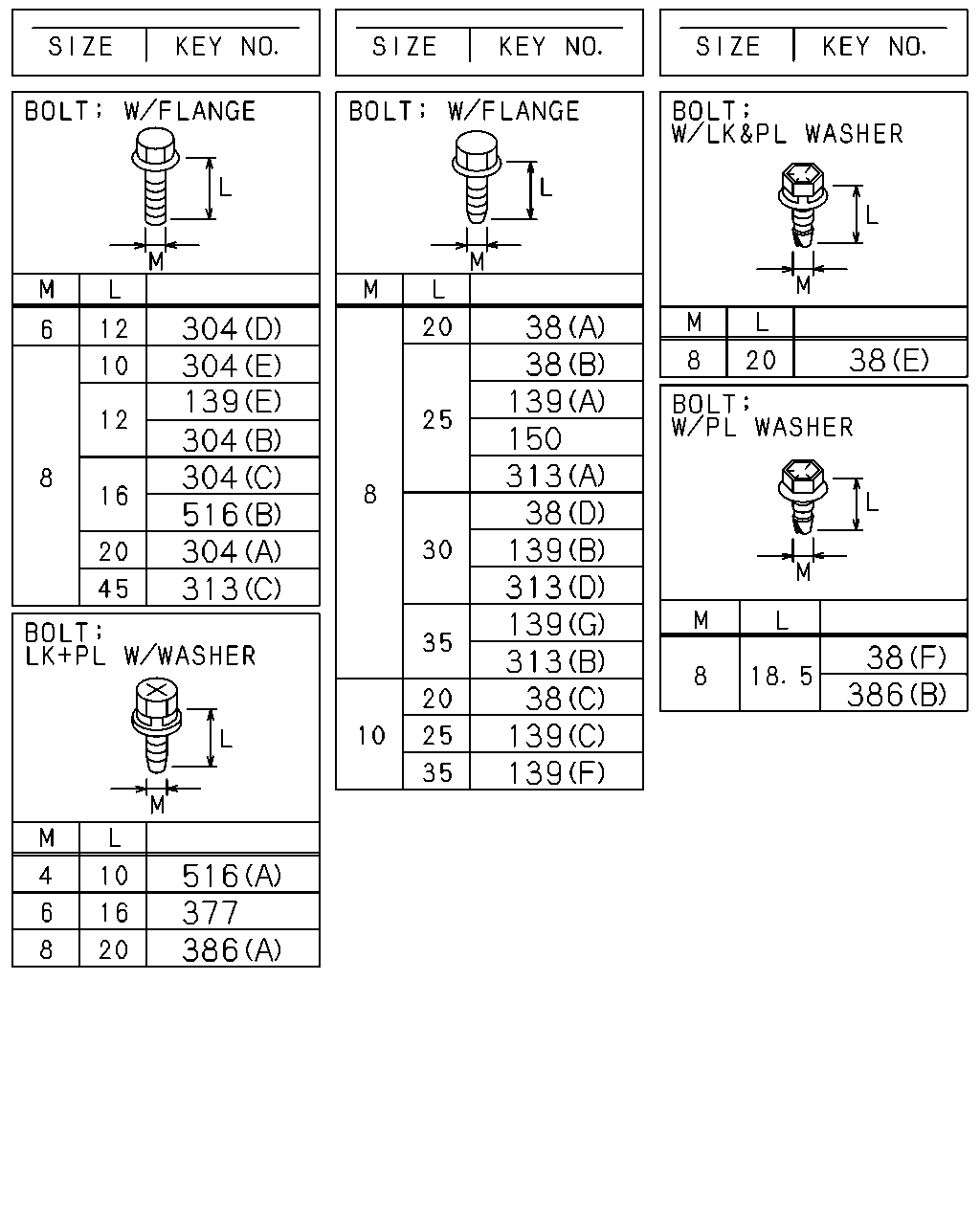

38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0809-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	04	1	0809-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0809-
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0809-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS MLD6W M/T(Y2C) (C) M10X20 FLANGE	0-28751-020-0	01	1	0809-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0906
139	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0906
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-0810
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (G) M8X35 FLANGE	0-28650-835-0	01	1	0809-0905
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	0906-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0809-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) M8X10 FLANGE	0-28050-810-0	01	1	1102-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (D) M6X12 FLANGE	0-28050-612-0	01	1	0901-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (E) M8X10 FLANGE	0-28050-810-0	01	1	0901-1010
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (B) M8X12 FLANGE	0-28050-812-0	03	1	0901-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (C) M8X16 FLANGE	0-28050-816-0	03	1	0901-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	0901-1101
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28050-820-0	01	1	1102-
304	BOLT; ENG HARNESS CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28050-820-0	01	1	1102-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-0812
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	0901-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	05	1	0809-0812
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	05	1	0901-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-0812
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	0901-
313	BOLT; BRKT (C) M8X45 FLANGE	0-28050-845-0	01	1	0809-
313	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
313	BOLT; BRKT (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
313	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (D) M8X30 FLANGE	0-28650-830-0	04	1	0809-0905
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0809-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0809-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (A) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0809-
516	BOLT; HARNESS MLD6W M/T(Y2C) (B) M8X16 FLANGE	0-28050-816-0	02	1	0809-

171 171 305 305 16 81 171 183 223 305 470 48 116 171 223 171 223 16 305 305 235 306 305 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> (L) L=350	1-09707-183-0	01	1	0912-1001
16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (L) L=350	1-09707-183-0	01	1	0903-0907
16	CLIP; HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	0809-1011
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1012-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=11 L=41	1-09700-403-0	03	1	0809-0812
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=11 L=41	1-09700-403-0	03	1	0901-0905
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (I) ID=11 L=41	1-09700-403-0	03	1	0901-0905
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (I) ID=11 L=41	1-09700-403-0	03	1	0906-1007
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (M) ID=14 L=44	9-09917-427-0	03	1	1008-
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I) ID=20 L=70	1-09700-485-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (H) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	04	1	1008-1510
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	04	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	04	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0903-0905
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0906-1007
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	04	1	0906-1007
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	04	1	1008-1011
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (I) ID=20 L=70	1-09700-485-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	15	1	0901-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	13	1	1008-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=26 L=26	1-09701-236-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=32 L=35	1-09701-244-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (B) ID=11 L=41	1-09700-403-0	05	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	04	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=15 L=65	1-09700-466-0	01	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> (H) ID=15 L=65	1-09700-466-0	01	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	01	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (C) ID=11 L=61	1-09700-484-0	06	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=33 L=83	1-09701-291-0	03	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (L) ID=33 L=83	1-09701-291-0	03	1	1511-
48	CLIP; FRAME HARNESS ECUADOR EQUIPMENT(E46) (L) ID=33 L=83	1-09701-291-0	03	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (A) ID=25 L=75	1-09701-275-0	02	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (K) ID=28 L=78	1-09700-858-0	02	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (K) ID=28 L=78	1-09700-858-0	02	1	1511-
48	CLIP; FRAME HARNESS ECUADOR EQUIPMENT(E46) (K) ID=28 L=78	1-09700-858-0	02	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	04	1	0809-0812
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	04	1	0901-0902
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0901-0902
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	03	1	0903-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	12	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	05	1	1008-1510
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	05	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	05	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	13	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	14	1	0811-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	15	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	16	1	0811-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	08	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (I) ID=20 L=70	1-09700-485-0	18	1	0809-0812
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	18	1	0901-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	09	1	1008-
81	CLIP; HARNESS MZX6P M/T(RSW),MLD6W M/T(Y2C) H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0809-0906
81	CLIP; HARNESS H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	0907-1010
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1011-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-0809
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0809-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0809-0810
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=9 H=6	1-09709-178-0	01	1	0809-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) ID=10 & 12	1-09709-278-1	01	1	0809-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-0902
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-1005
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1012-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0811
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	0903-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=5-12 L=14.5	1-09987-221-0	02	1	1012-
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (C) ID=11 L=61	1-09700-484-0	01	1	0809-0905
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) ID=11 L=61	1-09700-484-0	01	1	0906-1011
223	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6W M/T(Y2C) ID=12 L=35	5-09700-206-0	01	1	0809-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	0901-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (K) ID=19 H=33 L=45	1-09701-045-0	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (L) ID=11 L=45	8-94296-897-1	01	1	0901-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (L) ID=11 L=45	8-94296-897-1	01	1	1102-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> (M) ID=18 L=44	8-97367-985-1	01	1	0901-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0809-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	0809-
305	CLIP; ENG HARNESS (E) ID=24 L=32	1-09700-766-1	01	1	0809-
305	CLIP; ENG HARNESS (B) ID=24 L=27	1-09700-809-0	03	1	0809-0812
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (B) ID=24 L=27	1-09700-809-0	03	1	0901-
305	CLIP; ENG HARNESS (D) ID=20 H=23 L=27	1-09700-861-0	01	1	0809-
305	CLIP; ENG HARNESS (F) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-0812
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (F) ID=19 L=39 H=21	1-09700-972-1	01	1	0901-1101
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (N) ID=26 L=27	1-09701-006-0	01	1	1102-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-
305	CLIP; ENG HARNESS (I) OD=9 H=6	1-09709-178-0	01	1	0809-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-0812
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0901-
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0901-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1101
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1102-1310
305	CLIP; ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) L=100	8-94443-021-1	01	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	0809-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0809-

14 48 14 16 102 183 206 208 217 225 14 16 1 1 1 538 503 178 178 530 503 14 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0901-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-0812
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0901-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-0812
1	SLEEVE; RUBBER EURO3 SPECIFICATION<NT3> (C) ID=23 OD=27 L=80	8-97608-976-0	06	1	0901-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (A) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	12	1	1102-1104
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	13	1	1105-1205
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (D) L=251	8-97619-917-0	01	1	0910-
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	14	1	0901-0909
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> (A) L=250	5-09707-030-1	13	1	0910-1101
14	CLIP; BAND,HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) L=250	5-09707-030-1	13	1	1102-1104
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	0809-
14	CLIP; BAND,HARNESS (A) L=250	5-09707-030-1	08	1	0809-0812
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=250	5-09707-030-1	08	1	0901-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (A) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	0809-1109
16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> (L) L=350	1-09707-183-0	01	1	0912-1001
16	CLIP; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (L) L=350	1-09707-183-0	01	1	0903-0907
16	CLIP; HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	0809-0810
16	CLIP; HARNESS (J) ID=14 H=50 L=20	1-09700-843-0	02	1	0809-
16	CLIP; HARNESS (G) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0809-
16	CLIP; HARNESS (H) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0809-
16	CLIP; HARNESS (F) L=250	5-09707-030-1	05	1	0809-0810
16	CLIP; HARNESS (F) L=250	5-09707-030-1	04	1	0811-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	0809-1011
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) OD=9 H=6	1-09709-178-0	01	1	1012-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (E) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (E) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=11 L=41	1-09700-403-0	03	1	0809-0812
16	CLIP; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=11 L=41	1-09700-403-0	03	1	0901-0905
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (I) ID=11 L=41	1-09700-403-0	03	1	0901-0905
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (I) ID=11 L=41	1-09700-403-0	03	1	0906-1007
16	CLIP; HARNESS CHILE EQUIPMENT(KE1) (M) ID=14 L=44	9-09917-427-0	03	1	1008-
48	CLIP; FRAME HARNESS (L) ID=33 L=83	1-09701-291-0	01	1	1306-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (I) ID=20 L=70	1-09700-485-0	03	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (H) ID=15 L=65	1-09700-466-0	05	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (H) ID=15 L=65	1-09700-466-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	04	1	1008-1510
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	04	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	04	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	07	1	1008-
48	CLIP; FRAME HARNESS (I) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (H) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0903-0905
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0906-1007
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	04	1	0906-1007
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	04	1	1008-1011
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (I) ID=20 L=70	1-09700-485-0	04	1	1012-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	15	1	0901-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (H) ID=15 L=65	1-09700-466-0	13	1	1008-
48	CLIP; FRAME HARNESS (J) ID=35 L=50	1-09701-214-0	01	1	0809-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=11 L=41	1-09700-403-0	02	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) ID=26 L=26	1-09701-236-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G) ID=32 L=35	1-09701-244-0	01	1	0809-0810
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (B) ID=11 L=41	1-09700-403-0	05	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (B) ID=11 L=41	1-09700-403-0	01	1	0906-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	04	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (H) ID=15 L=65	1-09700-466-0	01	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> (H) ID=15 L=65	1-09700-466-0	01	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (H) ID=15 L=65	1-09700-466-0	01	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (C) ID=11 L=61	1-09700-484-0	06	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (L) ID=33 L=83	1-09701-291-0	03	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (L) ID=33 L=83	1-09701-291-0	03	1	1511-
48	CLIP; FRAME HARNESS ECUADOR EQUIPMENT(E46) (L) ID=33 L=83	1-09701-291-0	03	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (A) ID=25 L=75	1-09701-275-0	02	1	0809-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (K) ID=28 L=78	1-09700-858-0	02	1	0906-1510
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. ECUADOR EQUIPMENT(E46) (K) ID=28 L=78	1-09700-858-0	02	1	1511-
48	CLIP; FRAME HARNESS ECUADOR EQUIPMENT(E46) (K) ID=28 L=78	1-09700-858-0	02	1	1511-
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	04	1	0809-0812
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	04	1	0901-0902
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	04	1	0901-0902
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	03	1	0903-0905
48	CLIP; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (I) ID=20 L=70	1-09700-485-0	01	1	0906-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	12	1	0809-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	05	1	1008-1510
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) (I) ID=20 L=70	1-09700-485-0	05	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 3900MM(39W) ECUADOR EQUIPMENT(E46) (I) ID=20 L=70	1-09700-485-0	05	1	1511-
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	13	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	14	1	0811-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4200MM(42W) (I) ID=20 L=70	1-09700-485-0	06	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	15	1	0809-0810
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	16	1	0811-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4600MM(46W) (I) ID=20 L=70	1-09700-485-0	08	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (I) ID=20 L=70	1-09700-485-0	18	1	0809-0812
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	18	1	0901-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) EXC. CHILE EQUIPMENT(KE1) (I) ID=20 L=70	1-09700-485-0	09	1	1008-
102	CLIP; BAND H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0809-0901
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	0809-
178	GROMMET; HARNESS (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	0809-1102
178	GROMMET; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1103-1110
178	GROMMET; HARNESS MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1103-1110
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CHILE EQUIPMENT(KE1) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1103-1110
178	GROMMET; HARNESS MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1111-1510
178	GROMMET; HARNESS EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1111-1510
178	GROMMET; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. PERU EQUIPMENT(E07) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1511-
178	GROMMET; HARNESS MLD6W M/T(Y2C) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1511-
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1511-
178	GROMMET; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (A) ID=32 OD=40 T=23	1-09332-112-0	01	1	1511-
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	0809-1102
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1103-1110
178	GROMMET; HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1103-1110
178	GROMMET; HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1111-
178	GROMMET; HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) PERU EQUIPMENT(E07),CHILE EQUIPMENT(KE1) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1111-
178	GROMMET; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PERU EQUIPMENT(E07) (B) ID=28 OD=35 T=25	1-09332-011-1	01	1	1111-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) L=250	5-09707-030-1	01	1	0809-
183	CLIP; CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6	1-09709-178-0	01	1	0809-0810
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0809-
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	01	1	0809-0905
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) L=250	5-09707-030-1	01	1	0809-0905
208	CLIP; HARNESS,MAG VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	01	1	0906-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	01	1	0812-0812
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0809-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=250	5-09707-030-1	03	1	0809-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) L=250	5-09707-030-1	01	1	0809-0905
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0809-0905
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> L=250	5-09707-030-1	01	1	0906-0907
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) L=250	5-09707-030-1	04	1	0809-0905
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	04	1	0906-1011
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	04	1	1012-
225	CLIP; AIR TANK HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> L=250	5-09707-030-1	04	1	1012-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0809-1104
503	CONNECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	1-82690-668-0	01	1	1105-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	1105-
503	CONNECTOR EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	0809-1011
503	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	1012-1405
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0809-0810
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0809-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0809-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0809-

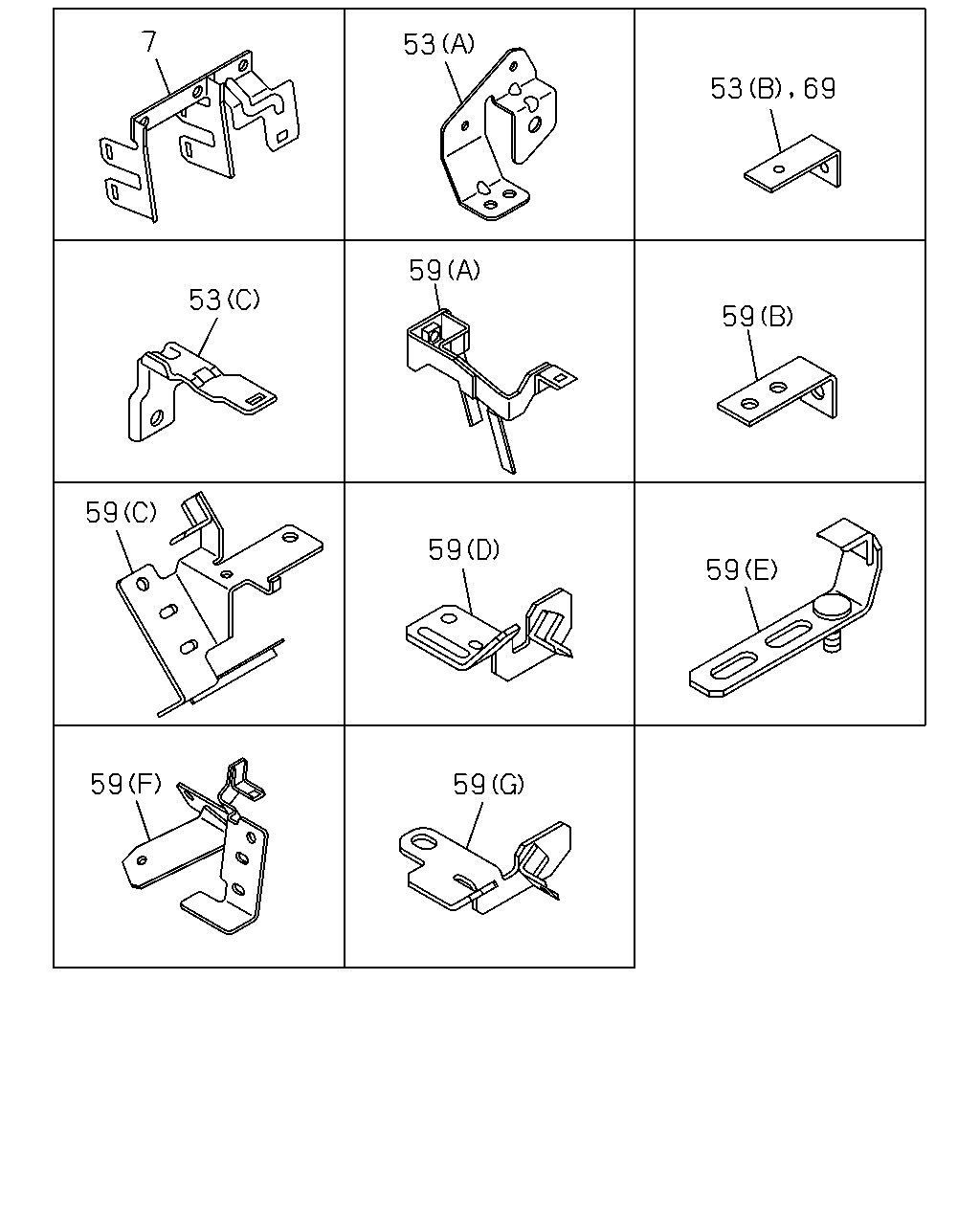

7 53 53 69 53 59 59 59 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0809-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	0809-
53	BRACKET; HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (B) L=95	1-82699-085-0	04	1	0809-0905
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0809-1502
59	BRACKET; FRAME HARNESS (G)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0809-0812
59	BRACKET; FRAME HARNESS (C)	8-97620-482-1	01	1	0901-0905
59	BRACKET; FRAME HARNESS (F)	8-98107-611-0	01	1	0906-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	0809-
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (B) L=62	1-21464-170-2	01	1	0809-0905
59	BRACKET; FRAME HARNESS BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=62	1-21464-170-2	01	1	0906-
59	BRACKET; FRAME HARNESS MLD6W M/T(Y2C) (A)	8-97627-325-0	01	1	0809-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW) (A)	8-97609-264-2	01	1	0809-0906
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-97609-264-2	01	1	0907-
69	BRACKET; CLIP MZX6P M/T(RSW),MLD6W M/T(Y2C) L=55	1-47475-304-0	01	1	0809-0906
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	0907-

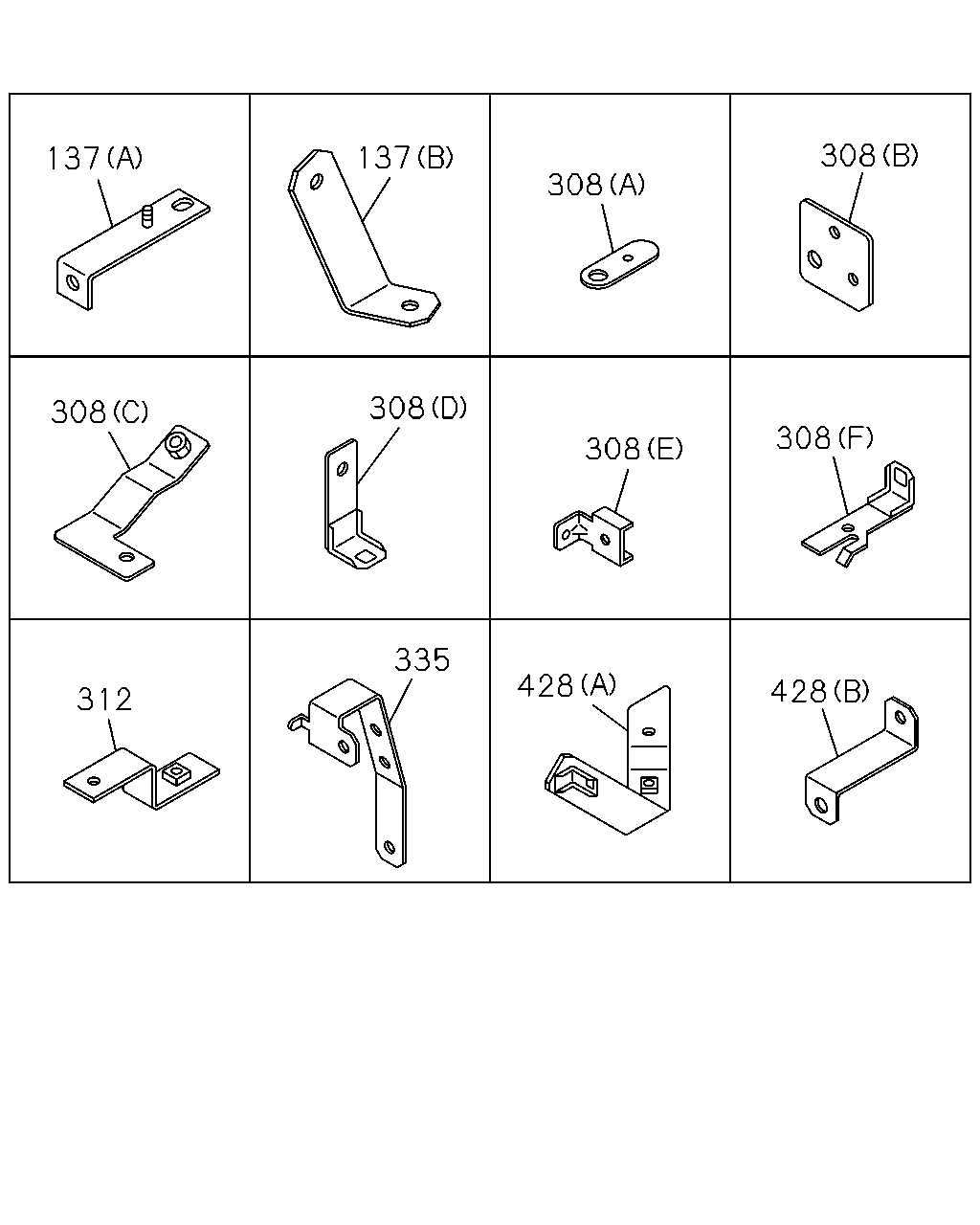

308 137 137 308 308 308 308 308 335 428 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (B)	8-97614-728-1	01	1	0809-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	1102-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97601-310-0	02	1	1102-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (A)	8-97601-310-0	03	1	0901-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-1101
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A)	8-97601-310-0	03	1	1102-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (E)	8-97614-078-0	01	1	0901-
308	BRACKET; CLIP,ENG HARNESS EURO3 SPECIFICATION<NT3> (F)	8-98021-291-2	01	1	0901-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	0809-0812
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	0901-1010
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98032-178-0	01	1	0809-0812
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (C)	8-98032-178-0	01	1	0901-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98075-824-0	01	1	0809-0812
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (D)	8-98075-824-0	01	1	0901-
312	BRACKET; CLIP HARNESS	8-97609-110-1	01	1	0809-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0809-
428	BRACKET (B)	1-47476-658-0	01	1	0809-
428	BRACKET (A)	8-97620-514-0	01	1	0809-

139 127 524 219 294 525 294 184 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0809-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0906
139	BOLT; BRKT MZX6P M/T(RSW),MLD6W M/T(Y2C) (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0906
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-0810
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0811-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT (F) M10X35 FLANGE	0-28651-035-0	01	1	0809-
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (G) M8X35 FLANGE	0-28650-835-0	01	1	0809-0905
139	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M8X35 FLANGE	0-28650-835-0	01	1	0906-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0901-1008
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1009-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-0809
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	0810-0812
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	0901-1008
184	WASHER; PL,STARTER EARTH EURO2 SPECIFICATION<NT2> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1009-
184	WASHER; PL,STARTER EARTH EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=10.5 OD=22 T=2.0	1-09503-265-0	02	1	1009-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0809-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0902-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0809-0812
294	NUT (A) M8 FLANGE	0-91180-108-0	05	1	0901-0901
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-0905
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0809-
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) (A) M8 FLANGE	0-91180-108-0	04	1	0809-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0809-0905
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (A) M8 FLANGE	0-91180-108-0	01	1	0809-0905
294	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8 FLANGE	0-91180-108-0	01	1	0906-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0809-
525	NUT; CLIP EURO3 SPECIFICATION<NT3> T=8.5 M8 FLANGE	5-09440-010-0	01	1	0901-1101
525	NUT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=8.5 M8 FLANGE	5-09440-010-0	01	1	1102-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
