◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11127 - FTR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#66612) — 637 parça

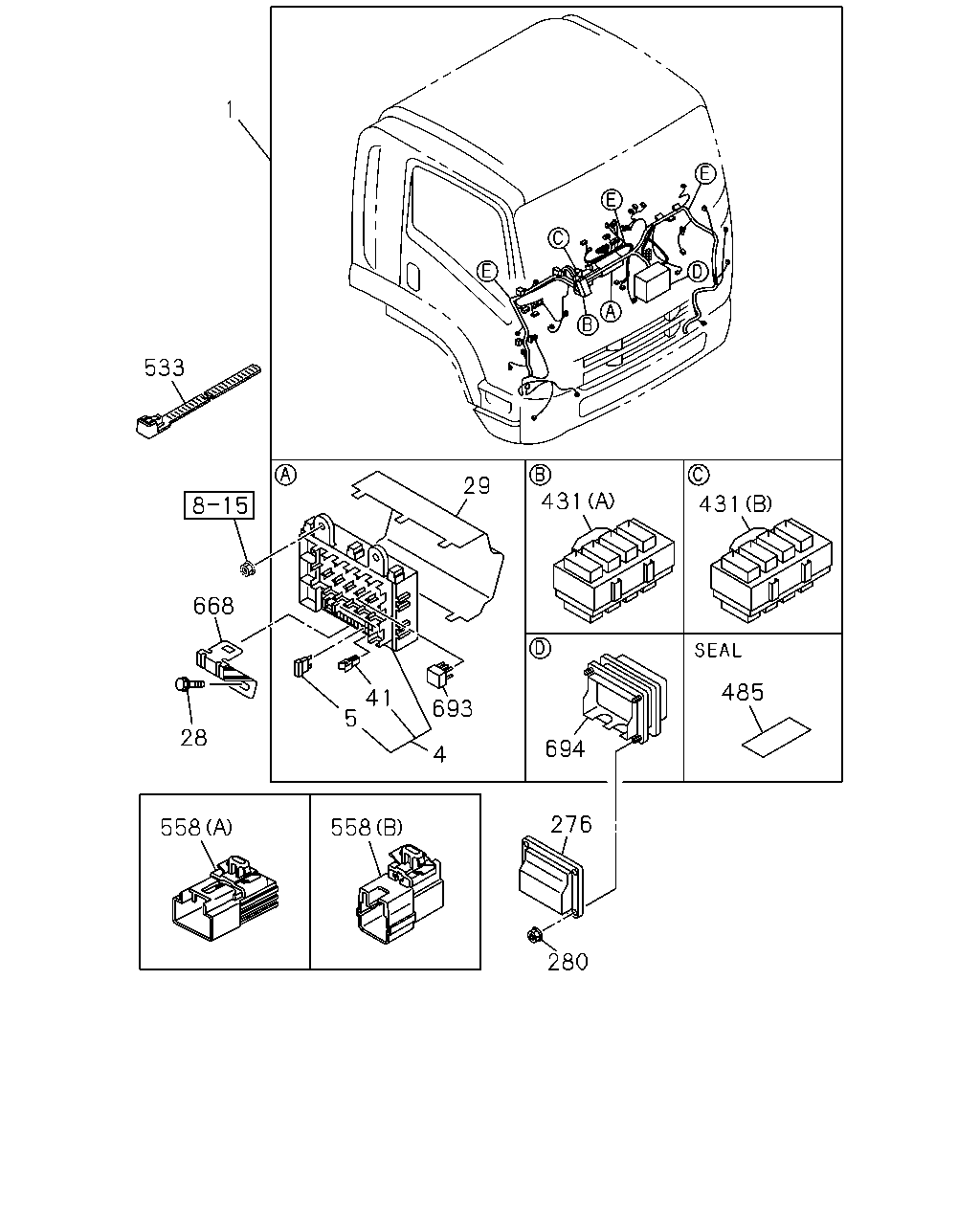

çizim 136012
1 533 431 29 431 668 485 41 5 693 28 694 4 276 558 558 280
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1109-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1210-1509
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1510-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-147-0 01 1 1101-1105
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98169-147-0 01 1 1106-1209
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> 		8-98085-077-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98169-145-0 01 1 1106-1209
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98065-666-0 01 1 0809-1012
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1101-1105
4 BOX ASM; FUSE,HARNESS
EXC. IN HOUSE PRODUCTION<TKF> 		8-98065-666-0 01 1 1106-1108
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1109-1509
4 BOX ASM; FUSE,HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1510-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 10A RED 		8-98054-257-0 AR 1 0809-1012
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1101-1105
5 FUSE; FACIA HARNESS
EXC. IN HOUSE PRODUCTION<TKF> 10A RED 		8-98054-257-0 AR 1 1106-1108
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1109-1509
5 FUSE; FACIA HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 10A RED 		8-98054-257-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 10A RED 		8-98054-257-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 10A RED 		8-98054-257-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 10A RED 		8-98054-257-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
CORNERING LAMP<T87> 10A RED 		8-98054-257-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
10A RED 		8-98054-257-0 AR 1 1510-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 15A BLUE 		8-98054-258-0 AR 1 0809-1012
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1101-1105
5 FUSE; FACIA HARNESS
EXC. IN HOUSE PRODUCTION<TKF> 15A BLUE 		8-98054-258-0 AR 1 1106-1108
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1109-1509
5 FUSE; FACIA HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 15A BLUE 		8-98054-258-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 15A BLUE 		8-98054-258-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 15A BLUE 		8-98054-258-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 15A BLUE 		8-98054-258-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
CORNERING LAMP<T87> 15A BLUE 		8-98054-258-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
15A BLUE 		8-98054-258-0 AR 1 1510-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 20A YELLOW 		8-98054-259-0 AR 1 0809-1012
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1101-1105
5 FUSE; FACIA HARNESS
EXC. IN HOUSE PRODUCTION<TKF> 20A YELLOW 		8-98054-259-0 AR 1 1106-1108
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1109-1509
5 FUSE; FACIA HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 20A YELLOW 		8-98054-259-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 20A YELLOW 		8-98054-259-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 20A YELLOW 		8-98054-259-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 20A YELLOW 		8-98054-259-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
CORNERING LAMP<T87> 20A YELLOW 		8-98054-259-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1510-1510
5 FUSE; FACIA HARNESS
20A YELLOW 		8-98054-259-0 AR 1 1510-
5 FUSE; FACIA HARNESS
HALOGEN HEADLAMPS<TT5> 25A WHITE 		8-98062-982-0 02 1 0809-1012
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1101-1105
5 FUSE; FACIA HARNESS
EXC. IN HOUSE PRODUCTION<TKF> 25A WHITE 		8-98062-982-0 02 1 1106-1108
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1109-1509
5 FUSE; FACIA HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 25A WHITE 		8-98062-982-0 02 1 1510-1510
5 FUSE; FACIA HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 25A WHITE 		8-98062-982-0 02 1 1510-1510
5 FUSE; FACIA HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 25A WHITE 		8-98062-982-0 02 1 1510-1510
5 FUSE; FACIA HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 25A WHITE 		8-98062-982-0 02 1 1510-1510
5 FUSE; FACIA HARNESS
CORNERING LAMP<T87> 25A WHITE 		8-98062-982-0 02 1 1510-1510
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1510-1510
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1510-
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE 		0-28650-616-0 01 1 0809-
29 COVER; FUSE BOX
HALOGEN HEADLAMPS<TT5> 		8-98056-968-0 01 1 0809-1012
29 COVER; FUSE BOX 8-98056-968-0 01 1 1101-1105
29 COVER; FUSE BOX
EXC. IN HOUSE PRODUCTION<TKF> 		8-98056-968-0 01 1 1106-1108
29 COVER; FUSE BOX 8-98056-968-0 01 1 1109-1509
29 COVER; FUSE BOX
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98056-968-0 01 1 1510-1510
29 COVER; FUSE BOX
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98056-968-0 01 1 1510-1510
29 COVER; FUSE BOX
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98056-968-0 01 1 1510-1510
29 COVER; FUSE BOX
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98056-968-0 01 1 1510-1510
29 COVER; FUSE BOX
CORNERING LAMP<T87> 		8-98056-968-0 01 1 1510-1510
29 COVER; FUSE BOX 8-98056-968-0 01 1 1510-1510
29 COVER; FUSE BOX 8-98056-968-0 01 1 1510-
41 PULLER; FUSE
HALOGEN HEADLAMPS<TT5> 		8-98054-260-0 01 1 0809-1012
41 PULLER; FUSE 8-98054-260-0 01 1 1101-1105
41 PULLER; FUSE
EXC. IN HOUSE PRODUCTION<TKF> 		8-98054-260-0 01 1 1106-1108
41 PULLER; FUSE 8-98054-260-0 01 1 1109-1509
41 PULLER; FUSE
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98054-260-0 01 1 1510-1510
41 PULLER; FUSE
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98054-260-0 01 1 1510-1510
41 PULLER; FUSE
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98054-260-0 01 1 1510-1510
41 PULLER; FUSE
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98054-260-0 01 1 1510-1510
41 PULLER; FUSE
CORNERING LAMP<T87> 		8-98054-260-0 01 1 1510-1510
41 PULLER; FUSE 8-98054-260-0 01 1 1510-1510
41 PULLER; FUSE 8-98054-260-0 01 1 1510-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 0809-
280 NUT; BOX ASM FIX
M6 FLANGE 		0-91180-106-0 04 1 0809-
431 CONNECTOR; JOINT

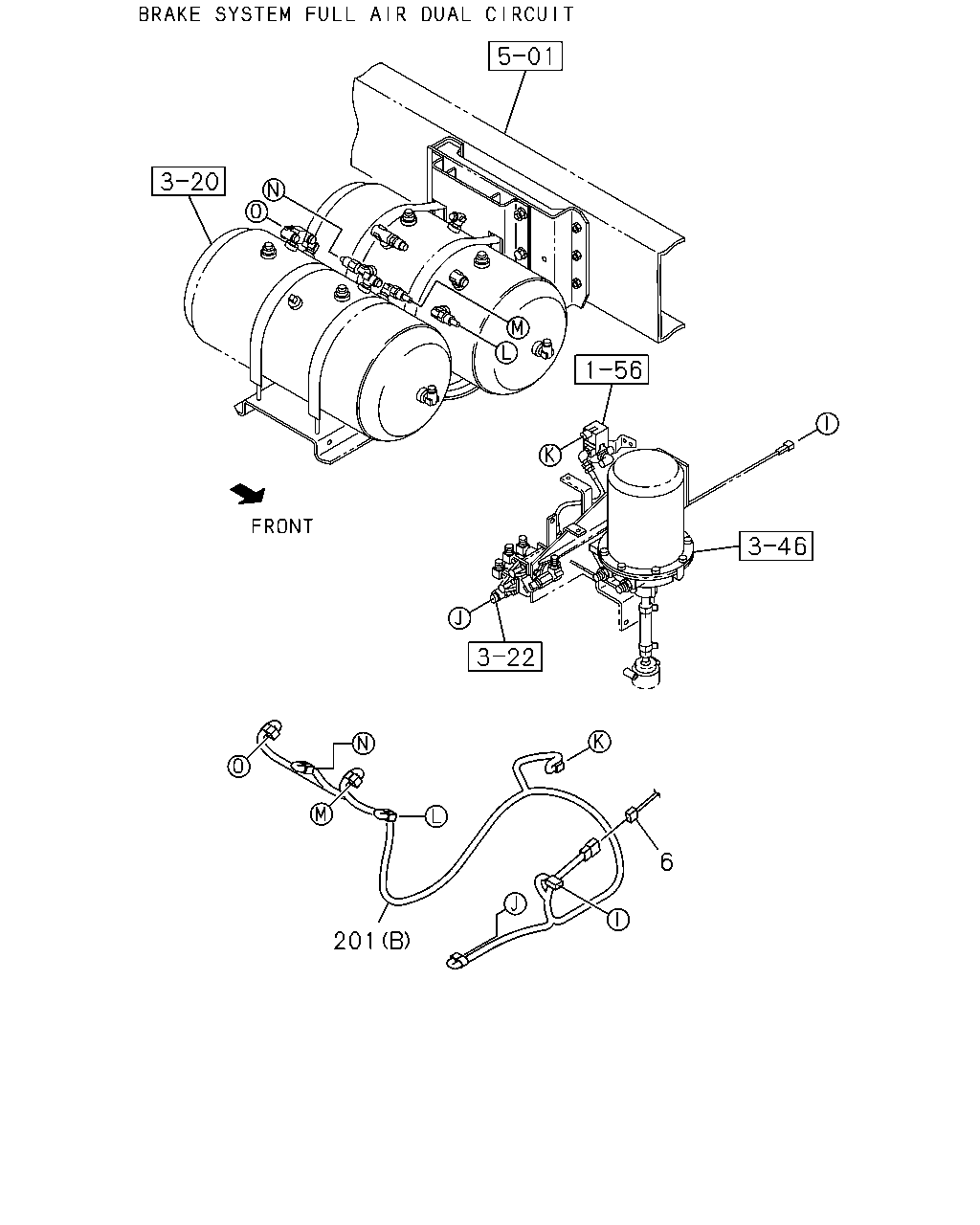

BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (H) 6P BLACK 		8-97616-194-0 02 1 1406-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0809-1405
431 CONNECTOR; JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) 6P BLACK 		8-97616-194-0 01 1 1406-
431 CONNECTOR; JOINT

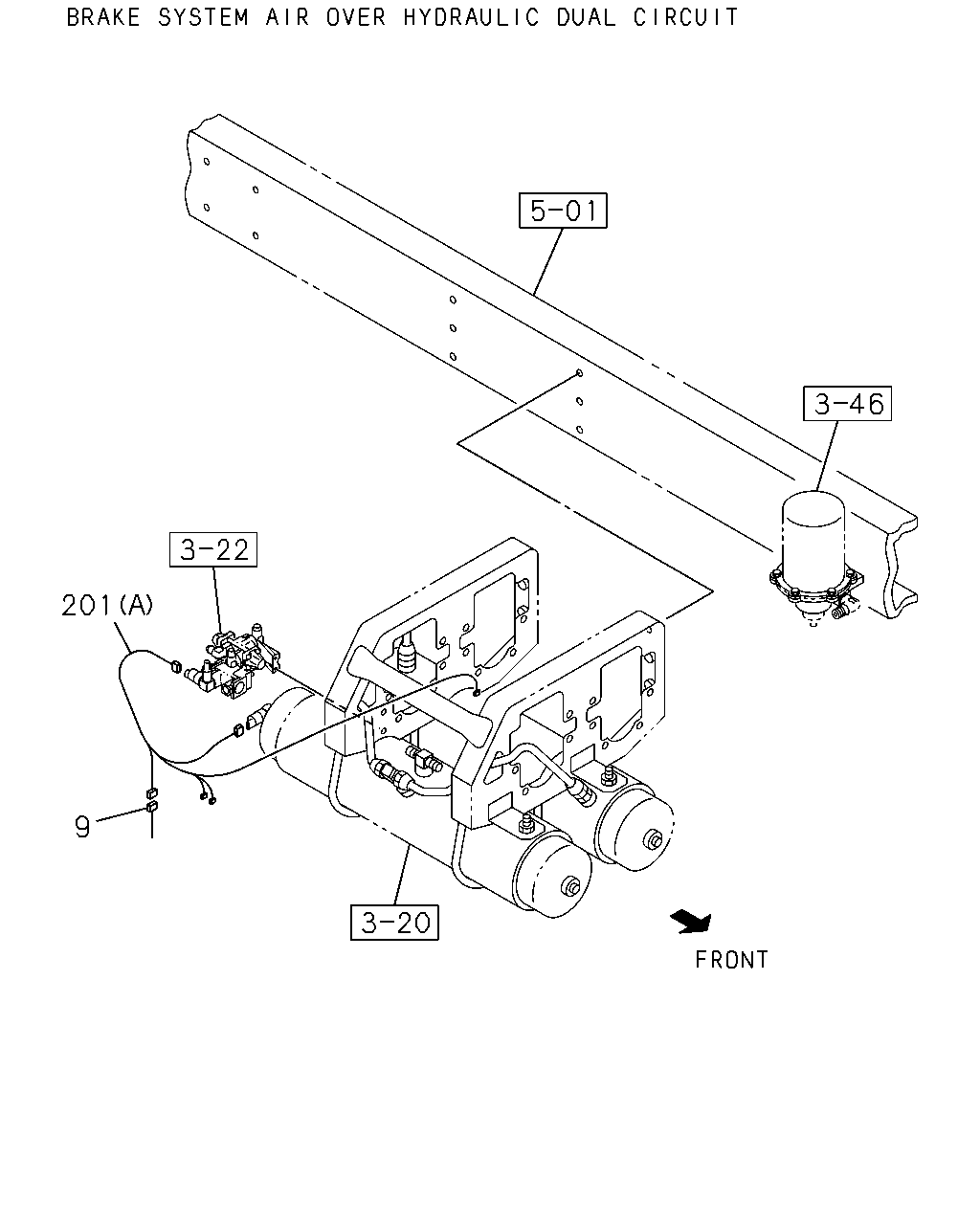

BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) 6P BLACK 		8-97616-194-0 01 1 1406-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (D) 10P BROWN 		1-82699-601-0 09 1 0809-1012
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (D) 10P BROWN 		1-82699-601-0 09 1 1106-1108
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (E) 10P 		8-97077-943-0 02 1 0809-1012
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (E) 10P 		8-97077-943-0 02 1 1106-1108
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (A) WHITE 		8-98056-374-0 01 1 0809-1012
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (A) WHITE 		8-98056-374-0 01 1 1106-1108
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (B) WHITE 		8-98056-375-0 01 1 0809-1012
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (B) WHITE 		8-98056-375-0 01 1 1106-1108
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1510-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 0909-
533 CLIP
EXC. INTERMITTENT WIPER<C13> L=100 		5-09707-036-1 01 1 0910-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 0809-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 0809-
668 BRACKET; HARNESS 8-98095-653-2 01 1 0809-

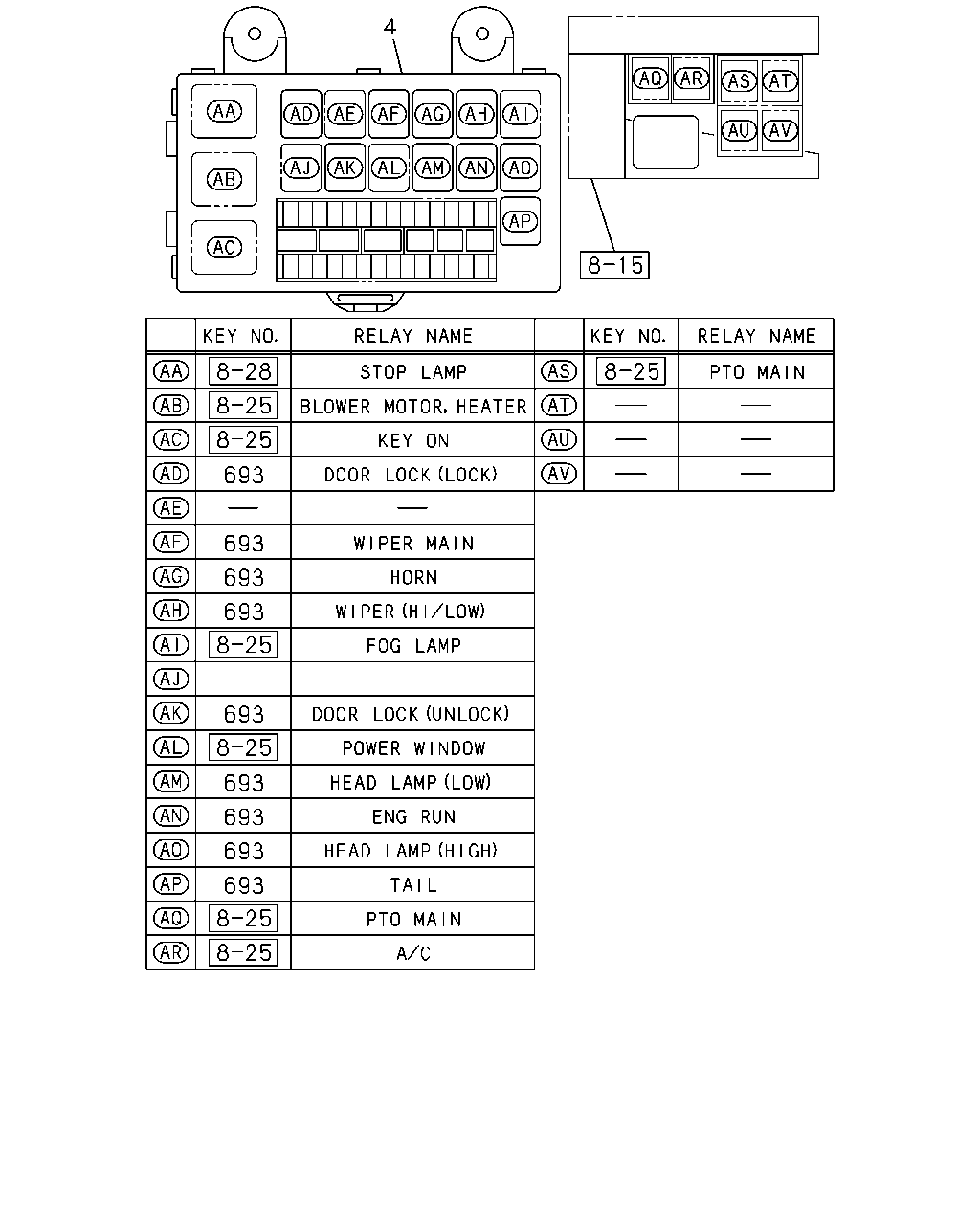

693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 0809-1012
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1101-1105
693 RELAY; FUSE BOX
EXC. IN HOUSE PRODUCTION<TKF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1106-1108
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1109-1509
693 RELAY; FUSE BOX
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-
694 BOX ASM; CONNECTOR
HALOGEN HEADLAMPS<TT5> 		8-98063-269-1 01 1 0809-1012
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1101-1105
694 BOX ASM; CONNECTOR
EXC. IN HOUSE PRODUCTION<TKF> 		8-98063-269-1 01 1 1106-1108
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1109-1509
694 BOX ASM; CONNECTOR
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98063-269-1 01 1 1510-1510
694 BOX ASM; CONNECTOR
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98063-269-1 01 1 1510-1510
694 BOX ASM; CONNECTOR
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98063-269-1 01 1 1510-1510
694 BOX ASM; CONNECTOR
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98063-269-1 01 1 1510-1510
694 BOX ASM; CONNECTOR
CORNERING LAMP<T87> 		8-98063-269-1 01 1 1510-1510
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1510-1510
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1510-
çizim 136167
1 2 2 314 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1109-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1210-1509
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1510-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-147-0 01 1 1101-1105
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98169-147-0 01 1 1106-1209
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> 		8-98085-077-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98169-145-0 01 1 1106-1209
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (A) BLACK 10P 		1-82699-703-0 01 1 0809-1012
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1101-1105
2 DIODE; CABLE HARNESS
EXC. IN HOUSE PRODUCTION<TKF> (A) BLACK 10P 		1-82699-703-0 01 1 1106-1108
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1109-1509
2 DIODE; CABLE HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (A) BLACK 10P 		1-82699-703-0 01 1 1510-1510
2 DIODE; CABLE HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (A) BLACK 10P 		1-82699-703-0 01 1 1510-1510
2 DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (A) BLACK 10P 		1-82699-703-0 01 1 1510-1510
2 DIODE; CABLE HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (A) BLACK 10P 		1-82699-703-0 01 1 1510-1510
2 DIODE; CABLE HARNESS
CORNERING LAMP<T87> (A) BLACK 10P 		1-82699-703-0 01 1 1510-1510
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1510-1510
2 DIODE; CABLE HARNESS
(A) BLACK 10P 		1-82699-703-0 01 1 1510-
2 DIODE; CABLE HARNESS
HALOGEN HEADLAMPS<TT5> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 0809-1012
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1101-1105
2 DIODE; CABLE HARNESS
EXC. IN HOUSE PRODUCTION<TKF> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1106-1108
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1109-1509
2 DIODE; CABLE HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1510-1510
2 DIODE; CABLE HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1510-1510
2 DIODE; CABLE HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1510-1510
2 DIODE; CABLE HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1510-1510
2 DIODE; CABLE HARNESS
CORNERING LAMP<T87> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1510-1510
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1510-1510
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 01 1 1510-
314 RESISTOR; HARNESS
HALOGEN HEADLAMPS<TT5> BLUE 		1-82691-204-0 01 1 0809-1012
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1101-1105
314 RESISTOR; HARNESS
EXC. IN HOUSE PRODUCTION<TKF> BLUE 		1-82691-204-0 01 1 1106-1108
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1109-1509
314 RESISTOR; HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> BLUE 		1-82691-204-0 01 1 1510-1510
314 RESISTOR; HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> BLUE 		1-82691-204-0 01 1 1510-1510
314 RESISTOR; HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> BLUE 		1-82691-204-0 01 1 1510-1510
314 RESISTOR; HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> BLUE 		1-82691-204-0 01 1 1510-1510
314 RESISTOR; HARNESS
CORNERING LAMP<T87> BLUE 		1-82691-204-0 01 1 1510-1510
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1510-1510
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1510-
431 CONNECTOR; JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (H) 6P BLACK 		8-97616-194-0 02 1 1406-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0809-1405
431 CONNECTOR; JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) 6P BLACK 		8-97616-194-0 01 1 1406-
431 CONNECTOR; JOINT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) 6P BLACK 		8-97616-194-0 01 1 1406-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (D) 10P BROWN 		1-82699-601-0 09 1 0809-1012
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (D) 10P BROWN 		1-82699-601-0 09 1 1106-1108
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (E) 10P 		8-97077-943-0 02 1 0809-1012
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (E) 10P 		8-97077-943-0 02 1 1106-1108
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (A) WHITE 		8-98056-374-0 01 1 0809-1012
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (A) WHITE 		8-98056-374-0 01 1 1106-1108
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (B) WHITE 		8-98056-375-0 01 1 0809-1012
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (B) WHITE 		8-98056-375-0 01 1 1106-1108
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1510-
çizim 136425
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
HALOGEN HEADLAMPS<TT5> 		8-98065-666-0 01 1 0809-1012
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1101-1105
4 BOX ASM; FUSE,HARNESS
EXC. IN HOUSE PRODUCTION<TKF> 		8-98065-666-0 01 1 1106-1108
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1109-1509
4 BOX ASM; FUSE,HARNESS
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS
CORNERING LAMP<T87> 		8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1510-1510
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1510-
693 RELAY; FUSE BOX
HALOGEN HEADLAMPS<TT5> 24V 10A PANASONIC 		8-97173-035-1 AR 1 0809-1012
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1101-1105
693 RELAY; FUSE BOX
EXC. IN HOUSE PRODUCTION<TKF> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1106-1108
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1109-1509
693 RELAY; FUSE BOX
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
CORNERING LAMP<T87> 24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-1510
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1510-

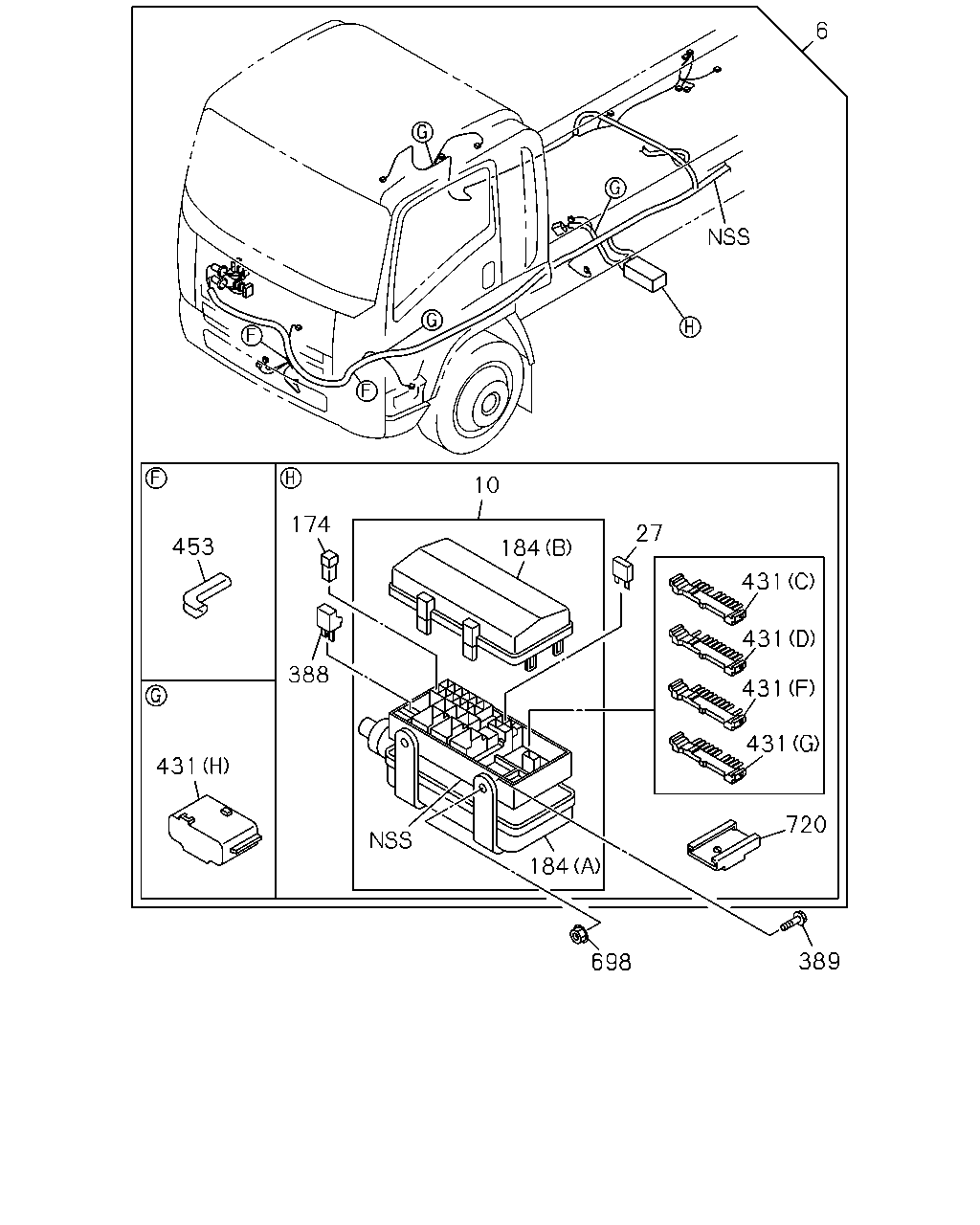

çizim 136803
6 10 174 27 453 431 431 388 431 431 431 720 184 389 698 184
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98246-392-1 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-0 01 1 1009-1405
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-2 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-986-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-985-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98174-453-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> 		8-98133-121-1 01 1 0901-1008
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98133-121-4 01 1 1009-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> 		8-98113-627-4 01 1 0901-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-627-4 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98113-634-6 01 1 0809-
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98113-632-0 01 1 0809-0812
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0901-0905
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0906-0906
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-2 01 1 0907-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-632-2 01 1 1012-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 0809-
27 FUSE UNIT
10A RED 		8-98054-257-0 01 1 0809-
27 FUSE UNIT
15A BLUE 		8-98054-258-0 02 1 0809-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK 		8-98079-191-0 01 1 0809-
174 FUSE; SLOW BLOW
40A GREEN 		8-98079-192-0 01 1 0809-
174 FUSE; SLOW BLOW
50A RED 		8-98079-193-0 03 1 0809-
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 03 1 0809-1106
174 FUSE; SLOW BLOW
60A YELLOW 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 0809-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 0809-
388 DIODE; RELAY BOX
BLACK 2P-1.5A 		8-94422-639-1 01 1 0809-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 0809-
431 CONNECTOR; JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (H) 6P BLACK 		8-97616-194-0 02 1 1406-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 0809-1405
431 CONNECTOR; JOINT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (H) 6P BLACK 		8-97616-194-0 01 1 1406-
431 CONNECTOR; JOINT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) 6P BLACK 		8-97616-194-0 01 1 1406-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 0809-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 0809-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 0809-
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 01 1 0809-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (D) 10P BROWN 		1-82699-601-0 09 1 0809-1012
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (D) 10P BROWN 		1-82699-601-0 09 1 1106-1108
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1510-1510
431 CONNECTOR; JOINT
(D) 10P BROWN 		1-82699-601-0 09 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (E) 10P 		8-97077-943-0 02 1 0809-1012
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (E) 10P 		8-97077-943-0 02 1 1106-1108
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1510-1510
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (A) WHITE 		8-98056-374-0 01 1 0809-1012
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (A) WHITE 		8-98056-374-0 01 1 1106-1108
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1510-1510
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1510-
431 CONNECTOR; JOINT
HALOGEN HEADLAMPS<TT5> (B) WHITE 		8-98056-375-0 01 1 0809-1012
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1101-1105
431 CONNECTOR; JOINT
EXC. IN HOUSE PRODUCTION<TKF> (B) WHITE 		8-98056-375-0 01 1 1106-1108
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1109-1509
431 CONNECTOR; JOINT
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
CORNERING LAMP<T87> (B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1510-1510
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1510-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 0809-
698 NUT; COVER,RELAY BOX
M8 FLANGE 		0-91180-108-0 02 1 0809-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 0809-

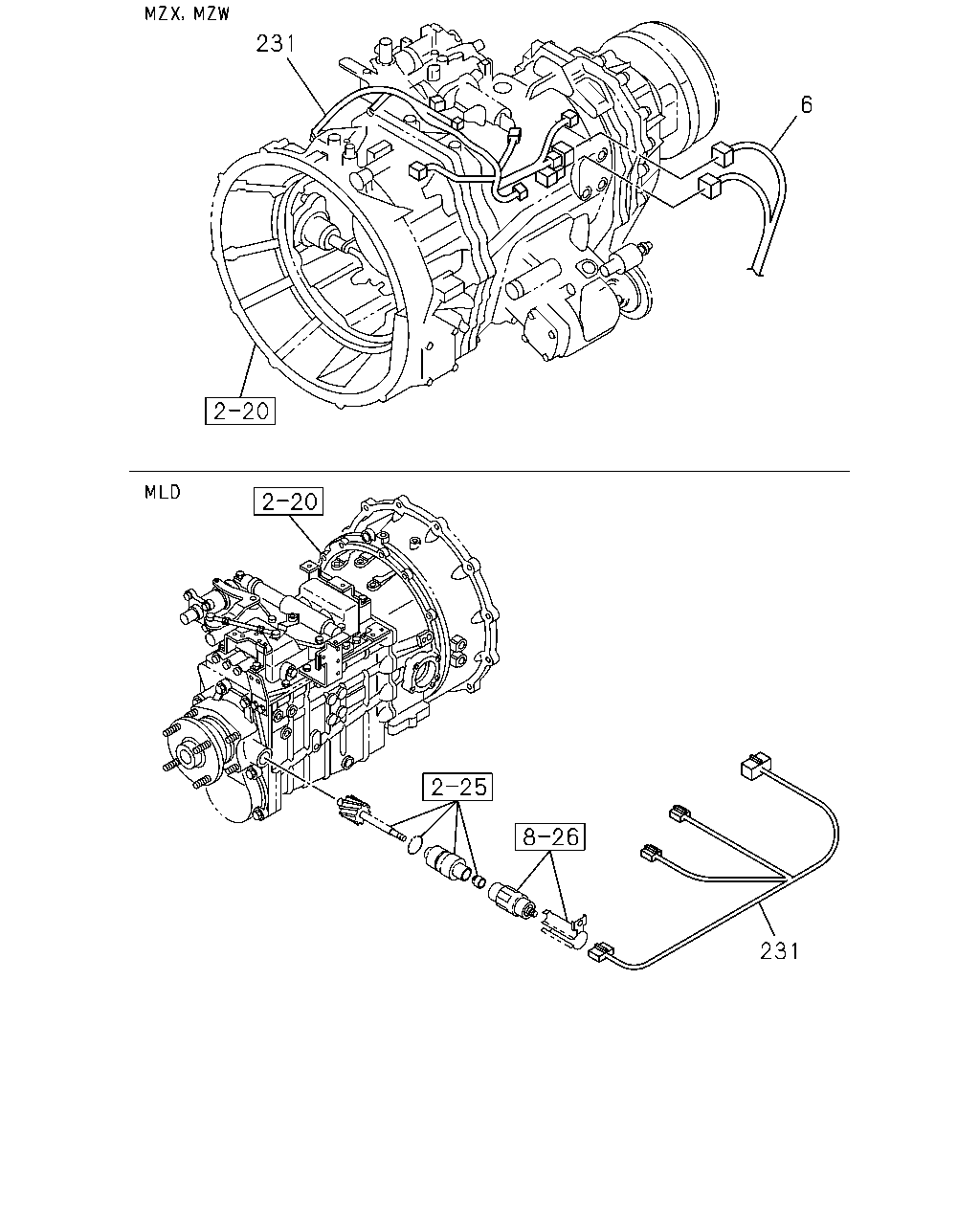

çizim 136953
231 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98246-392-1 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-0 01 1 1009-1405
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-2 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-986-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-985-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98174-453-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> 		8-98133-121-1 01 1 0901-1008
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98133-121-4 01 1 1009-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> 		8-98113-627-4 01 1 0901-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-627-4 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98113-634-6 01 1 0809-
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98113-632-0 01 1 0809-0812
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0901-0905
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0906-0906
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-2 01 1 0907-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-632-2 01 1 1012-
231 HARNESS; TRANS
MLD6W M/T(Y2C) 		8-97626-769-1 01 1 0809-
231 HARNESS; TRANS
MZX6P M/T(RSW) 		8-97618-932-2 01 1 0809-0906
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97618-932-2 01 1 0907-
çizim 137004
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98246-392-1 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-0 01 1 1009-1405
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-2 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-986-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-985-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98174-453-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> 		8-98133-121-1 01 1 0901-1008
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98133-121-4 01 1 1009-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> 		8-98113-627-4 01 1 0901-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-627-4 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98113-634-6 01 1 0809-
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98113-632-0 01 1 0809-0812
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0901-0905
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0906-0906
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-2 01 1 0907-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-632-2 01 1 1012-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) 		8-98240-716-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) 		8-98173-996-0 01 1 1012-1012
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) 		8-98184-703-0 01 1 1012-1405
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> AIR DRYER<PS7> (B) 		8-98184-703-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98113-697-2 01 1 0809-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (B) 		8-98069-170-1 01 1 0809-0905
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98069-170-1 01 1 0906-1011
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98069-170-1 01 1 1012-

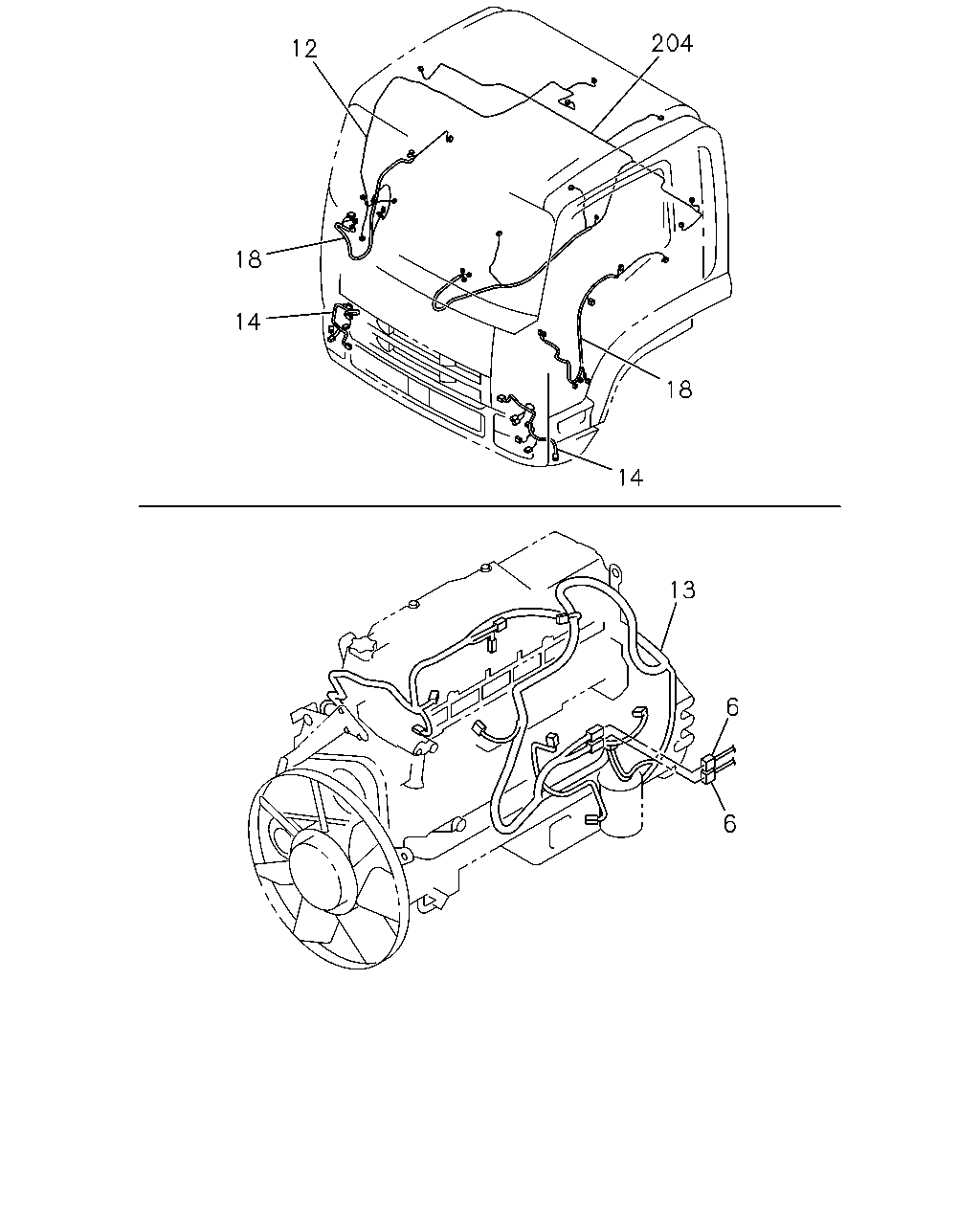

çizim 137167
204 12 18 14 18 14 13 6 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98246-392-1 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-0 01 1 1009-1405
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-2 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-986-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-985-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98174-453-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> 		8-98133-121-1 01 1 0901-1008
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98133-121-4 01 1 1009-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> 		8-98113-627-4 01 1 0901-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-627-4 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98113-634-6 01 1 0809-
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98113-632-0 01 1 0809-0812
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0901-0905
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0906-0906
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-2 01 1 0907-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-632-2 01 1 1012-
12 HARNESS; ROOF
FLUORESCENT LAMP<6UC> 		8-98071-442-0 01 1 0809-
12 HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC> 		8-98085-335-1 01 1 0809-
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98171-594-0 01 1 1102-1107
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) 		8-98171-594-0 01 1 1108-1110
13 HARNESS; ENG 8-98171-594-0 01 1 1111-
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V50A(K89) 		8-98171-593-0 01 1 1102-1110
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. GENERATOR 24V60A(KG2) 		8-98171-593-0 01 1 1111-
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) 		8-97616-796-8 01 1 0901-0909
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) 		8-98148-977-0 01 1 0910-1010
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) 		8-98177-187-0 01 1 1011-1101
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98177-187-0 01 1 1102-
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-97616-797-8 01 1 0901-0909
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98148-979-0 01 1 0910-1010
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) 		8-98177-188-0 01 1 1011-1101
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> 		8-98177-188-0 01 1 1102-1107
13 HARNESS; ENG
EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2) 		8-98177-188-0 01 1 1108-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-774-2 01 1 0809-0812
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> GENERATOR 24V50A(K89) 		8-98075-774-5 01 1 0901-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-775-2 01 1 0809-0812
13 HARNESS; ENG
EURO2 SPECIFICATION<NT2> GENERATOR 24V60A(KG2) 		8-98075-775-5 01 1 0901-
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-94270-986-0 02 1 1307-
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> CORNERING LAMP<T87> 		8-98077-292-1 02 1 0809-
14 HARNESS; HEADLAMP
HALOGEN HEADLAMPS<TT5> EXC. CORNERING LAMP<T87> 		8-98069-166-0 02 1 0809-1306
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> EXC. CORNERING LAMP<T87> 		8-98069-166-1 02 1 1307-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-127-3 01 1 0809-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98178-803-0 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98080-128-3 01 1 0809-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> 		8-98178-804-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-285-2 01 1 0809-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98178-801-0 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-290-2 01 1 0809-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> 		8-98178-802-0 01 1 1203-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98085-307-1 01 1 0809-
çizim 193160
201 9
BalonParca AdiParca NoAdetTipApplied Date
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) 		8-98133-122-0 01 1 0901-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) 		8-98168-685-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-173-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-629-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-174-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-630-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-175-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-631-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-176-1 01 1 0809-0812
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CHILE EQUIPMENT(KE1) 		8-98069-176-1 01 1 0901-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CHILE EQUIPMENT(KE1) 		8-98168-632-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98119-002-0 01 1 0809-0905
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98119-002-0 01 1 0906-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-657-0 01 1 1008-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (B) 		8-98240-716-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) 		8-98173-996-0 01 1 1012-1012
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> (B) 		8-98184-703-0 01 1 1012-1405
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> AIR DRYER<PS7> (B) 		8-98184-703-0 01 1 1406-
201 HARNESS; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98113-697-2 01 1 0809-
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ECUADOR EQUIPMENT(E46) (B) 		8-98069-170-1 01 1 0809-0905
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98069-170-1 01 1 0906-1011
201 HARNESS; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B) 		8-98069-170-1 01 1 1012-
çizim 193164
6 9 9
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98246-392-1 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-0 01 1 1009-1405
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-2 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-986-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-985-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98174-453-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> 		8-98133-121-1 01 1 0901-1008
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98133-121-4 01 1 1009-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> 		8-98113-627-4 01 1 0901-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-627-4 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98113-634-6 01 1 0809-
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98113-632-0 01 1 0809-0812
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0901-0905
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0906-0906
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-2 01 1 0907-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-632-2 01 1 1012-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) 		8-98133-122-0 01 1 0901-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CHILE EQUIPMENT(KE1) 		8-98168-685-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-173-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 3900MM(39W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-629-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-174-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-630-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-175-1 01 1 0809-1007
9 HARNESS; FRAME,RR
WHEEL BASE 4600MM(46W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98168-631-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98069-176-1 01 1 0809-0812
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CHILE EQUIPMENT(KE1) 		8-98069-176-1 01 1 0901-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. CHILE EQUIPMENT(KE1) 		8-98168-632-0 01 1 1008-
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98119-002-0 01 1 0809-0905
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98119-002-0 01 1 0906-1007
9 HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98168-657-0 01 1 1008-
çizim 193168
6 673 1 253 486 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> 		8-98188-111-0 01 1 1109-1209
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98188-111-0 01 1 1210-1509
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-1510
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98188-111-0 01 1 1510-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1109-1209
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1210-1509
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP> 		8-98188-112-0 01 1 1510-
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-147-0 01 1 1101-1105
1 HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP> 		8-98169-147-0 01 1 1106-1209
1 HARNESS; CAB
HALOGEN HEADLAMPS<TT5> 		8-98085-077-4 01 1 0809-1012
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
CORNERING LAMP<T87> 		8-98169-145-0 01 1 1101-1105
1 HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87> 		8-98169-145-0 01 1 1106-1209
1 HARNESS; CAB
CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF> 		8-98169-145-0 01 1 1106-1209
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> 		8-98246-392-1 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-0 01 1 1009-1405
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		8-98174-450-2 01 1 1406-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> VIN MODEL YEAR 2011<VZB> 		8-98173-986-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> 		8-98173-985-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> VIN MODEL YEAR 2011<VZB> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98174-453-2 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> 		8-98133-121-1 01 1 0901-1008
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98133-121-4 01 1 1009-
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> 		8-98113-627-4 01 1 0901-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-627-4 01 1 1012-
6 HARNESS; FRAME
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> 		8-98113-634-6 01 1 0809-
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) 		8-98113-632-0 01 1 0809-0812
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ECUADOR EQUIPMENT(E46) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0901-0905
6 HARNESS; FRAME
MZX6P M/T(RSW),MLD6W M/T(Y2C) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-0 01 1 0906-0906
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> 		8-98113-632-2 01 1 0907-1011
6 HARNESS; FRAME
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-632-2 01 1 1012-
253 HARNESS; EXT,HORN
EXC. DUAL HEAVY DUTY HORN<6KK> 		8-98159-227-2 01 1 1002-
253 HARNESS; EXT,HORN 8-98074-080-1 01 1 0809-1001
253 HARNESS; EXT,HORN
DUAL HEAVY DUTY HORN<6KK> 		8-98074-080-3 01 1 1002-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 0809-
673 HARNESS; EXT,SENSOR
EURO3 SPECIFICATION<NT3> 		8-98098-510-0 01 1 0901-1008
673 HARNESS; EXT,SENSOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98098-510-0 01 1 1009-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 0809-0812
673 HARNESS; EXT,SENSOR
EURO2 SPECIFICATION<NT2> 		8-98069-172-0 01 1 0901-1008
673 HARNESS; EXT,SENSOR
EURO2 SPECIFICATION<NT2> 		8-98069-172-0 01 1 1009-
673 HARNESS; EXT,SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98069-172-0 01 1 1009-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
