8-01 — LAMP; FRONT AND FRONT SIDE (#66609) — 117 parça

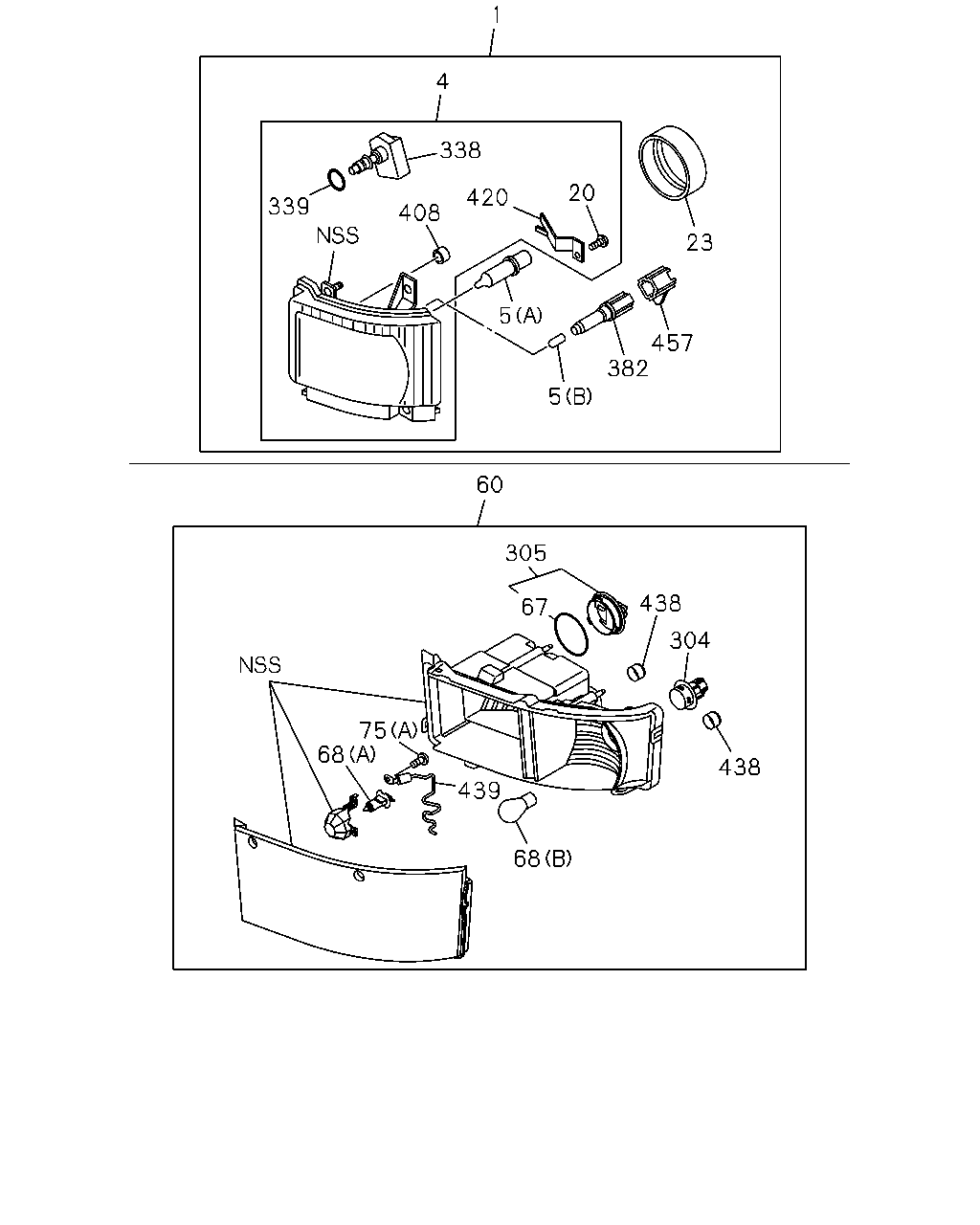

5 382 457 23 20 420 4 1 338 408 339 60 305 67 438 304 438 68 439 75 68 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-484-2	01	1	0809-1108
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-586-0	01	1	1109-1208
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-625-0	01	1	1209-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-483-2	01	1	0809-1108
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-585-0	01	1	1109-1208
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-624-0	01	1	1209-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98098-482-2	01	1	0809-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98193-584-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-623-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-315-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98098-481-2	01	1	0809-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98193-583-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-622-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-314-0	01	1	1306-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-407-0	01	1	0809-1108
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-571-0	01	1	1109-
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-406-0	01	1	0809-1108
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-570-0	01	1	1109-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98051-405-0	01	1	0809-1108
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98199-569-0	01	1	1109-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98051-404-0	01	1	0809-1108
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98199-568-0	01	1	1109-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (B) 24V 5W	1-82194-042-0	02	1	0809-
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (A) 24V 75/70W	1-82194-063-0	02	1	0809-
20	SCREW; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-871-0	06	1	0809-
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97232-491-0	02	1	0809-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-230-1	01	1	0909-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-231-1	01	1	0909-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-
60	LAMP ASM; FRT COMB	8-98047-053-1	01	1	0809-0908
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-053-2	01	1	0909-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1303-
60	LAMP ASM; FRT COMB	8-98047-052-1	01	1	0809-0908
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-052-2	01	1	0909-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1303-
67	GASKET; FRT COMB LAMP	8-98238-656-0	02	1	1303-
68	BULB; FRT COMB LAMP (A) 24V 70W	1-82194-106-0	02	1	0809-0908
68	BULB; FRT COMB LAMP FOG LAMP<T96> (A) 24V 70W	1-82194-106-0	02	1	0909-
68	BULB; FRT COMB LAMP (B) 24V 21W	8-98051-495-0	02	1	0809-
75	SCREW; FRT COMB LAMP (B) BOLT M6X16 FLANGE	0-28650-616-0	04	1	0809-
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	0809-
75	SCREW; FRT COMB LAMP (A)	8-98074-439-0	02	1	0809-0908
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	0909-
304	PLUG; SOCKET,FRT COMB LAMP	8-98051-390-0	02	1	0809-
305	COVER; FRT COMB LAMP EXC. FOG LAMP<T96>	8-98051-392-0	02	1	0909-1302
305	COVER; FRT COMB LAMP EXC. FOG LAMP<T96>	8-98240-560-0	02	1	1303-
305	COVER; FRT COMB LAMP	8-98074-440-0	02	1	0809-0908
305	COVER; FRT COMB LAMP FOG LAMP<T96>	8-98074-440-0	02	1	0909-1302
305	COVER; FRT COMB LAMP FOG LAMP<T96>	8-98240-559-0	02	1	1303-
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98010-256-0	02	1	1109-
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-86830-158-0	02	1	1109-
382	PLUG; SOCKET,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98069-364-0	02	1	0809-1208
382	PLUG; SOCKET,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98225-685-0	02	1	1209-
408	CAP; BREATHER,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-874-0	02	1	0809-
420	SPRING; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-97378-875-0	02	1	0809-1208
420	SPRING; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98218-601-0	02	1	1209-
438	CAP; BREATHER,FRT COMB LAMP	8-97378-874-0	04	1	0809-1302
438	CAP; BREATHER,FRT COMB LAMP	8-97378-874-0	02	1	1303-
439	SPRING SET; COMB LAMP	8-98075-644-0	02	1	0809-0908
439	SPRING SET; COMB LAMP FOG LAMP<T96>	8-98075-644-0	02	1	0909-
457	GRIP; HEADLAMP HALOGEN HEADLAMPS<TT5>	8-98241-354-0	02	1	1306-

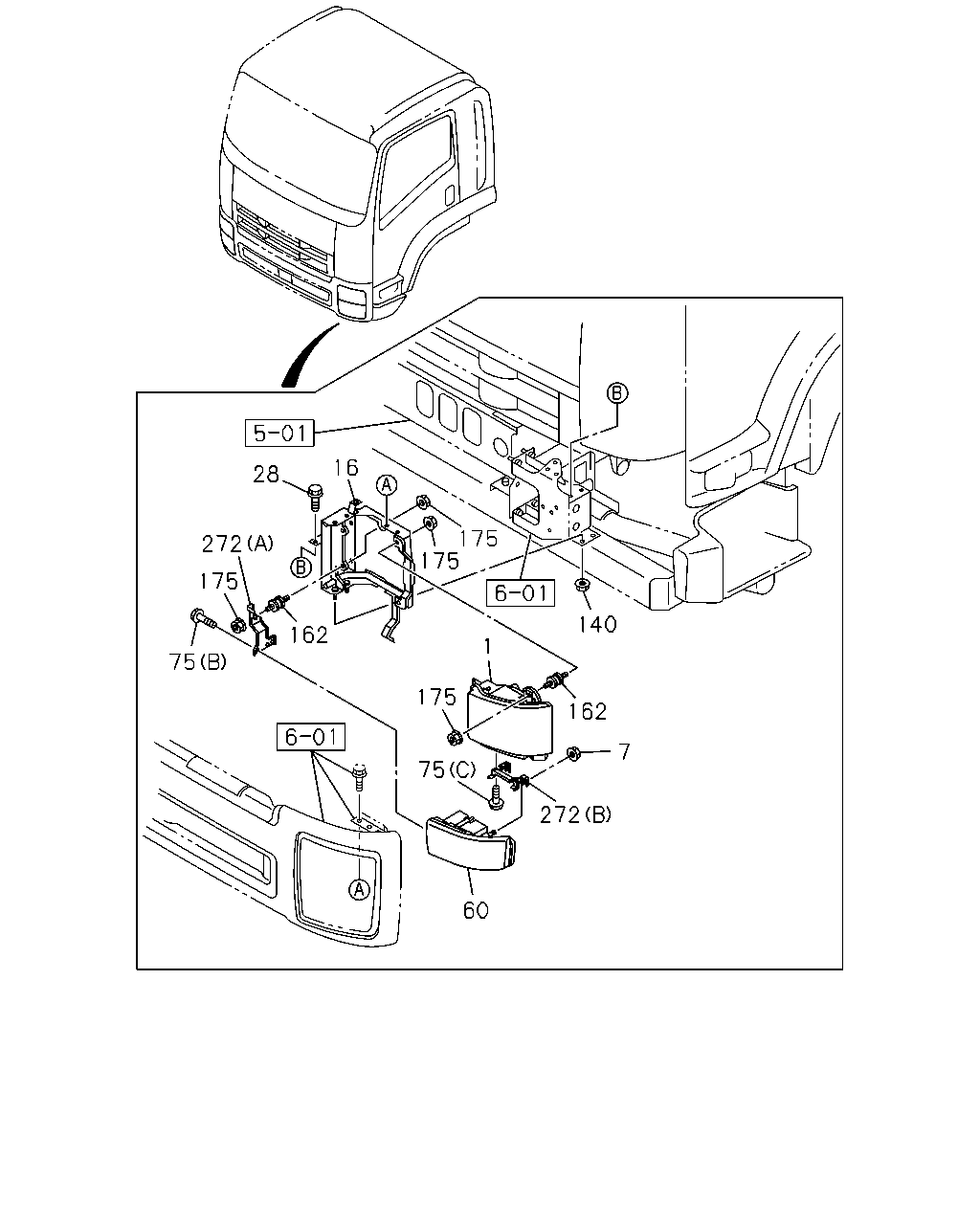

16 28 175 175 272 175 140 162 1 75 175 162 7 75 272 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-484-2	01	1	0809-1108
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-586-0	01	1	1109-1208
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-625-0	01	1	1209-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-317-0	01	1	1306-
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-483-2	01	1	0809-1108
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-585-0	01	1	1109-1208
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-624-0	01	1	1209-1305
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-316-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98098-482-2	01	1	0809-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98193-584-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-623-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-315-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98098-481-2	01	1	0809-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98193-583-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98225-622-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98241-314-0	01	1	1306-
7	NUT; FRT COMB LAMP M6 FLANGE	0-91180-106-0	04	1	0809-
16	BRACKET; HEADLAMP	8-98013-015-2	01	1	0809-
16	BRACKET; HEADLAMP	8-98013-016-2	01	1	0809-
28	BOLT; HEADLAMP M10X25 FLANGE	0-28651-025-0	04	1	0809-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-230-1	01	1	0909-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-231-1	01	1	0909-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-
60	LAMP ASM; FRT COMB	8-98047-053-1	01	1	0809-0908
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-053-2	01	1	0909-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1303-
60	LAMP ASM; FRT COMB	8-98047-052-1	01	1	0809-0908
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-052-2	01	1	0909-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1303-
75	SCREW; FRT COMB LAMP (B) BOLT M6X16 FLANGE	0-28650-616-0	04	1	0809-
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	0809-
75	SCREW; FRT COMB LAMP (A)	8-98074-439-0	02	1	0809-0908
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	0909-
140	NUT M10 FLANGE	0-91180-210-0	04	1	0809-
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0809-
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	0809-
272	BRACKET; FRT COMB LAMP (A)	8-98051-935-0	01	1	0809-
272	BRACKET; FRT COMB LAMP (B)	8-98051-938-0	01	1	0809-
272	BRACKET; FRT COMB LAMP (A)	8-98051-934-0	01	1	0809-
272	BRACKET; FRT COMB LAMP (B)	8-98051-937-0	01	1	0809-

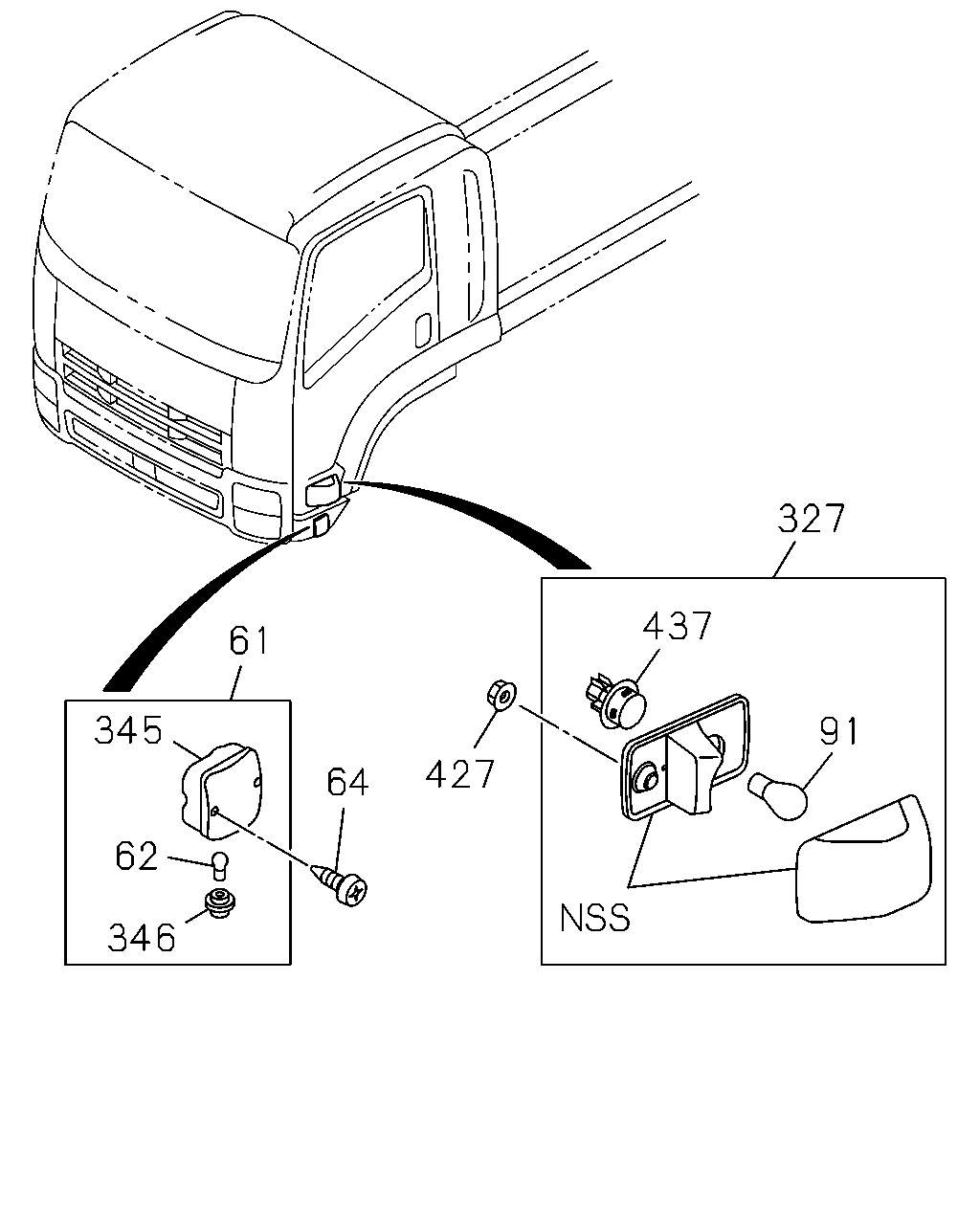

327 437 61 345 91 427 64 62 346

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
61	LAMP ASM; CORNERING CORNERING LAMP<T87>	8-97585-183-0	01	1	0809-
61	LAMP ASM; CORNERING CORNERING LAMP<T87>	8-97585-182-0	01	1	0809-
62	BULB; CORNERING LAMP CORNERING LAMP<T87> 24V 21W	1-82194-099-0	02	1	0809-
64	SCREW; CORNERING LAMP CORNERING LAMP<T87> M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0809-
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	0809-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	0809-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	0809-
345	LAMP UNIT; CORNERING CORNERING LAMP<T87>	8-98074-444-0	01	1	0809-
345	LAMP UNIT; CORNERING CORNERING LAMP<T87>	8-98074-443-0	01	1	0809-
346	SOCKET; CORNERING LAMP CORNERING LAMP<T87>	1-86830-256-0	02	1	0809-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0809-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	0809-
