Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶

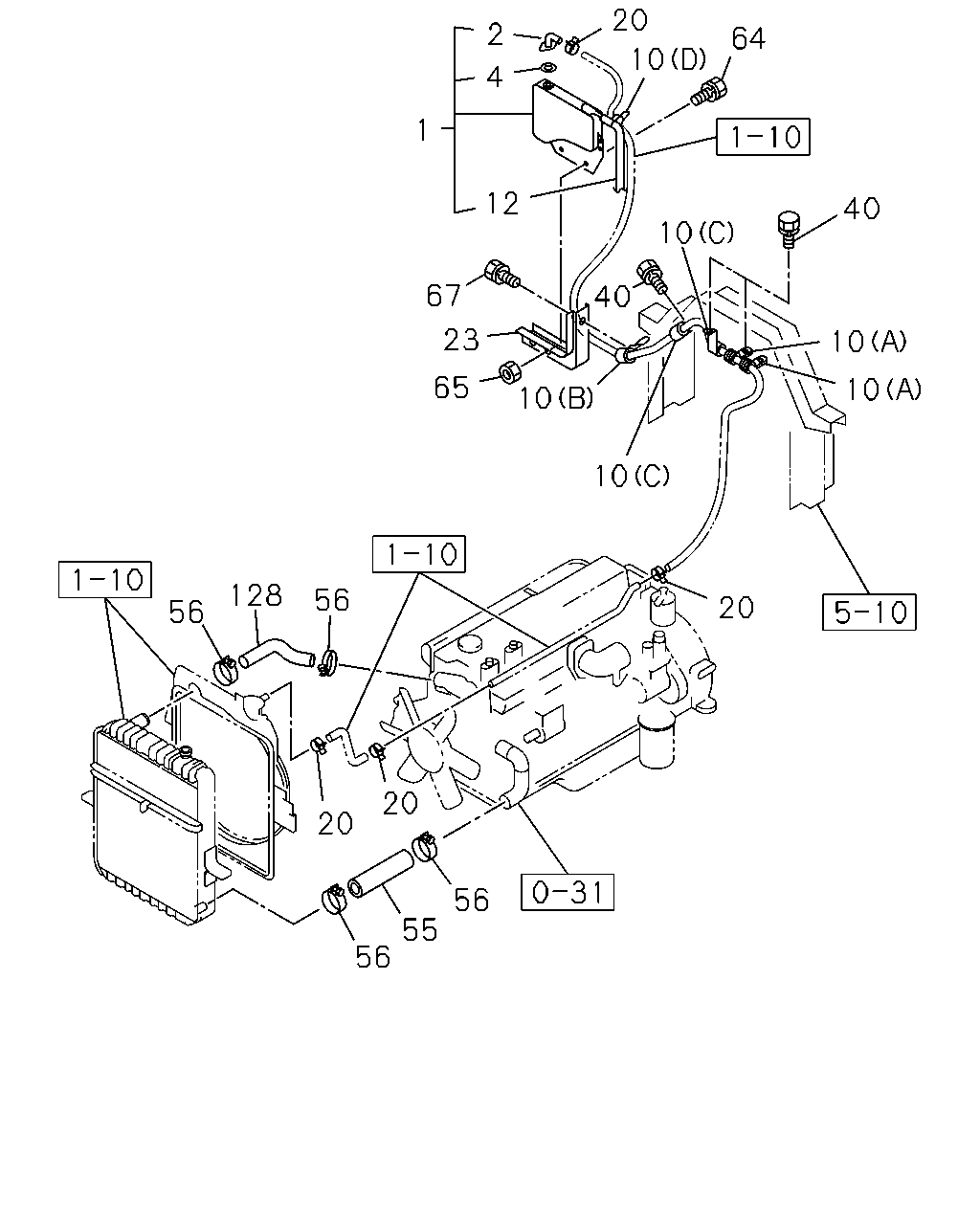

1-11 — RADIATOR HOSE AND SUB TANK
(#6660) — 17 parça
20
2
64
10
4
1
12
40
10
67
40
23
10
10
65
10
10
128
56
20
56
20
20
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
1-21480-104-0
01
1
0011-
2
CAP; SURGE TANK
1-21483-008-0
01
1
0011-
4
GASKET; SURGE TANK
5-21489-006-0
01
1
0011-
10
CLIP; RUBBER HOSE
(C) ID=15 H=24 L=20 THA
1-09700-606-0
02
1
0011-
10
CLIP; RUBBER HOSE
(D) L=140
5-09707-031-1
01
1
0011-
10
CLIP; RUBBER HOSE
(A) ID=13 L=50
9-09525-286-0
02
1
0011-
10
CLIP; RUBBER HOSE
(B) ID=14 L=44 THA
9-09917-427-0
01
1
0011-
12
HOSE; SURGE TANK
L=300
1-09366-199-0
01
1
0011-
20
CLIP; HOSE,RAD
ID=12
8-94238-610-0
04
1
0011-
23
BRACKET; RESERVE TANK
THA
1-21489-128-0
01
1
0011-
40
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
0011-
55
HOSE; WATER,RAD OUTLET
THA
8-97914-849-1
01
1
0011-
56
CLIP; WATER HOSE,RAD
ID=63 THA
1-09704-067-0
04
1
0011-
64
BOLT; BRKT,SUB TANK
M8X25 W/LK&PL WASHER
1-09030-074-0
04
1
0011-
65
NUT; BRKT,SUB TANK
M8 FLANGE
0-91150-108-0
04
1
0011-
67
BOLT; BRKT
M10X20 FLANGE
0-28681-020-0
02
1
0011-
128
HOSE; WATER,RAD INL
THA
8-97917-640-0
01
1
0011-
