◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-50 - AIR CONDITIONING SYSTEM; FRONT ▶
8-50 — AIR CONDITIONING SYSTEM; FRONT (#666) — 59 parça

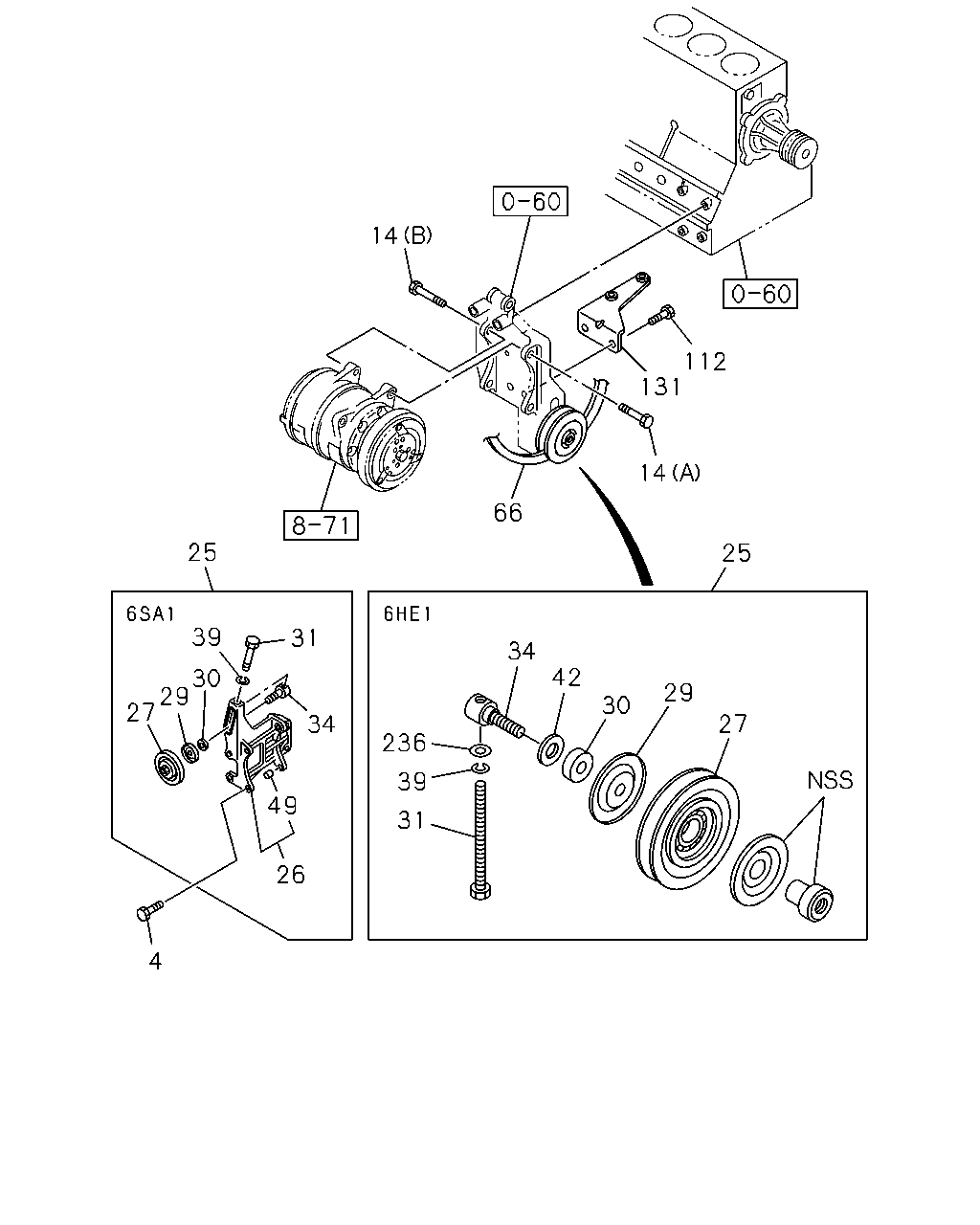

çizim 92547
14 112 131 14 25 66 25 31 39 30 29 27 34 49 26 4 31 236 39 34 42 30 29 27
BalonParca AdiParca NoAdetTipApplied Date A B
4 BOLT; A/C CMPR BRKT
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) M10X40 W/LK WASHER 		0-50041-040-0 04 1 9202-9301 ● ●
4 BOLT; A/C CMPR BRKT
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) M10X40 W/LK WASHER 		0-50041-040-0 06 1 9302-9401 ● ●
4 BOLT; A/C CMPR BRKT
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) M10X40 W/LK WASHER 		0-50041-040-0 04 1 9402- ● ●
4 BOLT; A/C CMPR BRKT
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) M10X35 W/LK&PL WASHER 		0-50151-035-0 02 1 9202- ● ●
4 BOLT; A/C CMPR BRKT
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) M10X30 W/LK WASHER 		0-50041-030-0 02 1 9302-9401 ● ●
14 BOLT; CMPR
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (A) M10X30 FLANGE 		0-28081-030-0 02 1 9202-9411 ●
14 BOLT; CMPR
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (A) M10X35 FLANGE 		0-28681-035-0 02 1 9412- ●
14 BOLT; CMPR
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) (B) M10X45 FLANGE 		0-28081-045-0 02 1 9202- ●
25 PULLEY ASM; IDLER,CMPR
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) 		1-83570-020-0 01 1 9202- ● ●
25 PULLEY ASM; IDLER,CMPR
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		8-94399-957-0 01 1 9202- ●
26 BRACKET; IDLE PULLEY,A/C
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) 		1-83571-679-0 01 1 9202- ● ●
27 PULLEY; IDLE,A/C
AIR CON MANUAL CONTROL(C60) 		1-83579-116-0 01 1 9202- ● ●
29 COVER; DUST,IDLE PULLEY
AIR CON MANUAL CONTROL(C60) 		9-13369-603-0 01 1 9202- ● ●
30 COLLAR; IDLE PULLEY
AIR CON MANUAL CONTROL(C60) 		1-83579-144-0 01 1 9202- ● ●
31 BOLT; ADJ,IDLE PULLEY
AIR CON MANUAL CONTROL(C60) 		1-83579-143-0 01 1 9202- ● ●
34 SHAFT; IDLE PULLEY
AIR CON MANUAL CONTROL(C60) 		1-83579-236-0 01 1 9202- ● ●
39 WASHER; LK,ADJ BOLT
AIR CON MANUAL CONTROL(C60) ID=8.2 		9-09150-608-0 01 1 9202- ● ●
42 WASHER; PULLEY
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		8-97014-636-0 01 1 9202- ●
49 COLLAR; BRKT,CMPR
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) 		8-94201-057-1 02 1 9202- ● ●
66 BELT; A/C CMPR
6SA1 STD ENG(06L) AIR CON MANUAL CONTROL(C60) L=1130 		1-13671-208-0 01 1 9202- ● ●
66 BELT; A/C CMPR
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) L=1082 		1-13671-256-0 01 1 9202- ●
112 BOLT; STAY
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ●
112 BOLT; STAY
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 04 1 9202- ● ●
112 BOLT; STAY
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9202- ●
131 STAY; CMPR BRKT
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		8-94396-990-0 01 1 9202-9410 ●
131 STAY; CMPR BRKT
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		8-94393-451-0 01 1 9411- ●
236 WASHER; PL,ADJ BOLT
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) 		1-09503-216-0 01 1 9202- ●

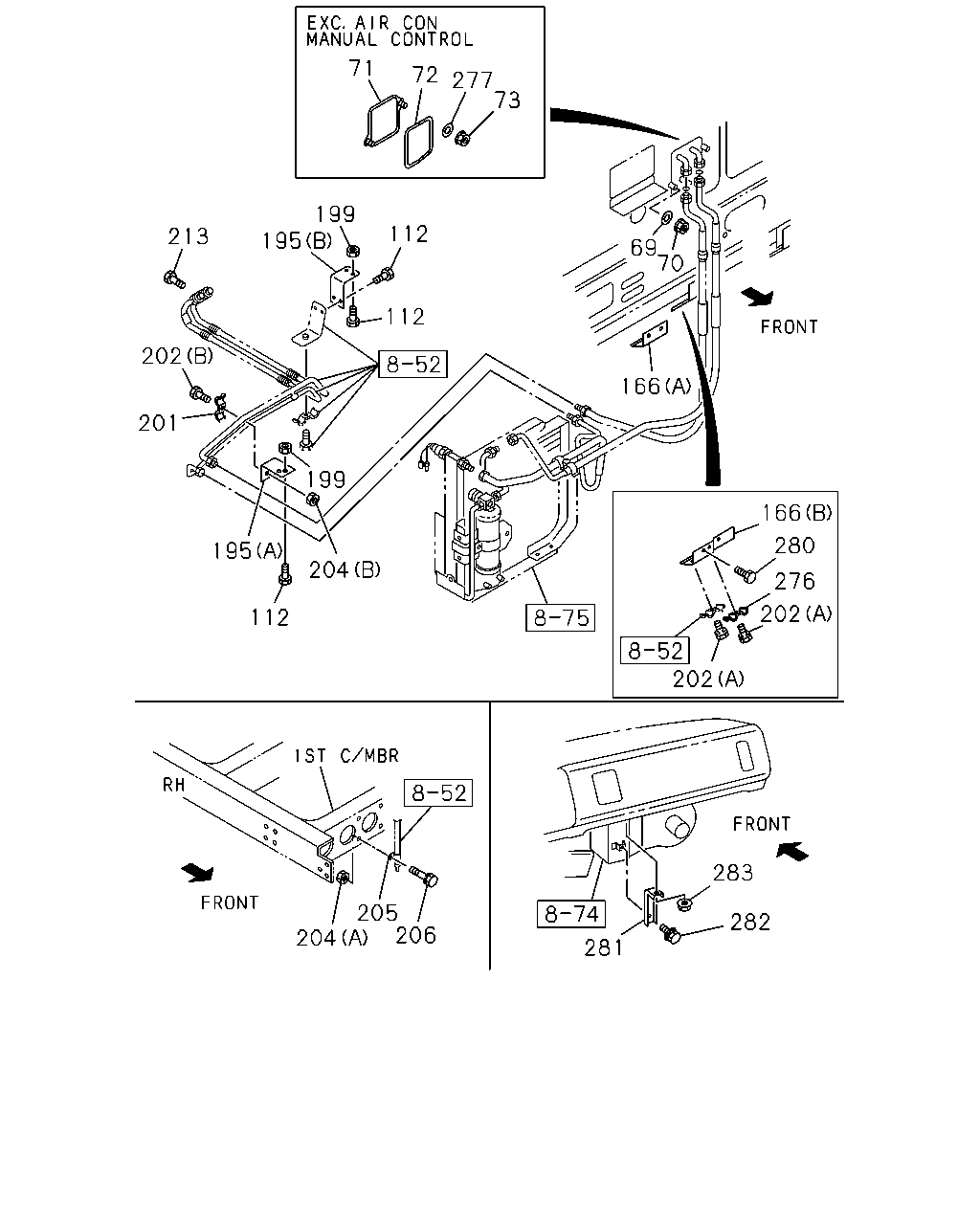

çizim 92562
71 73 277 72 112 112 199 195 213 202 201 199 204 195 112 202 202 276 280 166 166 70 69 283 282 281 206 205 204
BalonParca AdiParca NoAdetTipApplied Date A B
69 WASHER; PL,EVAP
AIR CON MANUAL CONTROL(C60) OD=20 		1-09509-047-0 01 1 9202- ● ●
69 WASHER; PL,EVAP
AIR CON MANUAL CONTROL(C60) OD=14 		1-09509-048-0 02 1 9202- ● ●
70 NUT; EVAP,A/C
AIR CON MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 03 1 9202- ● ●
71 COVER; EVAP,A/C
EXC. AIR CON MANUAL CONTROL(C60) 		1-71997-460-1 01 1 9202- ● ●
72 SEAL; COVER,EVAP
EXC. AIR CON MANUAL CONTROL(C60) 		1-71998-221-0 01 1 9202- ● ●
73 NUT; COVER,A/C EVAP
EXC. AIR CON MANUAL CONTROL(C60) M6 FLANGE 		1-09984-141-0 02 1 9202- ● ●
112 BOLT; STAY
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 02 1 9202- ● ●
112 BOLT; STAY
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 04 1 9202- ● ●
112 BOLT; STAY
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M8X16 FLANGE 		0-28080-816-0 02 1 9202- ●
166 BRACKET; FLEX HOSE
(B) L=200 		1-71118-359-3 01 1 9202- ● ●
166 BRACKET; FLEX HOSE
AIR CON MANUAL CONTROL(C60) (A) L=85 		1-83571-397-2 01 1 9202- ● ●
195 STAY; CLIP
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (A) 		1-83571-482-0 01 1 9202- ● ●
195 STAY; CLIP
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (B) 		1-83571-794-0 01 1 9202- ● ●
199 NUT
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) M8 		9-09110-408-0 04 1 9202- ● ●
201 CLIP; HOSE,CMPR TO EVAP
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) ID=12.2 & 16.2 		1-83574-157-0 01 1 9202- ● ●
202 BOLT; CLIP,FLEX HOSE
AIR CON MANUAL CONTROL(C60) (A) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
202 BOLT; CLIP,FLEX HOSE
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (B) M6X20 FLANGE 		0-28080-620-0 01 1 9202- ● ●
204 NUT; CLIP
AIR CON MANUAL CONTROL(C60) (A) M8 		9-09110-408-0 01 1 9202- ● ●
204 NUT; CLIP
6SA1 STD ENG(06L),6SA1TC ENG(28L) AIR CON MANUAL CONTROL(C60) (B) M6 		9-09110-406-0 01 1 9202- ● ●
205 CLIP; BAND,DRAIN HOSE
AIR CON MANUAL CONTROL(C60) ID=35 L=35 		1-09700-908-0 01 1 9202- ● ●
206 BOLT; CLIP BRKT
AIR CON MANUAL CONTROL(C60) M8X20 FLANGE 		0-28080-820-0 01 1 9202- ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER 		9-01961-040-0 01 1 9202-9204 ● ●
213 BOLT; FLEX HOSE TO CMPR
AIR CON MANUAL CONTROL(C60) M10X40 W/LK&PL WASHER 		0-50141-040-0 01 1 9205- ● ●
213 BOLT; FLEX HOSE TO CMPR
6HE1 STD ENG(46L) AIR CON MANUAL CONTROL(C60) M8X25 FLANGE 		0-28080-825-0 02 1 9202- ●
276 CLIP; FLEX HOSE
AIR CON MANUAL CONTROL(C60) 		1-83574-116-0 01 1 9202- ● ●
277 WASHER; EVAP COVER
EXC. AIR CON MANUAL CONTROL(C60) OD=14 		1-09509-048-0 02 1 9202- ● ●
280 BOLT; BRKT,A/C FLEX HOSE
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9202- ● ●
280 BOLT; BRKT,A/C FLEX HOSE
AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9202- ● ●
281 STAY; EVAP
AIR CON MANUAL CONTROL(C60) 		1-65680-446-0 01 1 9202- ● ●
282 BOLT; STAY,EVAP
AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9202-9204 ● ●
282 BOLT; STAY,EVAP
AIR CON MANUAL CONTROL(C60) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ● ●
283 NUT; STAY,EVAP
AIR CON MANUAL CONTROL(C60) M6 FLANGE 		5-09440-004-0 01 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
