◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11127 - FTR(LHD) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#66596) — 16 parça

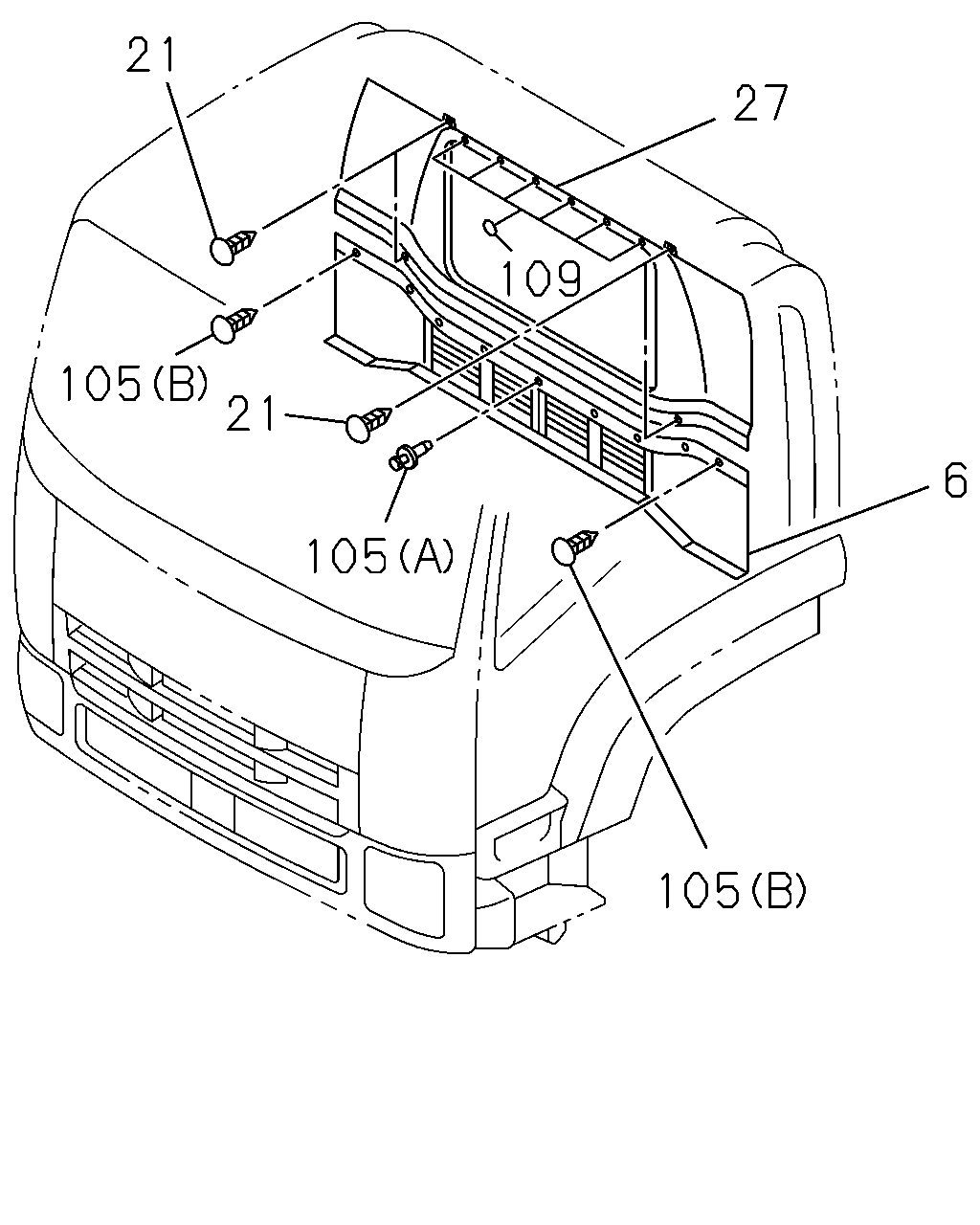

çizim 131816
21 27 109 105 21 6 105 105
BalonParca AdiParca NoAdetTipApplied Date
6 MAT; SILENCER,CAB BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97422-491-1 01 1 1012-
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-458-1 01 1 0809-1011
6 MAT; SILENCER,CAB BACK
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> GRAY 		8-97407-458-1 01 1 1012-
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 0809-
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> ROUND CURTAIN RAIL<EDH> INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97422-495-1 01 1 1012-
27 COVER; TRIM,BACK
INSULATION ACOUSTICAL PKG DELETE<BS3> INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97422-494-1 01 1 1012-
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-464-2 01 1 0809-1011
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>,ROUND CURTAIN RAIL<EDH> DARK GRAY 		8-97407-464-2 01 1 1012-
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> INTERIOR FULL TRIM<WM3> DARK GRAY 		8-97407-466-2 01 1 0809-1011
27 COVER; TRIM,BACK
ROUND CURTAIN RAIL<EDH> INTERIOR FULL TRIM<WM3> EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> DARK GRAY 		8-97407-466-2 01 1 1012-
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 0809-
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 0809-
109 SEAL; HOLE
BODY COLOR ARC WHITE(729) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0809-0905
109 SEAL; HOLE
BODY COLOR ARC WHITE(729),BODY COLOR POLAR WHITE(982) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0906-
109 SEAL; HOLE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0809-0905
109 SEAL; HOLE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BO DY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) EXC. ROUND CURTAIN RAIL<EDH>,INTERIOR FULL TRIM<WM3> OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0906-
