Isuzu WW
▶
TRUCKS
▶
FTR
▶
11127 - FTR(LHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-76 - FLOOR EQUIPMENT AND SEALING
▶

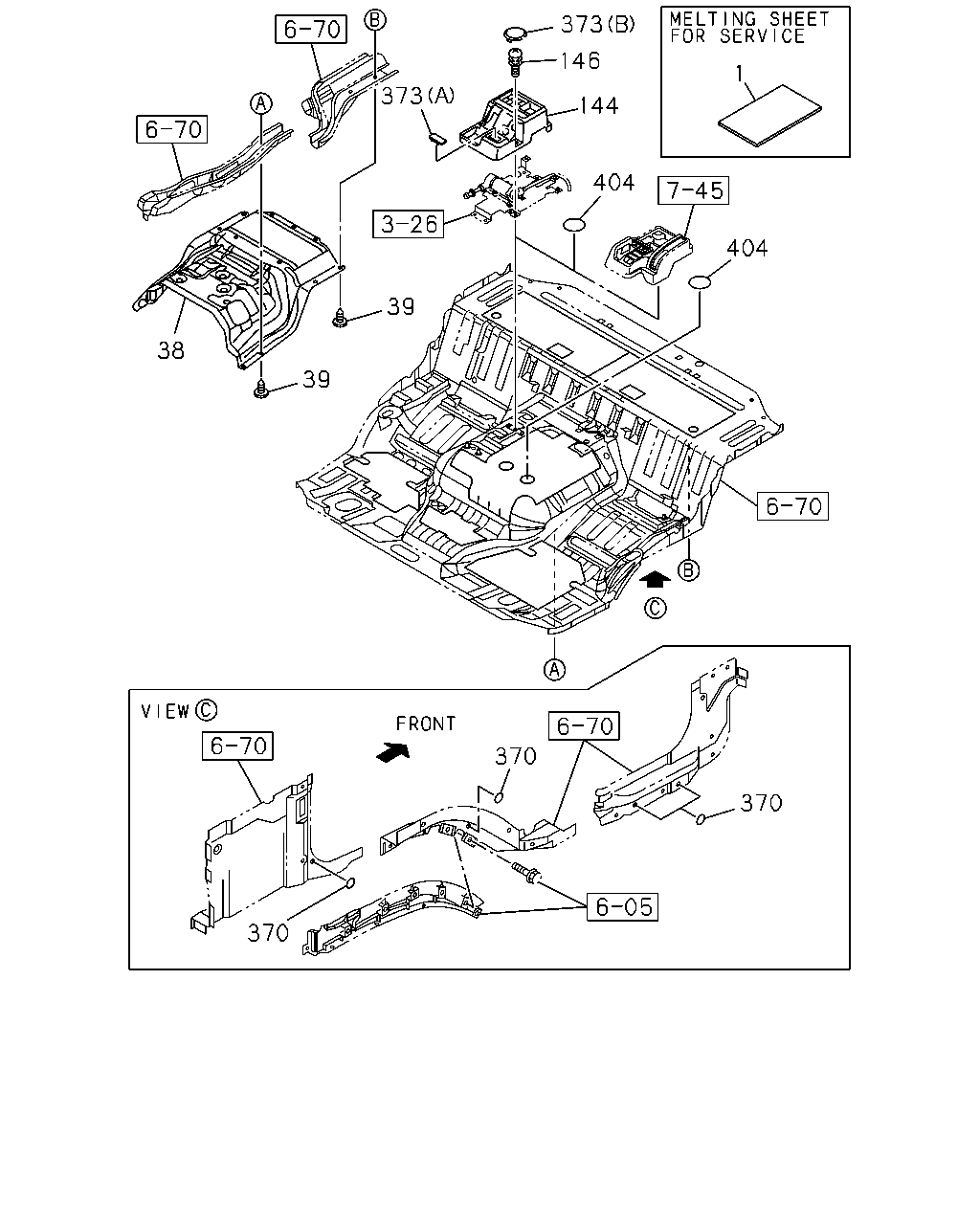

6-76 — FLOOR EQUIPMENT AND SEALING
(#66592) — 17 parça
373
146
1
373
144
404
404
39
38
39
370
370
370
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
8-94262-093-0
AR
1
0809-
38
INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98180-258-0
01
1
1012-1310
38
INSULATOR; ENG COVER
INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98248-305-0
01
1
1311-
38
INSULATOR; ENG COVER
8-97586-180-6
01
1
0809-1011
38
INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>
8-97586-180-6
01
1
1012-1310
38
INSULATOR; ENG COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3>
8-98240-137-1
01
1
1311-
39
CLIP; INSULATOR,COVER
EXC. INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
24
1
1012-
39
CLIP; INSULATOR,COVER
ID=6.2 L=11.4
8-97808-623-0
24
1
0809-1011
39
CLIP; INSULATOR,COVER
INSULATION ACOUSTICAL PKG DELETE<BS3> ID=6.2 L=11.4
8-97808-623-0
17
1
1012-
144
COVER; HAND BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) GRAY
8-97407-974-0
01
1
0809-
146
BOLT; COVER BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) SCREW M6X16
0-38050-616-0
04
1
0809-
370
SEAL; LOCATION HOLE
OD=30 T=1.0
8-98051-161-0
08
1
0809-1211
370
SEAL; LOCATION HOLE
OD=30 T=0.8
8-98230-420-0
08
1
1212-
373
COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) GRAY
8-97407-951-0
04
1
0809-
373
COVER; HOLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) GRAY
8-97409-339-0
01
1
0809-
404
SEAL; FLOOR,HOLE
OD=25 BLACK
1-76798-019-0
12
1
0809-
404
SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE<SP9> OD=25 BLACK
1-76798-019-0
02
1
0809-1005
