Isuzu WW
▶
TRUCKS
▶
FTR
▶
11127 - FTR(LHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#66587) — 59 parça
◀

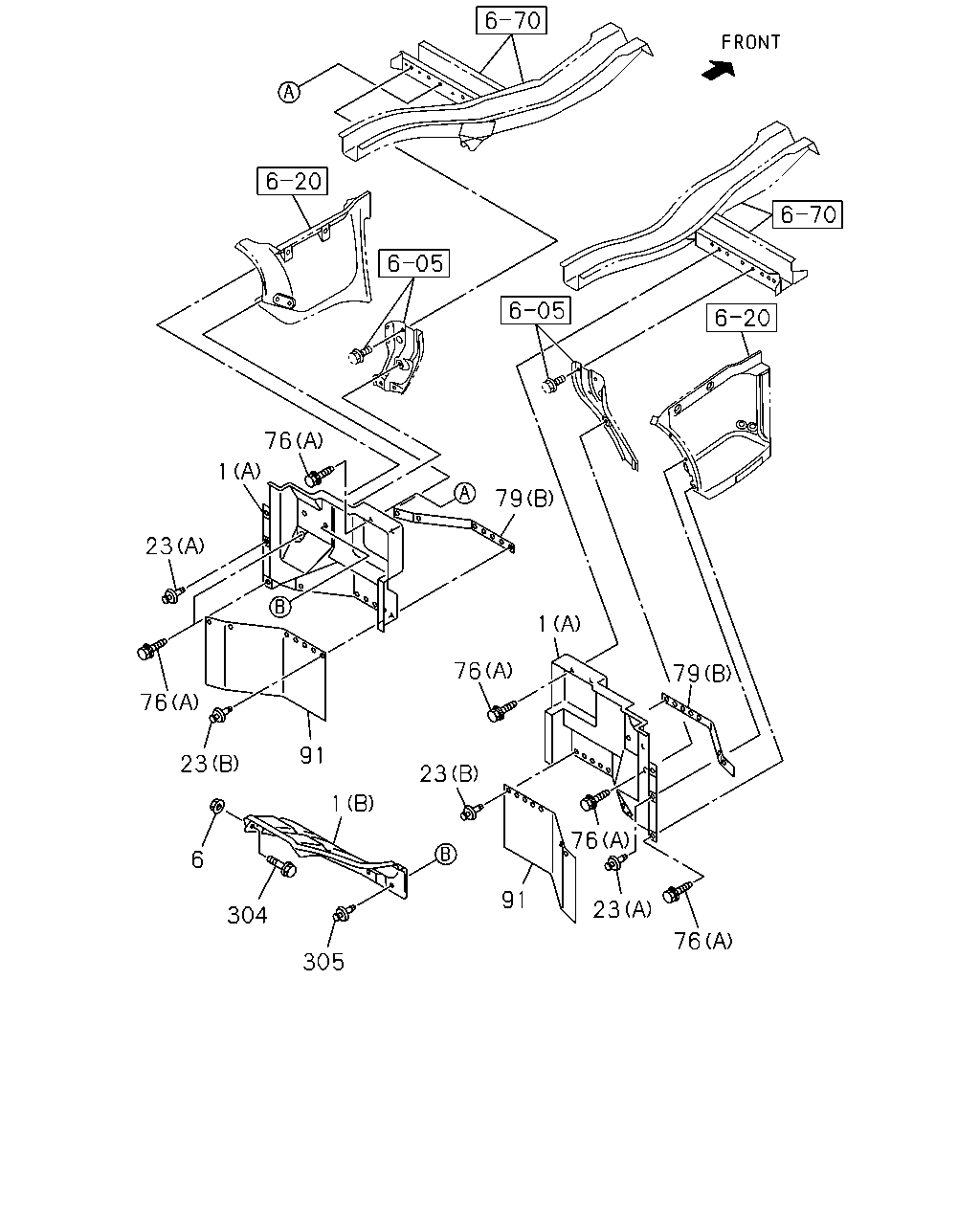

[647A] MUD GUARD;FRONT AND SPLASH GUARD (17 parça)

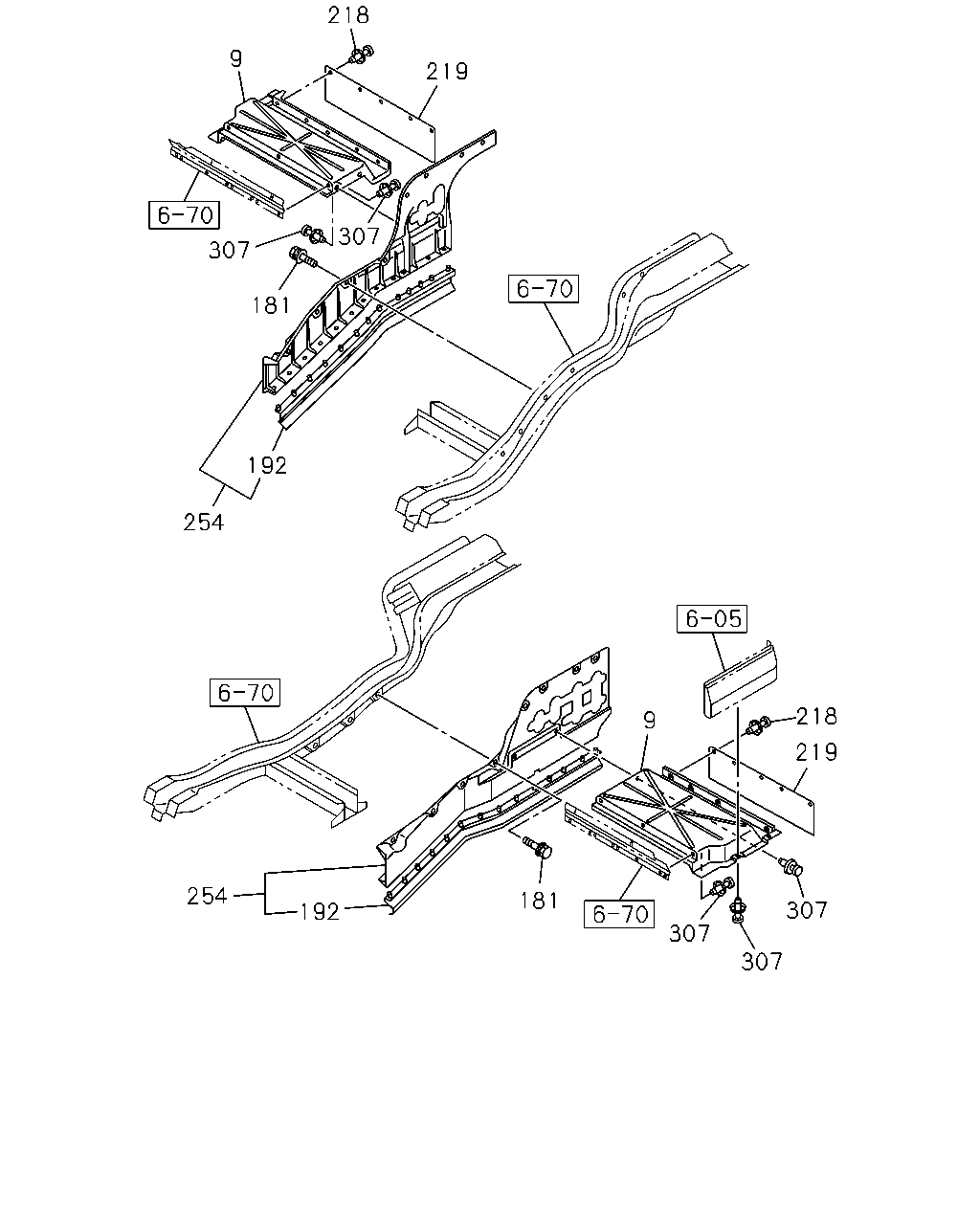

[647A] MUD COVER AND SEAL (10 parça)

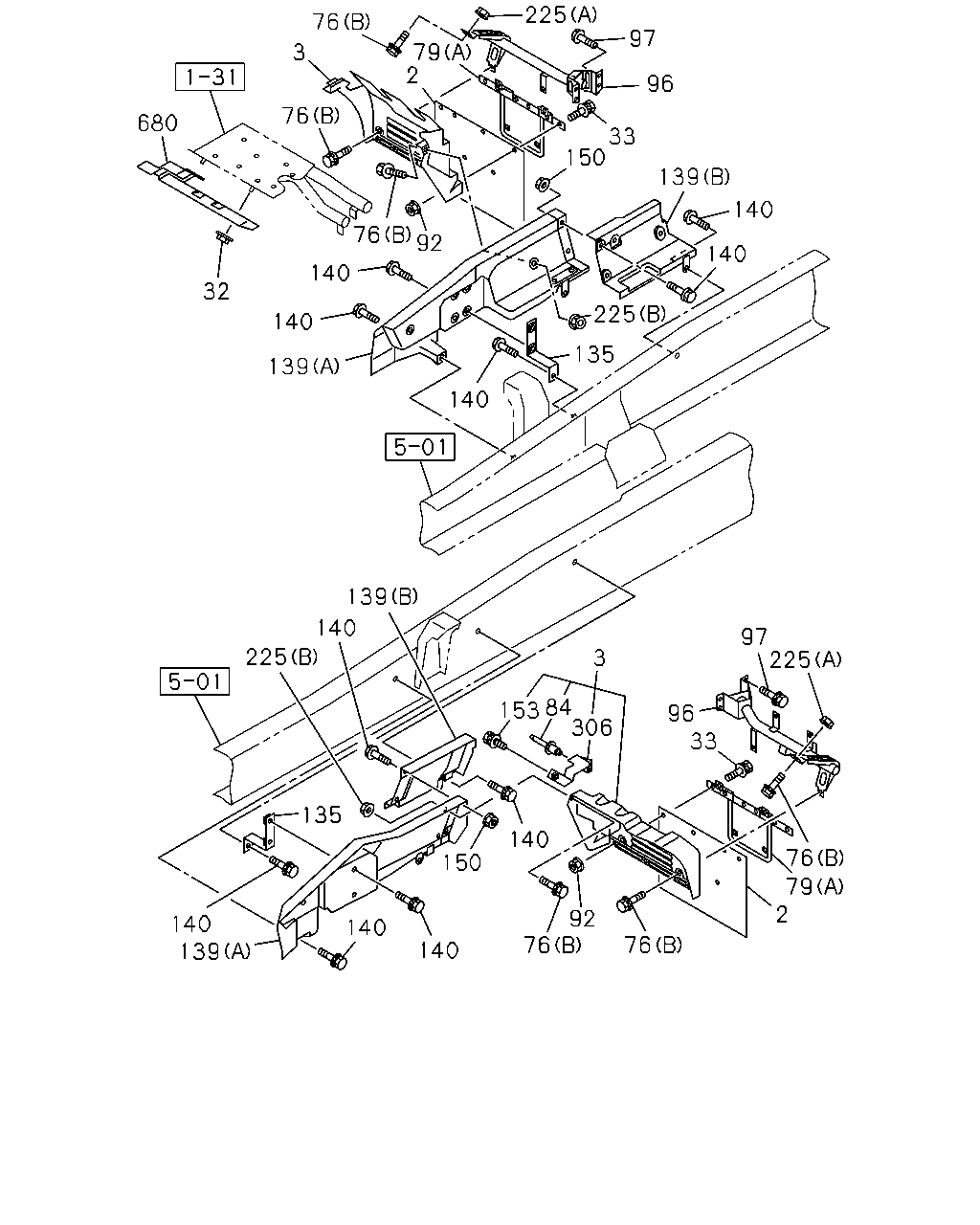

[647A] MUD GUARD;REAR AND SIDE PANEL (32 parça)
▶
76
1
79
23
1
76
79
76
91
23
23
1
6
91
23
304
76
305
76
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
(A)
8-98039-851-1
01
1
0809-
1
GUARD; MUD,FRT
(A)
8-98039-850-1
01
1
0809-
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98076-272-0
01
1
0809-1003
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98158-184-0
01
1
1004-
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
0809-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
10
1
0809-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
0809-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0809-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
08
1
0809-0908
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
0909-
79
RETAINER; MUD COVER
(B)
8-98060-066-0
02
1
0809-
79
RETAINER; MUD COVER
(A)
8-98102-106-0
01
1
0809-
79
RETAINER; MUD COVER
(A)
8-98102-105-0
01
1
0809-
91
COVER; MUD,FRT
8-98060-067-1
02
1
0809-
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
0809-
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
0809-
218
9
219
307
307
181
192
254
218
9
219
254
181
307
192
307
307
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
GUARD; SPLASH,WHEEL HOUSE
8-98040-120-2
01
1
0809-
9
GUARD; SPLASH,WHEEL HOUSE
8-98040-119-2
01
1
0809-
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
16
1
0809-
192
SEAL; MUD COVER
8-98041-159-2
01
1
0809-
192
SEAL; MUD COVER
8-98041-158-1
01
1
0809-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
10
1
0809-
219
FLAP; MUD GUARD
8-98041-149-1
02
1
0809-
254
COVER; MUD,VALANCE
8-98039-926-1
01
1
0809-
254
COVER; MUD,VALANCE
8-98039-925-2
01
1
0809-
307
RETAINER
D8X13.5
1-09987-248-1
14
1
0809-
76
79
225
97
96
33
150
139
140
140
225
135
140
139
140
32
140
76
76
92
680
3
2
139
140
3
97
225
96
33
76
79
2
76
76
140
92
140
306
84
153
225
135
150
140
140
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
1-79931-512-1
02
1
0809-
3
GUARD; MUD,RR
1-79931-473-1
01
1
0809-1211
3
GUARD; MUD,RR
8-98196-109-0
01
1
1212-
3
GUARD; MUD,RR
8-98076-257-0
01
1
0809-1302
3
GUARD; MUD,RR
8-98219-767-0
01
1
1303-
32
NUT; MUD GUARD
M8 W/DISHED WASHER
8-97329-625-0
02
1
0809-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
12
1
0809-
76
BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0809-1211
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1212-
76
BOLT; MUD GUARD
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
08
1
0809-0908
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
0909-
79
RETAINER; MUD COVER
(B)
8-98060-066-0
02
1
0809-
79
RETAINER; MUD COVER
(A)
8-98102-106-0
01
1
0809-
79
RETAINER; MUD COVER
(A)
8-98102-105-0
01
1
0809-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1212-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
08
1
0809-
96
STAY; MUD GUARD
1-79931-519-4
01
1
0809-
96
STAY; MUD GUARD
1-79931-540-3
01
1
0809-
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
08
1
0809-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
0809-
139
PANEL; SIDE
(B)
1-53194-591-0
01
1
0809-
139
PANEL; SIDE
(A)
1-53194-620-5
01
1
0809-
139
PANEL; SIDE
(B)
1-53194-590-1
01
1
0809-
139
PANEL; SIDE
(A)
1-53194-619-4
01
1
0809-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
16
1
0809-
150
NUT; SIDE PANEL
M8 W/DISHED WASHER
8-97329-625-0
04
1
0809-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1212-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
0809-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
0809-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1212-
680
GUARD; MUD,UPPER
1-79931-494-1
01
1
0809-0809
680
GUARD; MUD,UPPER
8-98123-402-0
01
1
0809-
