Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#66554) — 303 parça

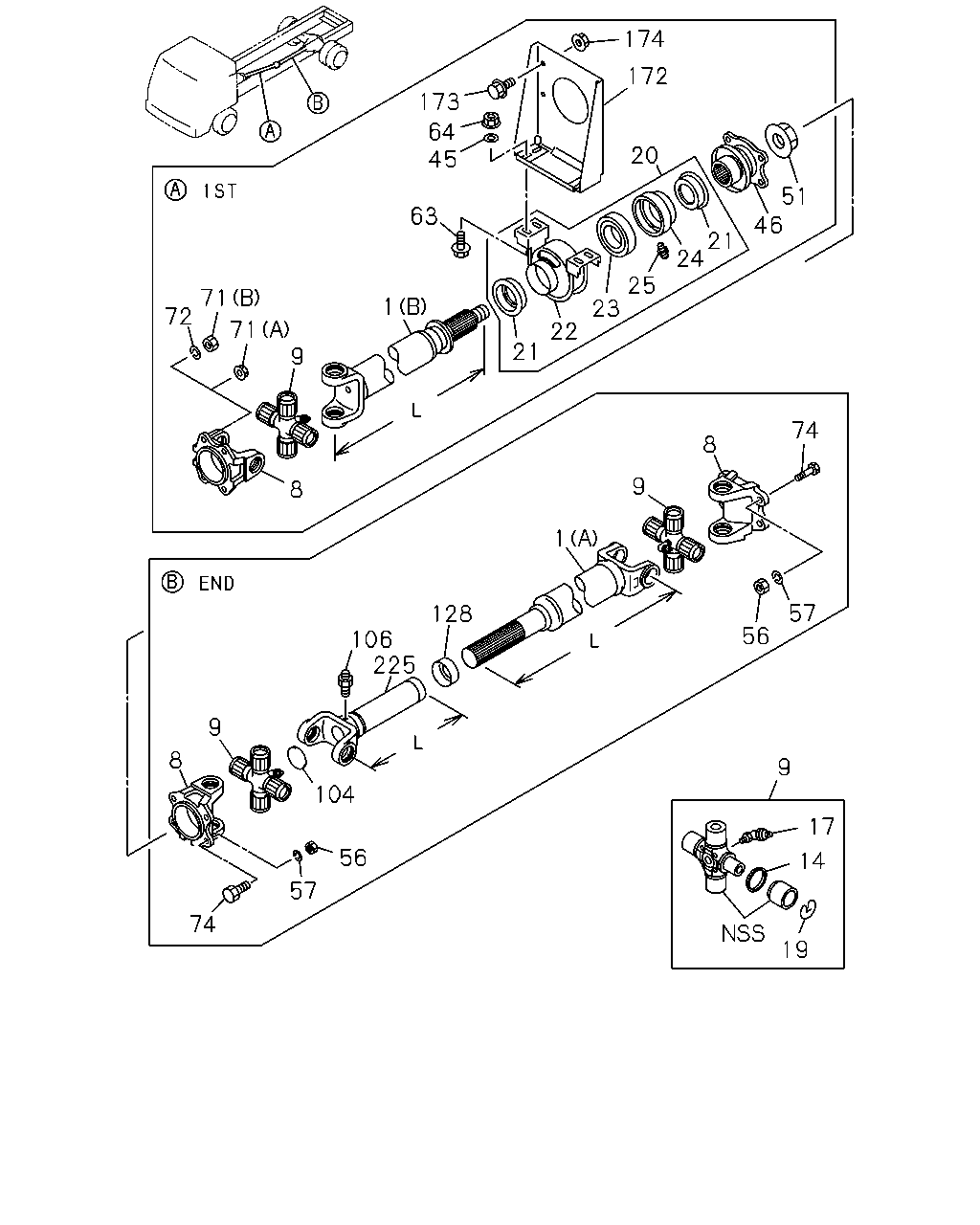

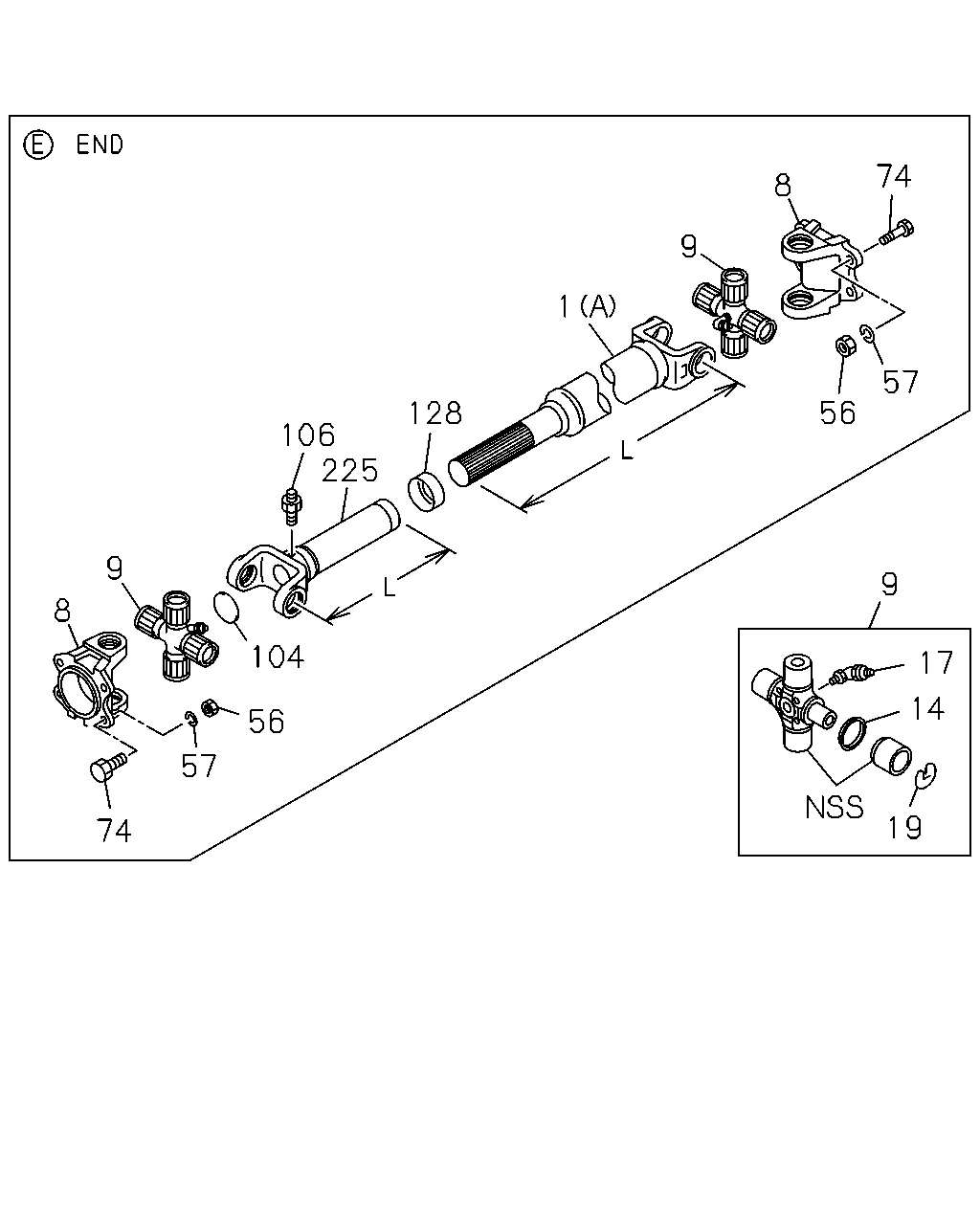

74 8 9 1 57 56 128 106 225 9 9 8 104 17 14 56 57 19 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829	8-98113-452-0	01	1	0809-	●
1	SHAFT; PROP MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=839	8-98069-569-0	01	1	0809-	●
1	SHAFT; PROP MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726	1-37151-632-1	01	1	0809-0906	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726	1-37151-632-1	01	1	0907-1111	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719	8-98069-957-0	01	1	1112-	●
1	SHAFT; PROP MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	0809-0906	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	0907-	●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	0809-	●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=849	8-98095-876-0	01	1	0809-0906		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=849	8-98095-876-0	01	1	0907-1111		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=849	8-98069-584-0	01	1	1112-		●
1	SHAFT; PROP (A) L=1226	8-98090-989-0	01	1	0809-		●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=961	1-37151-382-1	01	1	0809-1111		●
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961	1-37151-382-1	01	1	0809-1111			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=954	8-98069-592-0	01	1	1112-		●
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954	8-98069-592-0	01	1	1112-			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1229	8-98121-835-0	01	1	0809-1111				●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1229	8-98090-949-0	01	1	1112-				●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=1119	8-98106-151-0	01	1	0809-0906				●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1119	8-98106-151-0	01	1	0907-1111				●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1119	8-98069-589-0	01	1	1112-				●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	0809-				●
1	SHAFT; PROP MLD6W M/T(Y2C) (C) L=589	8-98119-467-0	01	1	0809-			●
1	SHAFT; PROP MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=969	8-98069-570-0	01	1	0809-			●
1	SHAFT; PROP MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98095-877-0	01	1	0809-0906			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98095-877-0	01	1	0907-1111			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98090-933-0	01	1	1112-			●
1	SHAFT; PROP MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	0809-0906			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	0907-			●
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	0809-			●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	0809-	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-054-1	01	1	0809-1111	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-1	01	1	0809-1111		●		●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1112-	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST	8-98178-052-0	01	1	1112-		●		●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	0809-	●		●
8	YOKE; FLANGE,PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	1-37211-056-3	01	1	0809-			●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	0809-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37300-102-1	AR	1	0809-1111	●		●
9	JOURNAL ASM; PROP SHAFT 1ST	1-37300-102-1	AR	1	0809-1111		●		●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1112-	●		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1112-		●		●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98048-925-1	01	1	0809-	●		●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98048-925-1	01	1	0809-			●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	0809-	●	●	●	●
14	COVER; DUST,SPIDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37319-012-0	04	1	0809-1111	●		●
14	COVER; DUST,SPIDER 1ST	1-37319-012-0	04	1	0809-1111		●		●
14	COVER; DUST,SPIDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-800-0	04	1	0809-1111	●		●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C) 1ST,2ND	8-98020-800-0	04	1	0809-1111			●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1112-	●	●	●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C)	8-98020-800-0	04	1	1112-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0809-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0809-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT MLD6W M/T(Y2C) PT1/8 ELBOW	0-90301-610-0	01	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0809-			●
56	NUT; YOKE M14	0-91110-514-0	08	1	0809-	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0809-	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	0809-	●	●	●	●
74	BOLT; YOKE,TRANS MLD6W M/T(Y2C) M14X37	1-09000-121-0	04	1	0809-			●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0809-	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	0809-	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0809-	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	0809-	●	●	●	●

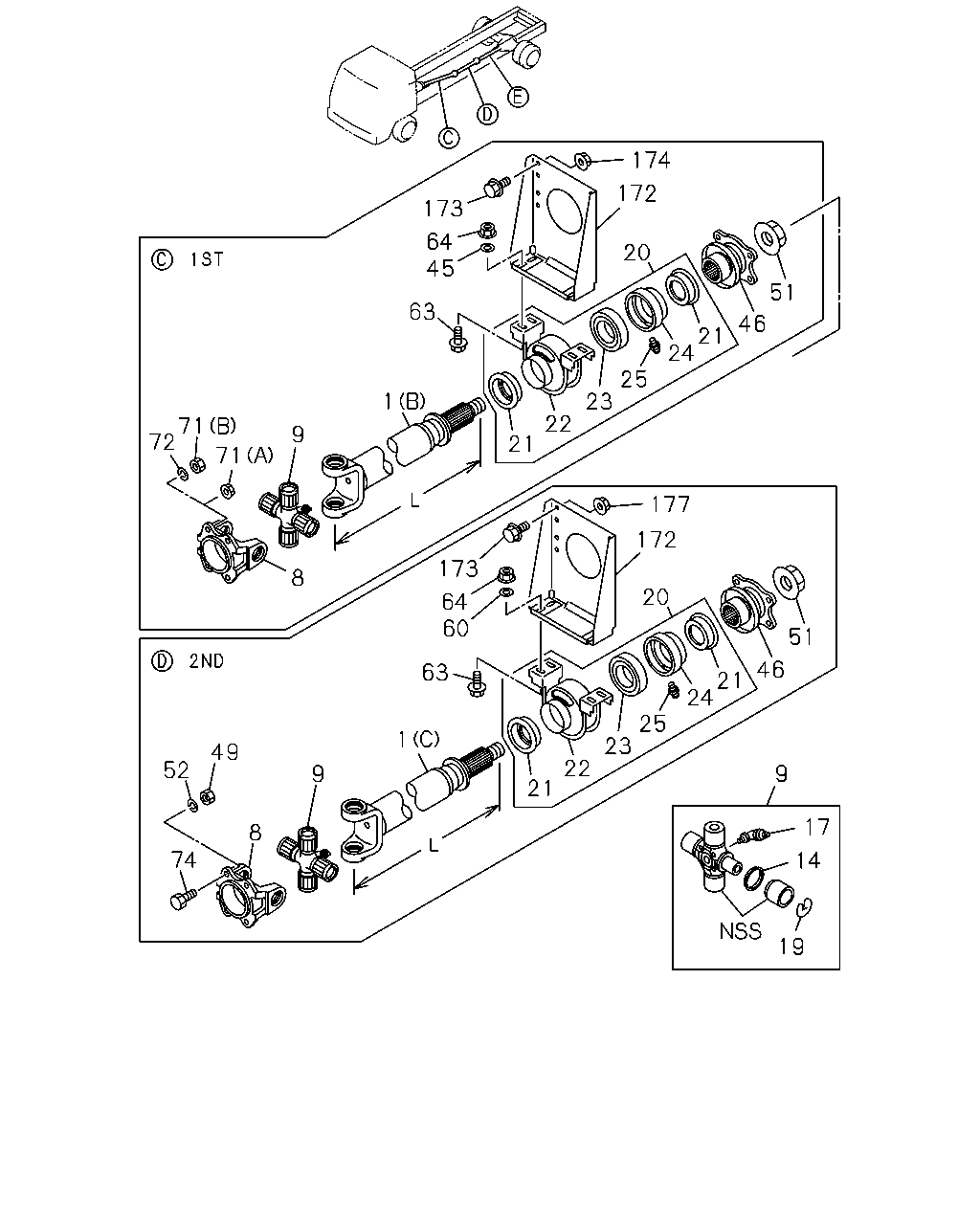

174 172 173 64 45 20 51 46 63 21 24 25 23 71 72 1 71 9 22 21 74 8 9 8 1 57 128 56 106 225 9 8 9 104 17 56 14 57 74 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829	8-98113-452-0	01	1	0809-	●
1	SHAFT; PROP MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=839	8-98069-569-0	01	1	0809-	●
1	SHAFT; PROP MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726	1-37151-632-1	01	1	0809-0906	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726	1-37151-632-1	01	1	0907-1111	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719	8-98069-957-0	01	1	1112-	●
1	SHAFT; PROP MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	0809-0906	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	0907-	●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	0809-	●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=849	8-98095-876-0	01	1	0809-0906		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=849	8-98095-876-0	01	1	0907-1111		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=849	8-98069-584-0	01	1	1112-		●
1	SHAFT; PROP (A) L=1226	8-98090-989-0	01	1	0809-		●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=961	1-37151-382-1	01	1	0809-1111		●
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961	1-37151-382-1	01	1	0809-1111			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=954	8-98069-592-0	01	1	1112-		●
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954	8-98069-592-0	01	1	1112-			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1229	8-98121-835-0	01	1	0809-1111				●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1229	8-98090-949-0	01	1	1112-				●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=1119	8-98106-151-0	01	1	0809-0906				●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1119	8-98106-151-0	01	1	0907-1111				●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1119	8-98069-589-0	01	1	1112-				●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	0809-				●
1	SHAFT; PROP MLD6W M/T(Y2C) (C) L=589	8-98119-467-0	01	1	0809-			●
1	SHAFT; PROP MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=969	8-98069-570-0	01	1	0809-			●
1	SHAFT; PROP MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98095-877-0	01	1	0809-0906			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98095-877-0	01	1	0907-1111			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98090-933-0	01	1	1112-			●
1	SHAFT; PROP MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	0809-0906			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	0907-			●
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	0809-			●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	0809-	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-054-1	01	1	0809-1111	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-1	01	1	0809-1111		●		●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1112-	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST	8-98178-052-0	01	1	1112-		●		●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	0809-	●		●
8	YOKE; FLANGE,PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	1-37211-056-3	01	1	0809-			●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	0809-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37300-102-1	AR	1	0809-1111	●		●
9	JOURNAL ASM; PROP SHAFT 1ST	1-37300-102-1	AR	1	0809-1111		●		●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1112-	●		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1112-		●		●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98048-925-1	01	1	0809-	●		●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98048-925-1	01	1	0809-			●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	0809-	●	●	●	●
14	COVER; DUST,SPIDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37319-012-0	04	1	0809-1111	●		●
14	COVER; DUST,SPIDER 1ST	1-37319-012-0	04	1	0809-1111		●		●
14	COVER; DUST,SPIDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-800-0	04	1	0809-1111	●		●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C) 1ST,2ND	8-98020-800-0	04	1	0809-1111			●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1112-	●	●	●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C)	8-98020-800-0	04	1	1112-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0809-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0809-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT MLD6W M/T(Y2C) PT1/8 ELBOW	0-90301-610-0	01	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0809-			●
20	BEARING ASM; CTR,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37510-105-0	01	1	0809-1111	●		●
20	BEARING ASM; CTR,PROP SHAFT 1ST	1-37510-105-0	01	1	0809-1111		●		●
20	BEARING ASM; CTR,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-881-0	01	1	0809-1111	●		●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98020-881-0	01	1	0809-1111			●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1112-	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C)	8-98020-881-0	01	1	1112-			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0809-	●	●	●	●
21	SEAL; OIL,CENTER BRG MLD6W M/T(Y2C) ID=54	1-09625-161-0	02	1	0809-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0809-	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST MLD6W M/T(Y2C)	1-37516-059-0	01	1	0809-			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0809-	●	●	●	●
23	BEARING; CENTER,PROP SHAFT MLD6W M/T(Y2C)	9-00090-071-0	01	1	0809-			●
24	RETAINER; CENTER BRG,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37529-068-0	01	1	0809-1111	●		●
24	RETAINER; CENTER BRG,1ST 1ST	1-37529-068-0	01	1	0809-1111		●		●
24	RETAINER; CENTER BRG,1ST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-882-0	01	1	0809-1111	●		●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C) 1ST,2ND	8-98020-882-0	01	1	0809-1111			●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1112-	●	●	●	●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C)	8-98020-882-0	01	1	1112-			●
25	NIPPLE; GREASE,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	0809-	●		●
25	NIPPLE; GREASE,CENTER BRG 1ST MT6 STRAIGHT	1-09380-006-0	01	1	0809-		●		●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-889-0	01	1	0809-	●		●
25	NIPPLE; GREASE,CENTER BRG MLD6W M/T(Y2C) 1ST,2ND	8-98020-889-0	01	1	0809-			●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0809-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37245-071-0	01	1	0809-1111	●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	1-37245-071-0	01	1	0809-1111		●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-815-0	01	1	0809-1111	●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C) 1ST,2ND	8-98020-815-0	01	1	0809-1111			●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1112-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C)	8-98020-815-0	01	1	1112-			●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0809-	●	●	●	●
51	NUT; FLANGE,SPLINED MLD6W M/T(Y2C) M30	8-97160-857-0	01	1	0809-			●
56	NUT; YOKE M14	0-91110-514-0	08	1	0809-	●	●	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	0809-	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0809-	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST MLD6W M/T(Y2C) M10X35 FLANGE	0-28651-035-0	04	1	0809-			●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0809-	●	●	●	●
64	NUT; RET TO BRKT MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	04	1	0809-			●
71	NUT; YOKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE	1-09449-065-0	04	1	0809-	●	●	●	●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	0809-	●	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	0809-	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	0809-	●	●	●	●
74	BOLT; YOKE,TRANS MLD6W M/T(Y2C) M14X37	1-09000-121-0	04	1	0809-			●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	0809-	●	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	0809-	●	●	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	0809-	●	●	●	●
172	BRACKET; CENTER BRG 1ST	8-98084-677-0	01	1	0809-	●
172	BRACKET; CENTER BRG 1ST	8-98084-678-0	01	1	0809-		●
172	BRACKET; CENTER BRG MLD6W M/T(Y2C) 1ST	8-98084-678-0	01	1	0809-			●
172	BRACKET; CENTER BRG 1ST	1-37515-071-2	01	1	0809-				●
172	BRACKET; CENTER BRG MZW,MZX 1ST,MLD 2ND	1-37515-136-0	01	1	0809-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0809-	●	●	●	●
173	BOLT; BRKT MLD6W M/T(Y2C) M10X25 FLANGE	0-28651-025-0	04	1	0809-			●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-	●	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	0809-	●	●	●	●

174 172 173 64 45 20 51 63 46 21 24 25 23 1 22 71 72 9 21 71 177 172 173 8 20 64 60 51 46 63 21 24 25 23 1 49 22 52 9 9 21 17 8 74 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=829	8-98113-452-0	01	1	0809-	●
1	SHAFT; PROP MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=839	8-98069-569-0	01	1	0809-	●
1	SHAFT; PROP MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726	1-37151-632-1	01	1	0809-0906	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=726	1-37151-632-1	01	1	0907-1111	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=719	8-98069-957-0	01	1	1112-	●
1	SHAFT; PROP MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	0809-0906	●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=729	8-98069-567-0	01	1	0907-	●
1	SHAFT; PROP (A) L=1011	8-98069-699-0	01	1	0809-	●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=849	8-98095-876-0	01	1	0809-0906		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=849	8-98095-876-0	01	1	0907-1111		●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=849	8-98069-584-0	01	1	1112-		●
1	SHAFT; PROP (A) L=1226	8-98090-989-0	01	1	0809-		●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=961	1-37151-382-1	01	1	0809-1111		●
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=961	1-37151-382-1	01	1	0809-1111			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=954	8-98069-592-0	01	1	1112-		●
1	SHAFT; PROP MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=954	8-98069-592-0	01	1	1112-			●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1229	8-98121-835-0	01	1	0809-1111				●
1	SHAFT; PROP MLD6W M/T(Y2C) (B) L=1229	8-98090-949-0	01	1	1112-				●
1	SHAFT; PROP MZX6P M/T(RSW) (B) L=1119	8-98106-151-0	01	1	0809-0906				●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1119	8-98106-151-0	01	1	0907-1111				●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=1119	8-98069-589-0	01	1	1112-				●
1	SHAFT; PROP (A) L=1351	8-98090-992-0	01	1	0809-				●
1	SHAFT; PROP MLD6W M/T(Y2C) (C) L=589	8-98119-467-0	01	1	0809-			●
1	SHAFT; PROP MLD6W M/T(Y2C) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=969	8-98069-570-0	01	1	0809-			●
1	SHAFT; PROP MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98095-877-0	01	1	0809-0906			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98095-877-0	01	1	0907-1111			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1504	8-98090-933-0	01	1	1112-			●
1	SHAFT; PROP MZX6P M/T(RSW) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	0809-0906			●
1	SHAFT; PROP MZX6P M/T(RSW),MZW6P M/T(RSZ) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) L=1519	8-98090-935-0	01	1	0907-			●
1	SHAFT; PROP (A) L=1366	8-98069-684-0	01	1	0809-			●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-056-3	02	1	0809-	●	●	●	●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37211-054-1	01	1	0809-1111	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST	1-37211-054-1	01	1	0809-1111		●		●
8	YOKE; FLANGE,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	8-98178-052-0	01	1	1112-	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST	8-98178-052-0	01	1	1112-		●		●
8	YOKE; FLANGE,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	1-37211-056-3	01	1	0809-	●		●
8	YOKE; FLANGE,PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	1-37211-056-3	01	1	0809-			●
9	JOURNAL ASM; PROP SHAFT END	8-98048-925-1	02	1	0809-	●	●	●	●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37300-102-1	AR	1	0809-1111	●		●
9	JOURNAL ASM; PROP SHAFT 1ST	1-37300-102-1	AR	1	0809-1111		●		●
9	JOURNAL ASM; PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98048-925-1	AR	1	1112-	●		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	AR	1	1112-		●		●
9	JOURNAL ASM; PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98048-925-1	01	1	0809-	●		●
9	JOURNAL ASM; PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98048-925-1	01	1	0809-			●
14	COVER; DUST,SPIDER END	8-98020-800-0	08	1	0809-	●	●	●	●
14	COVER; DUST,SPIDER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37319-012-0	04	1	0809-1111	●		●
14	COVER; DUST,SPIDER 1ST	1-37319-012-0	04	1	0809-1111		●		●
14	COVER; DUST,SPIDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-800-0	04	1	0809-1111	●		●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C) 1ST,2ND	8-98020-800-0	04	1	0809-1111			●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1112-	●	●	●	●
14	COVER; DUST,SPIDER MLD6W M/T(Y2C)	8-98020-800-0	04	1	1112-			●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0809-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	0809-	●	●	●	●
17	NIPPLE; GREASE,PROP SHAFT MLD6W M/T(Y2C) PT1/8 ELBOW	0-90301-610-0	01	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	0809-			●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0809-	●	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST MLD6W M/T(Y2C) OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	0809-			●
20	BEARING ASM; CTR,PROP SHAFT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37510-105-0	01	1	0809-1111	●		●
20	BEARING ASM; CTR,PROP SHAFT 1ST	1-37510-105-0	01	1	0809-1111		●		●
20	BEARING ASM; CTR,PROP SHAFT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-881-0	01	1	0809-1111	●		●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C) 1ST,2ND	8-98020-881-0	01	1	0809-1111			●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1112-	●	●	●	●
20	BEARING ASM; CTR,PROP SHAFT MLD6W M/T(Y2C)	8-98020-881-0	01	1	1112-			●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	0809-	●	●	●	●
21	SEAL; OIL,CENTER BRG MLD6W M/T(Y2C) ID=54	1-09625-161-0	02	1	0809-			●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	0809-	●	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST MLD6W M/T(Y2C)	1-37516-059-0	01	1	0809-			●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	0809-	●	●	●	●
23	BEARING; CENTER,PROP SHAFT MLD6W M/T(Y2C)	9-00090-071-0	01	1	0809-			●
24	RETAINER; CENTER BRG,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37529-068-0	01	1	0809-1111	●		●
24	RETAINER; CENTER BRG,1ST 1ST	1-37529-068-0	01	1	0809-1111		●		●
24	RETAINER; CENTER BRG,1ST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-882-0	01	1	0809-1111	●		●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C) 1ST,2ND	8-98020-882-0	01	1	0809-1111			●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1112-	●	●	●	●
24	RETAINER; CENTER BRG,1ST MLD6W M/T(Y2C)	8-98020-882-0	01	1	1112-			●
25	NIPPLE; GREASE,CENTER BRG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST MT6 STRAIGHT	1-09380-006-0	01	1	0809-	●		●
25	NIPPLE; GREASE,CENTER BRG 1ST MT6 STRAIGHT	1-09380-006-0	01	1	0809-		●		●
25	NIPPLE; GREASE,CENTER BRG REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-889-0	01	1	0809-	●		●
25	NIPPLE; GREASE,CENTER BRG MLD6W M/T(Y2C) 1ST,2ND	8-98020-889-0	01	1	0809-			●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	0809-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST	1-37245-071-0	01	1	0809-1111	●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST 1ST	1-37245-071-0	01	1	0809-1111		●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 1ST,2ND	8-98020-815-0	01	1	0809-1111	●		●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C) 1ST,2ND	8-98020-815-0	01	1	0809-1111			●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1112-	●	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST MLD6W M/T(Y2C)	8-98020-815-0	01	1	1112-			●
49	NUT; YOKE MLD6W M/T(Y2C) M14	0-91110-514-0	04	1	0809-			●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	0809-	●	●	●	●
51	NUT; FLANGE,SPLINED MLD6W M/T(Y2C) M30	8-97160-857-0	01	1	0809-			●
52	WASHER; LK,YOKE MLD6W M/T(Y2C) ID=14.2	0-91510-614-0	04	1	0809-			●
60	WASHER; PL,RET TO BRKT MLD6W M/T(Y2C) ID=10.5 OD=22	0-91614-610-0	04	1	0809-			●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	0809-	●	●	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST MLD6W M/T(Y2C) M10X35 FLANGE	0-28651-035-0	04	1	0809-			●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	0809-	●	●	●	●
64	NUT; RET TO BRKT MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	04	1	0809-			●
71	NUT; YOKE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M16 FLANGE	1-09449-065-0	04	1	0809-	●	●	●	●
71	NUT; YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M14	0-91110-514-0	04	1	0809-	●	●	●	●
72	WASHER; LK,YOKE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2	0-91510-614-0	04	1	0809-	●	●	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	0809-	●	●	●	●
74	BOLT; YOKE,TRANS MLD6W M/T(Y2C) M14X37	1-09000-121-0	04	1	0809-			●
172	BRACKET; CENTER BRG 1ST	8-98084-677-0	01	1	0809-	●
172	BRACKET; CENTER BRG 1ST	8-98084-678-0	01	1	0809-		●
172	BRACKET; CENTER BRG MLD6W M/T(Y2C) 1ST	8-98084-678-0	01	1	0809-			●
172	BRACKET; CENTER BRG 1ST	1-37515-071-2	01	1	0809-				●
172	BRACKET; CENTER BRG MZW,MZX 1ST,MLD 2ND	1-37515-136-0	01	1	0809-			●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0809-	●	●	●	●
173	BOLT; BRKT MLD6W M/T(Y2C) M10X25 FLANGE	0-28651-025-0	04	1	0809-			●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0809-	●	●	●	●
177	NUT MLD6W M/T(Y2C) M10 FLANGE	0-91180-210-0	04	1	0809-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
