3-77 — BRAKE PIPING; AIR,REAR (#66552) — 75 parça

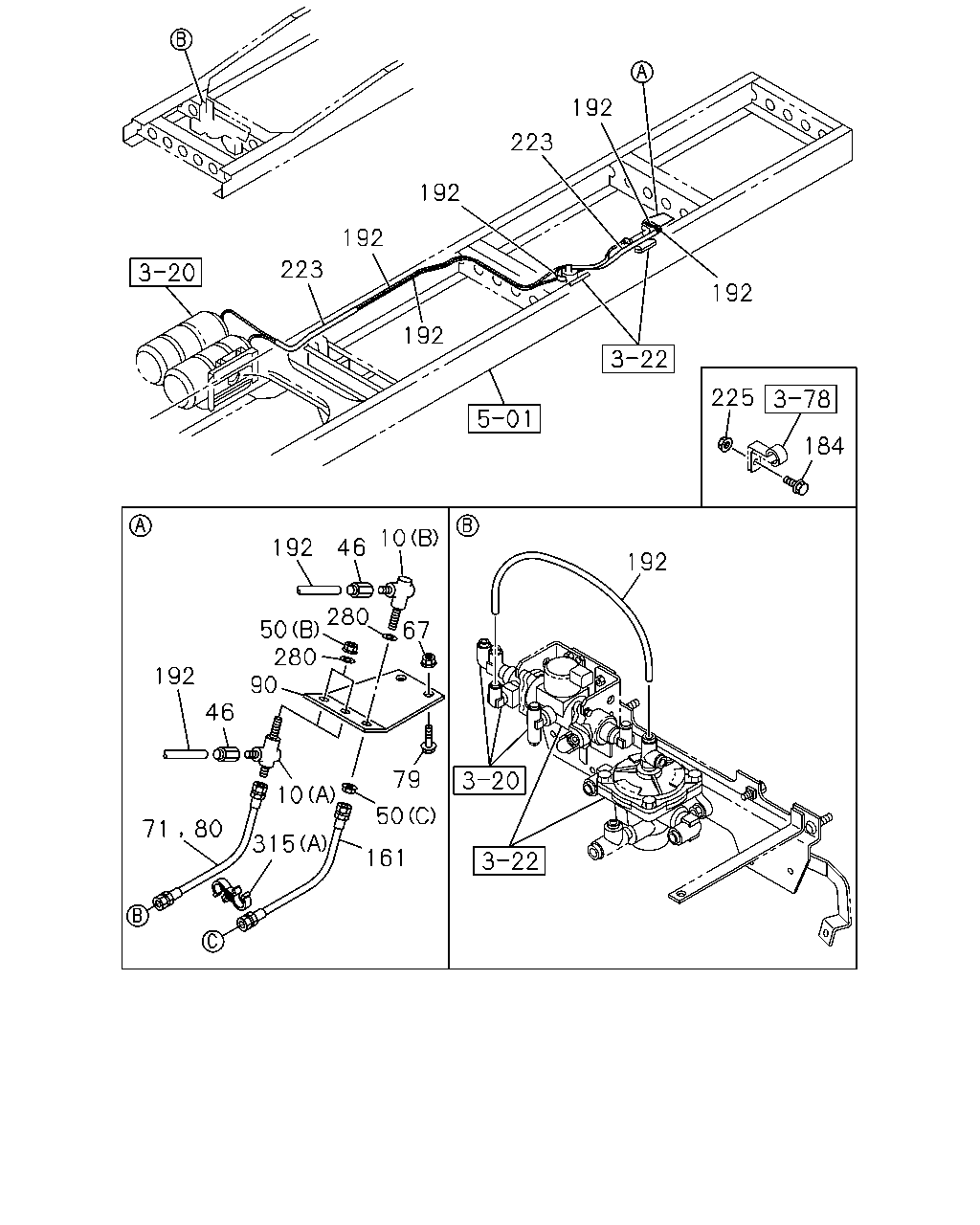

192 223 192 192 223 192 192 225 184 10 192 46 192 280 50 280 90 67 192 46 79 10 50 71 80 315 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW	0-92135-210-0	01	1	0809-
10	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY	1-09650-182-1	02	1	0809-
46	NIPPLE; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	03	1	0809-
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0809-1110
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1111-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	0809-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	0809-
67	NUT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	0809-
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=740	1-09363-756-0	01	1	0901-0910
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	01	1	0901-0910
71	HOSE; FLEX,RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580	1-09363-772-0	02	1	0809-0910
79	BOLT; HOSE BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	0809-
80	HOSE; FLEX,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580	1-09363-772-0	02	1	0911-
80	HOSE; FLEX,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=740	1-09363-756-0	01	1	0911-
80	HOSE; FLEX,POWER CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) L=660	1-09363-814-0	01	1	0911-
90	BRACKET; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47477-851-1	01	1	0809-
161	HOSE; FLEX,QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580	1-09363-772-0	01	1	0809-
184	BOLT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE	0-28650-820-0	01	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0809-
225	NUT; TUBE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0809-
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=12.2	0-91510-812-0	02	1	0809-
280	WASHER; LK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	01	1	0809-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-1110
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1111-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0809-

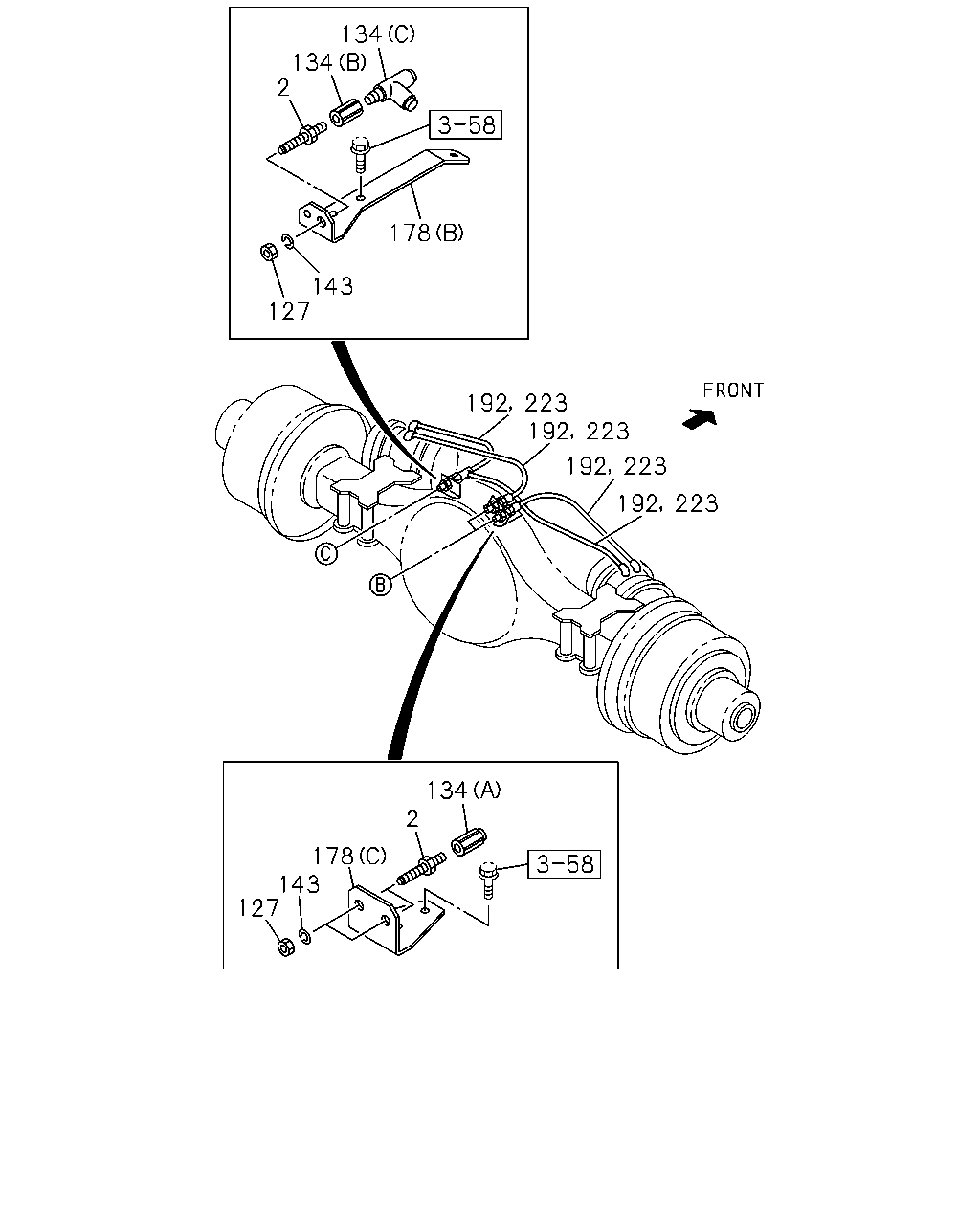

134 134 2 178 143 127 192 223 192 223 192 223 192 223 134 2 178 143 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74	0-92123-310-0	03	1	0809-
127	NUT; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	03	1	0809-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0809-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0809-
134	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY	1-09661-007-0	01	1	0809-
143	WASHER; LK,UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	03	1	0809-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-822-0	01	1	0809-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98057-823-0	01	1	0809-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-0	01	1	0809-1110
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1111-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0809-

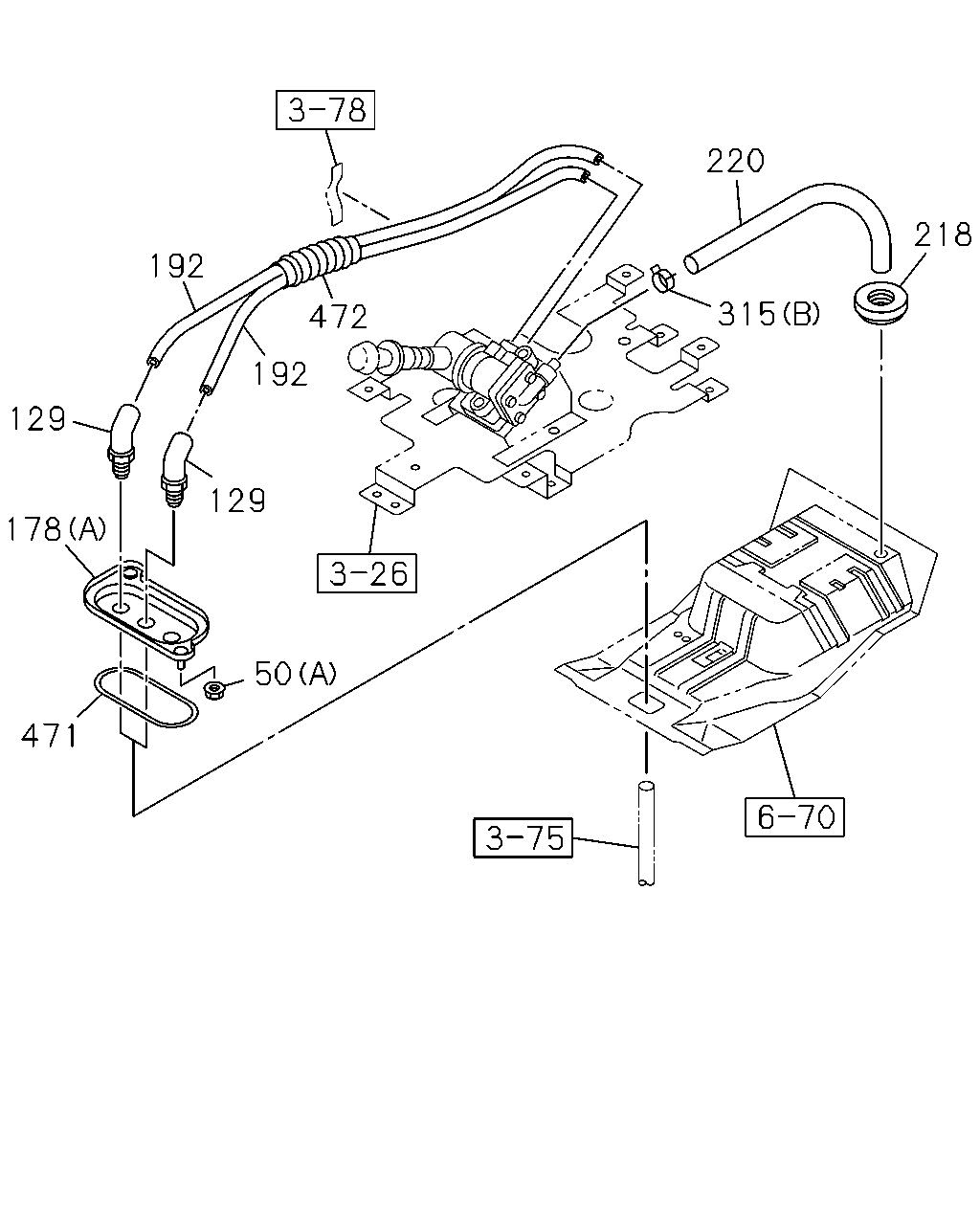

220 218 192 315 472 192 129 129 178 50 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	0809-1110
50	NUT; UNION BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1111-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12	0-91111-512-0	02	1	0809-
50	NUT; UNION BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16	0-91111-516-0	01	1	0809-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0809-1110
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	0809-1110
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1111-
129	CONNECTOR; NYLON TUBE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW	8-97611-963-1	01	1	1111-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98057-822-0	01	1	0809-
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98057-823-0	01	1	0809-
178	BRACKET; UNION REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-0	01	1	0809-1110
178	BRACKET; UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-054-1	01	1	1111-
178	BRACKET; UNION EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98017-052-1	01	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0809-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0809-
218	GROMMET; VINYL HOSE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	0912-1110
218	GROMMET; VINYL HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24	9-61166-007-0	01	1	1111-
220	HOSE; VINYL,EXH,PARKING BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0912-1110
220	HOSE; VINYL,EXH,PARKING BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	1111-
315	CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	0912-1110
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14	8-94238-572-0	01	1	1111-
315	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18	8-94323-068-0	01	1	0809-
471	SEAL; BRKT	1-79738-832-0	01	1	0809-1110
471	SEAL; BRKT	1-79738-832-0	01	1	1111-
472	TUBE; SPUTTER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	0809-1110
472	TUBE; SPUTTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98067-708-0	01	1	1111-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
