Sayfa 3-70 - Isuzu EPC

3-70 — BRAKE PIPING; AIR,AIR MASTER (#66550) — 369 parça

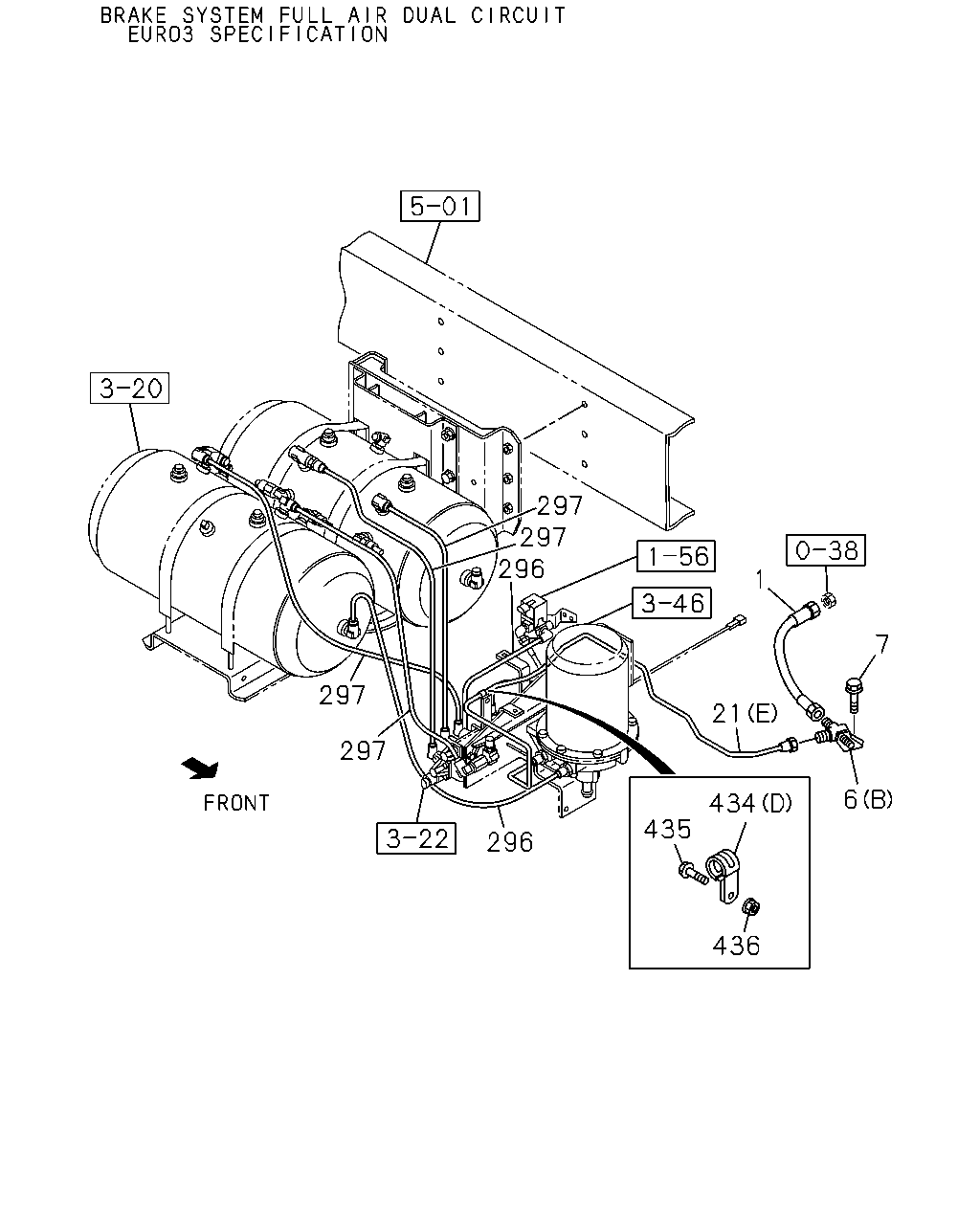

297 297 296 1 7 297 21 297 6 434 435 296 436

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EURO3 SPECIFICATION<NT3> L=320	8-98067-411-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-0812
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> (B)	8-98076-344-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98076-344-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98117-117-0	01	1	0809-0812
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (A)	8-98117-117-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (A)	8-98117-117-0	01	1	1009-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (E) L=1715	8-98095-083-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1715	8-98095-083-0	01	1	1009-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0901-0904
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	8-98147-087-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
296	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1108-
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1108-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP EURO3 SPECIFICATION<NT3> (D) ID=16 L=20	0-95235-536-0	02	1	0901-1008
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=16 L=20	0-95235-536-0	02	1	1009-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-

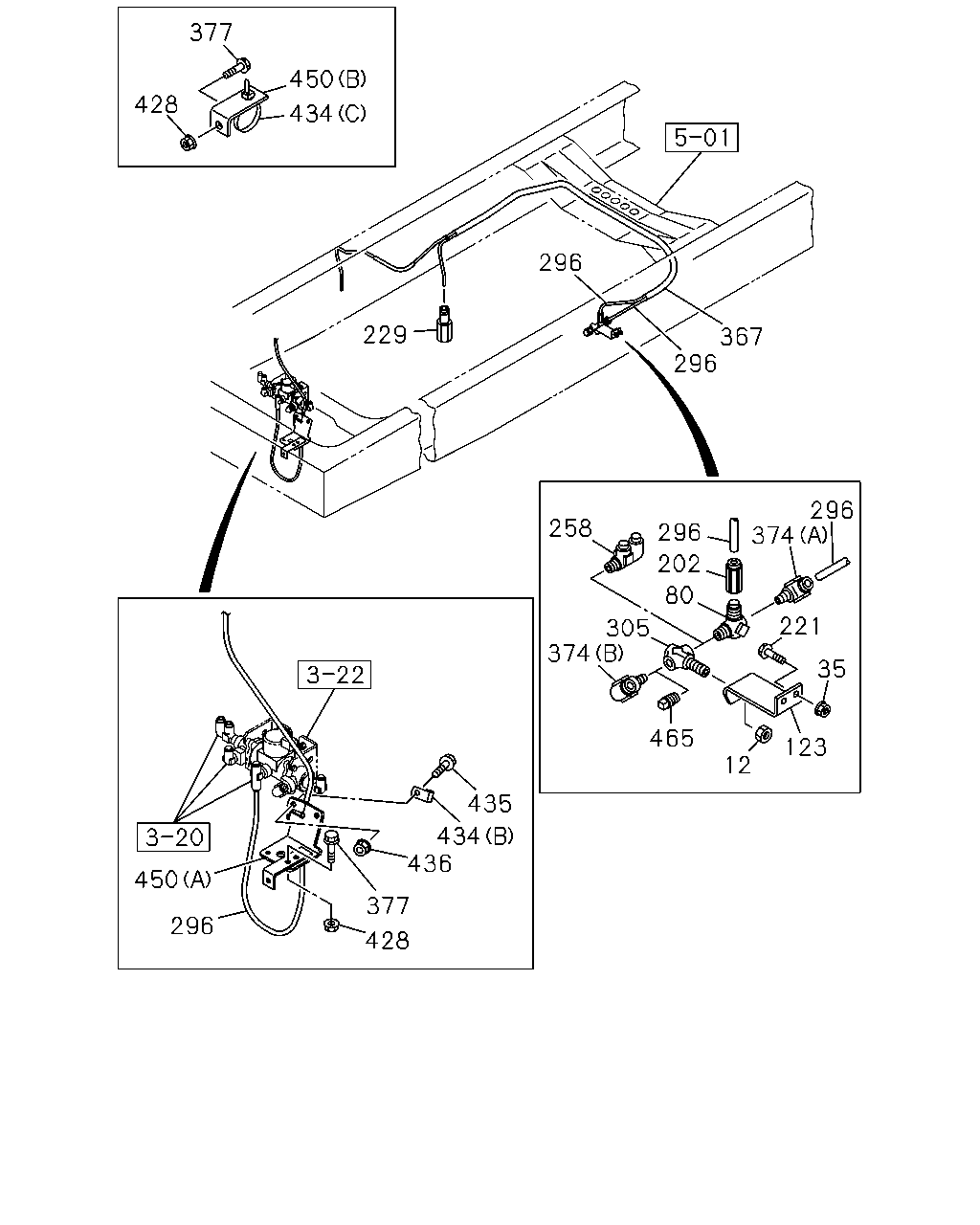

377 450 428 434 296 229 367 296 296 374 258 296 202 80 305 374 221 35 465 123 12 435 434 436 450 377 296 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. PTO CONTROL<SV6> M12	0-91111-512-0	01	1	0809-
35	NUT; BRKT EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0809-
80	UNION; 3 WAY EXC. PTO CONTROL<SV6> M12 & PT1/4 3WAY	1-09656-586-1	01	1	0809-1111
123	BRACKET; UNION EXC. PTO CONTROL<SV6>	8-98118-545-0	01	1	0809-
202	ADAPTER EXC. PTO CONTROL<SV6> DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0809-1111
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X30 FLANGE	0-28650-830-0	02	1	0809-0809
221	BOLT; BRKT EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0810-
229	ADAPTER; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0812-
258	CONNECTOR; NYLON TUBE EXC. PTO CONTROL<SV6> DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1112-
296	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1108-
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1108-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
305	UNION ASM; NYLON TUBE EXC. PTO CONTROL<SV6> M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0809-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	0809-
374	CONNECTOR EXC. PTO CONTROL<SV6> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-
374	CONNECTOR EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-1111
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0809-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0809-
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0810-
434	CLIP EURO3 SPECIFICATION<NT3> (D) ID=16 L=20	0-95235-536-0	02	1	0901-1008
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=16 L=20	0-95235-536-0	02	1	1009-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	0809-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98106-046-0	01	1	0809-0912
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98158-602-0	01	1	1001-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) L=65	1-47477-713-0	01	1	0809-0809
465	PLUG RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6>,H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	0809-

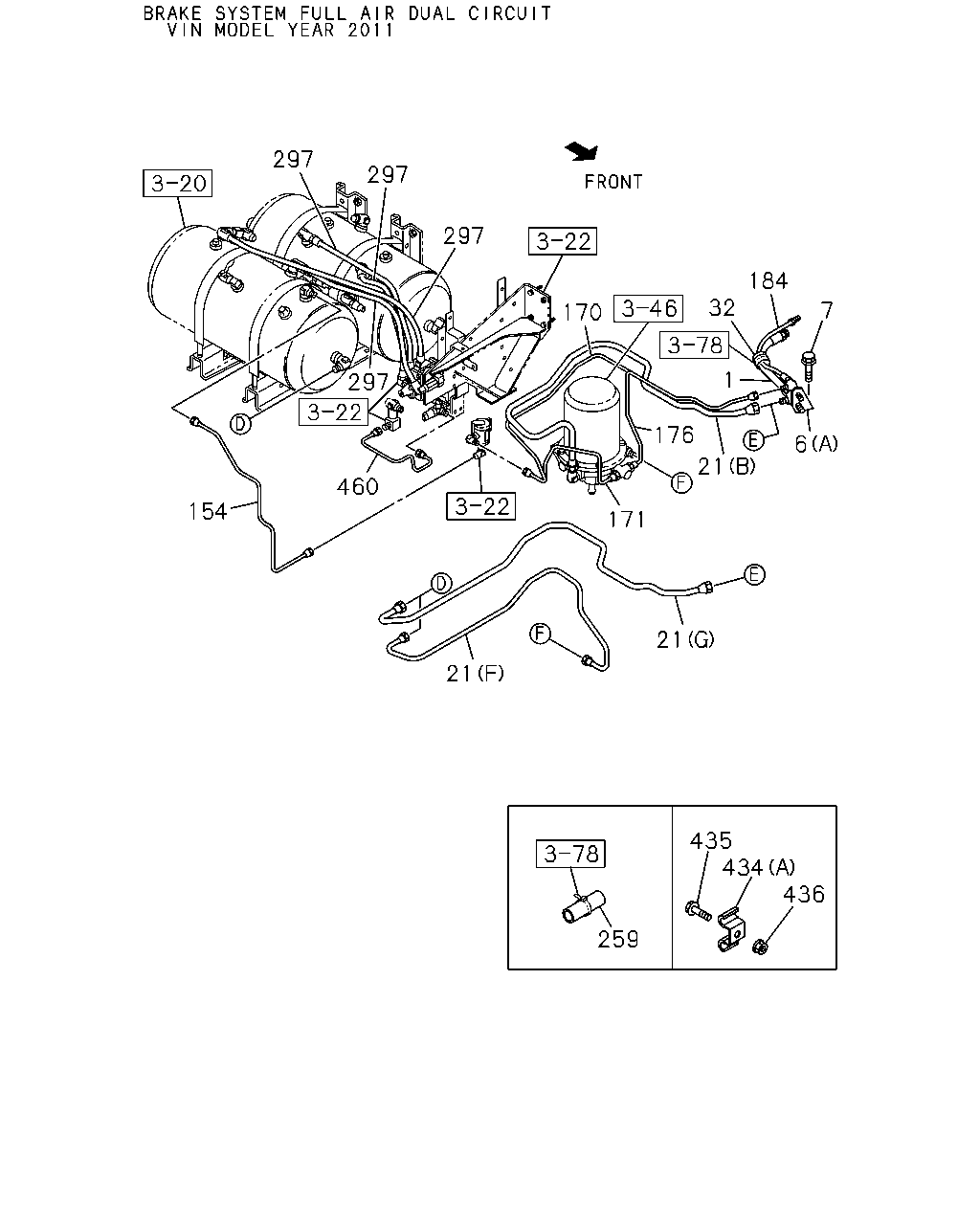

297 297 297 184 32 7 170 1 297 176 21 6 460 154 171 21 21 435 434 436 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EURO3 SPECIFICATION<NT3> L=320	8-98067-411-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-0812
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> (B)	8-98076-344-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98076-344-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98117-117-0	01	1	0809-0812
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (A)	8-98117-117-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (A)	8-98117-117-0	01	1	1009-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (E) L=1715	8-98095-083-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1715	8-98095-083-0	01	1	1009-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0901-0904
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	8-98147-087-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-0812
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0901-1008
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98127-306-0	01	1	0809-0812
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98127-306-0	01	1	0901-0904
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98145-853-0	01	1	0905-1008
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98167-337-0	01	1	1009-1110
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-337-0	01	1	1111-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-0812
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0901-1110
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0812
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0901-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-0812
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0901-1110
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-0812
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0901-1008
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-0812
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0901-1110
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-0812
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0901-1008
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-0812
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0901-1008
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB> ID=29 OD=39 L=40	1-09337-013-0	01	1	1012-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP EURO3 SPECIFICATION<NT3> (D) ID=16 L=20	0-95235-536-0	02	1	0901-1008
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=16 L=20	0-95235-536-0	02	1	1009-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-
460	PIPE; AIR,PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	8-98173-460-0	01	1	1012-1012
460	PIPE; AIR,PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) VIN MODEL YEAR 2011<VZB>	8-98184-394-0	01	1	1012-

1 184 7 6 21 296 154 176 170 377 171 434 450 428 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EURO3 SPECIFICATION<NT3> L=320	8-98067-411-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-0812
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> (B)	8-98076-344-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98076-344-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98117-117-0	01	1	0809-0812
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (A)	8-98117-117-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (A)	8-98117-117-0	01	1	1009-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (E) L=1715	8-98095-083-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1715	8-98095-083-0	01	1	1009-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0901-0904
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	8-98147-087-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-0812
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0901-1008
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB>	8-98173-547-0	01	1	1012-1012
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98127-306-0	01	1	0809-0812
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98127-306-0	01	1	0901-0904
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98145-853-0	01	1	0905-1008
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2>	8-98167-337-0	01	1	1009-1110
154	PIPE; AIR,AIR TANK TO AIR GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-337-0	01	1	1111-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-0812
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0901-1110
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0812
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0901-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-0812
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0901-1110
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-0812
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0901-1008
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-0812
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0901-1110
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-0812
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0901-1008
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-0812
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0901-1008
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-
296	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1108-
296	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> SERVICED BY L=2000 OD=12	1-87411-011-0	01	1	1108-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0809-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	0809-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-0809
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE	0-28650-825-0	02	1	0809-
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-0809
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	0810-
434	CLIP EURO3 SPECIFICATION<NT3> (D) ID=16 L=20	0-95235-536-0	02	1	0901-1008
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=16 L=20	0-95235-536-0	02	1	1009-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=90 B=25	1-47475-530-0	01	1	0809-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98106-046-0	01	1	0809-0912
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> EXC. RIGID SEAT WO/ARM REST<TAZ> (A)	8-98158-602-0	01	1	1001-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) L=65	1-47477-713-0	01	1	0809-0809

297 184 170 7 1 21 297 297 297 297 6 176 171 21 21 435 434 436 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK EURO3 SPECIFICATION<NT3> L=320	8-98067-411-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> L=320	8-98067-411-0	01	1	1009-
1	HOSE; FLEX,AIR TANK L=310	8-97607-730-0	01	1	0809-0812
1	HOSE; FLEX,AIR TANK EURO2 SPECIFICATION<NT2> L=310	8-97607-730-0	01	1	0901-1008
1	HOSE; FLEX,AIR TANK TURBO - CONVENTIONAL<Q5T> L=310	8-97607-730-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK EURO3 SPECIFICATION<NT3> (B)	8-98076-344-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98076-344-0	01	1	1009-
6	BRACKET; FLEX HOSE,AIR TANK (A)	8-98117-117-0	01	1	0809-0812
6	BRACKET; FLEX HOSE,AIR TANK EURO2 SPECIFICATION<NT2> (A)	8-98117-117-0	01	1	0901-1008
6	BRACKET; FLEX HOSE,AIR TANK TURBO - CONVENTIONAL<Q5T> (A)	8-98117-117-0	01	1	1009-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98173-546-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> (F)	8-98184-503-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1523	8-98173-570-0	01	1	1012-1012
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> VIN MODEL YEAR 2011<VZB> EXC. AIR DRYER<PS7> (G) L=1526	8-98184-504-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (E) L=1715	8-98095-083-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (E) L=1715	8-98095-083-0	01	1	1009-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (C) L=1823	8-98120-240-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7> (C) L=1691	8-98120-178-0	01	1	0809-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) L=1540	8-98117-033-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1540	8-98117-033-0	01	1	1009-1009
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) L=1548	8-98174-993-0	01	1	1010-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98117-819-0	01	1	0901-0904
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A)	8-98147-087-0	01	1	0905-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A)	8-98147-087-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98147-087-0	01	1	1012-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0809-0812
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	0901-1008
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (D) L=1630	8-98120-164-0	01	1	1009-1011
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB> (D) L=1630	8-98120-164-0	01	1	1012-
32	SLEEVE; RUBBER,AIR PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0809-0812
32	SLEEVE; RUBBER,AIR PIPE EURO2 SPECIFICATION<NT2> ID=32 OD=36 L=50	1-09337-023-0	01	1	0901-1008
32	SLEEVE; RUBBER,AIR PIPE TURBO - CONVENTIONAL<Q5T> ID=32 OD=36 L=50	1-09337-023-0	01	1	1009-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0809-0812
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	0901-1110
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98127-353-0	01	1	1111-
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0809-0812
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98120-165-0	01	1	0901-0907
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	0908-1008
170	PIPE; AIR,AIR GOV TO FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7>	8-98152-685-0	01	1	1009-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0809-0812
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=521 SERVICED BY L=550	1-47428-808-0	01	1	0901-1110
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=521 SERVICED BY L=550	1-47428-808-0	01	1	1111-
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0809-0812
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=507 SERVICED BY L=550	1-47428-808-0	01	1	0901-1008
171	PIPE; AIR,GOV TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=507 SERVICED BY L=550	1-47428-808-0	01	1	1009-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0809-0812
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	0901-1110
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=1523 SERVICED BY L=1620	1-47428-820-0	01	1	1111-
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0809-0812
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	0901-1008
176	PIPE; AIR,AIR DRYER TO UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> L=908 SERVICED BY L=1000	1-47428-814-0	01	1	1009-
184	HOSE; FLEX,AIR GOV L=350	1-09363-624-0	01	1	0809-0812
184	HOSE; FLEX,AIR GOV EURO2 SPECIFICATION<NT2> L=350	1-09363-624-0	01	1	0901-1008
184	HOSE; FLEX,AIR GOV TURBO - CONVENTIONAL<Q5T> L=350	1-09363-624-0	01	1	1009-
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0809-
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0809-
434	CLIP EURO3 SPECIFICATION<NT3> (D) ID=16 L=20	0-95235-536-0	02	1	0901-1008
434	CLIP EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=16 L=20	0-95235-536-0	02	1	1009-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1009-1110
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> EXC. AIR DRYER<PS7> (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	1111-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. RIGID SEAT WO/ARM REST<TAZ> (C) L=350	1-09707-183-0	01	1	0809-0809
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0809-0812
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0901-1008
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	1009-
434	CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20	0-95234-635-0	01	1	0809-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0809-
435	BOLT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE	0-28650-820-0	01	1	0809-
436	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-
436	NUT; CLIP EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE	0-91180-108-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
