Isuzu WW
▶
TRUCKS
▶
FTR
▶
11127 - FTR(LHD)
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

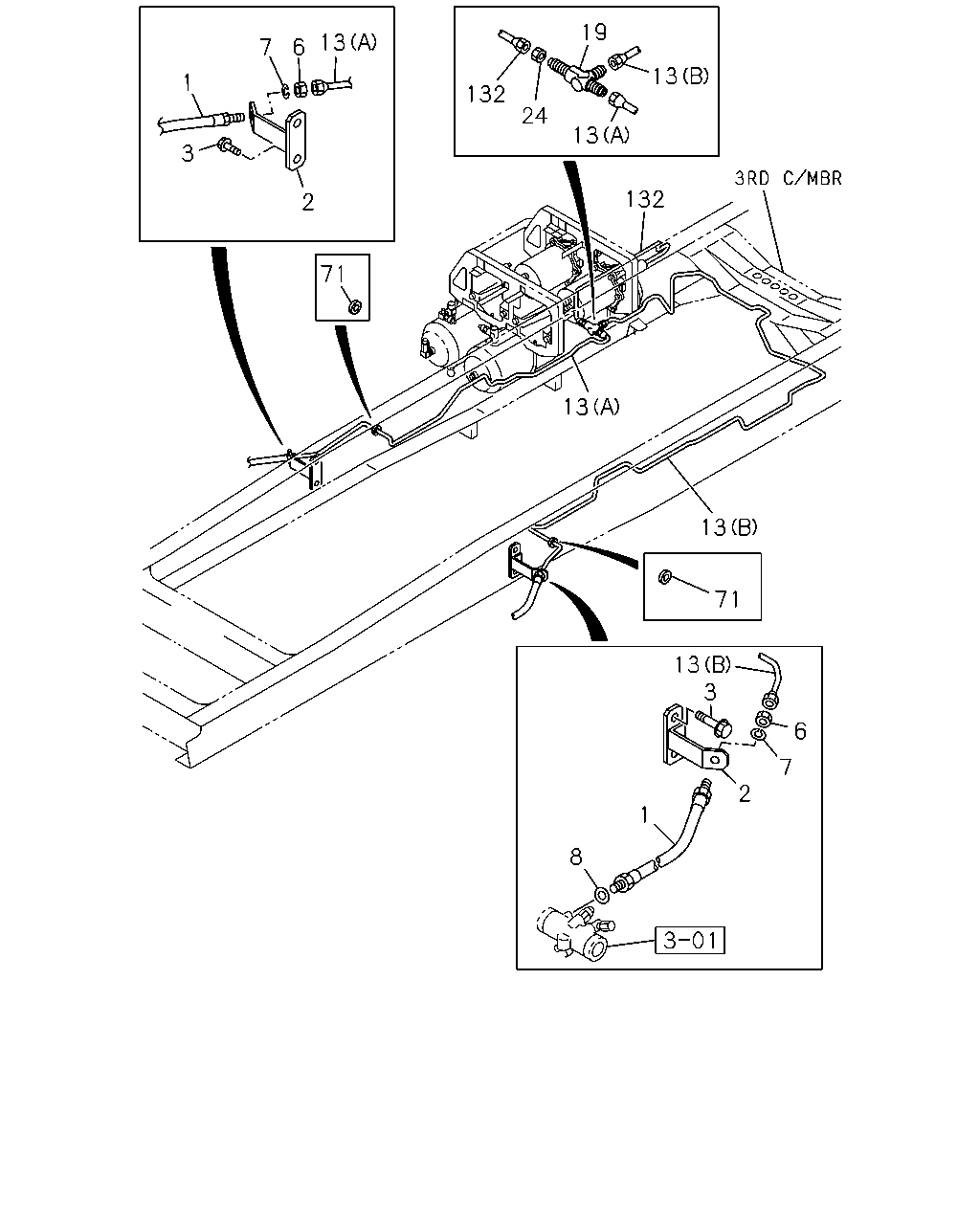

3-52 — BRAKE PIPING; OIL,FRONT
(#66547) — 15 parça
19
13
7
6
13
1
132
24
13
3
132
2
71
13
13
71
13
3
6
7
2
1
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610
0-05312-610-0
02
1
0809-0907
1
HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610
0-05212-610-0
02
1
0908-
2
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98118-251-1
02
1
0809-1107
2
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
8-98177-524-0
02
1
1108-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE
0-28650-825-0
04
1
0809-
6
NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12
9-09840-280-0
02
1
0809-
7
WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2
0-91510-512-0
02
1
0809-
8
GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17
9-09920-472-0
02
1
0905-
13
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606
8-98126-034-0
01
1
0809-
13
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3453
8-98126-025-0
01
1
0809-0812
13
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400
1-47428-746-0
01
1
0901-
19
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 3WAY
0-92138-906-0
01
1
0809-
24
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12
9-09840-280-0
01
1
0809-
71
GROMMET; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17
9-09956-092-1
02
1
0809-
132
PIPE; OIL,BRK,HYD UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=925 SERVICED BY L=1000
1-47428-730-0
01
1
0809-
