◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11127 - FTR(LHD) ▶ 3 - Brakes, Brake System ▶ 3-46 - AIR DRYER ▶
3-46 — AIR DRYER (#66546) — 894 parça

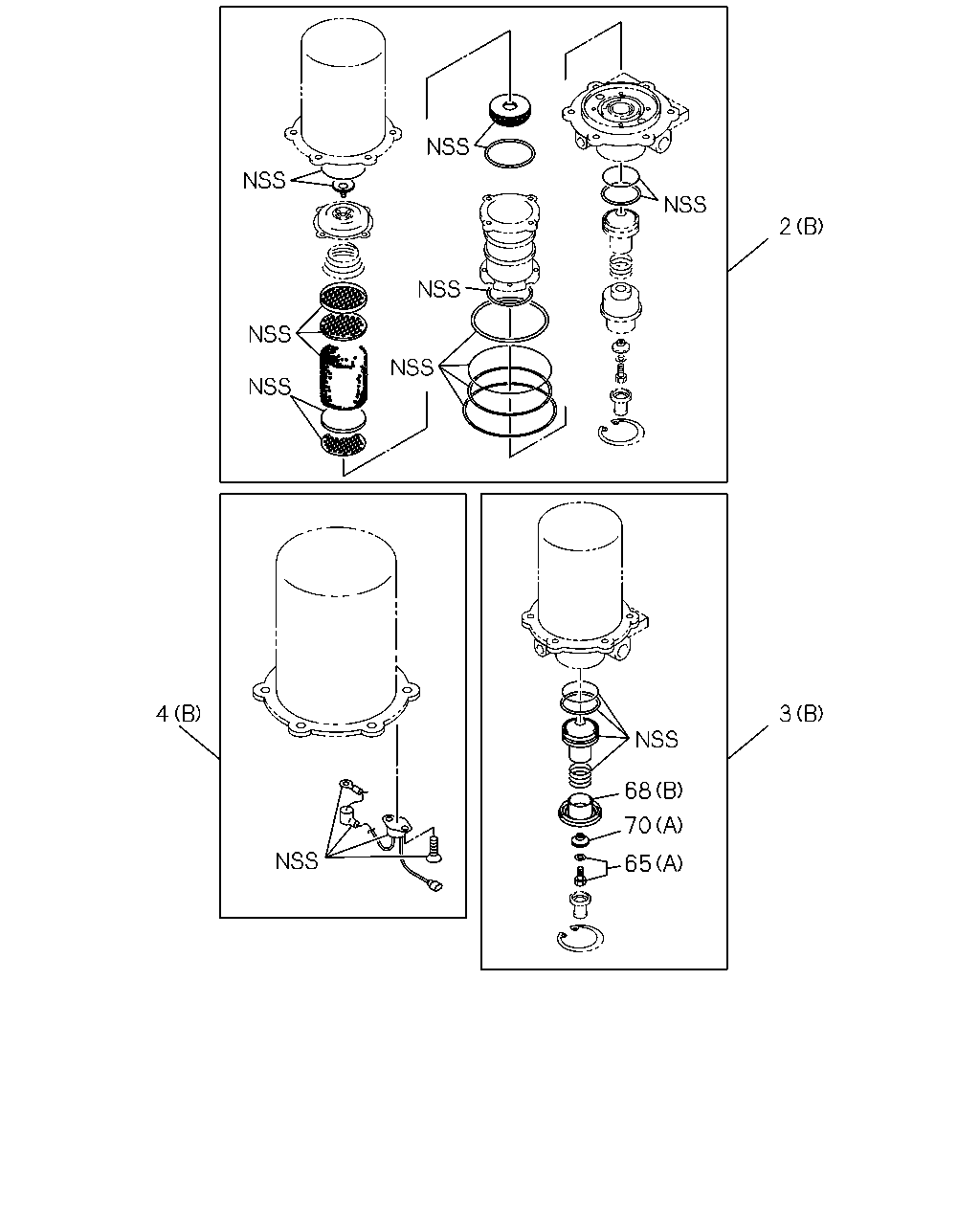

çizim 118227
2 4 3 68 70 65
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-457-0 01 1 0901-1110
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-457-0 01 1 1111-1211
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-323-0 01 1 1212-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-85576-448-0 01 1 0901-1008
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-448-0 01 1 1009-1107
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-448-0 01 1 1108-1211
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-328-0 01 1 1212-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0809-0812
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0901-1110
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-217-0 01 1 1111-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-226-0 01 1 0809-0812
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-226-0 01 1 0901-1008
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-226-0 01 1 1009-
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 0901-1008
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 1009-1107
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1009-1107
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 1108-1110
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1108-1110
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1111-1211
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-322-0 01 1 1212-
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0809-0812
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0901-1110
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-193-0 01 1 1111-
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-057-1 01 1 0809-0812
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-057-1 01 1 0901-1008
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-057-1 01 1 1009-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-443-0 01 1 0901-1110
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-443-0 01 1 1111-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-85576-444-0 01 1 0901-1008
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-444-0 01 1 1009-1107
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-444-0 01 1 1108-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0809-0812
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0901-1110
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-218-0 01 1 1111-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-254-0 01 1 0809-0812
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-254-0 01 1 0901-1008
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-254-0 01 1 1009-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1111-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0809-0812
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1111-
68 BODY; VALVE
AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0901-1110
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-216-0 01 1 1009-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1111-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0809-0812
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1111-

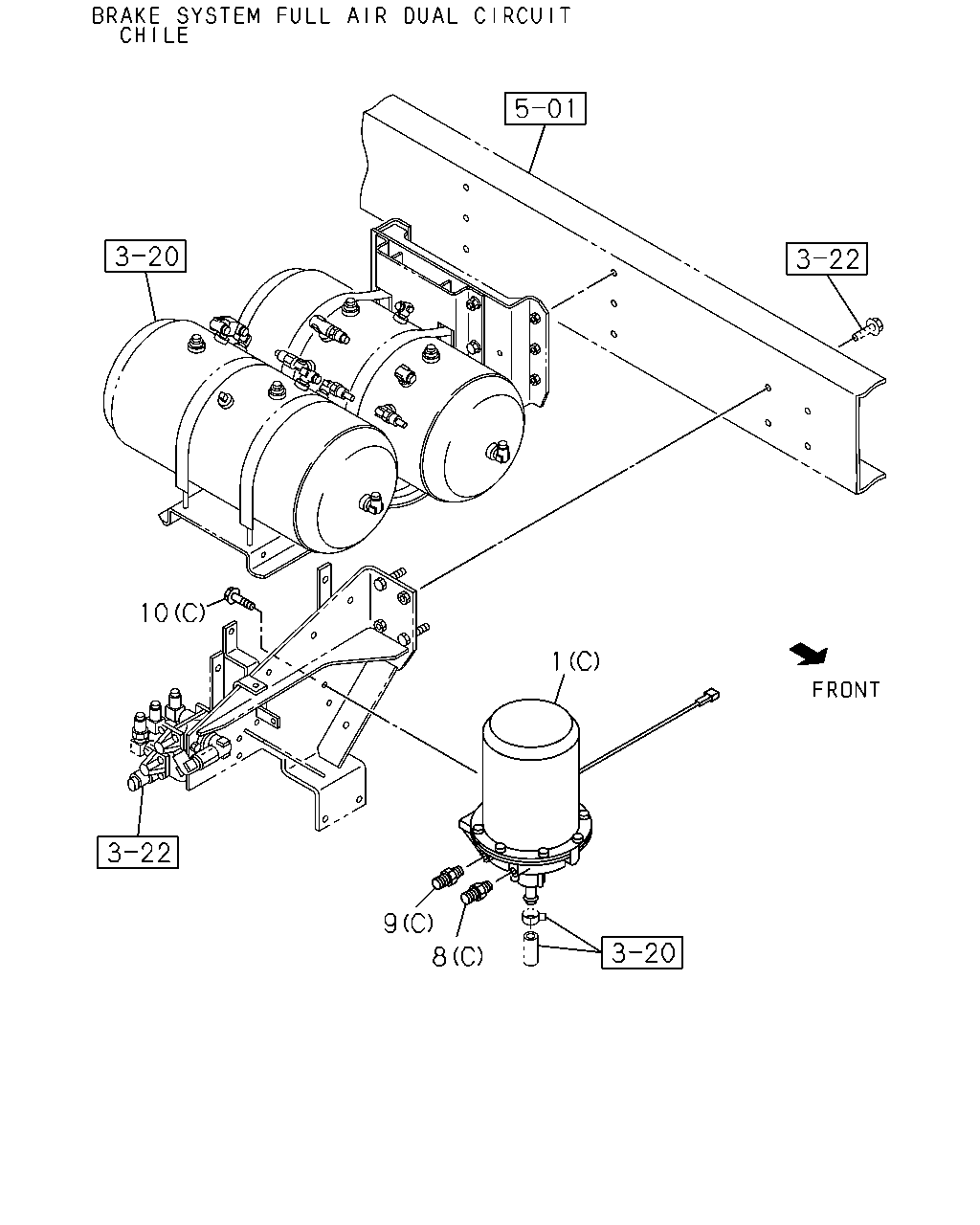

çizim 118266
10 1 9 8
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48190-370-2 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-370-2 01 1 1111-1211
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-285-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48190-371-2 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1009-1107
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1108-1211
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-292-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1111-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48190-277-0 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48190-277-1 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-277-1 01 1 1009-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1009-1107
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1108-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0809-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0812
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1009-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1009-1107
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108-
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28651-225-0 03 1 0901-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28051-225-0 03 1 0907-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X25 FLANGE 		0-28051-225-0 03 1 1009-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28051-025-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0809-0812
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0901-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28651-025-0 04 1 1009-

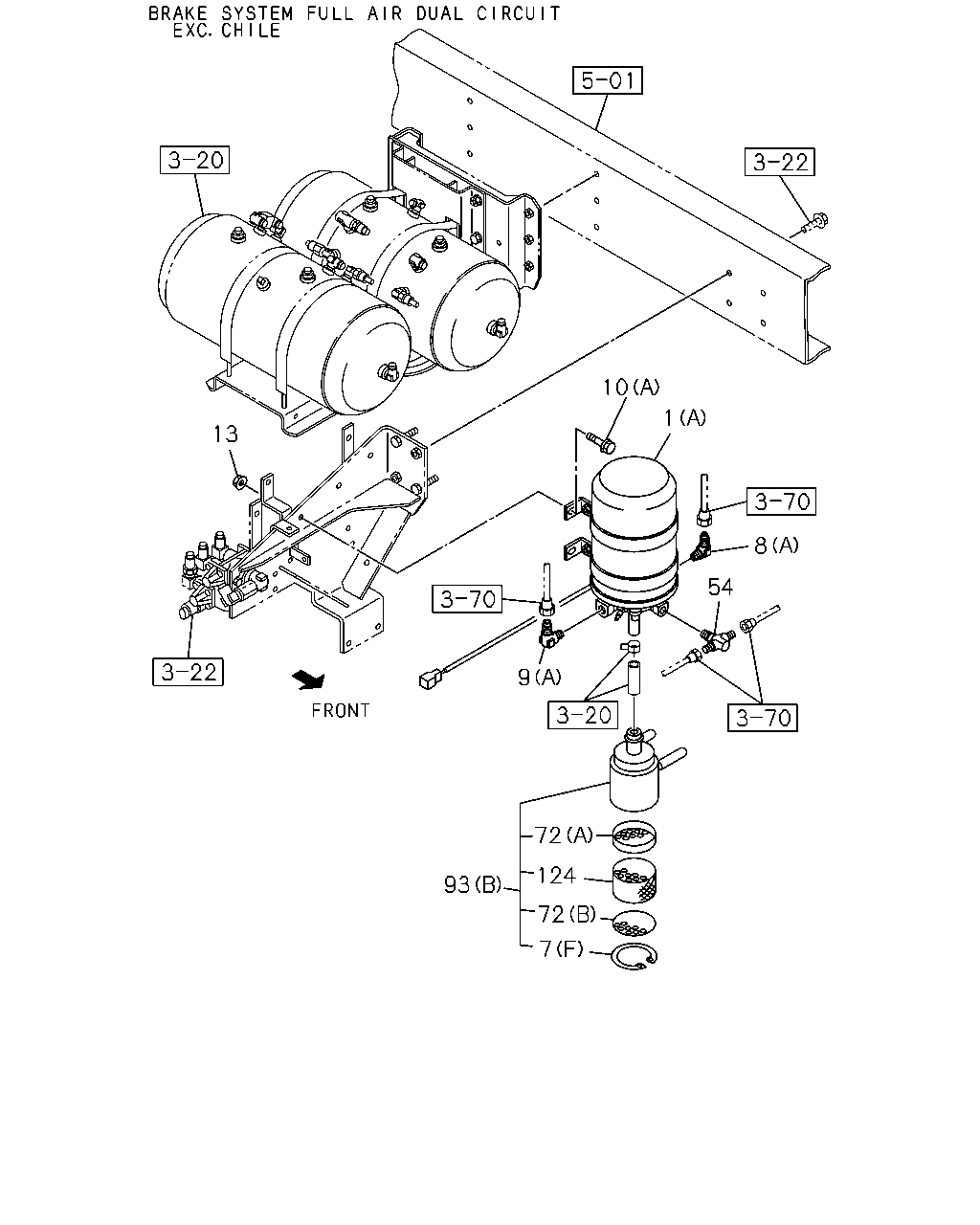

çizim 118286
10 1 13 8 54 9 72 124 93 72 7
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48190-370-2 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-370-2 01 1 1111-1211
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-285-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48190-371-2 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1009-1107
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1108-1211
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-292-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1111-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48190-277-0 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48190-277-1 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-277-1 01 1 1009-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (F) 		1-47769-017-0 01 1 1108-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0901-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-403-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-154-0 01 1 1009-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1009-1107
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1108-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0809-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0812
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1009-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1009-1107
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108-
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28651-225-0 03 1 0901-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28051-225-0 03 1 0907-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X25 FLANGE 		0-28051-225-0 03 1 1009-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28051-025-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0809-0812
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0901-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28651-025-0 04 1 1009-
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0809-0812
13 NUT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0901-1009
13 NUT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0901-1009
13 NUT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 1010-
13 NUT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 04 1 1010-
54 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0809-0812
54 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0901-1008
54 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 1009-
72 PLATE; FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-585-0 01 1 1108-
72 PLATE; FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-602-0 01 1 1108-
93 SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-581-0 01 1 1108-
93 SILENCER; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-619-0 01 1 0901-1008
93 SILENCER; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-619-0 01 1 1009-1107
93 SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1009-1107
93 SILENCER; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-619-0 01 1 1108-1110
93 SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1108-1110
93 SILENCER; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1111-
124 FILTER; SILENCER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> 		1-48199-465-0 01 1 1108-

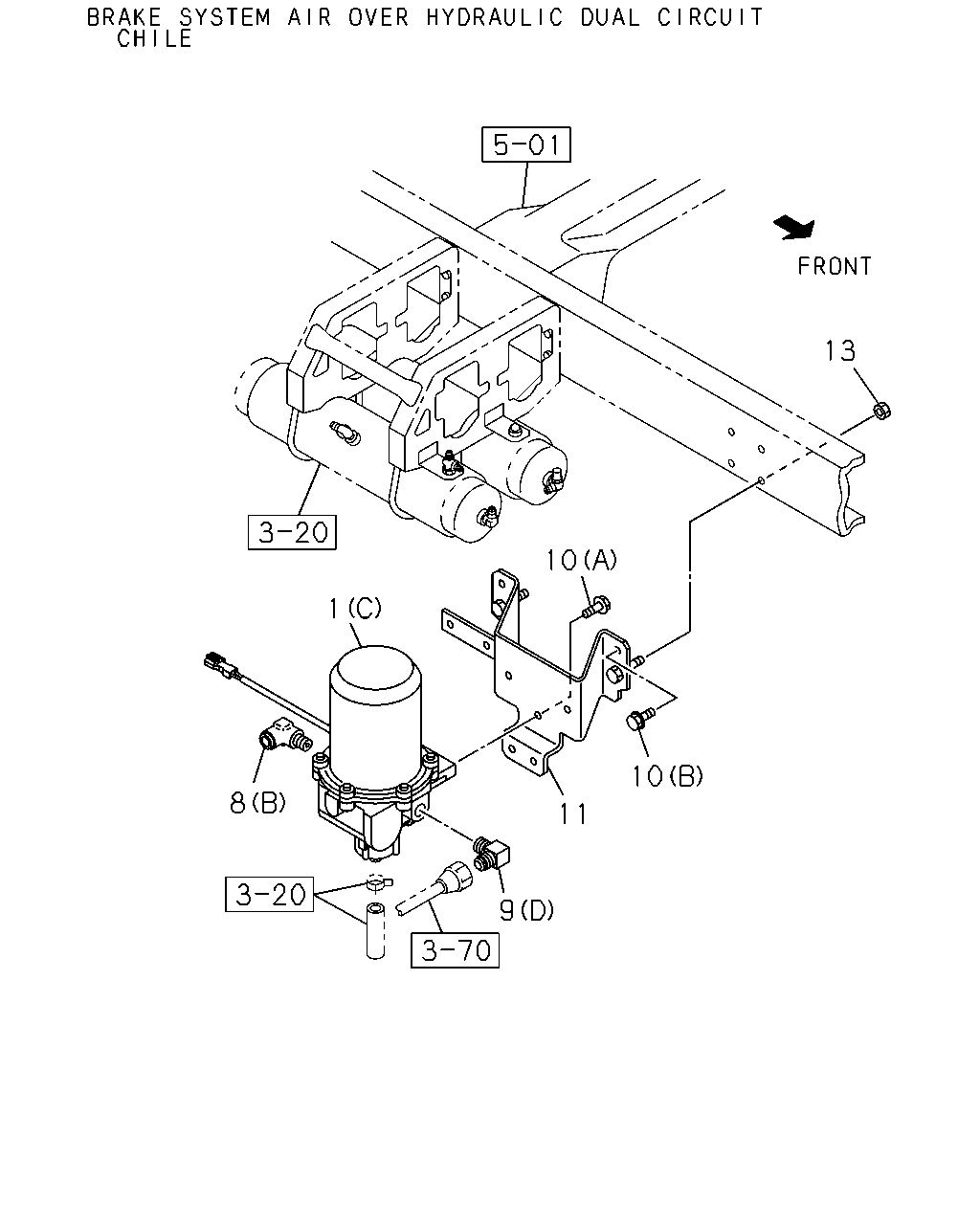

çizim 118307
13 10 1 10 8 11 9
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48190-370-2 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-370-2 01 1 1111-1211
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-285-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48190-371-2 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1009-1107
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1108-1211
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-292-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1111-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48190-277-0 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48190-277-1 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-277-1 01 1 1009-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1009-1107
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1108-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0809-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0812
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1009-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1009-1107
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108-
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28651-225-0 03 1 0901-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28051-225-0 03 1 0907-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X25 FLANGE 		0-28051-225-0 03 1 1009-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28051-025-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0809-0812
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0901-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28651-025-0 04 1 1009-
11 BRACKET; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		8-98120-190-0 01 1 0809-
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0809-0812
13 NUT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0901-1009
13 NUT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0901-1009
13 NUT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 1010-
13 NUT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 04 1 1010-

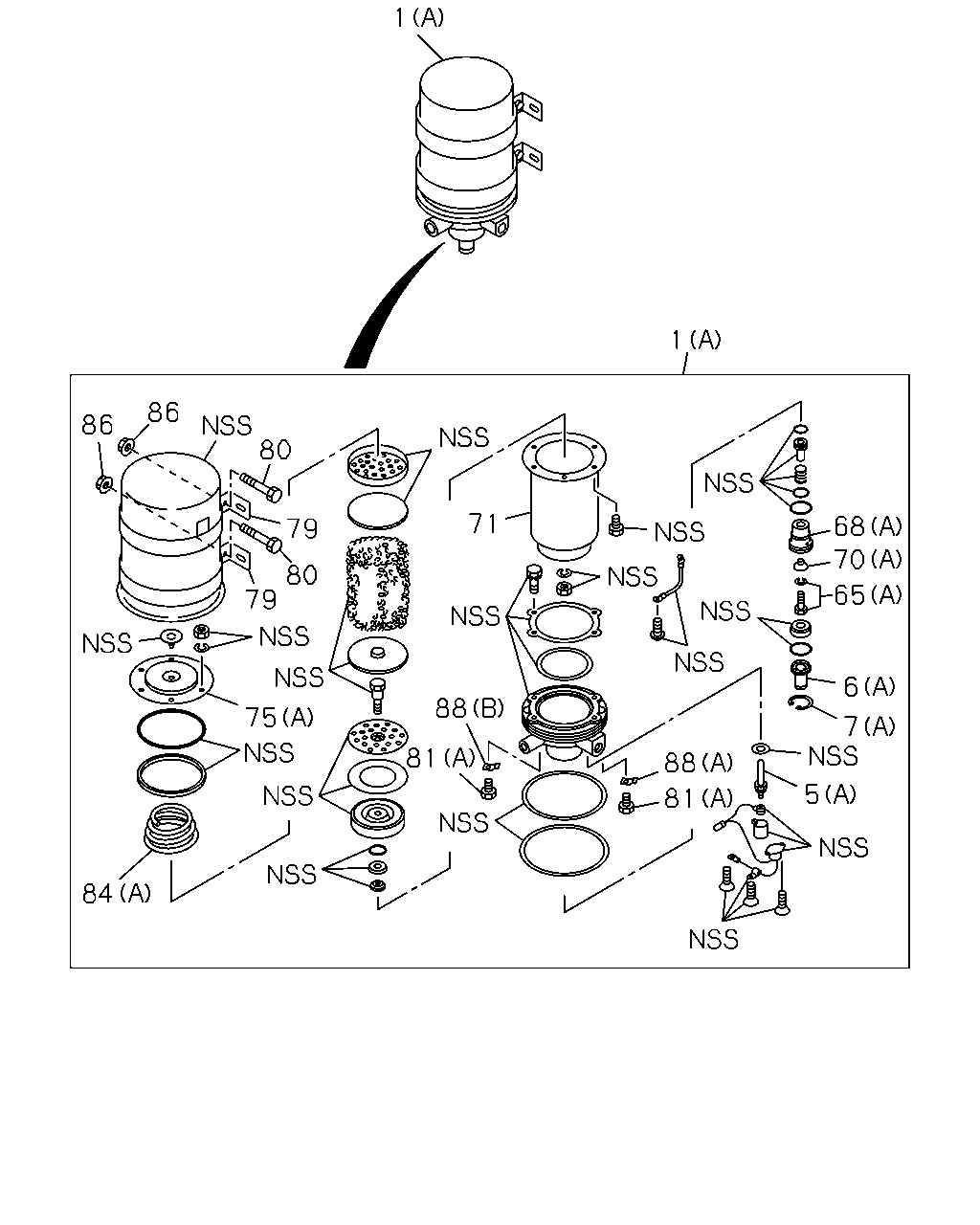

çizim 118335
1 1 86 86 80 80 79 71 68 70 79 65 6 88 75 7 81 88 5 81 84
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48190-370-2 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-370-2 01 1 1111-1211
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-285-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48190-371-2 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1009-1107
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1108-1211
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-292-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1111-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48190-277-0 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48190-277-1 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-277-1 01 1 1009-
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 0901-1008
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 1009-1107
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1009-1107
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 1108-1110
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1108-1110
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1111-
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) 		1-48199-085-0 01 1 0809-0812
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-085-0 01 1 0901-1110
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-085-0 01 1 1111-
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-085-0 02 1 0809-0812
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-085-0 02 1 0901-1008
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-085-0 02 1 1009-
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-404-0 01 1 0809-0812
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-404-0 01 1 0901-1110
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-404-0 01 1 1111-
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-101-0 01 1 0809-0812
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-101-0 01 1 0901-1008
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-101-0 01 1 1009-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (F) 		1-47769-017-0 01 1 1108-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0901-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-403-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-154-0 01 1 1009-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1111-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0809-0812
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1111-
68 BODY; VALVE
AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0901-1110
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-216-0 01 1 1009-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1111-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0809-0812
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1111-
71 CASE; INNER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-156-1 01 1 0809-0812
71 CASE; INNER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-156-1 01 1 0901-1008
71 CASE; INNER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		1-48199-156-1 01 1 1009-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48199-562-0 01 1 0901-1008
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-562-0 01 1 1009-1107
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-562-0 01 1 1108-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-427-0 01 1 0809-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-167-0 01 1 0809-0812
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-167-0 01 1 0901-1008
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-167-0 01 1 1009-
79 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-189-0 02 1 0809-0812
79 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-189-0 02 1 0901-1008
79 BRACKET; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		1-48199-189-0 02 1 1009-
80 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-190-0 02 1 0809-0812
80 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-190-0 02 1 0901-1008
80 BOLT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		1-48199-190-0 02 1 1009-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (B) 		1-48199-436-0 08 1 0901-1008
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-436-0 08 1 1009-1107
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-436-0 08 1 1108-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-436-0 06 1 0809-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-177-0 02 1 0809-0812
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-177-0 02 1 0901-1008
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-177-0 02 1 1009-
84 SPRING; AIR DRYER
AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 1108-1110
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1108-1110
84 SPRING; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1111-
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (D) 		1-48199-564-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-564-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-564-0 01 1 1108-
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-425-0 01 1 0809-
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-166-0 01 1 0809-0812
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-166-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-166-0 01 1 1009-
86 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> 		1-48199-320-0 02 1 0809-0812
86 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> 		1-48199-320-0 02 1 0901-1008
86 NUT; BRKT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> 		1-48199-320-0 02 1 1009-
88 PLATE; STOPPER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 0809-0812
88 PLATE; STOPPER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-178-0 01 1 0901-1008
88 PLATE; STOPPER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-178-0 01 1 1009-
88 PLATE; STOPPER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 0809-0812
88 PLATE; STOPPER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-179-0 01 1 0901-1008
88 PLATE; STOPPER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-179-0 01 1 1009-

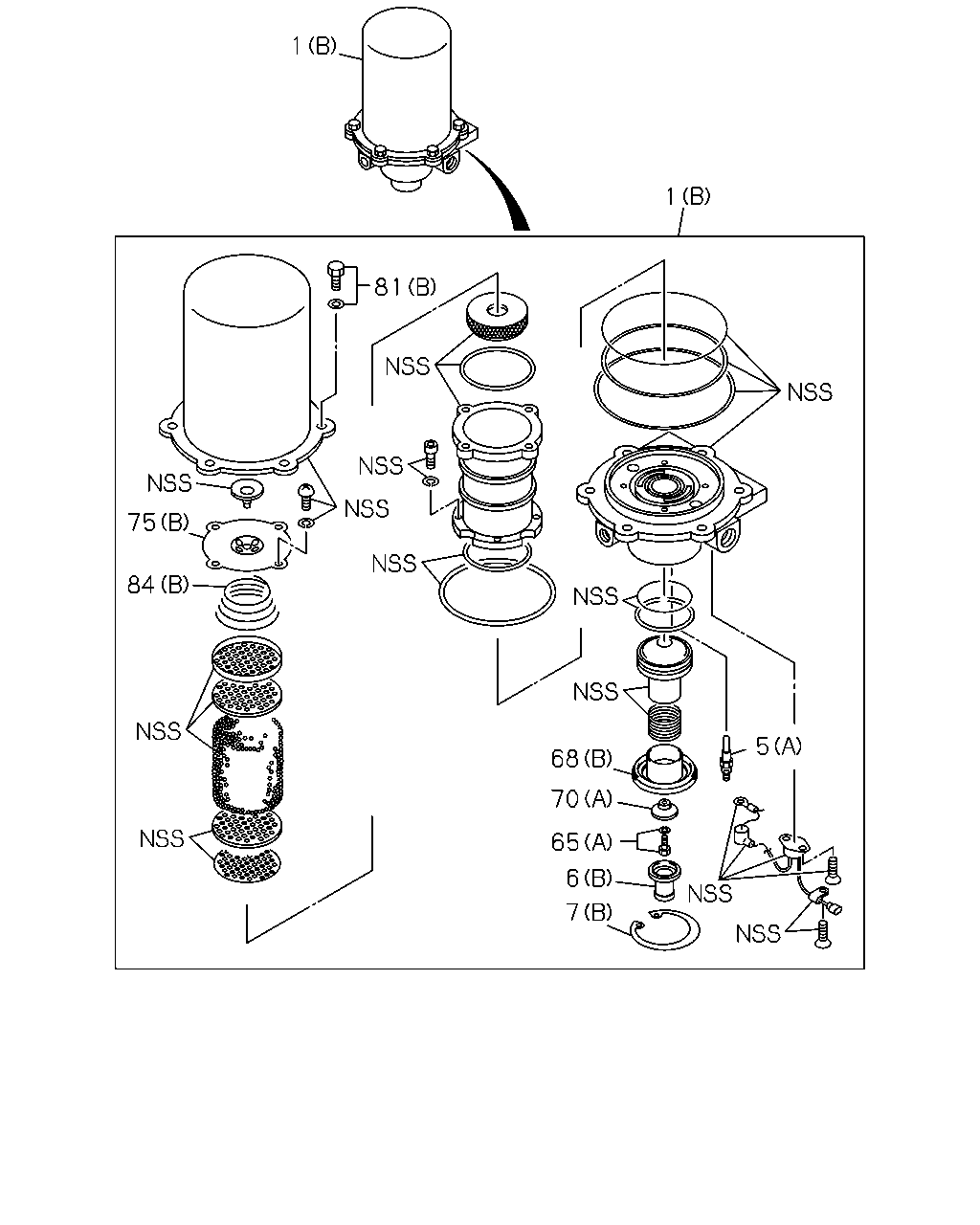

çizim 118346
1 81 75 84 5 68 70 65 6 7 1
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48190-370-2 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-370-2 01 1 1111-1211
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-285-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48190-371-2 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1009-1107
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1108-1211
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-292-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1111-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48190-277-0 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48190-277-1 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-277-1 01 1 1009-
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 0901-1008
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 1009-1107
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1009-1107
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 1108-1110
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1108-1110
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1111-
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) 		1-48199-085-0 01 1 0809-0812
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-085-0 01 1 0901-1110
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-085-0 01 1 1111-
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-085-0 02 1 0809-0812
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-085-0 02 1 0901-1008
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-085-0 02 1 1009-
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-404-0 01 1 0809-0812
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-404-0 01 1 0901-1110
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-404-0 01 1 1111-
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-101-0 01 1 0809-0812
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-101-0 01 1 0901-1008
6 COVER; EXH,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-101-0 01 1 1009-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (F) 		1-47769-017-0 01 1 1108-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0901-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-403-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-154-0 01 1 1009-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1111-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0809-0812
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1111-
68 BODY; VALVE
AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0901-1110
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-216-0 01 1 1009-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1111-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0809-0812
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1111-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48199-562-0 01 1 0901-1008
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-562-0 01 1 1009-1107
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-562-0 01 1 1108-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-427-0 01 1 0809-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-167-0 01 1 0809-0812
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-167-0 01 1 0901-1008
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-167-0 01 1 1009-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (B) 		1-48199-436-0 08 1 0901-1008
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-436-0 08 1 1009-1107
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-436-0 08 1 1108-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-436-0 06 1 0809-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-177-0 02 1 0809-0812
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-177-0 02 1 0901-1008
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-177-0 02 1 1009-
84 SPRING; AIR DRYER
AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 1108-1110
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1108-1110
84 SPRING; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1111-
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (D) 		1-48199-564-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-564-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-564-0 01 1 1108-
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-425-0 01 1 0809-
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-166-0 01 1 0809-0812
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-166-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-166-0 01 1 1009-
çizim 118348
1 1 81 76 75 84 75 84 78 93 7 109 104 104 104 70 7 7 65 113 114 68 5 112 7 111 110 84
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48190-370-2 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-370-2 01 1 1111-1211
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-285-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48190-371-2 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1009-1107
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1108-1211
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-292-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1111-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48190-277-0 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48190-277-1 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-277-1 01 1 1009-
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 0901-1008
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 1009-1107
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1009-1107
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-530-0 01 1 1108-1110
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1108-1110
5 HEATER ASM; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-530-0 01 1 1111-
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) 		1-48199-085-0 01 1 0809-0812
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-085-0 01 1 0901-1110
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-085-0 01 1 1111-
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-085-0 02 1 0809-0812
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-085-0 02 1 0901-1008
5 HEATER ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-085-0 02 1 1009-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (F) 		1-47769-017-0 01 1 1108-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-520-0 02 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-529-0 01 1 1111-
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1009-1107
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1108-1110
7 RING; SNAP,AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (E) 		1-48199-579-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-403-0 01 1 0901-1110
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-403-0 01 1 1111-
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0809-0812
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-154-0 01 1 0901-1008
7 RING; SNAP,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-154-0 01 1 1009-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1111-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0809-0812
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1111-
68 BODY; VALVE
AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0901-1110
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-216-0 01 1 1009-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1111-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0809-0812
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1111-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48199-562-0 01 1 0901-1008
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-562-0 01 1 1009-1107
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-562-0 01 1 1108-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-427-0 01 1 0809-
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-167-0 01 1 0809-0812
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-167-0 01 1 0901-1008
75 COVER; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-167-0 01 1 1009-
76 BOLT; COVER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-412-0 04 1 0901-1110
76 BOLT; COVER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-412-0 04 1 1111-
76 BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> 		1-48199-561-0 06 1 0901-1008
76 BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-561-0 06 1 1009-1107
76 BOLT; COVER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-561-0 06 1 1108-
78 BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-417-0 04 1 0901-1110
78 BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-417-0 04 1 1111-
78 BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> 		1-48199-557-0 04 1 0901-1008
78 BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-557-0 04 1 1009-1107
78 BOLT; OIL FILTER,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-557-0 04 1 1108-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (B) 		1-48199-436-0 08 1 0901-1008
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-436-0 08 1 1009-1107
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-436-0 08 1 1108-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-436-0 06 1 0809-
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-177-0 02 1 0809-0812
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-177-0 02 1 0901-1008
81 BOLT; CASE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-177-0 02 1 1009-
84 SPRING; AIR DRYER
AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-523-0 01 1 1108-1110
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1108-1110
84 SPRING; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-523-0 01 1 1111-
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (D) 		1-48199-564-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-564-0 01 1 1009-1107
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) 		1-48199-564-0 01 1 1108-
84 SPRING; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-425-0 01 1 0809-
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-166-0 01 1 0809-0812
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-166-0 01 1 0901-1008
84 SPRING; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-166-0 01 1 1009-
93 SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-581-0 01 1 1108-
93 SILENCER; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-619-0 01 1 0901-1008
93 SILENCER; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-619-0 01 1 1009-1107
93 SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1009-1107
93 SILENCER; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-619-0 01 1 1108-1110
93 SILENCER; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1108-1110
93 SILENCER; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-619-0 01 1 1111-
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 01 1 1212-
104 GASKET
AIR DRYER<PS7> (A) 		1-48199-495-0 01 1 0901-1008
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-495-0 01 1 1009-1107
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1009-1107
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-495-0 01 1 1108-1110
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1108-1110
104 GASKET
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1111-1211
104 GASKET
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-321-0 01 1 1212-
104 GASKET
AIR DRYER<PS7> (B) 		1-48199-496-0 02 1 0901-1008
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-496-0 02 1 1009-1107
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1009-1107
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-496-0 02 1 1108-1110
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1108-1110
104 GASKET
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1111-1211
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1212-
109 STOPPER; CHECK VALVE
AIR DRYER<PS7> 		1-48199-539-0 01 1 0901-1008
109 STOPPER; CHECK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-539-0 01 1 1009-1107
109 STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-539-0 01 1 1009-1107
109 STOPPER; CHECK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-539-0 01 1 1108-1110
109 STOPPER; CHECK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-539-0 01 1 1108-1110
109 STOPPER; CHECK VALVE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-539-0 01 1 1111-
110 NUT; CAP
AIR DRYER<PS7> 		1-48199-527-0 01 1 0901-1008
110 NUT; CAP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-527-0 01 1 1009-1107
110 NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-527-0 01 1 1009-1107
110 NUT; CAP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-527-0 01 1 1108-1110
110 NUT; CAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-527-0 01 1 1108-1110
110 NUT; CAP
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-527-0 01 1 1111-
111 PLATE; GOVERNOR
AIR DRYER<PS7> 		1-48199-526-0 01 1 0901-1008
111 PLATE; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-526-0 01 1 1009-1107
111 PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-526-0 01 1 1009-1107
111 PLATE; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-526-0 01 1 1108-1110
111 PLATE; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-526-0 01 1 1108-1110
111 PLATE; GOVERNOR
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-526-0 01 1 1111-
112 SCREW & SPRING ASM; AIR DRYER
AIR DRYER<PS7> 		1-48199-524-0 01 1 0901-1008
112 SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-524-0 01 1 1009-1107
112 SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-524-0 01 1 1009-1107
112 SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-524-0 01 1 1108-1110
112 SCREW & SPRING ASM; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-524-0 01 1 1108-1110
112 SCREW & SPRING ASM; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-524-0 01 1 1111-
113 STEM; EXHAUST
AIR DRYER<PS7> 		1-48199-522-0 01 1 0901-1008
113 STEM; EXHAUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-522-0 01 1 1009-1107
113 STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-522-0 01 1 1009-1107
113 STEM; EXHAUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-522-0 01 1 1108-1110
113 STEM; EXHAUST
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-522-0 01 1 1108-1110
113 STEM; EXHAUST
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-522-0 01 1 1111-
114 PISTON ASM; GOVERNOR
AIR DRYER<PS7> 		1-48199-521-0 01 1 0901-1008
114 PISTON ASM; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-521-0 01 1 1009-1107
114 PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-521-0 01 1 1009-1107
114 PISTON ASM; GOVERNOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> 		1-48199-521-0 01 1 1108-1110
114 PISTON ASM; GOVERNOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-521-0 01 1 1108-1110
114 PISTON ASM; GOVERNOR
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> 		1-48199-521-0 01 1 1111-
çizim 118382
2 3 4 68 70 65
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-457-0 01 1 0901-1110
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-457-0 01 1 1111-1211
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-323-0 01 1 1212-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-85576-448-0 01 1 0901-1008
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-448-0 01 1 1009-1107
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-448-0 01 1 1108-1211
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-328-0 01 1 1212-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0809-0812
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0901-1110
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-217-0 01 1 1111-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-226-0 01 1 0809-0812
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-226-0 01 1 0901-1008
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-226-0 01 1 1009-
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 0901-1008
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 1009-1107
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1009-1107
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 1108-1110
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1108-1110
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1111-1211
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-322-0 01 1 1212-
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0809-0812
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0901-1110
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-193-0 01 1 1111-
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-057-1 01 1 0809-0812
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-057-1 01 1 0901-1008
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-057-1 01 1 1009-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-443-0 01 1 0901-1110
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-443-0 01 1 1111-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-85576-444-0 01 1 0901-1008
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-444-0 01 1 1009-1107
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-444-0 01 1 1108-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0809-0812
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0901-1110
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-218-0 01 1 1111-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-254-0 01 1 0809-0812
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-254-0 01 1 0901-1008
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-254-0 01 1 1009-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1111-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0809-0812
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1111-
68 BODY; VALVE
AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0901-1110
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-216-0 01 1 1009-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1111-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0809-0812
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1111-
çizim 118388
2 3 104 68 104 104 70 65 104 104 104 70 4
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-457-0 01 1 0901-1110
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-457-0 01 1 1111-1211
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-323-0 01 1 1212-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-85576-448-0 01 1 0901-1008
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-448-0 01 1 1009-1107
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-448-0 01 1 1108-1211
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-328-0 01 1 1212-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0809-0812
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-217-0 01 1 0901-1110
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-217-0 01 1 1111-
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-226-0 01 1 0809-0812
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-226-0 01 1 0901-1008
2 REPAIR KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-226-0 01 1 1009-
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 0901-1008
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 1009-1107
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1009-1107
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-383-0 01 1 1108-1110
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1108-1110
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-383-0 01 1 1111-1211
3 PISTON KIT; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98226-322-0 01 1 1212-
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0809-0812
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-193-0 01 1 0901-1110
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-193-0 01 1 1111-
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-057-1 01 1 0809-0812
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-057-1 01 1 0901-1008
3 PISTON KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-057-1 01 1 1009-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-85576-443-0 01 1 0901-1110
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-443-0 01 1 1111-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-85576-444-0 01 1 0901-1008
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-444-0 01 1 1009-1107
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-85576-444-0 01 1 1108-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0809-0812
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-85576-218-0 01 1 0901-1110
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-85576-218-0 01 1 1111-
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-85576-254-0 01 1 0809-0812
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-85576-254-0 01 1 0901-1008
4 THERMOSTAT KIT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-85576-254-0 01 1 1009-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1009-1107
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1108-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-517-0 01 1 1111-
65 BOLT; PURGE VLV
AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0809-0812
65 BOLT; PURGE VLV
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 0901-1008
65 BOLT; PURGE VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1009-1110
65 BOLT; PURGE VLV
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-393-0 01 1 1111-
68 BODY; VALVE
AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1009-1107
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1108-1110
68 BODY; VALVE
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48199-515-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48199-408-0 01 1 0901-1110
68 BODY; VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-408-0 01 1 1111-
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0809-0812
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-216-0 01 1 0901-1008
68 BODY; VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-216-0 01 1 1009-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1009-1107
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1108-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-504-0 01 1 1111-
70 VALVE; AIR DRYER
AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0809-0812
70 VALVE; AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 0901-1008
70 VALVE; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1009-1110
70 VALVE; AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-105-0 01 1 1111-
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 01 1 1212-
104 GASKET
AIR DRYER<PS7> (A) 		1-48199-495-0 01 1 0901-1008
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-495-0 01 1 1009-1107
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1009-1107
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) 		1-48199-495-0 01 1 1108-1110
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1108-1110
104 GASKET
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		1-48199-495-0 01 1 1111-1211
104 GASKET
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98226-321-0 01 1 1212-
104 GASKET
AIR DRYER<PS7> (B) 		1-48199-496-0 02 1 0901-1008
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-496-0 02 1 1009-1107
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1009-1107
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (B) 		1-48199-496-0 02 1 1108-1110
104 GASKET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1108-1110
104 GASKET
AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1111-1211
104 GASKET
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (B) 		1-48199-496-0 02 1 1212-
çizim 193263
13 11 10 1 8 10 9 9
BalonParca AdiParca NoAdetTipApplied Date
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) 		1-48190-370-2 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-370-2 01 1 1111-1211
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-285-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) 		1-48190-371-2 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1009-1107
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		1-48190-371-2 01 1 1108-1211
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) 		8-98225-292-0 01 1 1212-
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) 		1-48190-210-1 01 1 0901-1110
1 DRYER; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) 		1-48190-210-1 01 1 1111-
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) 		1-48190-277-0 01 1 0809-0812
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) 		1-48190-277-1 01 1 0901-1008
1 DRYER; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) 		1-48190-277-1 01 1 1009-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1009-1107
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 1108-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0809-
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0809-0812
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 0901-1008
8 CONNECTOR; OUT,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M20 & PT1/2 ELBOW 		1-09650-443-0 01 1 1009-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (D) M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CHILE EQUIPMENT(KE1) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1009-1107
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M22 & PT1/2 FLARE 		0-92121-815-0 01 1 1108-
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0901-1008
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1009-1110
9 CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 1111-
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0809-0812
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0901-1110
9 CONNECTOR; PIPE,AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X20 FLANGE 		0-28051-020-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X20 FLANGE 		0-28051-020-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28651-225-0 03 1 0901-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (C) M12X25 FLANGE 		0-28051-225-0 03 1 0907-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (C) M12X25 FLANGE 		0-28051-225-0 03 1 1009-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0809-0906
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EURO3 SPECIFICATION<NT3> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28051-025-0 03 1 0907-1110
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28051-025-0 03 1 1111-
10 BOLT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> (B) M10X35 FLANGE 		0-28651-035-0 02 1 0809-
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0809-0812
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> (A) M10X25 FLANGE 		0-28651-025-0 04 1 0901-1008
10 BOLT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> (A) M10X25 FLANGE 		0-28651-025-0 04 1 1009-
11 BRACKET; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> 		8-98120-190-0 01 1 0809-
13 NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0809-0812
13 NUT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0901-1009
13 NUT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO2 SPECIFICATION<NT2> AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 0901-1009
13 NUT; AIR DRYER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR DRYER<PS7> M10 FLANGE 		0-91180-210-0 04 1 1010-
13 NUT; AIR DRYER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR DRYER<PS7> TURBO - CONVENTIONAL<Q5T> M10 FLANGE 		0-91180-210-0 04 1 1010-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
