1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(D)
|
8-98174-384-0 |
01 |
1 |
1012-1012 |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(D)
|
8-98184-783-0 |
01 |
1 |
1012- |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. VIN MODEL YEAR 2011<VZB>
(A)
|
1-48370-181-1 |
02 |
1 |
1012- |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-48370-500-0 |
01 |
1 |
0809- |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
1-48370-501-0 |
01 |
1 |
0809- |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
1-48370-181-1 |
02 |
1 |
0809-1011 |
| |
1 |
TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(A)
|
1-48370-181-1 |
01 |
1 |
1012- |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
1-48320-031-1 |
01 |
1 |
0901- |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0809-0812 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
0901-1011 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
EXC. VIN MODEL YEAR 2011<VZB>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
1012- |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
VIN MODEL YEAR 2011<VZB>
(A)
M20 & PT3/4 ELBOW
|
1-48410-412-0 |
01 |
1 |
1012- |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. AIR DRYER<PS7>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
0809-0812 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. AIR DRYER<PS7>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
0901-1008 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1009-1011 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. AIR DRYER<PS7>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1009-1011 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1012-1110 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1012-1110 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
EXC. AIR DRYER<PS7>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1012-1110 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1111-1111 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1111-1111 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
EXC. AIR DRYER<PS7>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1111-1111 |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. AIR DRYER<PS7>,VIN MODEL YEAR 2011<VZB>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1111- |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
EXC. AIR DRYER<PS7>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1111- |
| |
3 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(A)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
1111- |
| |
4 |
CONNECTOR; FLARE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
0905-1008 |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
(D)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111- |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1009-1110 |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(A)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1111- |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09661-027-0 |
01 |
1 |
1009-1110 |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(B)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09661-027-0 |
01 |
1 |
1111- |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO3 SPECIFICATION<NT3>
(C)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
0901-1011 |
| |
5 |
UNION; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO3 SPECIFICATION<NT3>
EXC. VIN MODEL YEAR 2011<VZB>
(C)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
1012- |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. VIN MODEL YEAR 2011<VZB>
|
1-48312-015-0 |
04 |
1 |
1012- |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48312-015-0 |
03 |
1 |
0809- |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
1-48312-015-0 |
04 |
1 |
0809-1011 |
| |
6 |
COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
|
1-48312-015-0 |
05 |
1 |
1012- |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. VIN MODEL YEAR 2011<VZB>
ID=14
|
1-09630-145-0 |
04 |
1 |
1012- |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=14
|
1-09630-145-0 |
03 |
1 |
0809- |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=14
|
1-09630-145-0 |
04 |
1 |
0809-1011 |
| |
7 |
GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
ID=14
|
1-09630-145-0 |
05 |
1 |
1012- |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09661-027-0 |
01 |
1 |
1111- |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. TURBO - CONVENTIONAL<Q5T>
(E)
DIN12 & RC1/4 & R3/8 3WAY
|
1-09661-132-0 |
01 |
1 |
1111- |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. TURBO - CONVENTIONAL<Q5T>
(F)
R3/8 & RC3/8 & RC1/4 3WAY
|
8-98166-127-0 |
01 |
1 |
1111- |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
1111- |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR
DEVICE<SG4>
(C)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09661-027-0 |
02 |
1 |
1111- |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
PT1/4 & M12 ELBOW
|
1-09656-666-0 |
01 |
1 |
0809-0904 |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
|
1-09660-363-0 |
01 |
1 |
0905-1008 |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
0809-1008 |
| |
8 |
CONNECTOR; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09661-027-0 |
02 |
1 |
0809-1008 |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
STAMP 5.5
|
8-97609-249-0 |
02 |
1 |
0809- |
| |
9 |
SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
STAMP 5.5
|
8-97609-249-0 |
04 |
1 |
0809- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR
2011<VZB>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO3 SPECIFICATION<NT3>
(A)
PT3/4
|
9-09204-526-0 |
04 |
1 |
0901-1011 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO3 SPECIFICATION<NT3>
EXC. VIN MODEL YEAR 2011<VZB>
(A)
PT3/4
|
9-09204-526-0 |
04 |
1 |
1012- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
0809-1011 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1012-1110 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1012-1110 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1111-1111 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1111-1111 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1111-1111 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
PT3/8
|
9-09204-517-0 |
02 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
0809-0812 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
0901-1011 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
1012-1110 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
1012-1110 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
(A)
PT3/4
|
9-09204-526-0 |
03 |
1 |
1111- |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TIRE INFLATOR DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
0809-1011 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1012-1110 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. TIRE INFLATOR DEVICE<SG4>,VIN MODEL YEAR
2011<VZB>
(B)
PT3/8
|
9-09204-517-0 |
01 |
1 |
1012-1110 |
| |
10 |
PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>,TIRE INFLATOR
DEVICE<SG4>
(B)
PT3/8
|
9-09204-517-0 |
03 |
1 |
1111- |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
DIN12 & M12 STRAIGHT
|
1-09660-878-0 |
01 |
1 |
1111- |
| |
13 |
ADAPTER; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
DIN12 & M12 STRAIGHT
|
1-09660-878-0 |
01 |
1 |
0809-1008 |
| |
21 |
VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M22 & PT3/4 ELBOW
|
1-48410-134-3 |
01 |
1 |
0809-1008 |
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
(E)
|
1-48317-607-0 |
01 |
1 |
1012-1012 |
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(D)
|
1-48317-601-5 |
02 |
1 |
1012- |
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
1-53318-338-6 |
02 |
1 |
0809- |
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(A)
|
8-98048-199-0 |
01 |
1 |
0809-1011 |
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. VIN MODEL YEAR 2011<VZB>
(A)
|
8-98048-199-0 |
01 |
1 |
1012- |
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
|
8-98048-200-2 |
01 |
1 |
0809-1011 |
| |
28 |
BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. VIN MODEL YEAR 2011<VZB>
(B)
|
8-98048-200-2 |
01 |
1 |
1012- |
| |
42 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
ID=10.5
|
0-91614-510-0 |
02 |
1 |
1012- |
| |
42 |
WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
ID=8.4 OD=18
|
0-91610-608-0 |
04 |
1 |
0809- |
| |
42 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
ID=10.5
|
9-09164-510-0 |
01 |
1 |
0809-1011 |
| |
42 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. VIN MODEL YEAR 2011<VZB>
ID=10.5
|
9-09164-510-0 |
01 |
1 |
1012-1101 |
| |
42 |
WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EXC. VIN MODEL YEAR 2011<VZB>
ID=10.5
|
0-91614-510-0 |
01 |
1 |
1102- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
M8X25 FLANGE
|
0-28650-825-0 |
06 |
1 |
1012- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0809- |
| |
43 |
BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10X25 FLANGE
|
0-28651-025-0 |
04 |
1 |
0809- |
| |
54 |
NUT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809- |
| |
58 |
NUT; BAND,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8
|
0-91110-508-0 |
16 |
1 |
0809- |
| |
64 |
STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(D)
|
1-48317-691-0 |
01 |
1 |
1012- |
| |
64 |
STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
EXC. TIRE INFLATOR DEVICE<SG4>
(C)
|
1-48317-607-0 |
01 |
1 |
1012-1012 |
| |
64 |
STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(C)
|
1-48317-607-0 |
01 |
1 |
1012- |
| |
64 |
STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
1-48317-349-0 |
01 |
1 |
0809- |
| |
64 |
STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
1-53318-293-1 |
01 |
1 |
0809- |
| |
67 |
STAY; SUB TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
1-48317-349-0 |
01 |
1 |
0809- |
| |
119 |
BOLT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0809- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(N)
M22 & PT3/4 STRAIGHT
|
1-09650-275-1 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
(K)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
02 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
(O)
M22 & PT3/4 ELBOW
|
1-09650-277-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(I)
M12 & PT3/8 ELBOW
|
1-09650-436-0 |
01 |
1 |
1012-1012 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(J)
DIN8 & R1/4 ELBOW
|
1-09660-956-0 |
01 |
1 |
1012- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(K)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
1012-1012 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(K)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
02 |
1 |
1012-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(K)
DIN8 & R3/8 ELBOW
|
1-09660-957-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
06 |
1 |
1012- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(L)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1012- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(M)
R3/8 & RC3/8 & RC1/4 3WAY
|
8-98166-127-0 |
01 |
1 |
1012- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
1009-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(D)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(E)
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
1009-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(E)
DIN12X2 & PT3/8 DOUBLE ELBOW
|
1-09661-026-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09661-027-0 |
01 |
1 |
1009-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(F)
DIN12 & R3/8 & RC1/4 3WAY
|
1-09661-027-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(G)
R1/4 & RC1/4X2 3WAY
|
8-98166-517-0 |
01 |
1 |
1009-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(G)
R1/4 & RC1/4X2 3WAY
|
8-98166-517-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
(H)
DIN12 & M12 STRAIGHT
|
1-09660-878-0 |
01 |
1 |
1009-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(H)
DIN12 & M12 STRAIGHT
|
1-09660-878-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0809-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
0809-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111-1111 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111-1111 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111-1111 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
EXC. VIN MODEL YEAR 2011<VZB>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111-1111 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TURBO - CONVENTIONAL<Q5T>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW

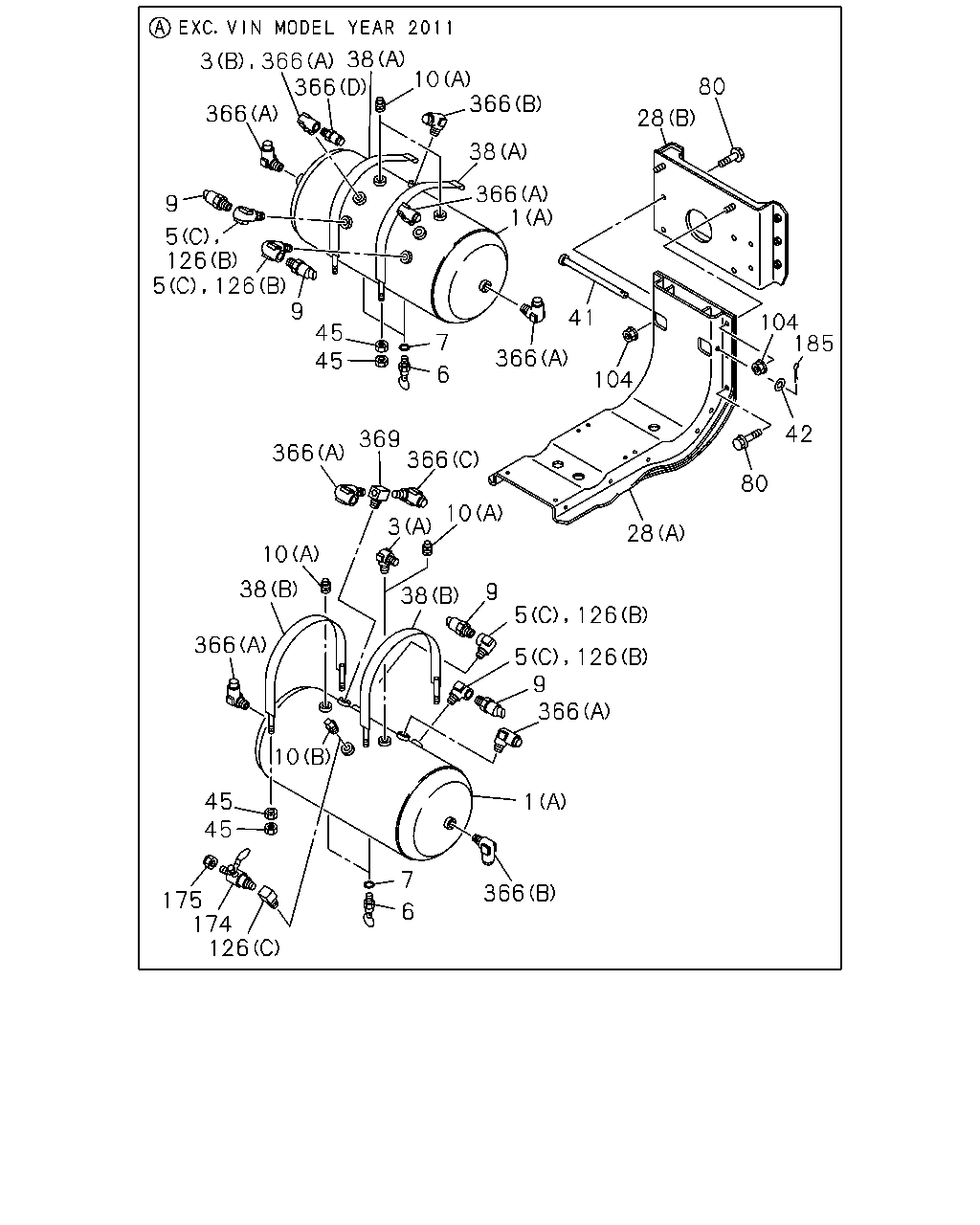

BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
EXC. VIN MODEL YEAR 2011<VZB>
(C)
PT1/4 & PT3/8 2WAY
|
1-09660-809-0 |
01 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
DIN12 & R3/8 ELBOW
|
1-09660-959-0 |
01 |
1 |
0809- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
(B)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
0809-0812 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
(B)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
0901-1011 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(B)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
1012-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
VIN MODEL YEAR 2011<VZB>
(B)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
1012-1110 |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
EURO2 SPECIFICATION<NT2>
EXC. VIN MODEL YEAR 2011<VZB>
(B)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
1111- |
| |
126 |
CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
VIN MODEL YEAR 2011<VZB>
(B)
PT1/4 2WAY
|
1-09660-693-0 |
04 |
1 |
1111- |
| |
136 |
BRACKET; CLIP

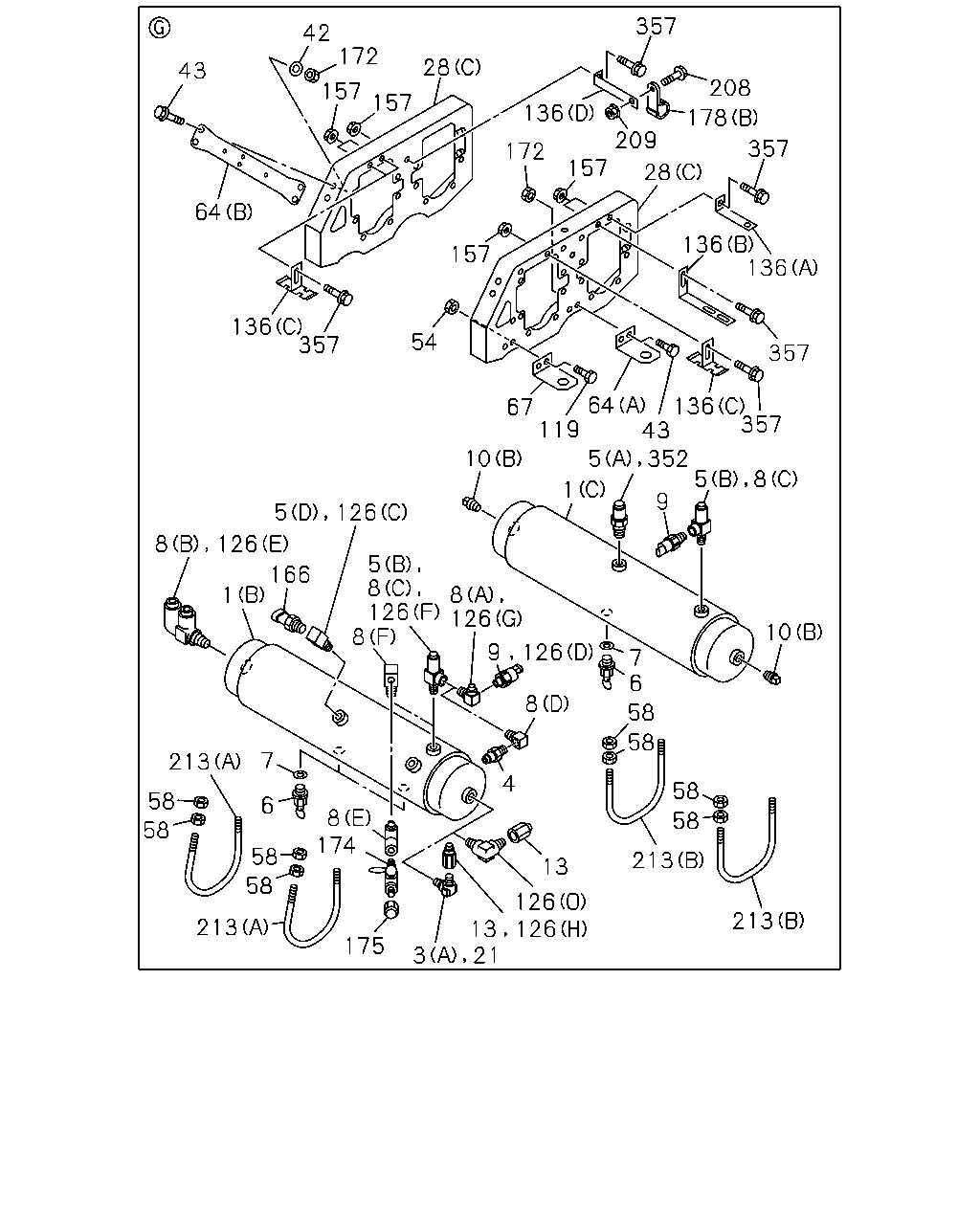

BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=90 B=25
|
1-47475-530-0 |
01 |
1 |
0809- |
| |
136 |
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(D)
L=112
|
1-47475-694-1 |
01 |
1 |
0809- |
| |
136 |
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=150 H=30
|
1-47477-629-2 |
01 |
1 |
0809- |
| |
136 |
BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
|
1-47479-693-0 |
03 |
1 |
0809- |
| |
157 |
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
1111- |
| |
157 |
NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
06 |
1 |
0809-1008 |
| |
166 |
SWITCH ASM; LOW PRESSURE,MAIN TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
STAMP 5.5
|
8-97609-249-0 |
01 |
1 |
0809- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0809- |
| |
172 |
NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
0809- |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
|
1-09680-099-0 |
01 |
1 |
0809-1110 |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-09680-099-0 |
01 |
1 |
1111-1111 |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
|
1-09680-099-0 |
01 |
1 |
1111-1111 |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
EXC. VIN MODEL YEAR 2011<VZB>
|
1-09680-099-0 |
01 |
1 |
1111-1111 |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-09680-099-0 |
01 |
1 |
1111- |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. TURBO - CONVENTIONAL<Q5T>
|
1-09680-099-0 |
01 |
1 |
1111- |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
|
1-09680-099-0 |
01 |
1 |
1111- |
| |
174 |
COCK; AIR,INFLATOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
EXC. VIN MODEL YEAR 2011<VZB>
|
1-09680-099-0 |
01 |
1 |
1111- |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
|
9-48319-102-0 |
01 |
1 |
0809-1110 |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
|
9-48319-102-0 |
01 |
1 |
1111-1111 |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
|
9-48319-102-0 |
01 |
1 |
1111-1111 |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
EXC. VIN MODEL YEAR 2011<VZB>
|
9-48319-102-0 |
01 |
1 |
1111-1111 |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
EXC. TURBO - CONVENTIONAL<Q5T>
|
9-48319-102-0 |
01 |
1 |
1111- |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
TIRE INFLATOR DEVICE<SG4>
EXC. TURBO - CONVENTIONAL<Q5T>
|
9-48319-102-0 |
01 |
1 |
1111- |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TURBO - CONVENTIONAL<Q5T>
TIRE INFLATOR DEVICE<SG4>
VIN MODEL YEAR 2011<VZB>
|
9-48319-102-0 |
01 |
1 |
1111- |
| |
175 |
CAP; AIR COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
TIRE INFLATOR DEVICE<SG4>
EXC. VIN MODEL YEAR 2011<VZB>
|
9-48319-102-0 |
01 |
1 |
1111- |
| |

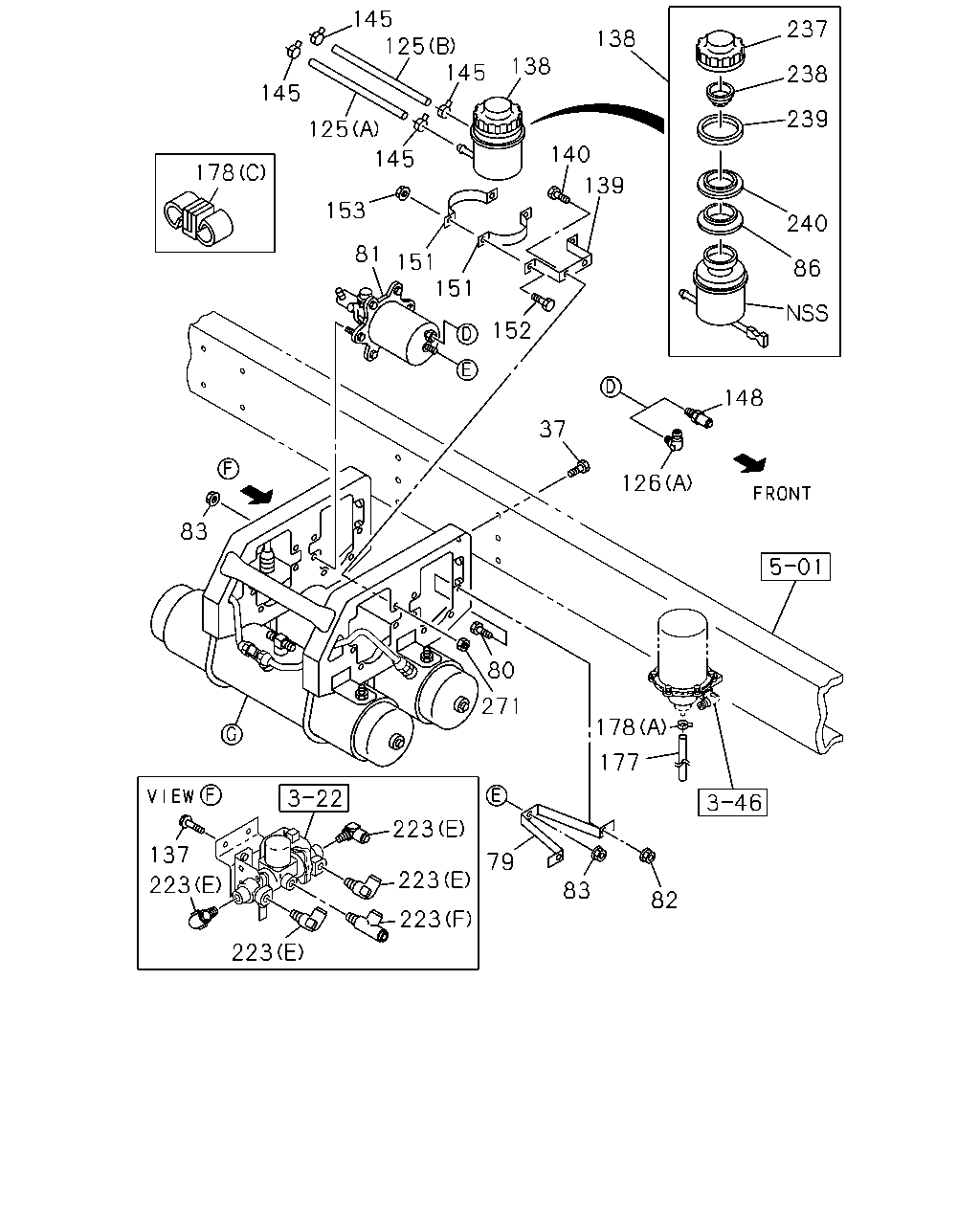

178 |
CLIP; HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
EXC. CHILE EQUIPMENT(KE1),TURBO - CONVENTIONAL<Q5T>
(A)
ID=21
|
8-94242-034-0 |
02 |
1 |
1108- |
| |
178 |
CLIP; HOSE
AIR DRYER<PS7>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
0809-0812 |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHILE EQUIPMENT(KE1)
AIR DRYER<PS7>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
0901-1008 |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO3 SPECIFICATION<NT3>
AIR DRYER<PS7>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
0901-1008 |
| |
178 |
CLIP; HOSE
EURO2 SPECIFICATION<NT2>
AIR DRYER<PS7>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
0901-1008 |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHILE EQUIPMENT(KE1)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
1009-1110 |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
1009-1110 |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3>
AIR DRYER<PS7>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
1009-1110 |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
CHILE EQUIPMENT(KE1)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
1111- |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
AIR DRYER<PS7>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
1111- |
| |
178 |
CLIP; HOSE
AIR DRYER<PS7>
TURBO - CONVENTIONAL<Q5T>
(A)
ID=21
|
8-94242-034-0 |
01 |
1 |
1111- |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(C)
ID=12 & 12
|
1-09709-280-1 |
01 |
1 |
0809- |
| |
178 |
CLIP; HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
|
9-09917-171-0 |
01 |
1 |
0809- |
| |
208 |
BOLT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
0809- |
| |
209 |
NUT; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0809- |
| |
213 |
BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
L=97.5
|
1-48317-323-1 |
02 |
1 |
0809- |
| |
213 |
BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(B)
L=195
|
1-48317-367-2 |
02 |
1 |
0809- |
| |
352 |
CONNECTOR; STRAIGHT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
1111- |
| |
352 |
CONNECTOR; STRAIGHT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
DIN12 & R3/8 STRAIGHT
|
1-09660-965-0 |
01 |
1 |
0809-1008 |
| |
357 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
M8X20 FLANGE
|
0-28650-820-0 |
06 |
1 |
1111- |
| |
357 |
BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
M8X20 FLANGE
|
0-28650-820-0 |
06 |
1 |
0809-1008 |
