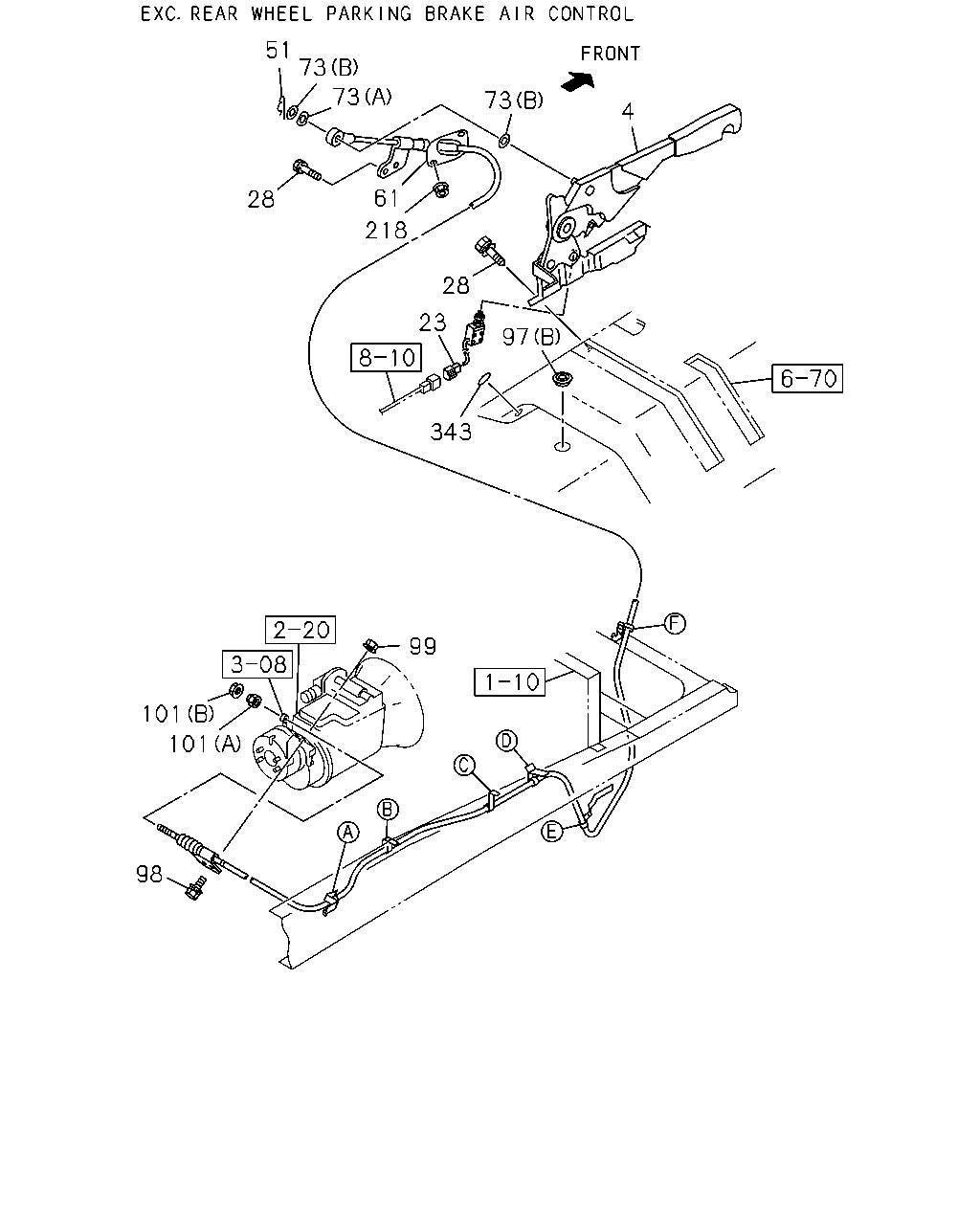

3-11 — PARKING BRAKE CONTROL (#66537) — 56 parça

51 73 73 73 4 61 28 218 28 23 97 343 99 101 101 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-79996-697-0	01	1	0809-
23	SWITCH; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-82440-100-0	01	1	0809-
28	BOLT; HAND BRK LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0809-0904
28	BOLT; HAND BRK LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-09987-243-1	01	1	0809-
61	CABLE; PARKING BRK MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4639	8-98119-721-2	01	1	0809-0901
61	CABLE; PARKING BRK MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4626	8-98135-027-1	01	1	0902-
61	CABLE; PARKING BRK MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4753	8-98107-854-4	01	1	0809-0901
61	CABLE; PARKING BRK MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4740	8-98135-025-1	01	1	0902-0906
61	CABLE; PARKING BRK MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4740	8-98135-025-1	01	1	0907-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30	0-91610-516-0	01	1	0809-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19	8-94206-429-1	02	1	0809-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0809-1110
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1111-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0809-
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE	0-28651-030-0	02	1	0809-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0809-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE	0-91180-108-0	01	1	0809-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	1-46259-007-0	01	1	0809-
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0809-
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK	1-76798-019-0	07	1	0809-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	0809-1110
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98029-219-1	01	1	1111-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35	8-94122-971-0	01	1	0809-

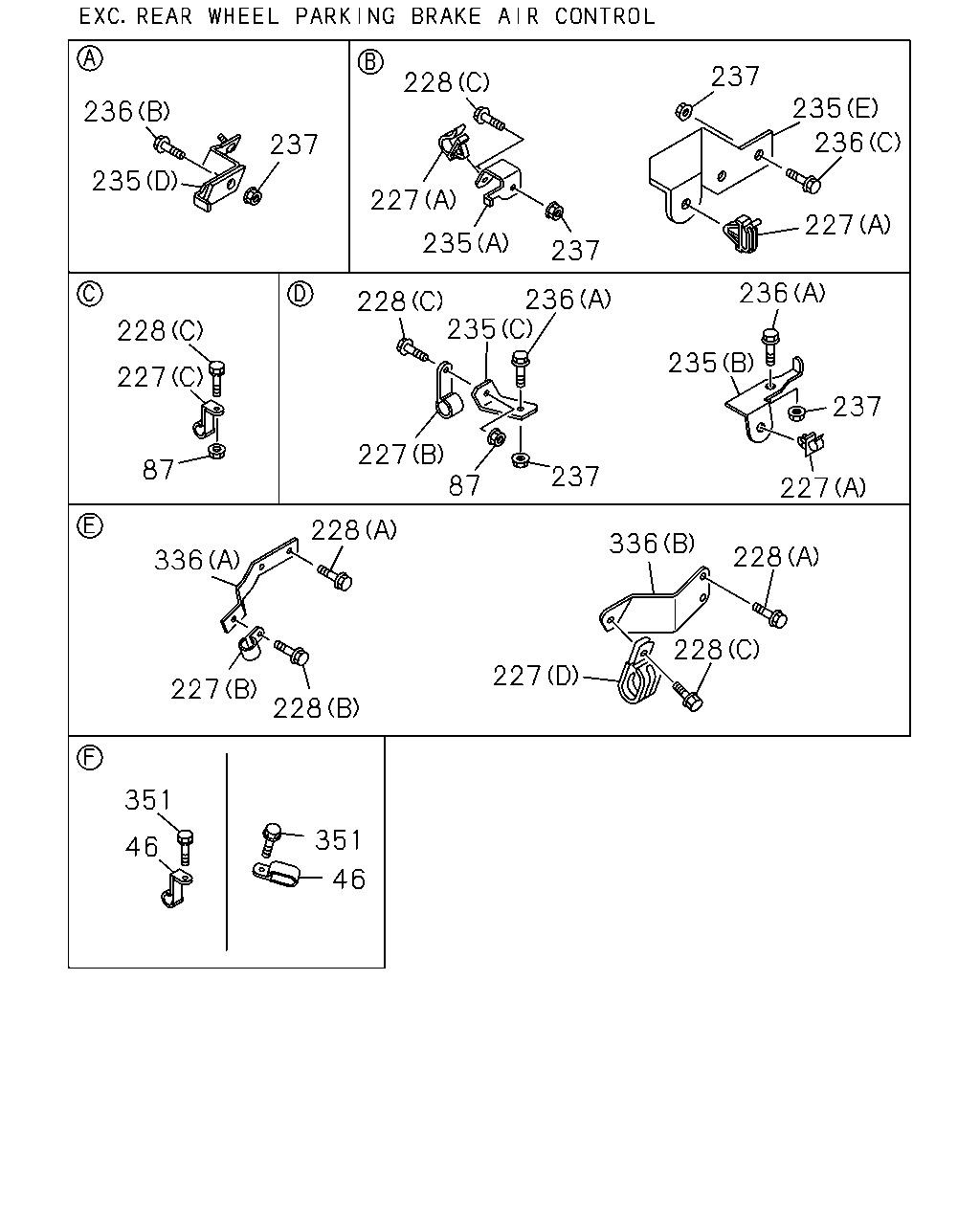

237 228 235 236 236 237 235 227 227 235 237 236 228 236 235 228 235 227 237 227 87 87 237 227 228 336 228 336 228 227 227 228 351 351 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=18 L=25 H=50	1-09701-096-0	01	1	0809-0901
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20	0-95235-535-0	01	1	0902-
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	0809-
227	CLIP; RAD FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40	1-09701-014-0	01	1	0809-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20	0-95235-235-0	01	1	0809-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) ID=13 L=20	0-95235-235-0	01	1	0809-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35	1-09701-103-0	01	1	0809-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9.5	5-09709-020-0	02	1	0809-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40	8-98119-885-0	01	1	0809-
228	BOLT; CLIP RAD MTG FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	03	1	0809-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE	0-28650-825-0	02	1	0809-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (B) M8X16 FLANGE	0-28050-816-0	01	1	0809-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0809-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)	8-98126-934-0	01	1	0809-1111
235	BRACKET; CONT CABLE TO FRAME MLD6W M/T(Y2C) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98111-492-0	01	1	0809-
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98077-903-2	01	1	0809-0906
235	BRACKET; CONT CABLE TO FRAME MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D)	8-98077-903-2	01	1	0907-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C)	1-82699-199-0	01	1	0809-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98100-153-0	01	1	0809-1111
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E)	8-98100-152-0	01	1	1112-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE	0-28650-830-0	02	1	1112-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-1504
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE	0-28051-030-0	01	1	1505-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	02	1	0809-1111
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE	0-28650-825-0	01	1	1112-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	02	1	0809-1111
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE	0-91180-210-0	01	1	1112-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	01	1	0809-1111
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE	0-91180-108-0	02	1	1112-
336	BRACKET; RADIATOR FRONT STABILIZER SHAFT<F59> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)	8-98105-405-0	01	1	0809-
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), FRONT STABILIZER SHAFT<F59> (A)	8-98044-680-0	01	1	0809-
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER	0-51640-825-0	03	1	0809-
