Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#66534) — 312 parça

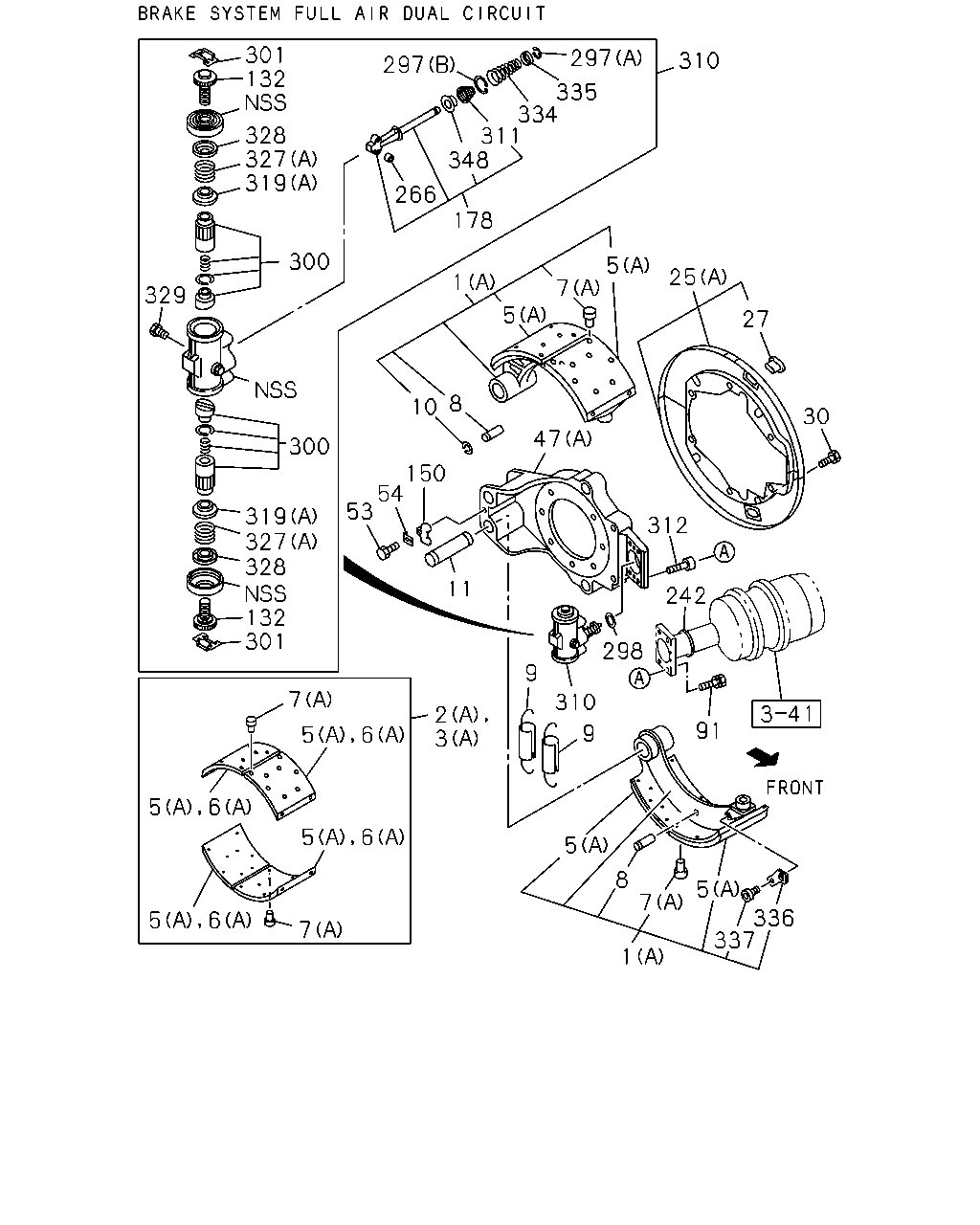

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0809-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0809-
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0809-0905
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0809-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0809-
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-120-0	04	1	0809-0905
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-120-0	04	1	0906-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-200-0	04	1	0809-
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09580-543-0	04	1	0809-0905
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09580-543-0	04	1	0906-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-196-0	04	1	0809-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0809-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0809-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0809-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0809-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	0809-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	0809-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0809-

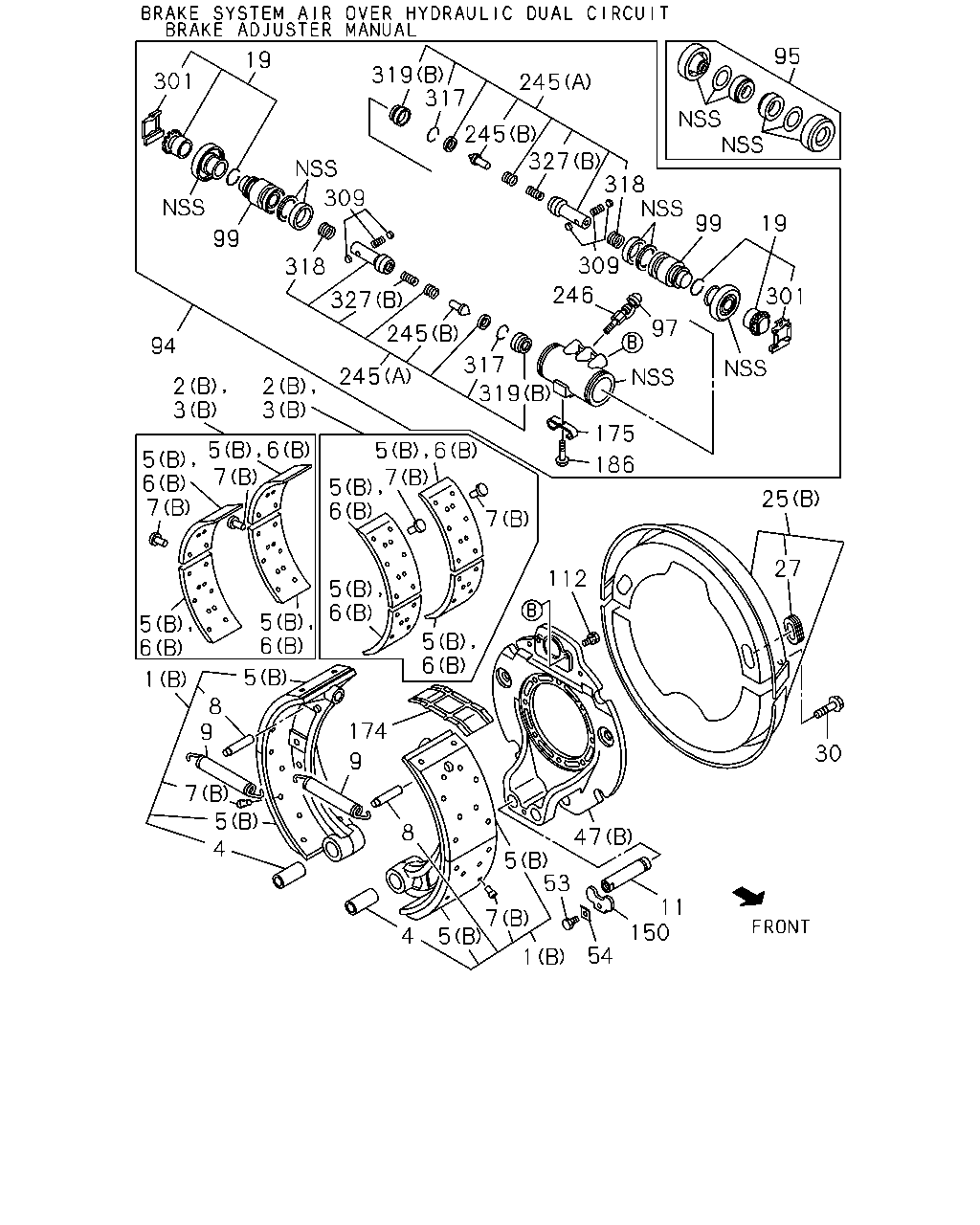

95 19 319 317 301 245 245 327 318 309 99 19 99 309 318 327 246 301 97 245 94 317 245 2 3 2 3 319 175 7 7 5 6 5 6 7 186 25 7 27 112 5 6 5 6 5 6 5 6 5 1 8 9 174 30 9 7 5 4 8 47 5 53 11 150 7 5 4 54 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-496-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-497-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-498-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-499-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	0809-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-390-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-394-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-773-1	02	1	0809-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-391-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-395-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-774-1	02	1	0809-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-758-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-812-0	08	1	0809-0905
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-812-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-091-0	08	1	0809-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-759-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-813-0	08	1	0809-0905
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-813-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-092-0	08	1	0809-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	40	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING L=18.5	1-09732-034-0	40	1	0809-0905
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	80	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING L=15.5	1-09732-053-0	40	1	0809-0905
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING L=15.5	1-09732-053-0	40	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	AR	1	0809-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	0809-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	0906-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-359-0	04	1	0809-0905
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0809-
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-015-0	04	1	0809-0905
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	0906-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	0809-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-806-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-807-0	01	1	0809-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0809-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0809-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-112-4	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-577-0	02	1	0809-0905
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-577-0	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47137-472-0	02	1	0809-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-253-1	02	1	1307-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0809-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0809-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-183-0	02	1	0809-0905
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-985-0	02	1	0809-0905
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	0906-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0809-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	0906-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-371-0	04	1	0809-0905
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	0906-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50551-232-0	04	1	0906-0906
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50551-232-0	04	1	0907-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50051-232-0	04	1	0809-0905
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50051-232-0	04	1	0906-0906
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	0809-0905
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0809-
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-197-0	02	1	0809-0905
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	0906-
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47619-145-0	02	1	0809-0905
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	0906-
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X16 W/LK WASHER	0-50540-816-0	02	1	0809-0905
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	0906-
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47623-027-1	04	1	0809-0905
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	0906-
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-121-0	04	1	0809-0905
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	0906-
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47615-002-0	02	1	0809-0905
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	0906-
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0809-0905
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0809-
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-544-0	04	1	0809-0905
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	0906-
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47629-119-0	04	1	0809-0905
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	0906-
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09580-542-0	04	1	0809-0905
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	0906-
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-120-0	04	1	0809-0905
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-120-0	04	1	0906-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-200-0	04	1	0809-
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09580-543-0	04	1	0809-0905
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09580-543-0	04	1	0906-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-196-0	04	1	0809-

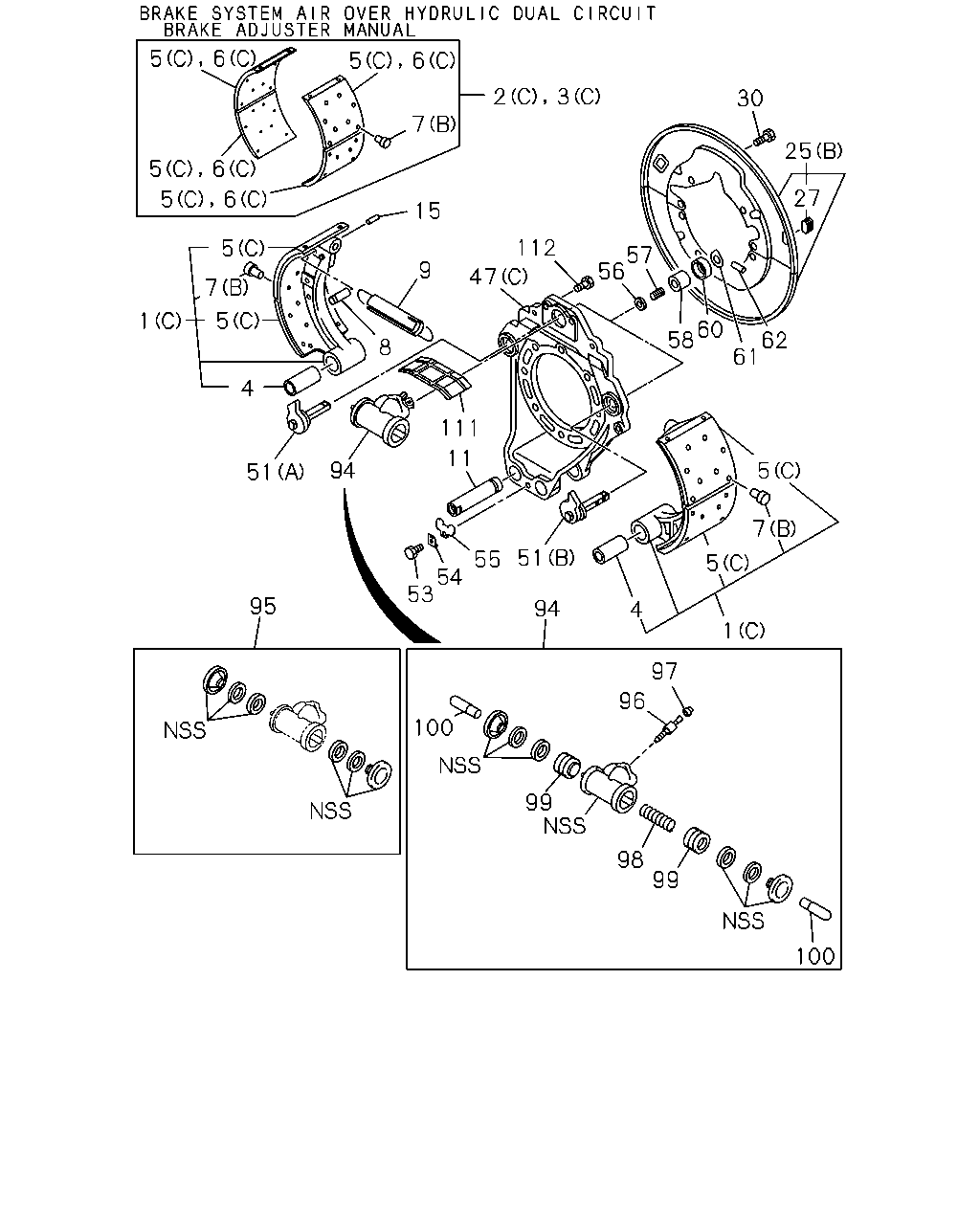

5 6 5 6 30 7 25 6 5 27 5 6 15 112 5 57 56 9 47 7 5 1 60 58 62 61 8 4 111 11 94 5 51 7 51 55 5 54 53 95 94 4 1 97 96 100 99 98 99 100 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-496-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-497-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-498-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-499-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	0809-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-390-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-394-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-773-1	02	1	0809-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-391-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-395-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-774-1	02	1	0809-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-758-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-812-0	08	1	0809-0905
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-812-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-091-0	08	1	0809-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-759-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-813-0	08	1	0809-0905
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-813-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-092-0	08	1	0809-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	40	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING L=18.5	1-09732-034-0	40	1	0809-0905
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	80	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING L=15.5	1-09732-053-0	40	1	0809-0905
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING L=15.5	1-09732-053-0	40	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	AR	1	0809-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	0809-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	0906-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-359-0	04	1	0809-0905
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0809-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	0906-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	0809-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-806-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-807-0	01	1	0809-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0809-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0809-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-112-4	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-577-0	02	1	0809-0905
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-577-0	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47137-472-0	02	1	0809-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-253-1	02	1	1307-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	0906-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	0906-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0809-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0809-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	0906-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	0906-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	0906-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	0906-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	0906-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	0906-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-220-0	02	1	0906-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47601-183-0	02	1	0809-0905
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-183-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-886-0	02	1	0906-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-87830-985-0	02	1	0809-0905
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-985-0	02	1	0906-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	0906-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	0809-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	0906-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-302-0	04	1	0906-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47624-371-0	04	1	0809-0905
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-371-0	04	1	0906-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	0906-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	0906-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50551-232-0	04	1	0906-0906
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50551-232-0	04	1	0907-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X32 W/LK WASHER	0-50051-232-0	04	1	0809-0905
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER	0-50051-232-0	04	1	0906-0906

301 132 297 310 297 335 334 311 348 328 327 319 266 178 300 5 25 1 7 329 5 27 8 10 30 47 300 150 54 53 319 327 328 132 301 312 11 242 298 9 7 310 2 3 91 9 5 6 5 6 5 6 5 8 5 336 337 7 5 6 7 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-496-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-497-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-47170-498-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-47170-499-0	01	1	0809-0905
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	0906-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	0809-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	0809-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-390-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-394-0	01	1	0809-0905
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	0906-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-773-1	02	1	0809-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING	1-88311-391-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING	1-88311-395-0	01	1	0809-0905
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	0906-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88310-774-1	02	1	0809-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-758-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-812-0	08	1	0809-0905
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-812-0	08	1	0906-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-091-0	08	1	0809-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47126-759-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47126-813-0	08	1	0809-0905
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47126-813-0	08	1	0906-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47126-092-0	08	1	0809-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	40	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) TRAILING L=18.5	1-09732-034-0	40	1	0809-0905
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING L=18.5	1-09732-034-0	80	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) LEADING L=15.5	1-09732-053-0	40	1	0809-0905
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING L=15.5	1-09732-053-0	40	1	0906-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	AR	1	0809-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47119-134-0	04	1	0809-0905
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	0906-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-175-0	04	1	0809-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09583-185-2	02	1	0906-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09583-359-0	04	1	0809-0905
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-359-0	04	1	0906-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09583-376-0	02	1	0809-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	0809-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	0809-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	0809-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-806-0	01	1	0809-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47151-807-0	01	1	0809-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0809-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0809-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-112-4	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47137-577-0	02	1	0809-0905
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-577-0	02	1	0906-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47137-472-0	02	1	0809-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-253-1	02	1	1307-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0809-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0809-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50051-045-0	08	1	0809-0906
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-1306
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45	1-47139-174-0	08	1	1307-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	0809-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47133-005-0	02	1	0809-0905
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	0906-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	0809-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	0809-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-186-0	04	1	0809-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47643-007-0	04	1	0809-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	0809-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	0809-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	0809-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	0809-
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47621-016-0	04	1	0809-0905
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	0906-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	0809-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	0809-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	0809-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	0809-
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47629-120-0	04	1	0809-0905
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-120-0	04	1	0906-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-200-0	04	1	0809-
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-09580-543-0	04	1	0809-0905
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09580-543-0	04	1	0906-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47629-196-0	04	1	0809-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	0809-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	0809-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	0809-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	0809-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-152-0	04	1	0809-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	0809-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
