2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#66528) — 57 parça

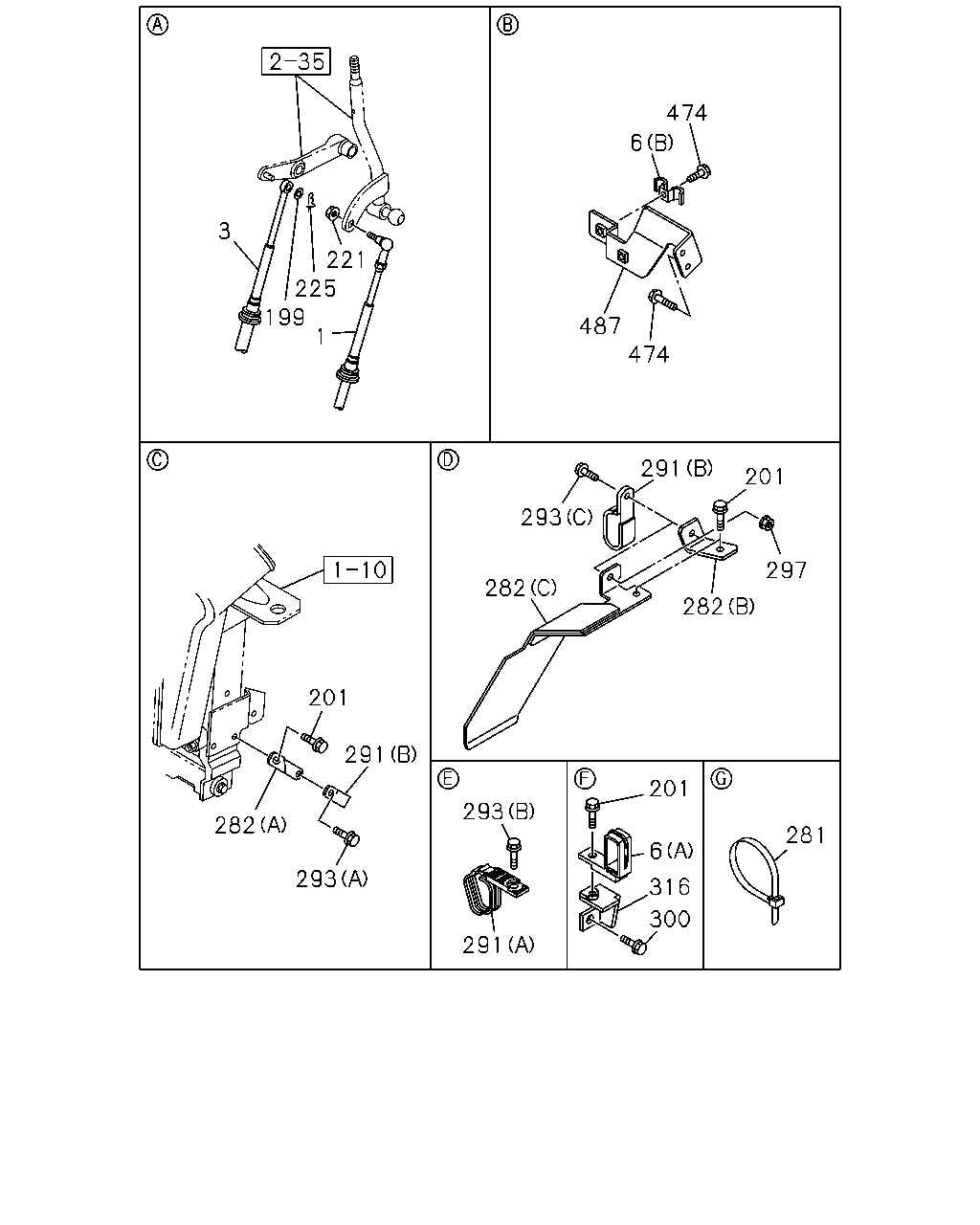

çizim 113828
474 6 3 221 225 199 487 1 474 291 201 293 297 282 282 201 291 201 293 282 281 6 293 316 300 291
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3400 		8-98121-079-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98121-077-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3505 		8-98121-080-2 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3540 		8-98121-078-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3565 		8-98017-492-5 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 0907-
6 CLIP; CABLE
(B) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0809-
6 CLIP; CABLE
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-0906
6 CLIP; CABLE
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907-
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0809-
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0809-0906
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X16 FLANGE 		0-28050-816-0 01 1 0907-
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0809-
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0809-1011
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012-
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0809-
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0809-
282 BRACKET; TRANS SIDE
(B) 		1-82699-199-0 01 1 0809-1103
282 BRACKET; TRANS SIDE
(C) 		8-98171-762-0 01 1 1104-
282 BRACKET; TRANS SIDE
(A) 		8-98010-418-0 01 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=11X2 L=16 		0-95325-026-0 02 1 0809-
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X20 FLANGE 		0-28050-820-0 01 1 0809-
293 BOLT; CLIP,SHIFT TO SELECT
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0809-
300 BOLT; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE 		0-28650-820-0 01 1 0809-0906
300 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 0907-
316 BRACKET; CLIP
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98086-439-0 01 1 0809-
316 BRACKET; CLIP
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 0809-0906
316 BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> 		8-98073-017-1 01 1 0907-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 01 1 0809-
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 02 1 0809-
487 BRACKET; CONT CABLE 8-98021-921-2 01 1 0809-0901
487 BRACKET; CONT CABLE 8-98137-772-0 01 1 0902-

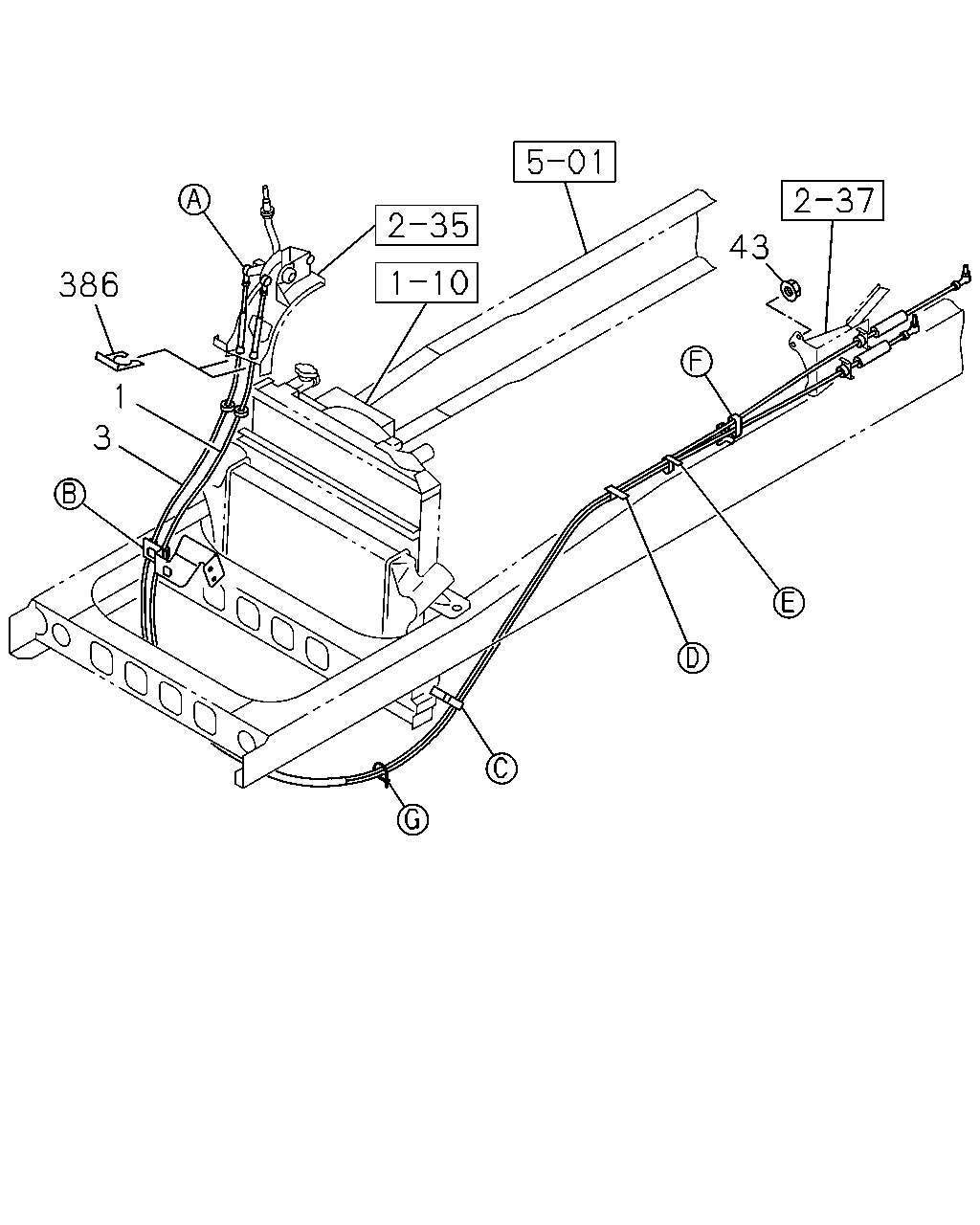

çizim 193236
43 386 1 3
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3400 		8-98121-079-2 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3430 		8-98121-077-4 01 1 0809-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> L=3360 		8-98017-472-6 01 1 0907-
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0809-0906
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3385 		8-98017-471-7 01 1 0907-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) ASSISTOR SHIFT CONTROL<WX8> L=3505 		8-98121-080-2 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MLD6W M/T(Y2C) EXC. ASSISTOR SHIFT CONTROL<WX8> L=3540 		8-98121-078-4 01 1 0809-
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) L=3565 		8-98017-492-5 01 1 0809-0906
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=3565 		8-98017-492-5 01 1 0907-
43 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0809-
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0809-
