Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#66523) — 228 parça

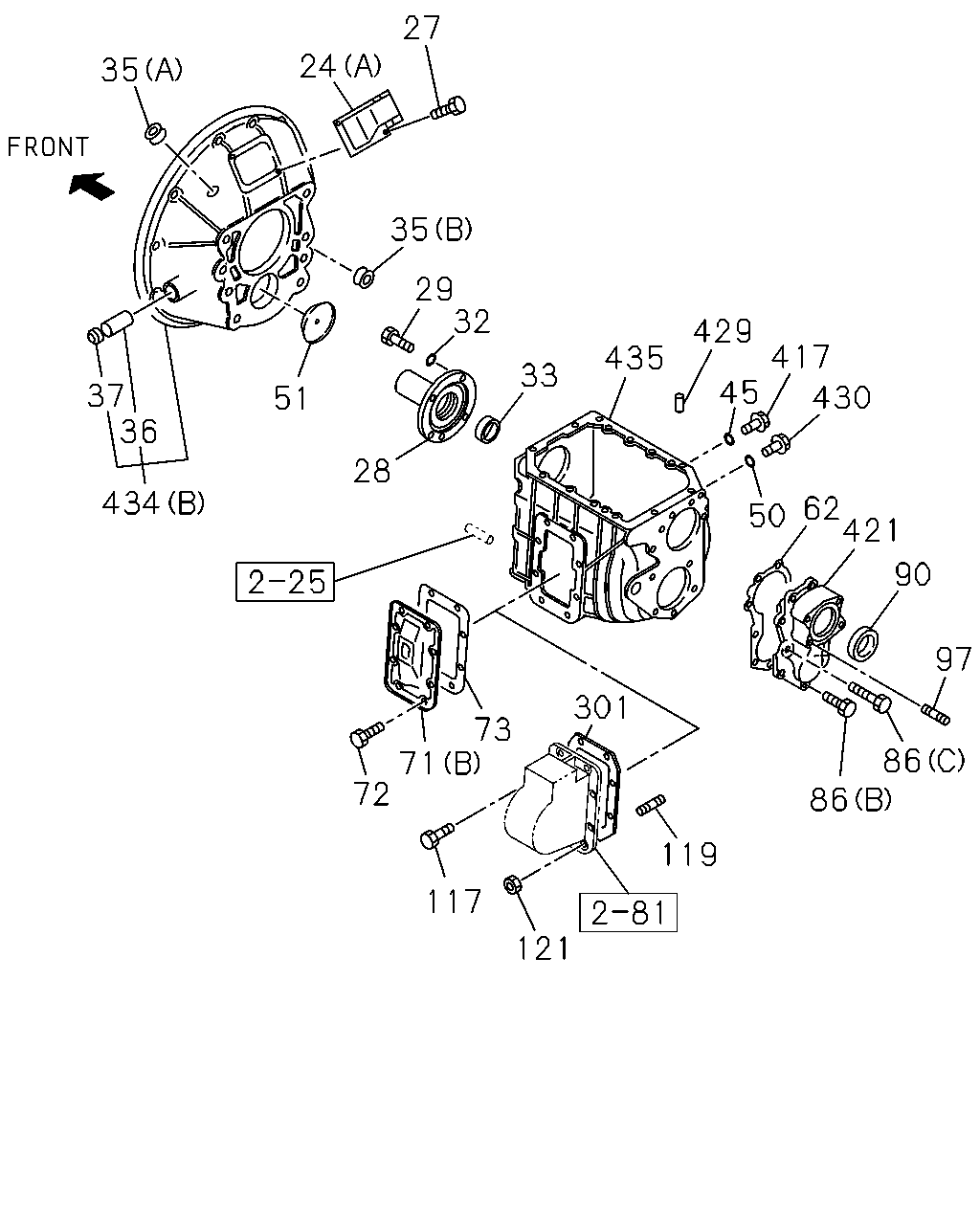

119 121 117 72 71 73 301 28 51 434 36 37 35 24 27 35 29 32 33 435 429 45 417 430 50 62 421 90 97 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0809-0906	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0907-1410	●	●	●
24	COVER; CHECK HOLE,DUST (C)	8-98283-062-0	01	1	1411-		●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410		●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-108-1	01	1	0809-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0809-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	0809-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-	●
35	GROMMET; CLU HSG (B) OD=15 T=6.6	8-97037-246-0	01	1	0809-	●
35	GROMMET; CLU HSG (A)	9-09575-796-0	01	1	0809-	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	0809-	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	0809-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	0809-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	0809-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0809-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-		●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	0809-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-		●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0906		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-		●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0809-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-	●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0809-0906		●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0907-		●	●
434	HOUSING; CLU (B)	1-31110-169-0	01	1	0809-	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108			●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404			●
435	CASE; TRANS	8-98236-421-1	01	1	1405-			●
435	CASE; TRANS	8-97388-872-4	01	1	0809-		●
435	CASE; TRANS	1-33111-355-0	01	1	0809-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

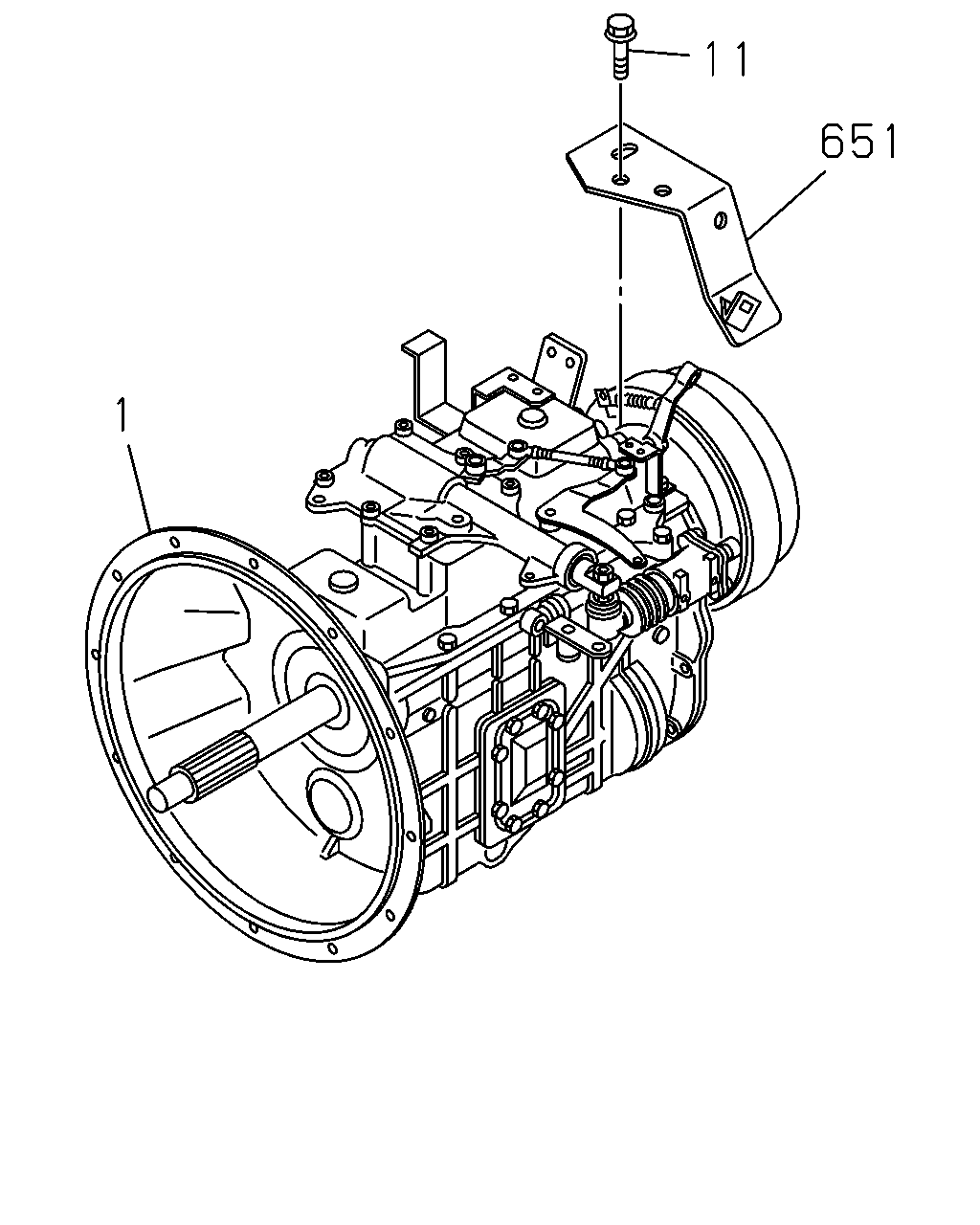

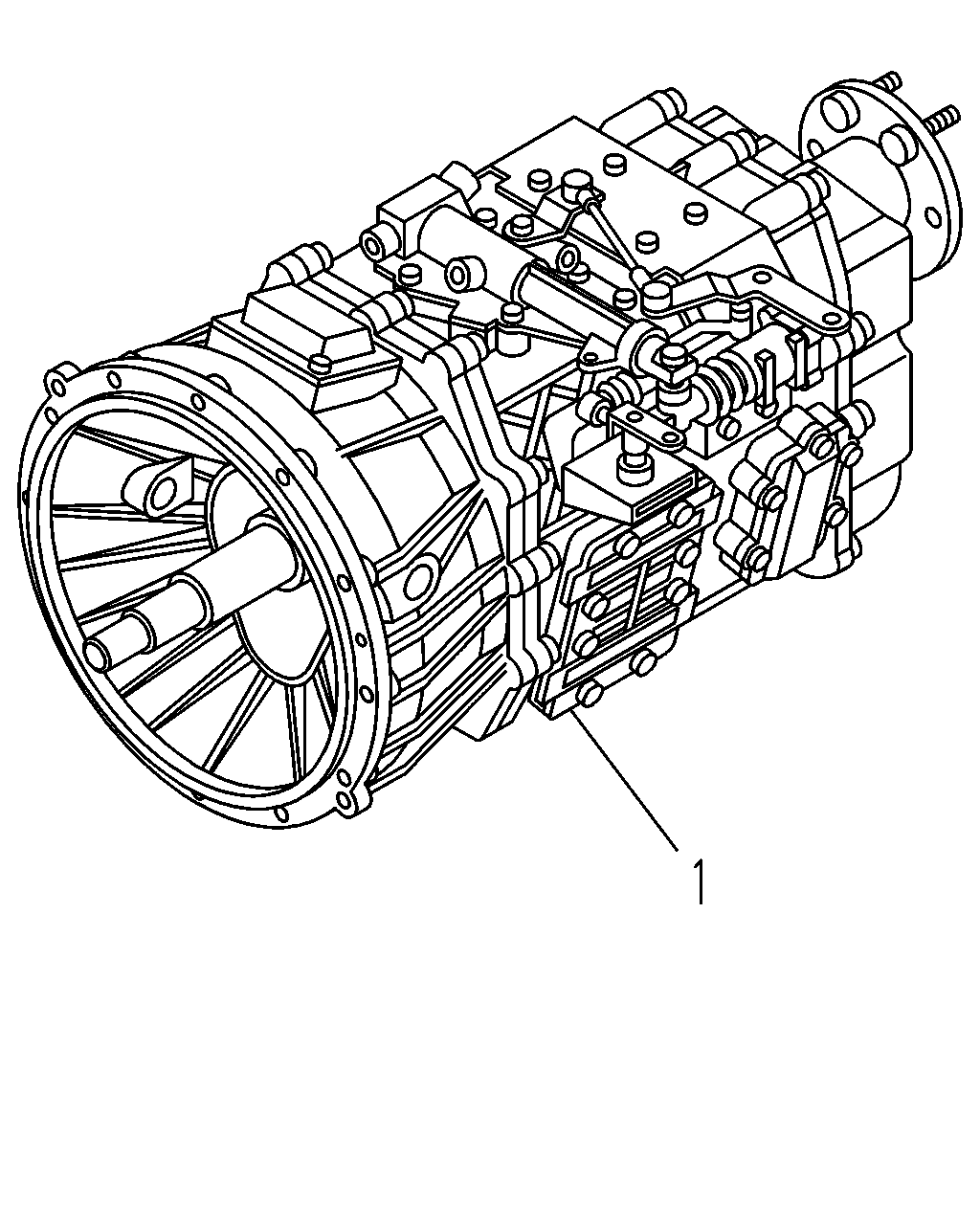

1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-801-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98065-508-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-536-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98115-545-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-543-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33044-307-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-307-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-342-0	01	1	0809-	●

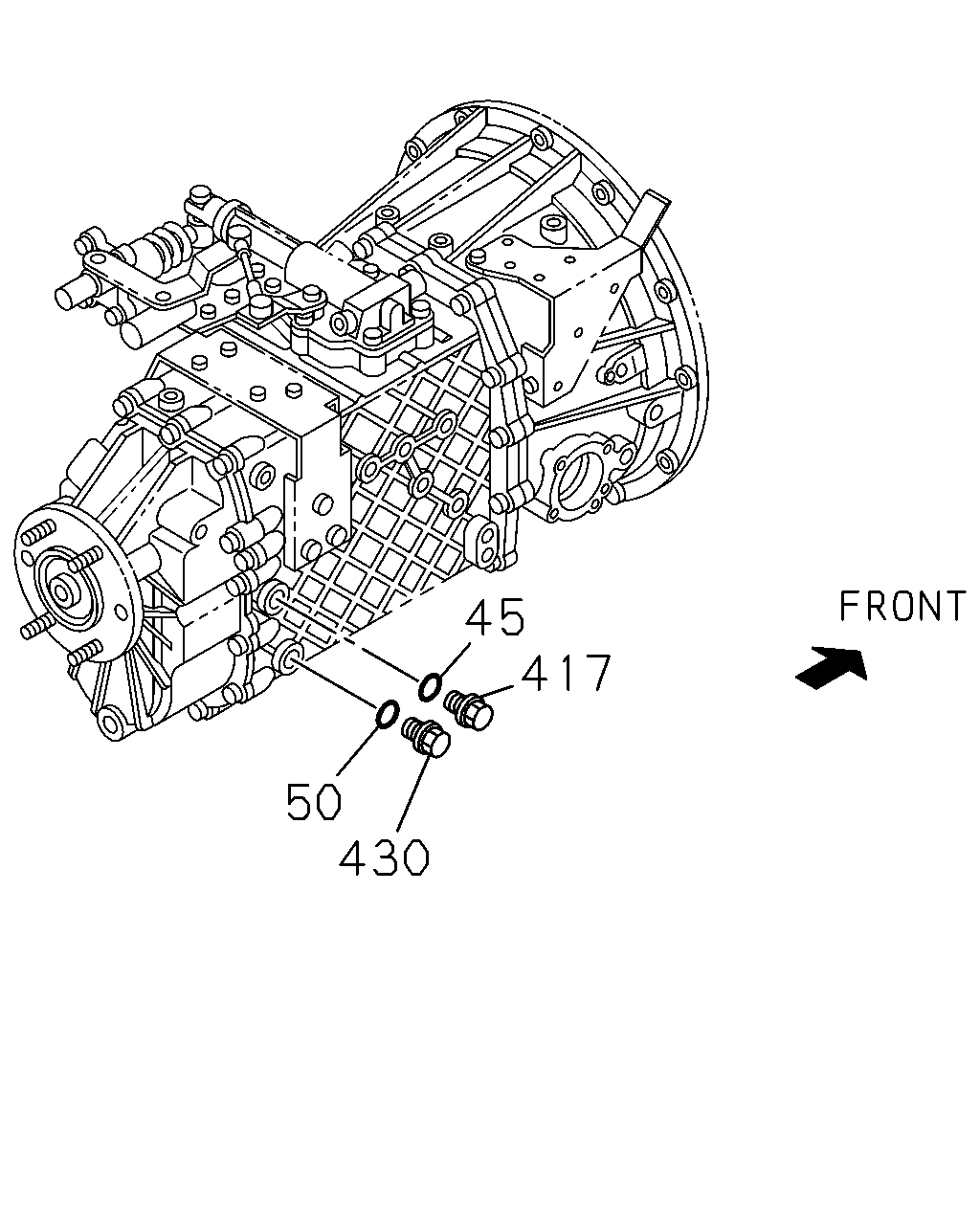

45 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-		●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0809-0906		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0907-1404		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1405-		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0809-	●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0809-0906		●
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	0907-		●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0809-	●
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-			●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0809-0906		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0907-1404		●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1405-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0809-	●

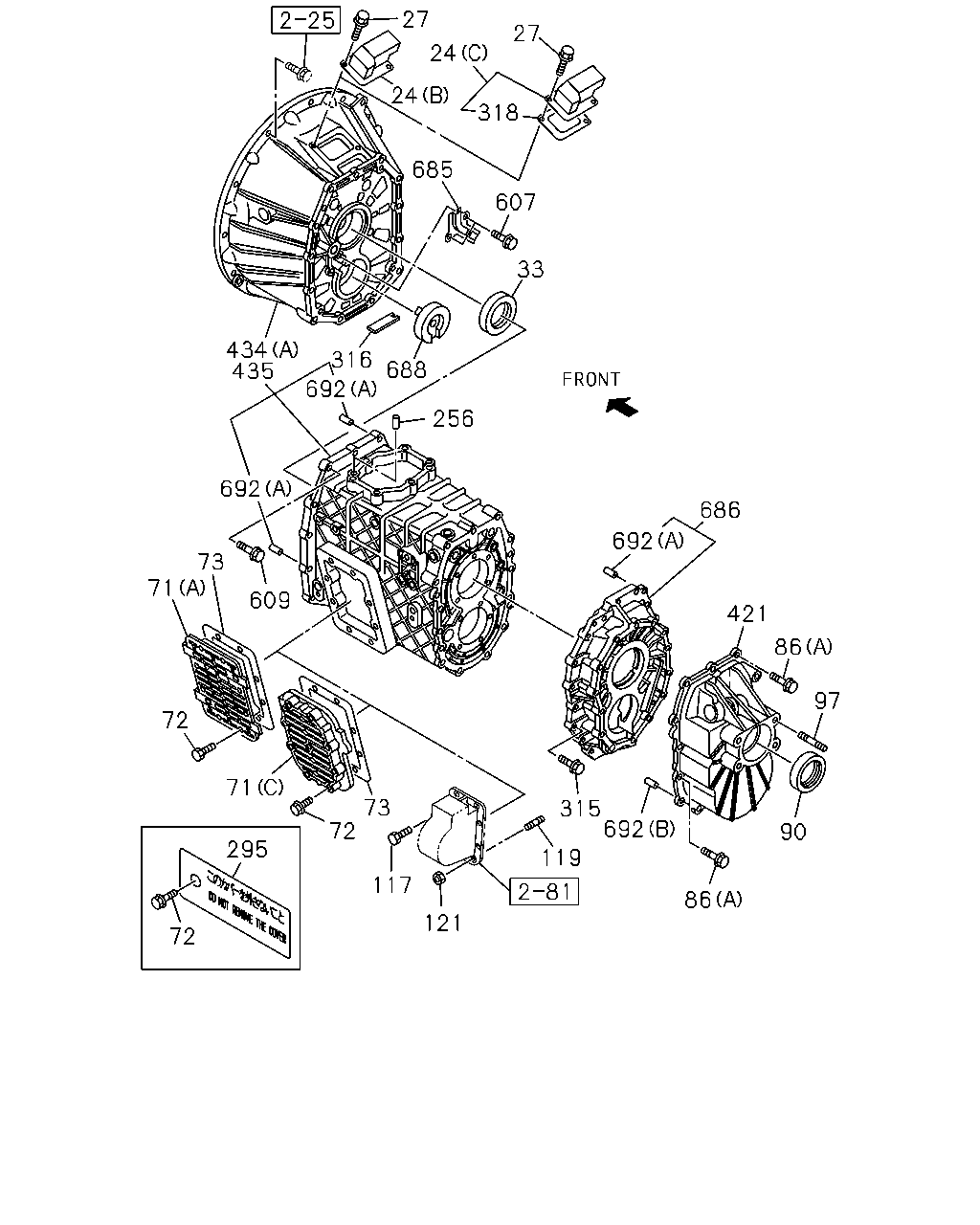

27 27 24 24 318 685 607 33 688 256 316 692 434 435 692 73 71 609 72 71 73 72 295 72 117 121 119 315 692 90 86 97 86 421 692 686

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	COVER; CHECK HOLE,DUST (A)	8-98284-107-0	01	1	1411-	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0809-0906	●	●
24	COVER; CHECK HOLE,DUST (B)	1-31131-041-0	01	1	0907-1410	●	●	●
24	COVER; CHECK HOLE,DUST (C)	8-98283-062-0	01	1	1411-		●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0809-0906		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28050-812-0	02	1	0907-1410		●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0809-1410	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0809-0906		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97377-947-0	01	1	0907-		●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	0809-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98122-318-0	01	1	0907-1408			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	8-98270-265-1	01	1	1409-			●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97377-949-0	01	1	0809-0901		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	8-97252-624-2	01	1	0902-		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B)	1-33141-033-0	01	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0809-	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X12 FLANGE	0-28050-812-0	01	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20 FLANGE	8-98014-142-0	06	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X20	8-98114-447-0	02	1	0809-		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	0907-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-320-0	01	1	0907-0908			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	0809-	●	●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0809-0906		●
86	BOLT; RR COVER (A) M10X40 FLANGE	8-98045-397-0	14	1	0907-		●	●
86	BOLT; RR COVER (C) M17X35	1-09044-076-0	08	1	0809-	●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	0809-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1104-		●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0809-0906	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	0907-1103	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	1104-	●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0809-0906		●
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-	●
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	0907-		●	●
97	STUD; PARKING BRK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 WO/DRY-ROCK	8-98014-137-0	03	1	0809-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	0907-			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE	0-28751-030-0	06	1	0809-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0809-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	0907-			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0809-		●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0809-	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	0907-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0809-	●	●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0809-0906		●
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	0907-		●	●
295	PLATE; COVER,PTO EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98116-575-0	01	1	0809-		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0809-0906		●
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	0907-		●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0809-0906		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	0907-		●	●
318	GASKET; COVER	1-31139-023-0	01	1	1411-		●	●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0809-0906		●
421	COVER; RR,TRANS	8-98004-790-1	01	1	0907-		●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	0809-	●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0809-0906		●
434	HOUSING; CLU (A)	8-98004-506-2	01	1	0907-		●	●
434	HOUSING; CLU (B)	1-31110-169-0	01	1	0809-	●
435	CASE; TRANS	8-98123-098-1	01	1	0907-1108			●
435	CASE; TRANS	8-98186-449-0	01	1	1109-1404			●
435	CASE; TRANS	8-98236-421-1	01	1	1405-			●
435	CASE; TRANS	8-97388-872-4	01	1	0809-		●
435	CASE; TRANS	1-33111-355-0	01	1	0809-	●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0809-0906		●
607	BOLT; COVER M8X16 FLANGE	0-28050-816-0	02	1	0907-		●	●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0809-0906		●
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	0907-		●	●
685	COVER; OIL PORT	8-98018-864-1	01	1	0809-0906		●
685	COVER; OIL PORT	8-98018-864-1	01	1	0907-		●	●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0809-0906		●
686	CASE; RR,TRANS	8-97388-873-1	01	1	0907-		●	●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0809-0906		●
688	NOZZLE; OIL,COUNTER	8-98007-741-0	01	1	0907-1110		●	●
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1111-1508		●	●
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-		●	●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0809-0906		●
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	0907-		●	●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0809-0906		●
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	0907-		●	●

11 651 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-530-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98134-520-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98134-532-0	01	1	0907-			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	8-98059-801-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98065-508-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-536-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98115-545-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	8-98041-819-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98064-381-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98115-532-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	8-98115-543-0	01	1	0809-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33044-307-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-307-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33044-338-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33044-299-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33044-299-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33044-342-0	01	1	0809-	●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTORSHIFT CONTROL<WX8>	1-33044-342-0	01	1	0809-	●
11	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0809-	●
651	BRACKET; T/M HARNESS PARKING BRAKE DRUM 10"(B1T)	8-98120-315-0	01	1	0809-	●
651	BRACKET; T/M HARNESS EXC. PARKING BRAKE DRUM 10"(B1T)	8-97627-300-0	01	1	0809-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
