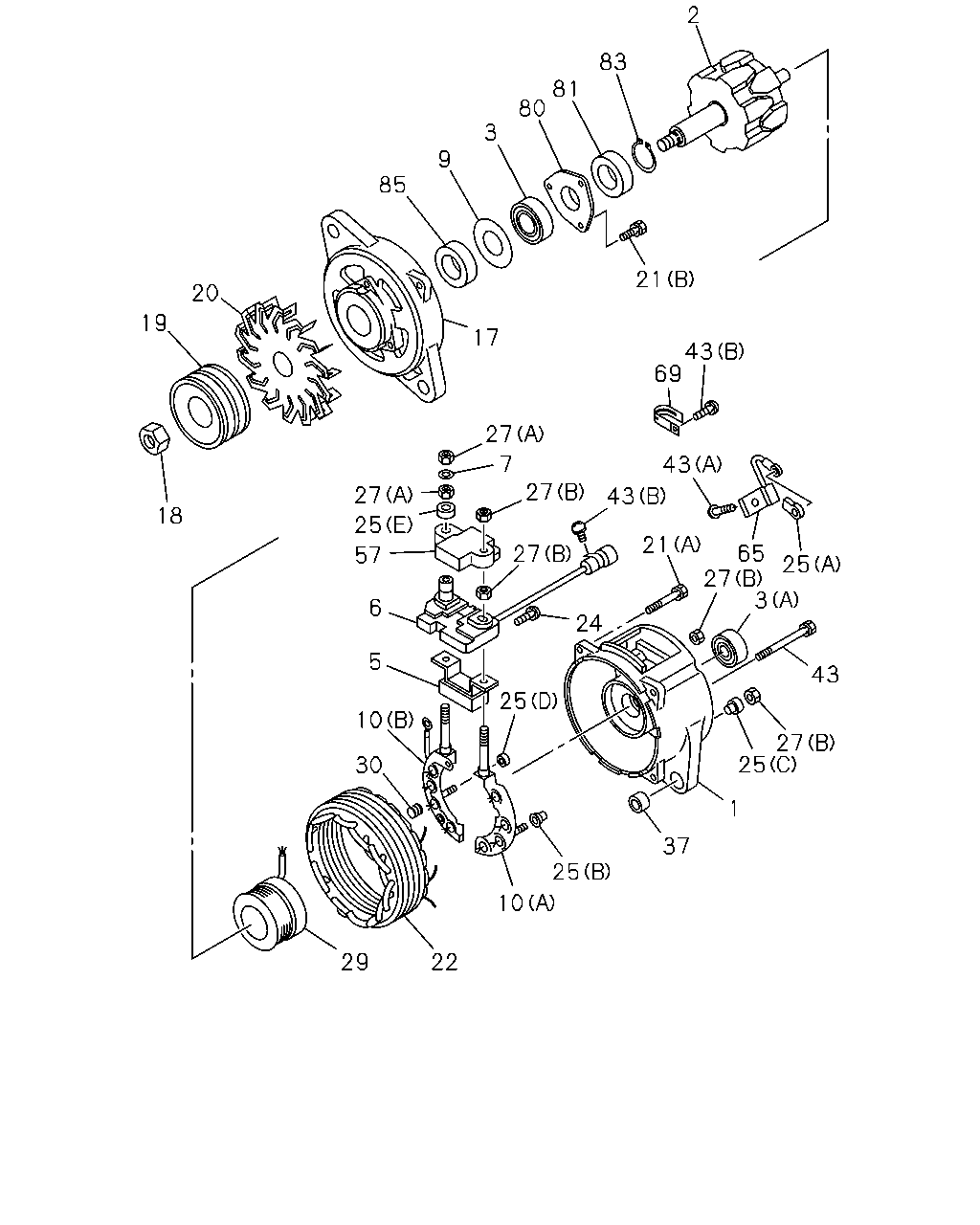

0-66 — GENERATOR (#6652) — 36 parça

2 83 81 80 3 9 85 21 20 19 17 43 69 27 7 43 27 27 43 18 25 21 65 27 3 27 57 25 6 24 5 43 25 10 27 25 30 1 37 25 10 29 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97913-530-2	8-97921-135-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97913-530-2	8-97921-132-0	01	1	-
3	BEARING; ROTOR,GEN THA ASM PART: A = 8-97913-530-2	8-97921-129-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: A = 8-97913-530-2	8-97921-142-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN THA ASM PART: A = 8-97913-530-2	8-97921-155-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN THA ASM PART: A = 8-97913-530-2	8-97921-148-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN THA ASM PART: A = 8-97913-530-2	8-97921-128-0	01	1	-
10	RECTIFIER; GEN (A), THA ASM PART: A = 8-97913-530-2	8-97921-137-0	01	1	-
10	RECTIFIER; GEN (B), THA ASM PART: A = 8-97913-530-2	8-97921-138-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97913-530-2	8-97921-127-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: A = 8-97913-530-2	8-97921-123-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97913-530-2	8-97921-125-0	01	1	-
20	FAN; GEN THA ASM PART: A = 8-97913-530-2	8-97918-727-0	01	1	-
21	BOLT; THROUGH,GEN (A), THA ASM PART: A = 8-97913-530-2	8-97921-124-0	04	1	-
21	BOLT; THROUGH,GEN (B), THA ASM PART: A = 8-97913-530-2	8-97921-131-0	03	1	-
22	STATOR; GEN THA ASM PART: A = 8-97913-530-2	8-97921-150-0	01	1	-
24	SCREW; RECTIFIER,GEN THA ASM PART: A = 8-97913-530-2	8-97921-144-0	05	1	-
25	BUSHING; INSULATION TERMINAL (A), THA ASM PART: A = 8-97913-530-2	8-97918-735-0	01	1	-
25	BUSHING; INSULATION TERMINAL (B), THA ASM PART: A = 8-97913-530-2	8-97921-139-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C), THA ASM PART: A = 8-97913-530-2	8-97921-140-0	01	1	-
25	BUSHING; INSULATION TERMINAL (D), THA ASM PART: A = 8-97913-530-2	8-97921-141-0	02	1	-
25	BUSHING; INSULATION TERMINAL (E), THA ASM PART: A = 8-97913-530-2	8-97921-146-0	01	1	-
27	NUT; RECTIFIER,GEN (A), THA ASM PART: A = 8-97913-530-2	8-97921-147-0	02	1	-
27	NUT; RECTIFIER,GEN (B), THA ASM PART: A = 8-97913-530-2	8-97921-149-0	06	1	-
29	BRUSH; GEN THA ASM PART: A = 8-97913-530-2	8-97918-737-0	02	1	-
30	SPRING; BRUSH,GEN THA ASM PART: A = 8-97913-530-2	8-97921-143-0	02	1	-
37	BUSHING; RR COVER,GEN THA ASM PART: A = 8-97913-530-2	8-97921-136-0	01	1	-
43	SCREW; RR END COVER (A), THA ASM PART: A = 8-97913-530-2	8-97921-152-0	01	1	-
43	SCREW; RR END COVER (B), THA ASM PART: A = 8-97913-530-2	8-97921-153-0	02	1	-
57	COVER; BRUSH,GEN THA ASM PART: A = 8-97913-530-2	8-97921-145-0	01	1	-
65	CONDENSER; GEN THA ASM PART: A = 8-97913-530-2	8-97921-151-0	01	1	-
69	CLIP; WIRE,GEN THA ASM PART: A = 8-97913-530-2	8-97921-154-0	01	1	-
80	PLATE; ROTOR,GEN THA ASM PART: A = 8-97913-530-2	8-97921-130-0	01	1	-
81	SPACER; ROTOR,GEN THA ASM PART: A = 8-97913-530-2	8-97921-133-0	01	1	-
83	RING; SLIP,ROTOR,GEN THA ASM PART: A = 8-97913-530-2	8-97921-134-0	01	1	-
85	SPACER; PULLEY,GEN THA ASM PART: A = 8-97913-530-2	8-97921-126-0	01	1	-
