Isuzu WW
▶
TRUCKS
▶
FTR
▶
11127 - FTR(LHD)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

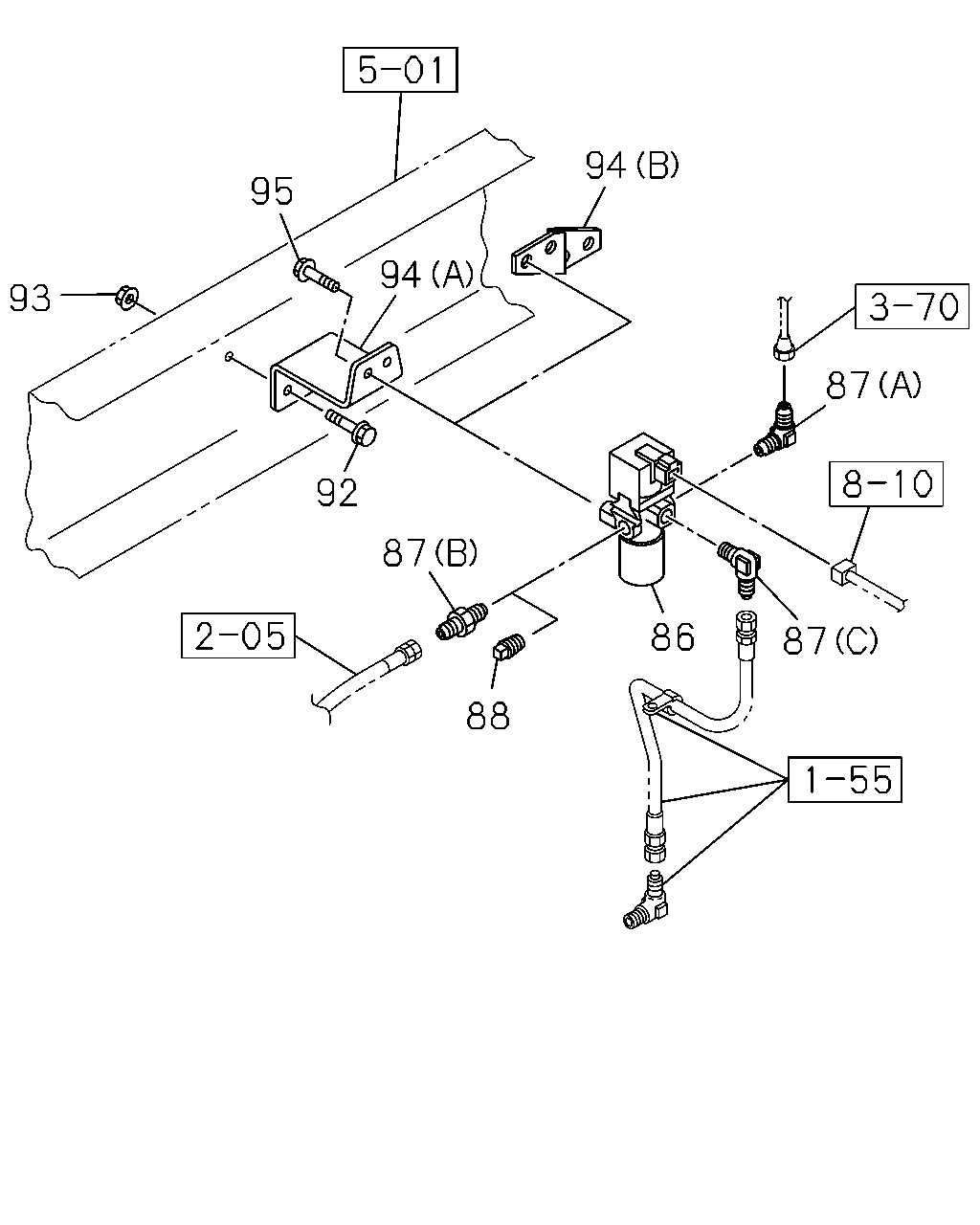

1-56 — EXHAUST BRAKE SYSTEM
(#66516) — 22 parça
93
95
94
94
92
87
88
86
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
86
VALVE; MAG,EXH BRK
1-82563-871-2
01
1
0809-1011
86
VALVE; MAG,EXH BRK
EXC. VIN MODEL YEAR 2011<VZB>
1-82563-871-2
01
1
1012-
87
CONNECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0809-0812
87
CONNECTOR
(B) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0901-
87
CONNECTOR
(C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0809-1011
87
CONNECTOR
EXC. VIN MODEL YEAR 2011<VZB> (C) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1012-
87
CONNECTOR
(A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0809-1011
87
CONNECTOR
EXC. VIN MODEL YEAR 2011<VZB> (A) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1012-
88
PLUG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4
9-99204-513-0
01
1
0809-1011
88
PLUG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> PT1/4
9-99204-513-0
01
1
1012-
92
BOLT; MAG VLV
M8X35 FLANGE
0-28650-835-0
02
1
0809-1011
92
BOLT; MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X35 FLANGE
0-28650-835-0
02
1
1012-
92
BOLT; MAG VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8X35 FLANGE
0-28650-835-0
02
1
1012-
93
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
0809-1011
93
NUT; MAG VLV
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE
0-91180-108-0
02
1
1012-
93
NUT; MAG VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE
0-91180-108-0
02
1
1012-
94
BRACKET; MAG VLV,EXH BRAKE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)
1-47471-374-1
01
1
0809-1004
94
BRACKET; MAG VLV,EXH BRAKE
(A)
8-98154-633-0
01
1
1005-
94
BRACKET; MAG VLV,EXH BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)
8-98057-863-0
01
1
0809-1011
94
BRACKET; MAG VLV,EXH BRAKE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. VIN MODEL YEAR 2011<VZB> (B)
8-98057-863-0
01
1
1012-
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28650-820-0
02
1
0809-1011
95
BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE
0-28650-820-0
02
1
1012-
