1-41 — FUEL PIPING; CHASSIS (#66512) — 88 parça

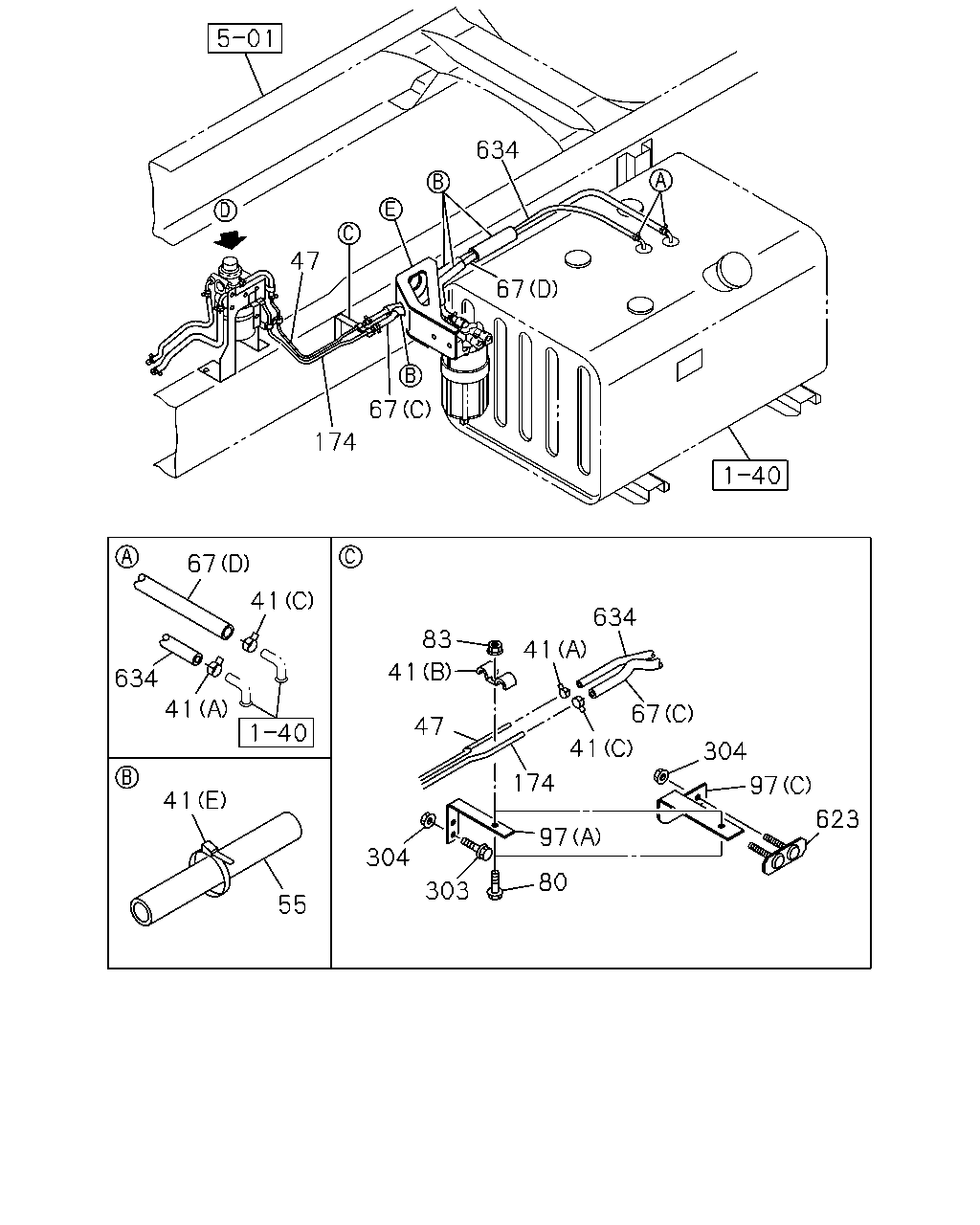

çizim 92955
634 47 67 174 67 67 634 41 41 41 55 41 47 83 41 634 67 41 174 304 97 623 97 80 303 304
BalonParca AdiParca NoAdetTipApplied Date
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0809-
47 PIPE; FUEL,RETURN
L=539 		8-98117-709-0 01 1 0809-
55 COVER; PIPE,FUEL TANK
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0809-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98128-211-0 01 1 0809-0812
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) L=900 		8-98128-211-0 01 1 0901-0910
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) L=900 		8-98157-879-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98128-210-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 0911-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 0809-
97 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98126-612-0 01 1 0810-0812
97 BRACKET; CLIP
(C) 		8-98126-612-0 01 1 0901-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0809-
97 BRACKET; CLIP
(A) 		8-98117-696-0 01 1 0809-0809
97 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98117-696-0 01 1 0810-0812
174 PIPE; FUEL,FEED,FRT
L=548 		8-98117-708-0 01 1 0809-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809
303 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0812
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010-
623 PLATE; STUD BOLT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98126-633-0 01 1 0810-0812
623 PLATE; STUD BOLT 8-98126-633-0 01 1 0901-
634 HOSE; RUBBER RETURN
L=1050 		8-98128-212-0 01 1 0809-

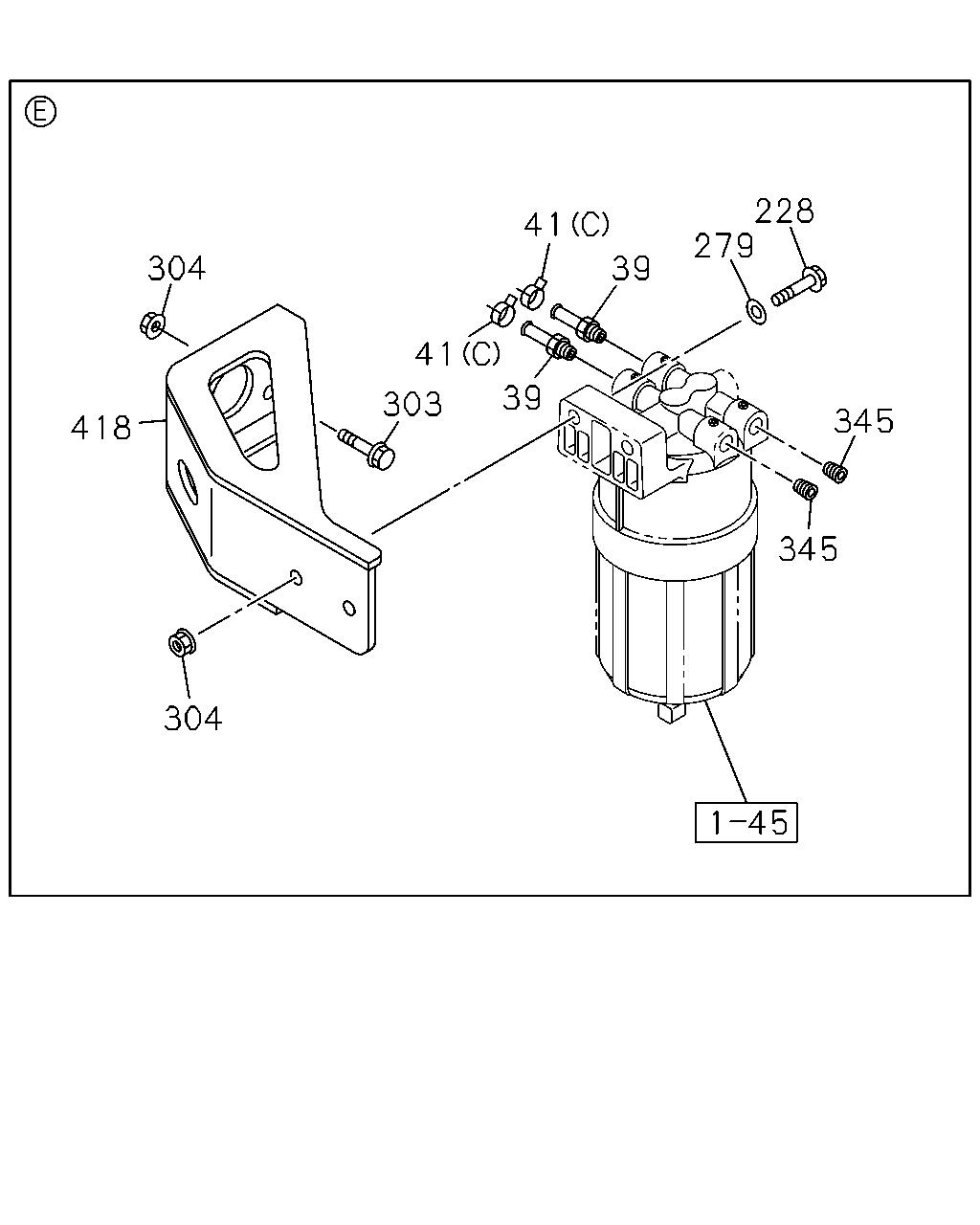

çizim 93352
228 279 41 304 39 41 39 303 345 418 345 304
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL 8-97358-699-0 02 1 0809-0903
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 0904-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0809-
228 BOLT; BRKT,SEDIMENTER
M10X50 FLANGE 		0-28051-050-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 0809-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0809-0809
303 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0812
303 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 0809-
418 BRACKET; PRE FUEL FILTER 8-98128-254-0 01 1 0809-

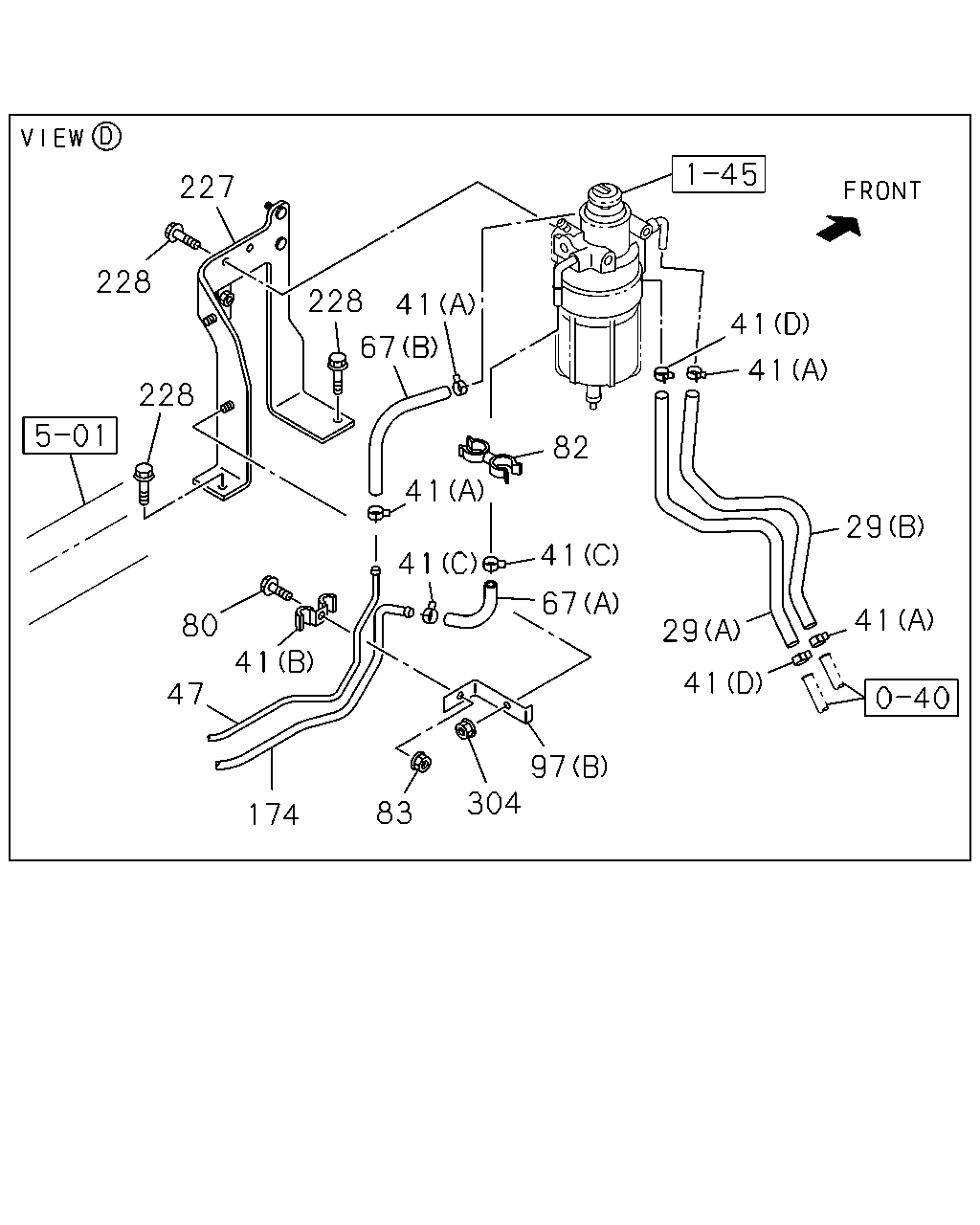

çizim 93651
227 228 228 80 47 174 41 228 41 67 41 41 83 304 67 41 82 97 41 41 29 41 29 41
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(A) 		8-98078-196-2 01 1 0809-
29 HOSE; FUEL
(B) 		8-98078-197-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 01 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 0809-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 0809-
47 PIPE; FUEL,RETURN
L=539 		8-98117-709-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> (D) L=900 		8-98128-211-0 01 1 0809-0812
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) L=900 		8-98128-211-0 01 1 0901-0910
67 HOSE; FUEL,DELIVERY
FUEL TANK 200L FRAME SIDE<N20> EURO2 SPECIFICATION<NT2>,EURO3 SPECIFICATION<NT3> (D) L=900 		8-98157-879-0 01 1 0911-
67 HOSE; FUEL,DELIVERY
(A) L=110 SERVICED BY L=3000 		0-01260-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 0809-
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98128-210-0 01 1 0809-0910
67 HOSE; FUEL,DELIVERY
(C) L=300 		8-98157-878-0 01 1 0911-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 0809-0812
82 CLIP; FUEL HOSE
EURO2 SPECIFICATION<NT2> ID=13 & 16.5 		8-94169-028-0 01 1 0901-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 0809-
97 BRACKET; CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98126-612-0 01 1 0810-0812
97 BRACKET; CLIP
(C) 		8-98126-612-0 01 1 0901-
97 BRACKET; CLIP
(B) 		8-98053-654-0 01 1 0809-
97 BRACKET; CLIP
(A) 		8-98117-696-0 01 1 0809-0809
97 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98117-696-0 01 1 0810-0812
174 PIPE; FUEL,FEED,FRT
L=548 		8-98117-708-0 01 1 0809-
227 BRACKET; FUEL SEDIMENTER 8-98044-366-3 01 1 0809-
228 BOLT; BRKT,SEDIMENTER
M10X50 FLANGE 		0-28051-050-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M8X25 FLANGE 		0-28050-825-0 02 1 0809-
228 BOLT; BRKT,SEDIMENTER
M8X20 FLANGE 		0-28650-820-0 02 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1010-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0809-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 0809-1009
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1010-
