1-31 — AIR DUCT (#66509) — 109 parça

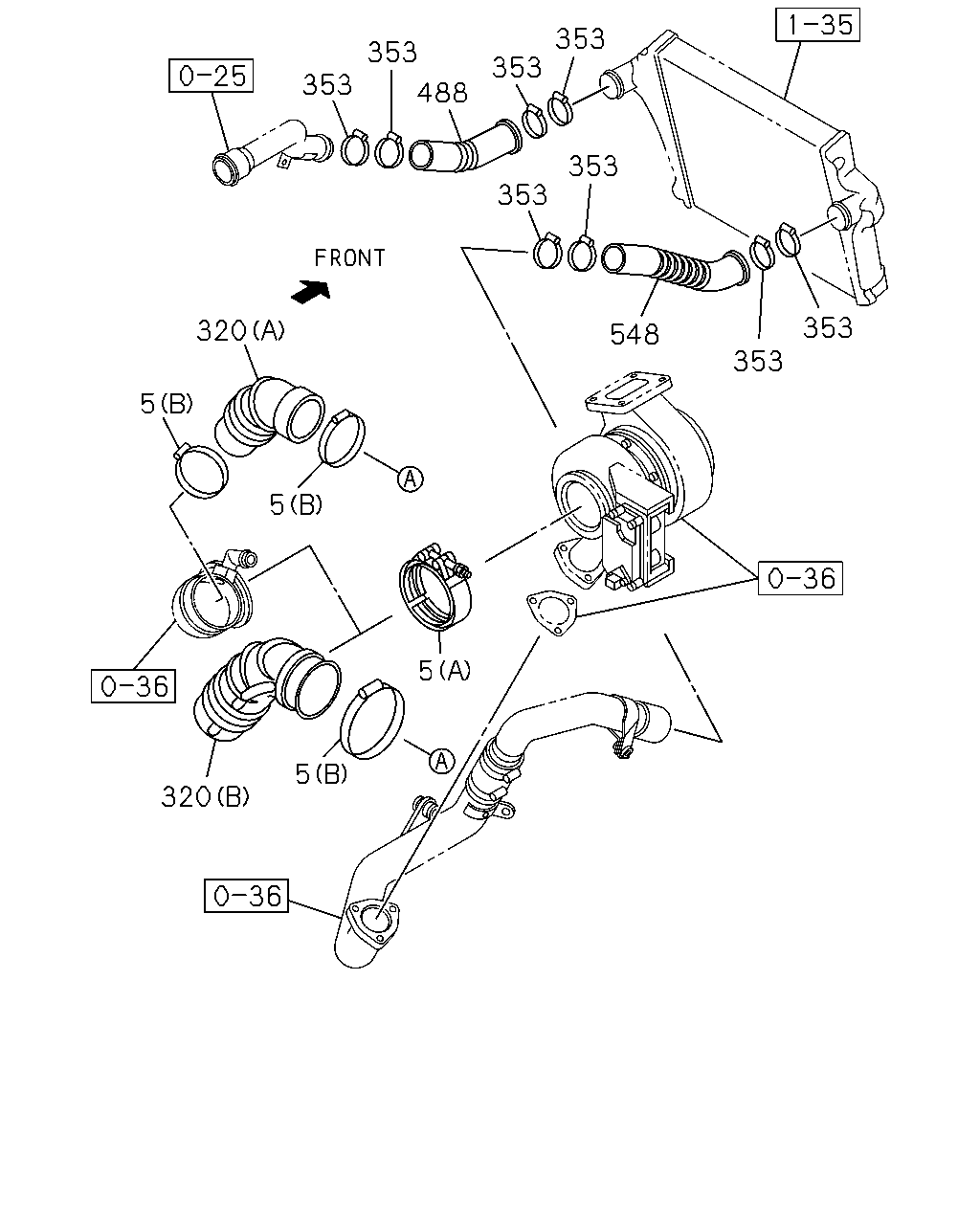

çizim 92176
353 353 353 353 488 353 353 353 320 548 353 5 5 5 5 320
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1002-1006
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (A) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1002-1006
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=100-120 		8-98133-366-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (A) ID=114 		8-15178-030-0 01 1 0901-1101
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=114 		8-15178-030-0 01 1 1102-
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0809-0811
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 0812-0812
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> (A) ID=90-110 		8-98133-365-0 01 1 0901-1001
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1002-1006
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1007-
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0809-0812
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) 		8-98167-258-0 01 1 1007-
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> (A) 		8-98012-859-2 01 1 0901-1006
320 HOSE; CONN,ACL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) 		8-98012-859-2 01 1 1007-
320 HOSE; CONN,ACL
(B) 		8-98073-257-0 01 1 0809-0812
320 HOSE; CONN,ACL
EURO2 SPECIFICATION<NT2> (B) 		8-98073-257-0 01 1 0901-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=58-79 		1-09707-136-0 08 1 1002-
353 CLIP; RUBBER HOSE
ID=58-76 		1-09707-203-0 08 1 0809-0811
353 CLIP; RUBBER HOSE
ID=55-75 		8-98133-349-0 08 1 0812-1001
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=55-75 		8-98133-349-0 08 1 1002-
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 0809-
548 HOSE; RUBBER,TURBO TO INL PIPE
EURO2 SPECIFICATION<NT2> 		8-98181-974-1 01 1 1102-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 0809-1101
548 HOSE; RUBBER,TURBO TO INL PIPE
EXC. EURO2 SPECIFICATION<NT2> 		8-98065-044-0 01 1 1102-

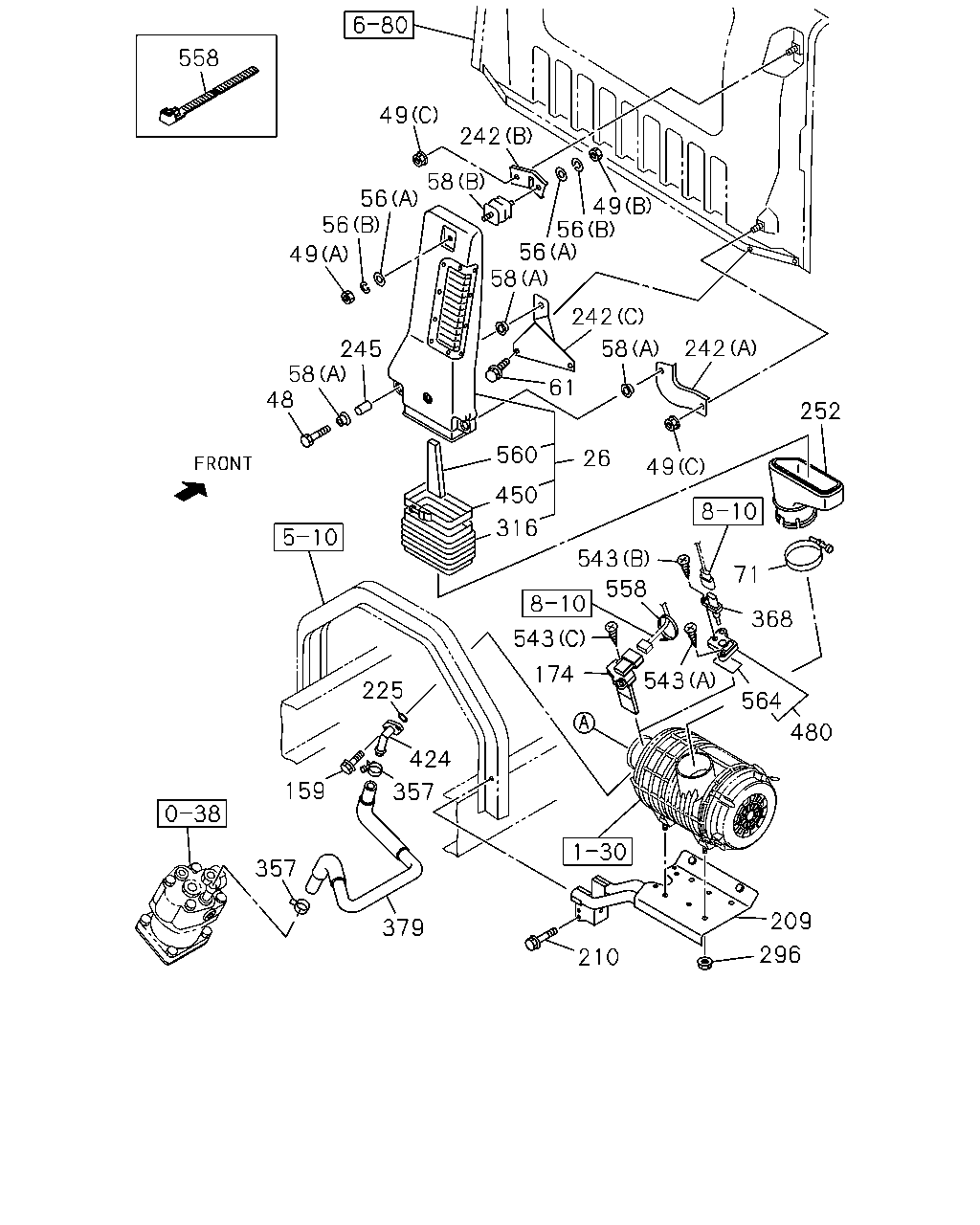

çizim 193219
558 49 242 58 56 56 49 56 56 58 49 242 242 5 245 61 58 48 252 560 26 49 450 316 543 71 558 368 543 174 543 225 564 480 424 159 357 357 209 379 296 210
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1002-1006
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> EXC. KD PREPARATORY PACK<6HF> (A) ID=87-116 		1-09707-138-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1002-1006
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>,KD PREPARATORY PACK<6HF> (A) ID=104-142 		1-09707-139-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (A) ID=100-120 		8-98133-366-0 01 1 0901-1001
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> (A) ID=100-120 		8-98133-366-0 01 1 1002-1006
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=100-120 		8-98133-366-0 01 1 1007-
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> (A) ID=114 		8-15178-030-0 01 1 0901-1101
5 CLIP; AIR DUCT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=114 		8-15178-030-0 01 1 1102-
5 CLIP; AIR DUCT
(A) ID=87-113 		1-09707-199-0 01 1 0809-0811
5 CLIP; AIR DUCT
(A) ID=90-110 		8-98133-365-0 01 1 0812-0812
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> (A) ID=90-110 		8-98133-365-0 01 1 0901-1001
5 CLIP; AIR DUCT
EURO2 SPECIFICATION<NT2> KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1002-1006
5 CLIP; AIR DUCT
TURBO - CONVENTIONAL<Q5T> KD PREPARATORY PACK<6HF> (A) ID=90-110 		8-98133-365-0 01 1 1007-
5 CLIP; AIR DUCT
(B) ID=104-139 		1-09707-200-0 01 1 0809-0812
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 0901-1001
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=110-130 		8-98133-359-0 01 1 1002-
26 DUCT; AIR INT 8-98010-361-2 01 1 0809-
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 0809-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 0809-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 0809-
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 0809-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 0809-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 0809-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0809-
58 SUPPORT; AIR INL DUCT
(B) 		1-14119-452-0 01 1 0809-0810
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 0811-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0809-
71 CLIP; AIR DUCT
ID=104-139 		1-09707-200-0 01 1 0809-0812
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 0901-
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 0809-
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> 		8-97601-967-0 01 1 0901-1112
174 SENSOR; AIR FLOW CONT
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97601-967-0 01 1 1201-
209 BRACKET; ACL 8-98021-995-1 01 1 0809-
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0809-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 0809-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 0809-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 0809-
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 0809-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 0809-
252 DUCT; AIR INT 8-98012-861-1 01 1 0809-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0809-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 0908-
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=26 		1-09707-091-0 01 1 0809-
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=29.5 		8-97354-979-0 01 1 0809-
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=26 		1-09707-091-0 02 1 0809-
368 SENSOR; TEMP 8-98065-377-0 01 1 0809-0812
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 0901-1112
368 SENSOR; TEMP
EURO2 SPECIFICATION<NT2> 		8-98065-377-0 01 1 1201-
368 SENSOR; TEMP
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98065-377-0 01 1 1201-
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97619-194-0 01 1 0809-
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98077-469-0 01 1 0809-
424 PIPE; AIR,INL 8-98081-834-0 01 1 0809-
450 CLAMP; HOSE 9-09915-504-1 01 1 0809-
480 ADAPTER 8-98086-417-0 01 1 0809-0812
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 0901-1112
480 ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98086-417-0 01 1 1201-
480 ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98086-417-0 01 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0901-1112
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1201-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0809-0812
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 0901-1112
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1201-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0809-0812
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0901-1112
543 SCREW; SENSOR
EURO2 SPECIFICATION<NT2> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201-
543 SCREW; SENSOR
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1201-
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 0809-
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 0809-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 0809-
564 GASKET; ADAPTER 8-98071-416-0 01 1 0809-0812
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 0901-1112
564 GASKET; ADAPTER
EURO2 SPECIFICATION<NT2> 		8-98071-416-0 01 1 1201-
564 GASKET; ADAPTER
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98071-416-0 01 1 1201-
