0-39 — AIR COMPRESSOR; BRAKE (#66494) — 117 parça

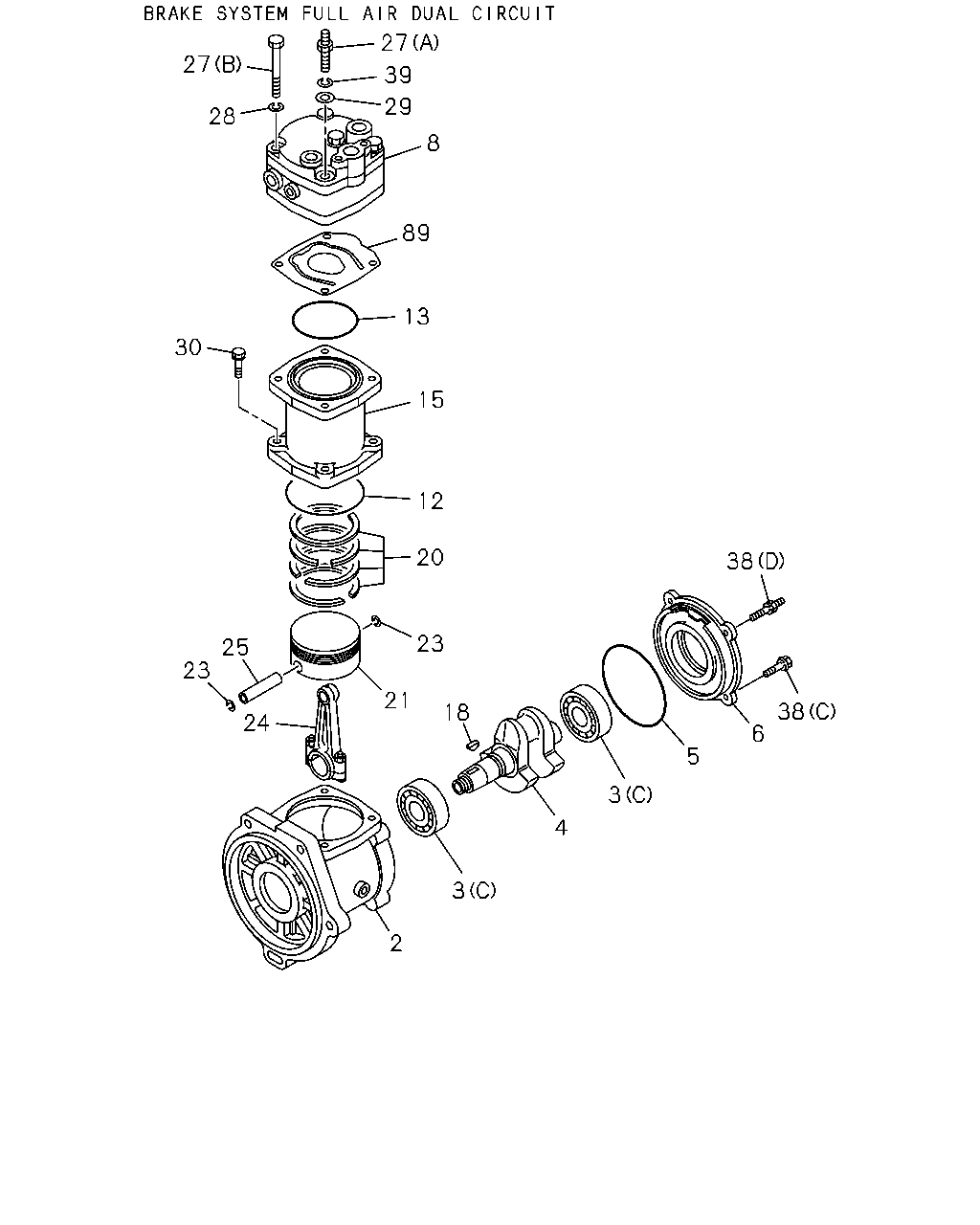

27 27 39 29 28 8 89 13 30 15 12 20 38 23 25 23 21 38 18 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19151-274-0	01	1	0809-
2	CRANKCASE; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-060-1	01	1	0809-
3	BEARING; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-00006-206-0	01	1	0809-
3	BEARING; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-00090-152-0	01	1	0809-
3	BEARING; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09800-268-0	02	1	0809-
4	CRANKSHAFT; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19171-096-0	01	1	0809-
4	CRANKSHAFT; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-059-1	01	1	0809-
5	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09623-361-0	01	1	0809-1107
5	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98192-460-0	01	1	1108-
5	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09623-613-0	01	1	0809-1107
5	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98192-463-0	01	1	1108-
6	COVER ASM; BRG,AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19156-039-0	01	1	0809-
6	COVER ASM; BRG,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-058-1	01	1	0809-
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98038-657-2	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98167-015-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98167-015-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3>	8-97614-055-0	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3>	8-98167-012-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T>	8-98167-012-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-779-0	01	1	0809-0812
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-779-1	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98167-014-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98167-014-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-014-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97619-778-0	01	1	0809-0812
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97619-778-1	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98167-013-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98167-013-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T>	8-98167-013-0	01	1	1102-
12	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09623-539-0	01	1	0809-1107
12	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98185-684-0	01	1	1108-
12	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09623-614-0	01	1	0809-1107
12	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98048-641-0	01	1	1108-
13	GASKET; AIR CMPR	1-09623-615-0	01	1	0809-1107
13	GASKET; AIR CMPR	8-98048-640-0	01	1	1108-
15	CYLINDER; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98038-668-0	01	1	0809-
15	CYLINDER; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-056-0	01	1	0809-
18	KEY; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	9-08055-516-0	01	1	0809-
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0809-
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0809-
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0809-
24	ROD ASM; CONN,AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19173-010-0	01	1	0809-
24	ROD ASM; CONN,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-057-0	01	1	0809-
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0809-
27	BOLT; HD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X80	8-98038-666-0	04	1	0809-1012
27	BOLT; HD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X75	8-98167-018-0	04	1	1101-
27	BOLT; HD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97614-054-0	01	1	0809-
27	BOLT; HD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X80	8-98038-666-0	03	1	0809-1012
27	BOLT; HD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X75	8-98167-018-0	03	1	1101-
28	WASHER; LK,HD BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97613-694-0	01	1	0809-
29	WASHER; PL,HD BOLT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97613-686-0	01	1	0809-
30	BOLT; CYL TO CRANKCASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25	8-98038-763-0	04	1	0809-
30	BOLT; CYL TO CRANKCASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30	8-97613-704-0	04	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97617-894-0	02	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20	8-97617-895-0	02	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X30	8-97613-704-0	02	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97617-310-0	02	1	0809-
39	WASHER; LK,COVER FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97617-893-0	02	1	0809-
39	WASHER; LK,COVER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97613-694-0	02	1	0809-
89	VALVE; SUCTION	1-19119-045-0	01	1	0809-

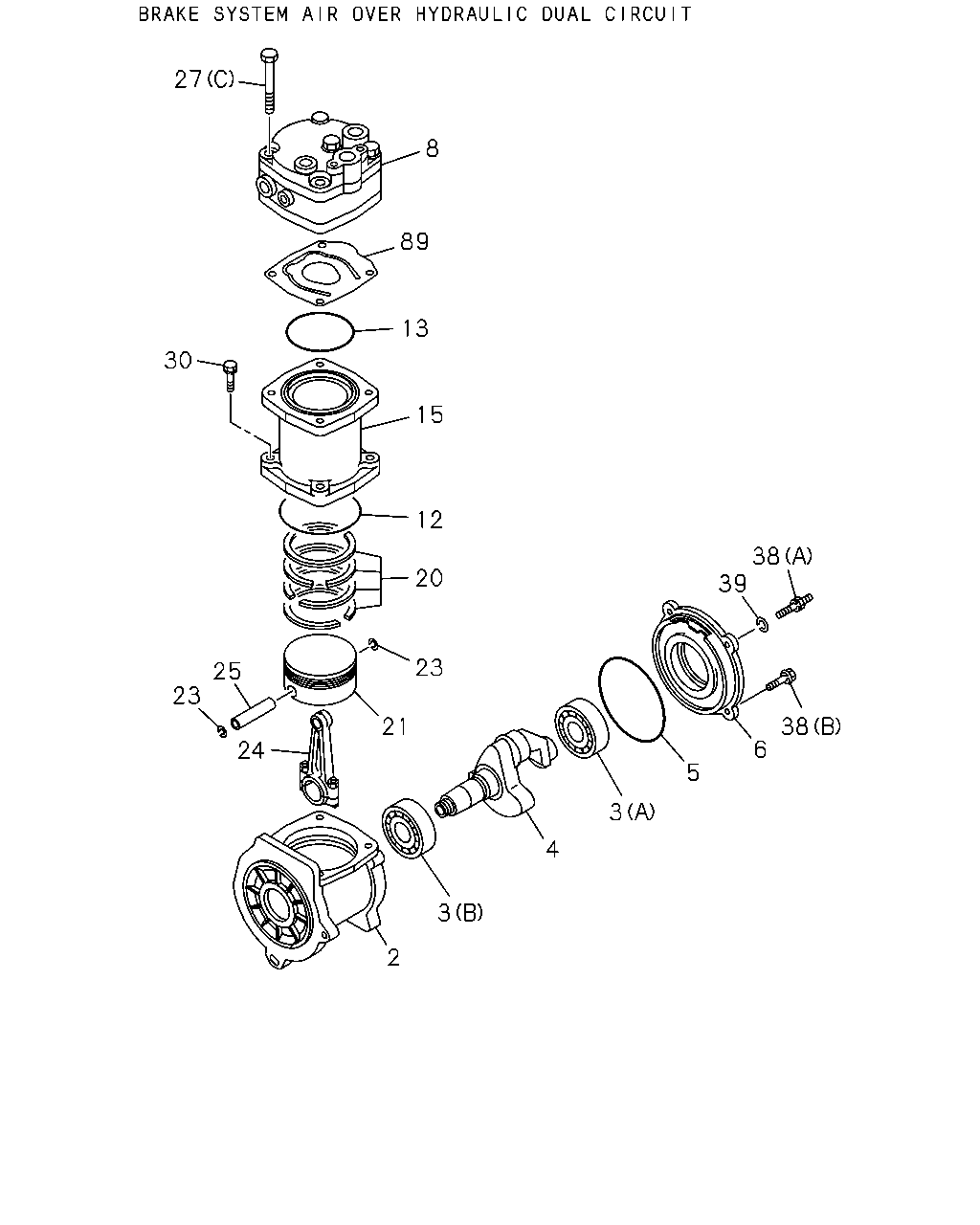

27 8 89 13 15 12 20 23 30 25 23 24 21 2 3 4 3 5 6 38 38 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19151-274-0	01	1	0809-
2	CRANKCASE; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-060-1	01	1	0809-
3	BEARING; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	9-00006-206-0	01	1	0809-
3	BEARING; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	9-00090-152-0	01	1	0809-
3	BEARING; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-09800-268-0	02	1	0809-
4	CRANKSHAFT; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19171-096-0	01	1	0809-
4	CRANKSHAFT; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-059-1	01	1	0809-
5	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09623-361-0	01	1	0809-1107
5	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98192-460-0	01	1	1108-
5	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09623-613-0	01	1	0809-1107
5	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98192-463-0	01	1	1108-
6	COVER ASM; BRG,AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19156-039-0	01	1	0809-
6	COVER ASM; BRG,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-058-1	01	1	0809-
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98038-657-2	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98167-015-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T>	8-98167-015-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3>	8-97614-055-0	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3>	8-98167-012-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T>	8-98167-012-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-779-0	01	1	0809-0812
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97619-779-1	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98167-014-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98167-014-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T>	8-98167-014-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97619-778-0	01	1	0809-0812
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97619-778-1	01	1	0901-1012
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98167-013-0	01	1	1101-1101
8	HEAD ASM; CYL,AIR CMPR EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98167-013-0	01	1	1102-
8	HEAD ASM; CYL,AIR CMPR EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T>	8-98167-013-0	01	1	1102-
12	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09623-539-0	01	1	0809-1107
12	GASKET; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98185-684-0	01	1	1108-
12	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-09623-614-0	01	1	0809-1107
12	GASKET; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98048-641-0	01	1	1108-
13	GASKET; AIR CMPR	1-09623-615-0	01	1	0809-1107
13	GASKET; AIR CMPR	8-98048-640-0	01	1	1108-
15	CYLINDER; AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98038-668-0	01	1	0809-
15	CYLINDER; AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-056-0	01	1	0809-
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0809-
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0809-
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0809-
24	ROD ASM; CONN,AIR CMPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-19173-010-0	01	1	0809-
24	ROD ASM; CONN,AIR CMPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97614-057-0	01	1	0809-
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0809-
27	BOLT; HD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X80	8-98038-666-0	04	1	0809-1012
27	BOLT; HD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X75	8-98167-018-0	04	1	1101-
27	BOLT; HD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-97614-054-0	01	1	0809-
27	BOLT; HD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X80	8-98038-666-0	03	1	0809-1012
27	BOLT; HD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M10X75	8-98167-018-0	03	1	1101-
30	BOLT; CYL TO CRANKCASE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25	8-98038-763-0	04	1	0809-
30	BOLT; CYL TO CRANKCASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X30	8-97613-704-0	04	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97617-894-0	02	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X20	8-97617-895-0	02	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X30	8-97613-704-0	02	1	0809-
38	BOLT; COVER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97617-310-0	02	1	0809-
39	WASHER; LK,COVER FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-97617-893-0	02	1	0809-
39	WASHER; LK,COVER FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97613-694-0	02	1	0809-
89	VALVE; SUCTION	1-19119-045-0	01	1	0809-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
