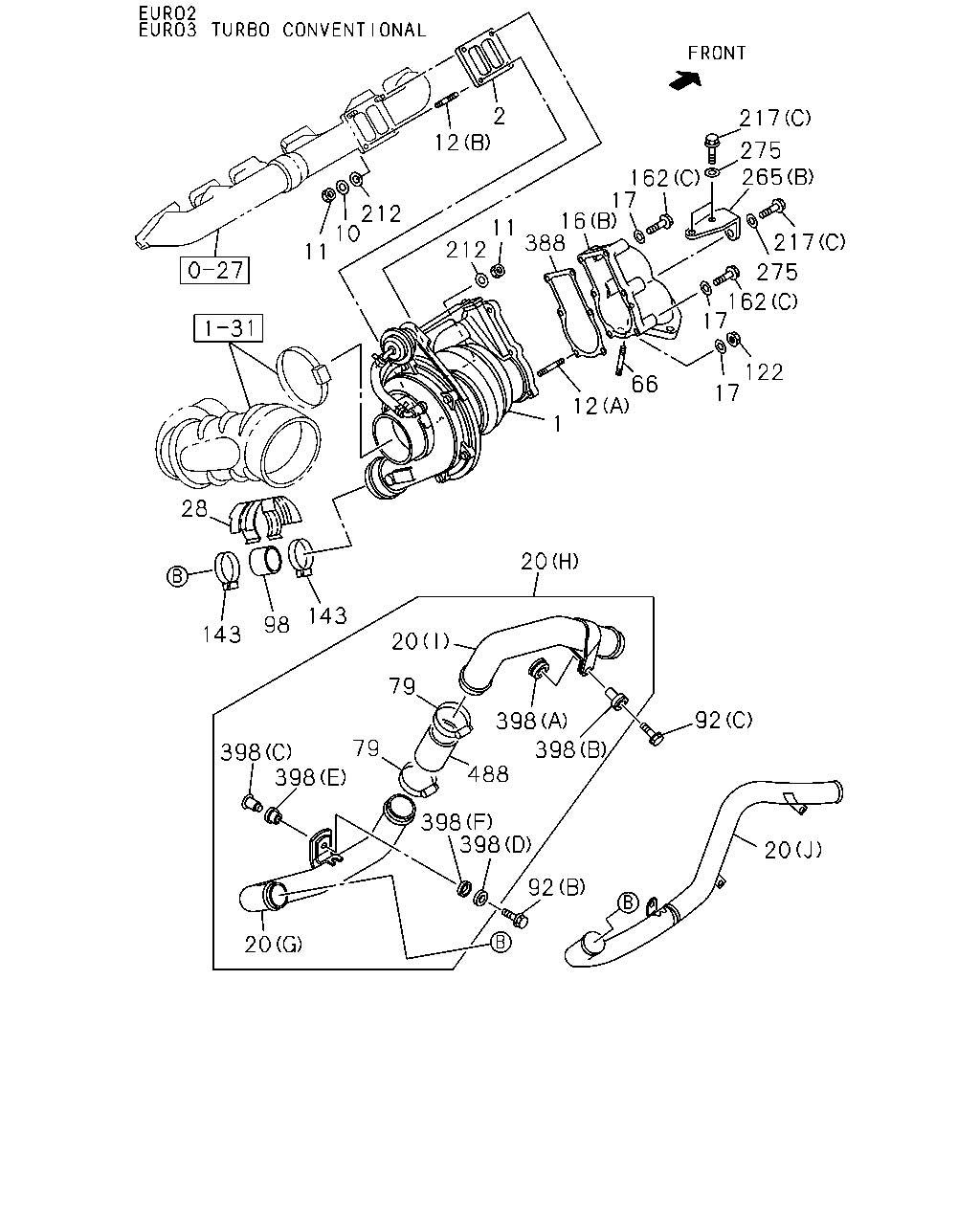

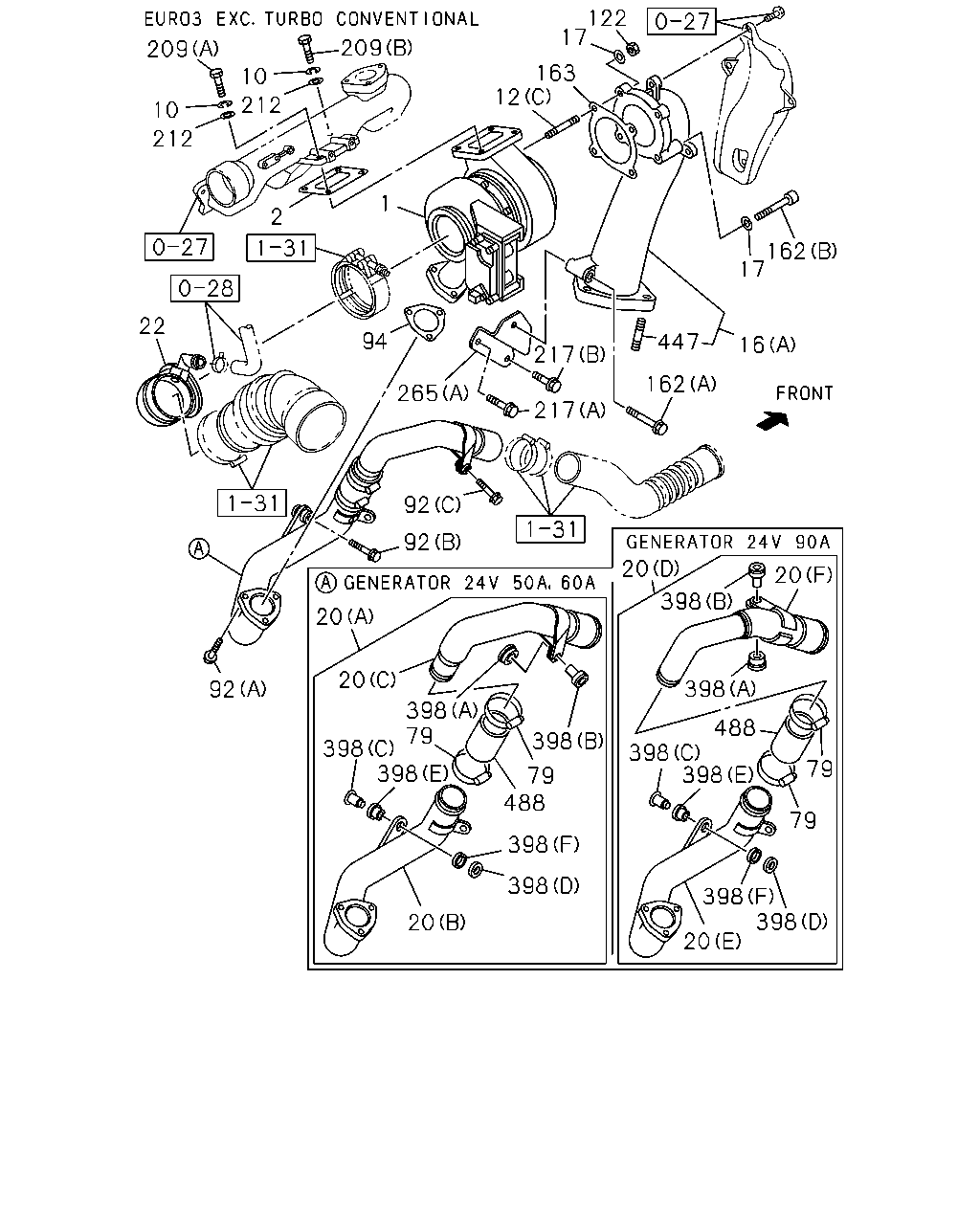

0-36 — TURBOCHARGER SYSTEM (#66491) — 451 parça

2 12 217 275 265 162 17 16 388 212 10 11 212 217 11 275 162 17 122 17 66 12 1 28 20 143 98 143 20 79 92 398 79 398 398 398 488 398 398 20 92 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02>	8-98217-401-0	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97602-926-2	01	1	1102-1207
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. HIGHLAND ZONE PACKAGE<W02>	8-97602-926-2	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02>	8-98153-480-0	01	1	0911-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-97604-975-7	01	1	0901-1101
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-975-9	01	1	1102-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-0	01	1	0809-0812
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98078-779-1	01	1	0901-0908
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46)	8-98078-779-1	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02>	8-98078-779-1	01	1	0911-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3>	8-97024-124-0	01	1	0901-1101
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97024-124-0	01	1	1102-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0809-0812
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	0901-1101
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	1102-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-94390-044-0	01	1	1102-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> T=2.2	1-09556-015-0	04	1	0901-1101
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=2.2	1-09556-015-0	04	1	1102-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0809-0812
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	0901-1101
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	1102-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=2.2	1-09556-015-0	02	1	1102-
11	NUT; TURBOCHARGER M10	1-09420-005-0	04	1	0809-0812
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10	1-09420-005-0	04	1	0901-1101
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10	1-09420-005-0	04	1	1102-
11	NUT; TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10	1-09420-005-0	04	1	1102-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> (C) M8X25 L=36	8-94476-282-0	02	1	0901-1101
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 L=36	8-94476-282-0	02	1	1102-
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	0809-0812
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	0901-1101
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	1102-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X25	9-04130-825-0	01	1	1102-
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	0809-0812
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	0901-1101
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	1102-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M10X80	9-04731-080-0	02	1	1102-
16	ADAPTER; EXH PIPE (B)	8-98069-083-0	01	1	0809-0812
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	0901-1101
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1102-1107
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98069-083-0	01	1	1102-1107
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1108-1110
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98069-083-0	01	1	1108-1110
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1111-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98069-083-0	01	1	1111-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98018-241-1	01	1	0901-1101
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98018-241-1	01	1	1102-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> T=1.9	5-09500-012-0	04	1	0901-1101
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=1.9	5-09500-012-0	04	1	1102-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0809-0812
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	0901-1101
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	1102-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=1.9	5-09500-012-0	06	1	1102-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V90A(K44) (J)	8-94392-963-0	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-98046-167-3	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98046-167-4	01	1	1102-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98046-168-1	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98046-168-1	01	1	1102-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98046-169-1	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98046-169-2	01	1	1102-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-97617-214-2	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-97617-214-2	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (E)	8-97617-215-0	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-97617-215-0	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (F)	8-97617-216-0	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-97617-216-0	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT (G)	8-97606-675-1	01	1	0809-0812
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G)	8-97606-675-1	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	1111-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (G)	8-97606-675-1	01	1	1111-
20	PIPE; INL,TURBOCHARGER OUT (H)	8-97618-726-2	01	1	0809-0812
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H)	8-97618-726-2	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	1111-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H)	8-97618-726-2	01	1	1111-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT (I)	8-97618-734-0	01	1	0809-0812
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I)	8-97618-734-0	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	1111-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (I)	8-97618-734-0	01	1	1111-
28	PROTECTOR; HEAT,HOSE,AIR DUCT	8-94393-182-0	01	1	0809-0812
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<NT2>	8-94393-182-0	01	1	0901-1101
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO2 SPECIFICATION<NT2>	8-94393-182-0	01	1	1102-
28	PROTECTOR; HEAT,HOSE,AIR DUCT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-94393-182-0	01	1	1102-
66	STUD; EXH PIPE M12X30 L=48	8-98059-951-0	03	1	0809-0812
66	STUD; EXH PIPE EURO2 SPECIFICATION<NT2> M12X30 L=48	8-98059-951-0	03	1	0901-1101
66	STUD; EXH PIPE EURO2 SPECIFICATION<NT2> M12X30 L=48	8-98059-951-0	03	1	1102-1107
66	STUD; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M12X30 L=48	8-98059-951-0	03	1	1102-1107
66	STUD; EXH PIPE EURO2 SPECIFICATION<NT2> M12X30 L=48	8-98059-951-0	03	1	1108-1110
66	STUD; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) M12X30 L=48	8-98059-951-0	03	1	1108-1110
66	STUD; EXH PIPE EURO2 SPECIFICATION<NT2> M12X30 L=48	8-98059-951-0	03	1	1111-
66	STUD; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M12X30 L=48	8-98059-951-0	03	1	1111-
79	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	02	1	0809-0811
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0812-0902
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	0903-1101
79	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=58-79	1-09707-136-0	02	1	1102-1107
79	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=58-79	1-09707-136-0	02	1	1102-1107
79	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=58-79	1-09707-136-0	02	1	1102-1107
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1108-
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	03	1	0901-1101
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28650-830-0	03	1	1102-
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
92	BOLT; INL PIPE (C) M8X40 FLANGE	0-28650-840-0	01	1	0809-
98	HOSE; RUBBER,TURBOCHARGER OUTLET ID=62 L=70	1-09360-797-1	01	1	0809-0812
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	0901-1101
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1102-1408
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70	1-09360-797-1	01	1	1102-1408
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
98	HOSE; RUBBER,TURBOCHARGER OUTLET EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70	8-98245-240-0	01	1	1409-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	02	1	0901-1101
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8	1-09400-118-1	02	1	1102-
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0809-0812
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	0901-1101
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	1102-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8	1-09400-118-1	01	1	1102-
143	CLIP; HOSE,TURBOCHARGER OUTLET ID=58-76	1-09707-203-0	02	1	0809-0812
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=58-76	1-09707-203-0	02	1	0901-0902
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=58-79	8-94126-771-0	02	1	0903-1101
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO2 SPECIFICATION<NT2> ID=58-79	8-94126-771-0	02	1	1102-
143	CLIP; HOSE,TURBOCHARGER OUTLET EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=58-79	8-94126-771-0	02	1	1102-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE	0-28051-060-0	01	1	0901-1101
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X60 FLANGE	0-28051-060-0	01	1	1102-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	1-09000-464-0	02	1	0901-0910
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	8-98158-604-0	02	1	0911-1101
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X60	8-98158-604-0	02	1	1102-
162	BOLT; ADAPTER (C) M8X57	5-09000-275-0	05	1	0809-0812
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	0901-1101
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	1102-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M8X57	5-09000-275-0	05	1	1102-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0809-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	01	1	0901-1101
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE	0-28751-025-0	01	1	0901-1101
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X25 FLANGE	0-28751-025-0	01	1	1102-
217	BOLT; BRKT (C) M12X30	8-94394-324-0	03	1	0809-0812
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	0901-1101
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	1102-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M12X30	8-94394-324-0	03	1	1102-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98260-415-0	01	1	0901-1101
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98260-415-0	01	1	1102-
265	BRACKET; EXH PIPE (B)	8-94395-764-2	01	1	0809-0812
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	0901-1101
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	1102-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94395-764-2	01	1	1102-
275	WASHER; PL ID=12.2	1-09503-008-0	03	1	0809-0812
275	WASHER; PL EURO2 SPECIFICATION<NT2> ID=12.2	1-09503-008-0	03	1	0901-1101
275	WASHER; PL EURO2 SPECIFICATION<NT2> ID=12.2	1-09503-008-0	03	1	1102-
275	WASHER; PL EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=12.2	1-09503-008-0	03	1	1102-
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94394-248-0	01	1	0809-0812
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94394-248-1	01	1	0901-1101
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94394-248-2	01	1	1102-
388	GASKET; EXH PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-94394-248-2	01	1	1102-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (F) ID=19 OD=26	8-94160-177-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (F) ID=19 OD=26	8-94160-177-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (F) ID=19 OD=26	8-94160-177-0	01	1	1102-1107
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1108-
398	MOUNTING (C) OD=28	8-94390-551-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (C) OD=28	8-94390-551-1	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) OD=28	8-94390-551-1	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) OD=28	8-94390-551-1	01	1	1102-1107
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1108-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (D) ID=13 OD=28	8-94394-504-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=13 OD=28	8-94394-504-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) ID=13 OD=28	8-94394-504-0	01	1	1102-1107
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1108-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (E) OD=26	8-94394-529-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E) OD=26	8-94394-529-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (E) OD=26	8-94394-529-0	01	1	1102-1107
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1108-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (A) OD=32	8-94395-766-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) OD=32	8-94395-766-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) OD=32	8-94395-766-0	01	1	1102-1107
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1108-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (B) OD=23	8-97105-689-6	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) OD=23	8-97105-689-6	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) OD=23	8-97105-689-6	01	1	1102-1107
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1108-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98046-356-0	01	1	0901-1101
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98046-356-0	01	1	1102-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=52.5 L=70	8-98245-242-0	01	1	1409-
488	HOSE; RUBBER ID=62 L=70	1-09360-797-1	01	1	0809-0812
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	0901-1101
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1102-1110
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=62 L=70	1-09360-797-1	01	1	1102-1110
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1111-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70	1-09360-797-1	01	1	1111-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70	8-98245-240-0	01	1	1409-

115 1 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02>	8-98217-401-0	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97602-926-2	01	1	1102-1207
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. HIGHLAND ZONE PACKAGE<W02>	8-97602-926-2	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02>	8-98153-480-0	01	1	0911-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-97604-975-7	01	1	0901-1101
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-975-9	01	1	1102-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-0	01	1	0809-0812
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98078-779-1	01	1	0901-0908
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46)	8-98078-779-1	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02>	8-98078-779-1	01	1	0911-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97615-877-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97615-877-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (A)	8-97610-087-2	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97610-087-2	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94392-950-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-94395-454-4	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97618-808-0	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97618-808-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97618-808-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D)	8-97618-808-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97618-807-0	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97618-807-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97618-807-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (D)	8-97618-807-0	01	1	1102-

137 21 512 513 1 115 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02>	8-98217-401-0	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97602-926-2	01	1	1102-1207
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. HIGHLAND ZONE PACKAGE<W02>	8-97602-926-2	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02>	8-98153-480-0	01	1	0911-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-97604-975-7	01	1	0901-1101
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-975-9	01	1	1102-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-0	01	1	0809-0812
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98078-779-1	01	1	0901-0908
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46)	8-98078-779-1	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02>	8-98078-779-1	01	1	0911-
21	BOLT; PIPE EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
21	BOLT; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8X16 FLANGE	0-28050-816-0	02	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-97615-877-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97615-877-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EURO3 SPECIFICATION<NT3> (A)	8-97610-087-2	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-97610-087-2	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT (B)	8-94392-950-0	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (B)	8-94392-950-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94392-950-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT (C)	8-94395-454-4	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (C)	8-94395-454-4	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-94395-454-4	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97618-808-0	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97618-808-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-97618-808-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TURBO - CONVENTIONAL<Q5T> (D)	8-97618-808-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97618-807-0	01	1	0809-0812
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97618-807-0	01	1	0901-1101
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-97618-807-0	01	1	1102-
115	PIPE; WATER,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TURBO - CONVENTIONAL<Q5T> (D)	8-97618-807-0	01	1	1102-
137	PIPE; WATER,TURBOCHARGER IN EURO3 SPECIFICATION<NT3>	8-98046-783-0	01	1	0901-1101
137	PIPE; WATER,TURBOCHARGER IN EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98046-783-0	01	1	1102-
512	CONNECTOR; TURBO EURO3 SPECIFICATION<NT3>	8-98031-856-0	01	1	0901-1101
512	CONNECTOR; TURBO EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98031-856-0	01	1	1102-
513	GASKET; CONNECTOR EURO3 SPECIFICATION<NT3> ID=14.2 OD=19.2	1-09630-085-0	01	1	0901-1101
513	GASKET; CONNECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=14.2 OD=19.2	1-09630-085-0	01	1	1102-1312
513	GASKET; CONNECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-

398 398 398 398 398 398 398 398 398 398 398 398 20 20 20 20 20 20 488 488 79 79 79 79 92 92 92 209 212 10 10 209 212 1 2 22 94 265 217 217 447 17 162 16 162 12 163 17 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> HIGHLAND ZONE PACKAGE<W02>	8-98217-401-0	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97602-926-2	01	1	1102-1207
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. HIGHLAND ZONE PACKAGE<W02>	8-97602-926-2	01	1	1208-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOREQUIPMENT(E46)	8-98153-480-0	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> HIGHLAND ZONE PACKAGE<W02>	8-98153-480-0	01	1	0911-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3>	8-97604-975-7	01	1	0901-1101
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-975-9	01	1	1102-
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT.	8-98078-779-0	01	1	0809-0812
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2>	8-98078-779-1	01	1	0901-0908
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. COLOMBIA EQUIPMENT(CB7),PERU EQUIPMENT(E07), ECUADOR EQUIPMENT(E46)	8-98078-779-1	01	1	0909-0910
1	TURBOCHARGER ASM SEE FIG-NO 0-37 FOR COMPONENT. EURO2 SPECIFICATION<NT2> EXC. HIGHLAND ZONE PACKAGE<W02>	8-98078-779-1	01	1	0911-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3>	8-97024-124-0	01	1	0901-1101
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97024-124-0	01	1	1102-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94390-044-0	01	1	0809-0812
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	0901-1101
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2>	8-94390-044-0	01	1	1102-
2	GASKET; TURBOCHARGER TO EXH MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-94390-044-0	01	1	1102-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> T=2.2	1-09556-015-0	04	1	0901-1101
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=2.2	1-09556-015-0	04	1	1102-
10	WASHER; LK,TURBOCHARGER T=2.2	1-09556-015-0	02	1	0809-0812
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	0901-1101
10	WASHER; LK,TURBOCHARGER EURO2 SPECIFICATION<NT2> T=2.2	1-09556-015-0	02	1	1102-
10	WASHER; LK,TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=2.2	1-09556-015-0	02	1	1102-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> (C) M8X25 L=36	8-94476-282-0	02	1	0901-1101
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) M8X25 L=36	8-94476-282-0	02	1	1102-
12	STUD; TURBOCHARGER (A) M8X25	9-04130-825-0	01	1	0809-0812
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	0901-1101
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (A) M8X25	9-04130-825-0	01	1	1102-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X25	9-04130-825-0	01	1	1102-
12	STUD; TURBOCHARGER (B) M10X80	9-04731-080-0	02	1	0809-0812
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	0901-1101
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> (B) M10X80	9-04731-080-0	02	1	1102-
12	STUD; TURBOCHARGER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M10X80	9-04731-080-0	02	1	1102-
16	ADAPTER; EXH PIPE (B)	8-98069-083-0	01	1	0809-0812
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	0901-1101
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1102-1107
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98069-083-0	01	1	1102-1107
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1108-1110
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98069-083-0	01	1	1108-1110
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-98069-083-0	01	1	1111-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-98069-083-0	01	1	1111-
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98018-241-1	01	1	0901-1101
16	ADAPTER; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98018-241-1	01	1	1102-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> T=1.9	5-09500-012-0	04	1	0901-1101
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> T=1.9	5-09500-012-0	04	1	1102-
17	WASHER; PL,ADAPTER T=1.9	5-09500-012-0	06	1	0809-0812
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	0901-1101
17	WASHER; PL,ADAPTER EURO2 SPECIFICATION<NT2> T=1.9	5-09500-012-0	06	1	1102-
17	WASHER; PL,ADAPTER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> T=1.9	5-09500-012-0	06	1	1102-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V90A(K44) (J)	8-94392-963-0	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A)	8-98046-167-3	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98046-167-4	01	1	1102-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98251-581-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B)	8-98046-168-1	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-98046-168-1	01	1	1102-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C)	8-98046-169-1	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) EXC. TURBO - CONVENTIONAL<Q5T> (C)	8-98046-169-2	01	1	1102-
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (D)	8-97617-214-2	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (D)	8-97617-214-2	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (E)	8-97617-215-0	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (E)	8-97617-215-0	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT GENERATOR 24V90A(K44) (F)	8-97617-216-0	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> GENERATOR 24V90A(K44) EXC. TURBO - CONVENTIONAL<Q5T> (F)	8-97617-216-0	01	1	1102-1107
20	PIPE; INL,TURBOCHARGER OUT (G)	8-97606-675-1	01	1	0809-0812
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (G)	8-97606-675-1	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (G)	8-97606-675-1	01	1	1111-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (G)	8-97606-675-1	01	1	1111-
20	PIPE; INL,TURBOCHARGER OUT (H)	8-97618-726-2	01	1	0809-0812
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (H)	8-97618-726-2	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-97618-726-2	01	1	1111-1408
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H)	8-97618-726-2	01	1	1111-1408
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (H)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (H)	8-98251-577-0	01	1	1409-
20	PIPE; INL,TURBOCHARGER OUT (I)	8-97618-734-0	01	1	0809-0812
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	0901-1101
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (I)	8-97618-734-0	01	1	1102-1110
20	PIPE; INL,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2> (I)	8-97618-734-0	01	1	1111-
20	PIPE; INL,TURBOCHARGER OUT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (I)	8-97618-734-0	01	1	1111-
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NT3>	8-98036-164-1	01	1	0901-1101
22	DUCT; INL,ACL TO TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98036-164-1	01	1	1102-
79	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	02	1	0809-0811
79	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	02	1	0812-0902
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	0903-1101
79	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> ID=58-79	1-09707-136-0	02	1	1102-1107
79	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=58-79	1-09707-136-0	02	1	1102-1107
79	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=58-79	1-09707-136-0	02	1	1102-1107
79	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	02	1	1108-
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> (A) M8X30 FLANGE	0-28650-830-0	03	1	0901-1101
92	BOLT; INL PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28650-830-0	03	1	1102-
92	BOLT; INL PIPE (B) M8X35 FLANGE	0-28650-835-0	01	1	0809-
92	BOLT; INL PIPE (C) M8X40 FLANGE	0-28650-840-0	01	1	0809-
94	GASKET; INL PIPE EURO3 SPECIFICATION<NT3> ID=55	8-98053-830-0	01	1	0901-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> M8	1-09400-118-1	02	1	0901-1101
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8	1-09400-118-1	02	1	1102-
122	NUT; ADAPTER M8	1-09400-118-1	01	1	0809-0812
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	0901-1101
122	NUT; ADAPTER EURO2 SPECIFICATION<NT2> M8	1-09400-118-1	01	1	1102-
122	NUT; ADAPTER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8	1-09400-118-1	01	1	1102-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (A) M10X60 FLANGE	0-28051-060-0	01	1	0901-1101
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X60 FLANGE	0-28051-060-0	01	1	1102-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	1-09000-464-0	02	1	0901-0910
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> (B) M8X60	8-98158-604-0	02	1	0911-1101
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X60	8-98158-604-0	02	1	1102-
162	BOLT; ADAPTER (C) M8X57	5-09000-275-0	05	1	0809-0812
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	0901-1101
162	BOLT; ADAPTER EURO2 SPECIFICATION<NT2> (C) M8X57	5-09000-275-0	05	1	1102-
162	BOLT; ADAPTER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M8X57	5-09000-275-0	05	1	1102-
163	GASKET; ADAPTER TO EXH PIPE EURO3 SPECIFICATION<NT3> ID=83	8-94392-553-1	01	1	0901-1101
163	GASKET; ADAPTER TO EXH PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=83	8-94392-553-2	01	1	1102-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> (B) M10X80	8-98049-825-0	02	1	0901-1101
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X80	8-98049-825-0	02	1	1102-
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> (A) M10X40	9-09604-007-0	02	1	0901-1101
209	BOLT; BRACE,TURBOCHARGER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M10X40	9-09604-007-1	02	1	1102-
212	WASHER; PL,TURBOCHARGER ID=10	1-09503-033-1	04	1	0809-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (A) M8X20 FLANGE	0-28650-820-0	01	1	0901-1101
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X20 FLANGE	0-28650-820-0	01	1	1102-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M10X25 FLANGE	0-28751-025-0	01	1	0901-1101
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M10X25 FLANGE	0-28751-025-0	01	1	1102-
217	BOLT; BRKT (C) M12X30	8-94394-324-0	03	1	0809-0812
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	0901-1101
217	BOLT; BRKT EURO2 SPECIFICATION<NT2> (C) M12X30	8-94394-324-0	03	1	1102-
217	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M12X30	8-94394-324-0	03	1	1102-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> (A)	8-98260-415-0	01	1	0901-1101
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A)	8-98260-415-0	01	1	1102-
265	BRACKET; EXH PIPE (B)	8-94395-764-2	01	1	0809-0812
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	0901-1101
265	BRACKET; EXH PIPE EURO2 SPECIFICATION<NT2> (B)	8-94395-764-2	01	1	1102-
265	BRACKET; EXH PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B)	8-94395-764-2	01	1	1102-
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (F) ID=19 OD=26	8-94160-177-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (F) ID=19 OD=26	8-94160-177-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (F) ID=19 OD=26	8-94160-177-0	01	1	1102-1107
398	MOUNTING (F) ID=19 OD=26	8-94160-177-0	01	1	1108-
398	MOUNTING (C) OD=28	8-94390-551-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (C) OD=28	8-94390-551-1	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) OD=28	8-94390-551-1	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) OD=28	8-94390-551-1	01	1	1102-1107
398	MOUNTING (C) OD=28	8-94390-551-1	01	1	1108-
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (D) ID=13 OD=28	8-94394-504-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=13 OD=28	8-94394-504-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (D) ID=13 OD=28	8-94394-504-0	01	1	1102-1107
398	MOUNTING (D) ID=13 OD=28	8-94394-504-0	01	1	1108-
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (E) OD=26	8-94394-529-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (E) OD=26	8-94394-529-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (E) OD=26	8-94394-529-0	01	1	1102-1107
398	MOUNTING (E) OD=26	8-94394-529-0	01	1	1108-
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (A) OD=32	8-94395-766-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) OD=32	8-94395-766-0	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) OD=32	8-94395-766-0	01	1	1102-1107
398	MOUNTING (A) OD=32	8-94395-766-0	01	1	1108-
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	0809-1101
398	MOUNTING EURO2 SPECIFICATION<NT2> (B) OD=23	8-97105-689-6	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) OD=23	8-97105-689-6	01	1	1102-1107
398	MOUNTING EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) OD=23	8-97105-689-6	01	1	1102-1107
398	MOUNTING (B) OD=23	8-97105-689-6	01	1	1108-
447	STUD; ADAPTER EURO3 SPECIFICATION<NT3> M12X30 L=48	0-44011-230-0	03	1	0901-1101
447	STUD; ADAPTER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M12X30 L=48	0-44011-230-0	03	1	1102-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98046-356-0	01	1	0901-1101
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98046-356-0	01	1	1102-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=52.5 L=70	8-98245-242-0	01	1	1409-
488	HOSE; RUBBER ID=62 L=70	1-09360-797-1	01	1	0809-0812
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	0901-1101
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1102-1110
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) ID=62 L=70	1-09360-797-1	01	1	1102-1110
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	1-09360-797-1	01	1	1111-1408
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70	1-09360-797-1	01	1	1111-1408
488	HOSE; RUBBER EURO2 SPECIFICATION<NT2> ID=62 L=70	8-98245-240-0	01	1	1409-
488	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=62 L=70	8-98245-240-0	01	1	1409-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
