0-60 — ENGINE ELECTRICAL CONTROL PARTS (#6649) — 26 parça

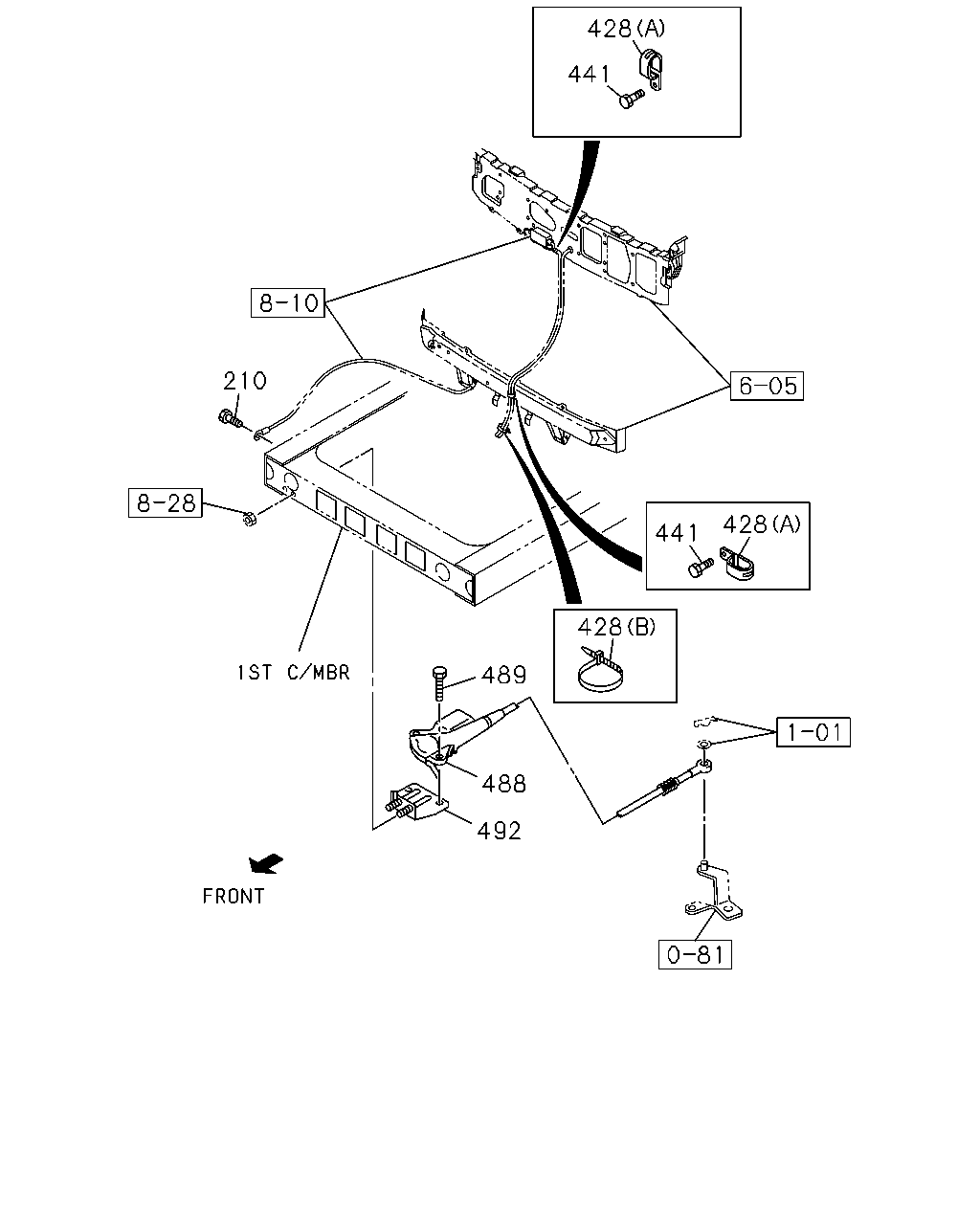

428 441 210 428 441 428 489 488 492

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
210	BOLT; CABLE FIX M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0011-
428	CLIP; HARNESS (A) ID=35 L=50 THA	1-09701-214-0	02	1	0011-
428	CLIP; HARNESS (B) L=300 THA	1-09707-001-1	03	1	0011-
441	BOLT; HARNESS TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0011-
488	STOPPER; ENG	1-82840-128-2	01	1	0011-
489	BOLT; ENG STOPPER M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	0011-
492	BRACKET; ENG STOPPER	1-82849-067-0	01	1	0011-

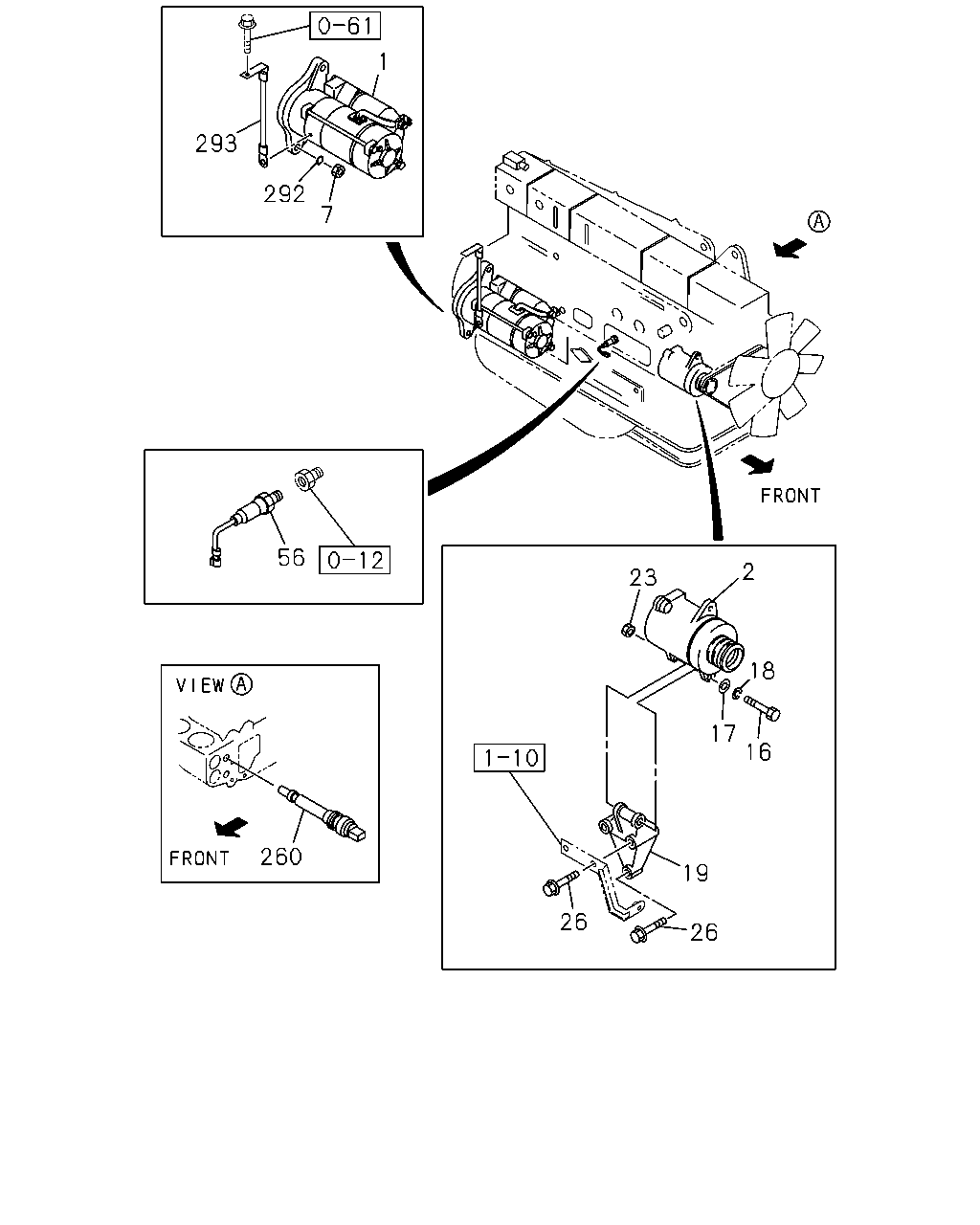

1 293 292 7 56 2 23 18 17 16 260 19 26 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5W THA	8-97916-113-2	01	1	0011-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A DENSO THA	8-97913-530-2	01	1	0011-
7	NUT; STARTER M14	9-99110-414-0	02	1	0011-
16	BOLT; GEN M14X135	1-09000-133-1	01	1	0011-
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	0011-
18	WASHER; LK,GEN ID=14.2	9-09150-514-0	01	1	0011-
19	BRACKET; GEN THA	8-97916-133-0	01	1	0011-
23	NUT; GEN M14	9-99110-414-0	01	1	0011-
26	BOLT; GEN BRKT M10X40 FLANGE	0-28181-040-0	01	1	0011-
26	BOLT; GEN BRKT M10X80 FLANGE	0-28181-080-0	02	1	0011-
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-0	01	1	0011-
260	SENSOR; WATER TEMP	1-80210-005-1	01	1	0011-
292	WASHER; LK,STARTER ID=14.2	9-09150-514-0	02	1	0011-
293	CABLE; STARTER EARTH THA	8-97912-334-0	01	1	0011-

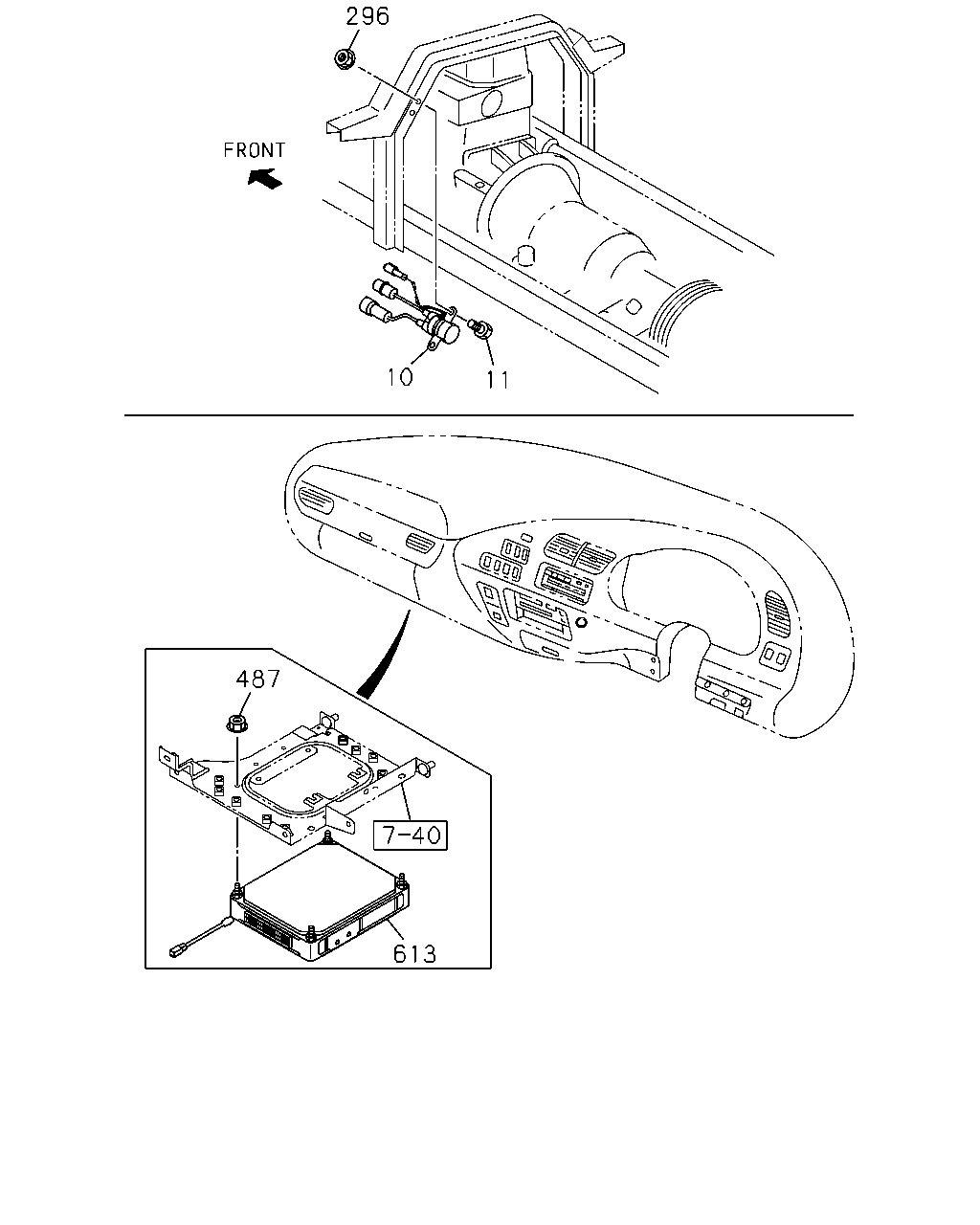

296 10 11 487 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER DENSO	1-81171-070-0	01	1	0011-
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	0011-
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	0011-
487	NUT M6 FLANGE	0-91150-106-0	04	1	0011-
613	CONTROL UNIT; ENG	8-94392-232-2	01	1	0011-
