31 |
BOLT; CLIP
EURO2 SPECIFICATION<NT2>
(C)
M6X35 FLANGE
|
0-28650-635-0 |
01 |
1 |
1102- |
| |
31 |
BOLT; CLIP
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(C)
M6X35 FLANGE
|
0-28650-635-0 |
01 |
1 |
1102- |
| |
31 |
BOLT; CLIP
EURO3 SPECIFICATION<NT3>
(B)
M6X45 FLANGE
|
0-28050-645-0 |
01 |
1 |
0901- |
| |
31 |
BOLT; CLIP
EURO3 SPECIFICATION<NT3>
(A)
M6X40 FLANGE
|
0-28650-640-0 |
02 |
1 |
0901-1101 |
| |
31 |
BOLT; CLIP
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M6X40 FLANGE
|
0-28650-640-0 |
02 |
1 |
1102-1106 |
| |
31 |
BOLT; CLIP
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M6X40 FLANGE
|
0-28650-640-0 |
03 |
1 |
1107- |
| |
31 |
BOLT; CLIP
(C)
M6X35 FLANGE
|
0-28650-635-0 |
01 |
1 |
0809-0812 |
| |
31 |
BOLT; CLIP
EURO2 SPECIFICATION<NT2>
(C)
M6X35 FLANGE
|
0-28650-635-0 |
01 |
1 |
0901-1101 |
| |
31 |
BOLT; CLIP
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(A)
M6X40 FLANGE
|
0-28650-640-0 |
01 |
1 |
1102- |
| |
33 |
BOLT; BRKT
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
M8X20 FLANGE
|
0-28650-820-0 |
01 |
1 |
1102- |
| |
33 |
BOLT; BRKT
EURO3 SPECIFICATION<NT3>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0901-1101 |
| |
33 |
BOLT; BRKT
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
1102- |
| |
33 |
BOLT; BRKT
EURO3 SPECIFICATION<NT3>
(B)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0901-1101 |
| |
33 |
BOLT; BRKT
EURO3 SPECIFICATION<NT3>
(B)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
1102- |
| |
33 |
BOLT; BRKT
(C)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0809-0812 |
| |
33 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>
(C)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0901-1101 |
| |
33 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>
(C)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1102- |
| |
33 |
BOLT; BRKT
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(C)
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
1102- |
| |
33 |
BOLT; BRKT
(D)
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
0809-0812 |
| |
33 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>
(D)
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
0901-1101 |
| |
33 |
BOLT; BRKT
EURO2 SPECIFICATION<NT2>
(D)
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
1102- |
| |
33 |
BOLT; BRKT
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(D)
M8X20 FLANGE
|
0-28050-820-0 |
02 |
1 |
1102- |
| |
58 |
CLIP; RUBBER HOSE
ID=16
|
8-94392-924-0 |
02 |
1 |
0809-0812 |
| |
58 |
CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2>
ID=16
|
8-94392-924-0 |
02 |
1 |
0901-1101 |
| |
58 |
CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2>
ID=16
|
8-94392-924-0 |
02 |
1 |
1102- |
| |
58 |
CLIP; RUBBER HOSE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
ID=16
|
8-94392-924-0 |
02 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
(B)
|
8-98046-784-0 |
01 |
1 |
0901-1101 |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-98046-784-0 |
01 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
8-97615-878-0 |
01 |
1 |
0901-1001 |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
8-98153-457-0 |
01 |
1 |
1002-1002 |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
(A)
|
8-98153-457-0 |
01 |
1 |
1002-1004 |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
(A)
|
8-98153-457-0 |
01 |
1 |
1005-1101 |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-98153-457-0 |
01 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
(E)
|
8-94392-951-0 |
01 |
1 |
0809-0812 |
| |
63 |
BRACKET; WATER PIPE
EURO2 SPECIFICATION<NT2>
(E)
|
8-94392-951-0 |
01 |
1 |
0901-1101 |
| |
63 |
BRACKET; WATER PIPE
EURO2 SPECIFICATION<NT2>
(E)
|
8-94392-951-0 |
01 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(E)
|
8-94392-951-0 |
01 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
(C)
|
8-98074-252-0 |
01 |
1 |
0809-0812 |
| |
63 |
BRACKET; WATER PIPE
EURO2 SPECIFICATION<NT2>
(C)
|
8-98074-252-0 |
01 |
1 |
0901-1101 |
| |
63 |
BRACKET; WATER PIPE
EURO2 SPECIFICATION<NT2>
(C)
|
8-98074-252-0 |
01 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98074-252-0 |
01 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
(D)
|
8-98074-253-0 |
01 |
1 |
0809-0812 |
| |
63 |
BRACKET; WATER PIPE
EURO2 SPECIFICATION<NT2>
(D)
|
8-98074-253-0 |
01 |
1 |
0901-1101 |
| |
63 |
BRACKET; WATER PIPE
EURO2 SPECIFICATION<NT2>
(D)
|
8-98074-253-0 |
01 |
1 |
1102- |
| |
63 |
BRACKET; WATER PIPE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(D)
|
8-98074-253-0 |
01 |
1 |
1102- |
| |
89 |
PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)
|
8-97611-095-0 |
01 |
1 |
0809- |
| |
89 |
PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)
|
8-97610-086-0 |
01 |
1 |
0809- |
| |
90 |
BOLT; EYE,WATER PIPE,AIR CMPR
(A)
M14X27 EYE-BOLT
|
1-09675-193-0 |
01 |
1 |
0809- |
| |
90 |
BOLT; EYE,WATER PIPE,AIR CMPR
(B)
M16X28
|
8-94383-489-0 |
01 |
1 |
0809- |
| |
91 |
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=14.2 OD=19.2
|
1-09630-085-0 |
02 |
1 |
0809-1312 |
| |
91 |
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=14.2 OD=19.2
|
8-98251-345-0 |
02 |
1 |
1401- |
| |
91 |
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
ID=16.2
|
1-09630-086-0 |
02 |
1 |
0809- |
| |
94 |
CLIP; WATER PIPE
EURO2 SPECIFICATION<NT2>
(B)
|
8-94396-860-0 |
01 |
1 |
1102- |
| |
94 |
CLIP; WATER PIPE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(B)
|
8-94396-860-0 |
01 |
1 |
1102- |
| |
94 |
CLIP; WATER PIPE
EURO3 SPECIFICATION<NT3>
(A)
|
8-97605-129-1 |
08 |
1 |
0901-1101 |
| |
94 |
CLIP; WATER PIPE
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
|
8-97605-129-1 |
08 |
1 |
1102- |
| |
94 |
CLIP; WATER PIPE
(B)
|
8-94396-860-0 |
01 |
1 |
0809-0812 |
| |
94 |
CLIP; WATER PIPE
EURO2 SPECIFICATION<NT2>
(B)
|
8-94396-860-0 |
01 |
1 |
0901-1101 |
| |
94 |
CLIP; WATER PIPE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(A)
|
8-97605-129-1 |
04 |
1 |
1102- |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
(A)
L=320
SERVICED BY L=3000
|
0-03566-300-0 |
01 |
1 |
0901-1101 |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
L=320
SERVICED BY L=3000
|
0-03566-300-0 |
01 |
1 |
1102- |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
(B)
|
8-97606-735-0 |
01 |
1 |
0901-1101 |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(B)
|
8-97606-735-1 |
01 |
1 |
1102- |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
(C)
|
8-98043-192-0 |
01 |
1 |
0901-1101 |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(C)
|
8-98043-192-0 |
01 |
1 |
1102- |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60)
(D)
|
8-97618-843-0 |
01 |
1 |
0901-1101 |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER
MANUALCONTROL(C60),TURBO - CONVENTIONAL<Q5T>
(D)
|
8-97618-843-0 |
01 |
1 |
1102- |
| |
115 |
HOSE; RUBBER
(E)
L=60
SERVICED BY L=3000
|
0-03561-300-0 |
01 |
1 |
0809-0812 |
| |
115 |
HOSE; RUBBER
EURO2 SPECIFICATION<NT2>
(E)
L=60
SERVICED BY L=3000
|
0-03561-300-0 |
01 |
1 |
0901-1101 |
| |
115 |
HOSE; RUBBER
EURO2 SPECIFICATION<NT2>
(E)
L=60
SERVICED BY L=3000
|
0-03561-300-0 |
01 |
1 |
1102- |
| |
115 |
HOSE; RUBBER
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(E)
L=60
SERVICED BY L=3000
|
0-03561-300-0 |
01 |
1 |
1102- |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
(A)
ID=14.2 OD=19.2
|
1-09630-085-0 |
06 |
1 |
0901-1101 |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=14.2 OD=19.2
|
1-09630-085-0 |
06 |
1 |
1102-1312 |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
ID=14.2 OD=19.2
|
8-98251-345-0 |
06 |
1 |
1401- |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
(B)
ID=16.2
|
1-09630-086-0 |
02 |
1 |
0901-1101 |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
(B)
ID=16.2
|
1-09630-086-0 |
02 |
1 |
1102- |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(B)
ID=16.2
|
1-09630-086-0 |
02 |
1 |
1102- |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
(C)
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
0809-0812 |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO2 SPECIFICATION<NT2>
(C)
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
0901-1101 |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO2 SPECIFICATION<NT2>
(A)
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
1102-1312 |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(A)
ID=14.2 OD=19.2
|
1-09630-085-0 |
04 |
1 |
1102-1312 |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO2 SPECIFICATION<NT2>
(A)
ID=14.2 OD=19.2
|
8-98251-345-0 |
04 |
1 |
1401- |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(A)
ID=14.2 OD=19.2
|
8-98251-345-0 |
04 |
1 |
1401- |
| |
126 |
GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
(D)
ID=16.2
|
1-09630-086-0 |
04 |
1 |
0809-0812 |
| |
126 |

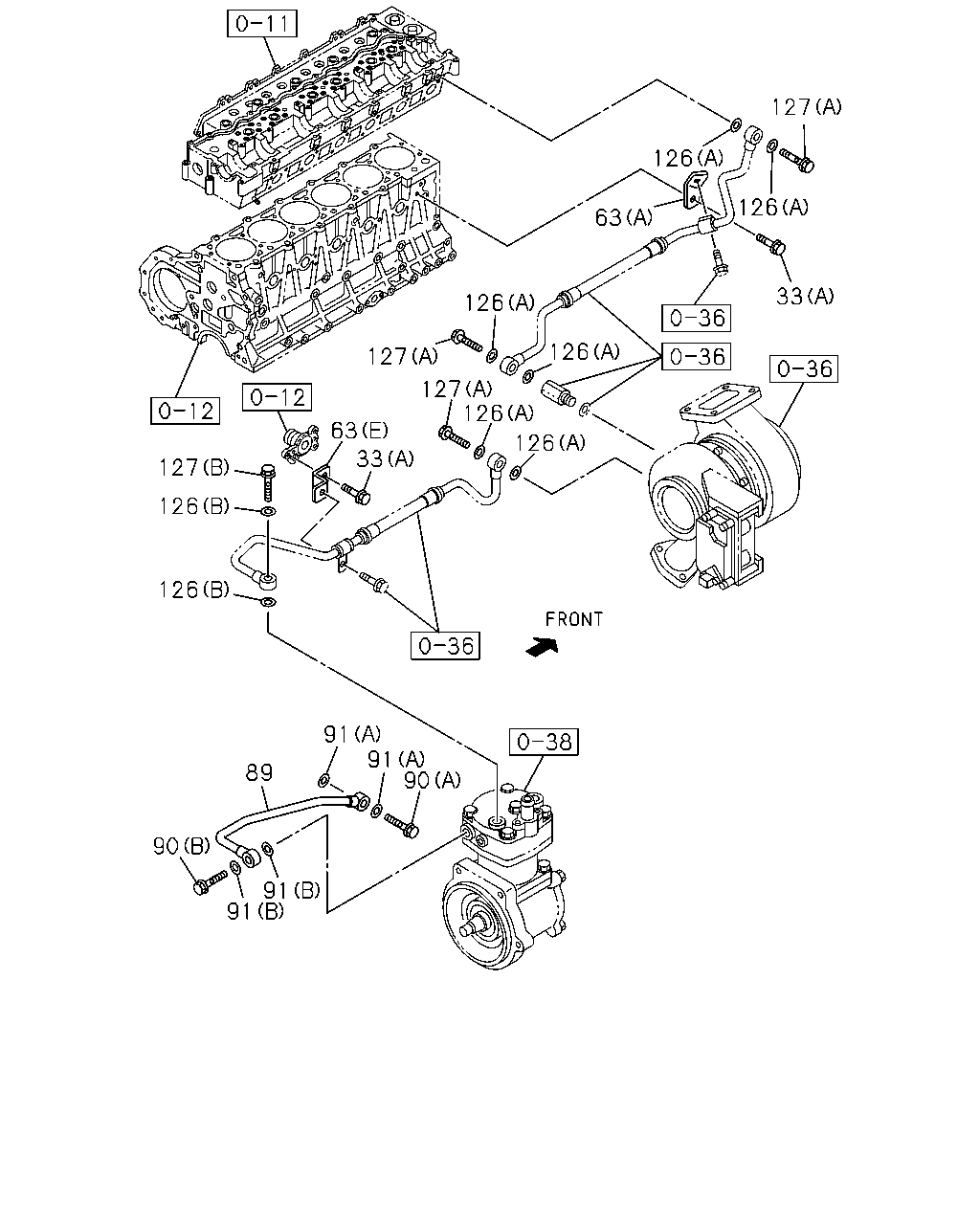

GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE).
EURO2 SPECIFICATION<NT2>
(D)
ID=16.2
|
1-09630-086-0 |
04 |
1 |
0901- |
| |
127 |
BOLT; EYE
(B)
M16X28
|
8-94383-489-0 |
01 |
1 |
0901- |
| |
127 |
BOLT; EYE
(C)
M14X27 EYE-BOLT
|
1-09675-193-0 |
02 |
1 |
0809-0812 |
| |
127 |
BOLT; EYE
EURO2 SPECIFICATION<NT2>
(C)
M14X27 EYE-BOLT
|
1-09675-193-0 |
02 |
1 |
0901-1101 |
| |
127 |
BOLT; EYE
EURO2 SPECIFICATION<NT2>
(C)
M14X27 EYE-BOLT
|
1-09675-193-0 |
02 |
1 |
1102- |
| |
127 |
BOLT; EYE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(C)
M14X27 EYE-BOLT
|
1-09675-193-0 |
02 |
1 |
1102- |
| |
127 |
BOLT; EYE
(D)
M16X25
|
5-09675-028-2 |
01 |
1 |
0809-0812 |
| |
127 |
BOLT; EYE
EURO2 SPECIFICATION<NT2>
(D)
M16X25
|
5-09675-028-2 |
01 |
1 |
0901-1101 |
| |
127 |
BOLT; EYE
EURO2 SPECIFICATION<NT2>
(D)
M16X25
|
5-09675-028-2 |
01 |
1 |
1102- |
| |
127 |
BOLT; EYE
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(D)
M16X25
|
5-09675-028-2 |
01 |
1 |
1102- |
| |
127 |
BOLT; EYE
(B)
M16X28
|
8-94383-489-0 |
01 |
1 |
0809-0812 |
| |
127 |
BOLT; EYE
EURO3 SPECIFICATION<NT3>
(A)
M14X27 EYE-BOLT
|
1-09675-193-0 |
03 |
1 |
0901-1101 |
| |
127 |
BOLT; EYE
EURO3 SPECIFICATION<NT3>
EXC. TURBO - CONVENTIONAL<Q5T>
(A)
M14X27 EYE-BOLT
|
1-09675-193-0 |
03 |
1 |
1102- |
| |
129 |

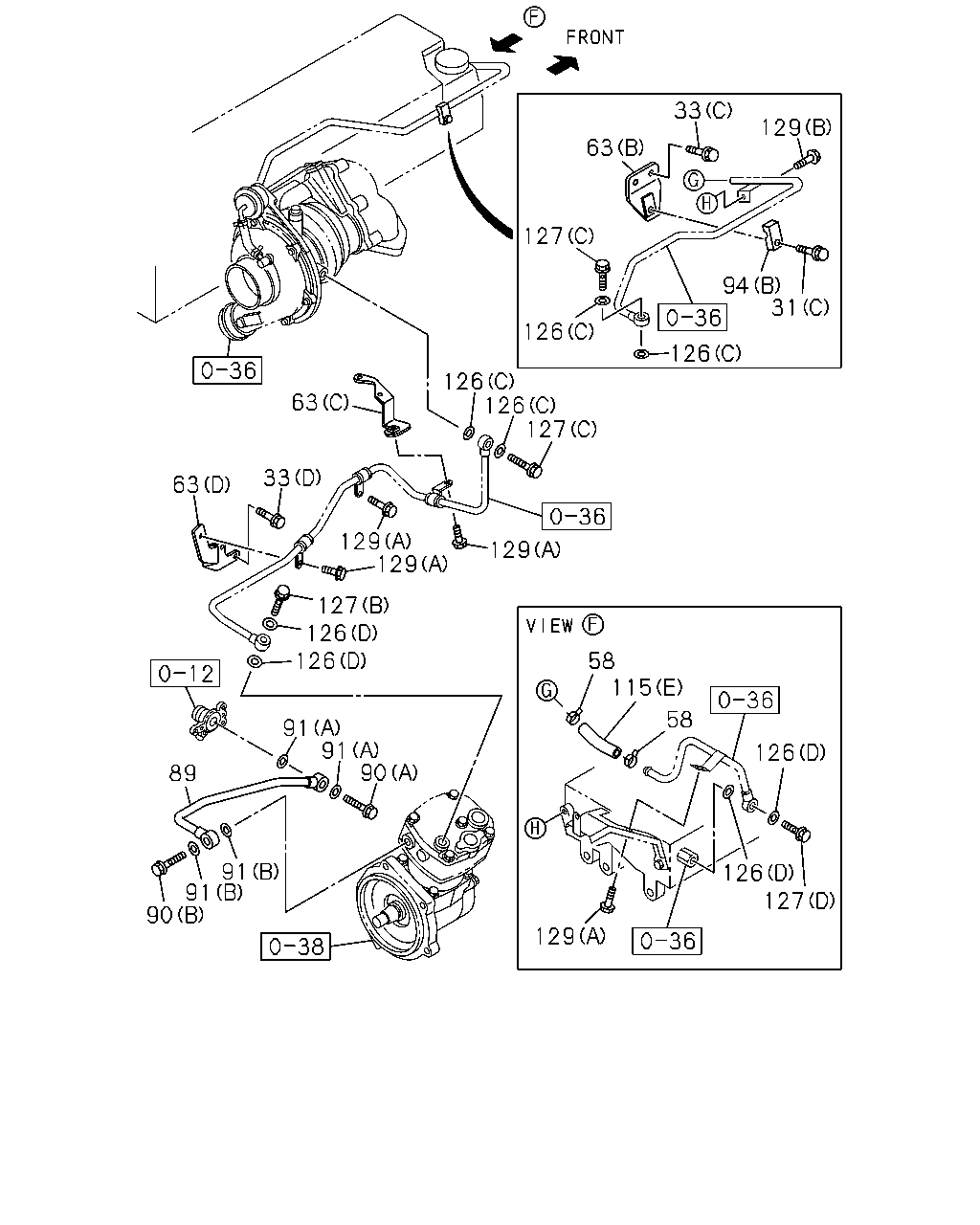

BOLT; WATER PIPE TO BRKT
(A)
M8X16 FLANGE
|
0-28050-816-0 |
05 |
1 |
0809-0812 |
| |
129 |
BOLT; WATER PIPE TO BRKT
EURO2 SPECIFICATION<NT2>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
05 |
1 |
0901-1101 |
| |
129 |
BOLT; WATER PIPE TO BRKT
EURO2 SPECIFICATION<NT2>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
05 |
1 |
1102- |
| |
129 |
BOLT; WATER PIPE TO BRKT
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(A)
M8X16 FLANGE
|
0-28050-816-0 |
05 |
1 |
1102- |
| |
129 |
BOLT; WATER PIPE TO BRKT
(B)
M12X20 FLANGE
|
0-28151-220-0 |
01 |
1 |
0809-0812 |
| |
129 |
BOLT; WATER PIPE TO BRKT
EURO2 SPECIFICATION<NT2>
(B)
M12X20 FLANGE
|
0-28151-220-0 |
01 |
1 |
0901-1101 |
| |
129 |
BOLT; WATER PIPE TO BRKT
EURO2 SPECIFICATION<NT2>
(B)
M12X20 FLANGE
|
0-28151-220-0 |
01 |
1 |
1102- |
| |
129 |
BOLT; WATER PIPE TO BRKT
EURO3 SPECIFICATION<NT3>
TURBO - CONVENTIONAL<Q5T>
(B)
M12X20 FLANGE
|
0-28151-220-0 |
01 |
1 |
1102- |
