0-28 — VENTILATION SYSTEM (#66485) — 120 parça

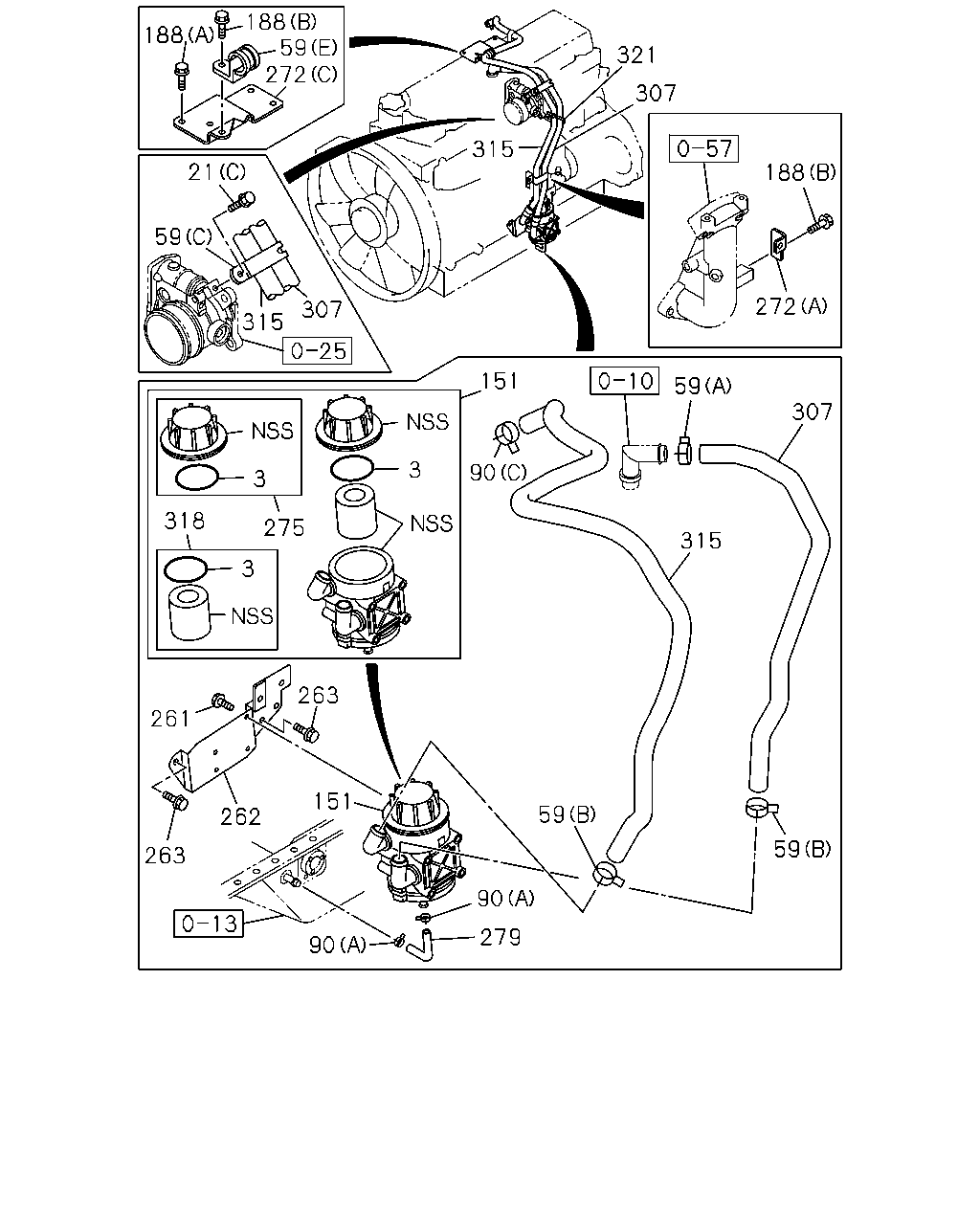

21 59 321 307 315 272 188 3 275 318 3 3 151 59 307 315 59 263 261 151 262 263 90 279 90 59 59 272 21 21 59 321 307 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; BODY TO CAP EURO3 SPECIFICATION<NT3>	8-97385-921-0	01	1	0901-
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X12 FLANGE	0-28050-612-0	01	1	1102-
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	02	1	0901-1101
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X12 FLANGE	0-28050-812-0	02	1	1102-
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	01	1	1201-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) ID=31 H=30 L=35	1-09700-994-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=30X2 L=28	1-09701-266-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	01	1	1102-1211
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	03	1	1212-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (D) ID=35 L=33	1-09700-945-0	02	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=35 L=33	1-09700-945-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (C) ID=30X2 L=28	1-09701-266-0	01	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=30X2 L=28	1-09701-266-0	01	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (B) ID=28.5	1-09707-150-0	03	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	03	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (A) ID=31.2	8-97237-146-0	01	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=31.2	8-97237-146-0	01	1	1102-
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=28.5	1-09707-150-0	01	1	1102-1112
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=14	1-09704-102-0	02	1	0901-
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-0812
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0901-
151	SEPARATOR; OIL,PCV EURO3 SPECIFICATION<NT3>	8-97602-262-2	01	1	0901-
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	03	1	1102-
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28050-830-0	03	1	1102-
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0901-
261	BOLT; SEPARETOR EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	04	1	0901-
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-97610-919-1	01	1	0901-
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M10X25 FLANGE	0-28751-025-0	02	1	0901-
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97616-083-0	01	1	1102-
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (A)	8-97607-396-1	01	1	0901-
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (B)	8-97607-397-0	01	1	0901-1101
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97607-397-0	01	1	1102-
275	CAP; PCV EURO3 SPECIFICATION<NT3>	8-97606-319-0	01	1	0901-
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3> L=190	0-02709-190-0	01	1	0901-
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-935-0	01	1	1102-
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3>	8-98054-285-1	01	1	0901-1101
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-285-2	01	1	1102-
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-937-1	01	1	1102-
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98054-286-1	01	1	0901-1101
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-286-2	01	1	1102-
318	ELEMENT KIT; PCV EURO3 SPECIFICATION<NT3>	8-97606-318-0	01	1	0901-
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	01	1	1102-
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> L=300	1-09707-001-1	02	1	0901-1101
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	02	1	1102-

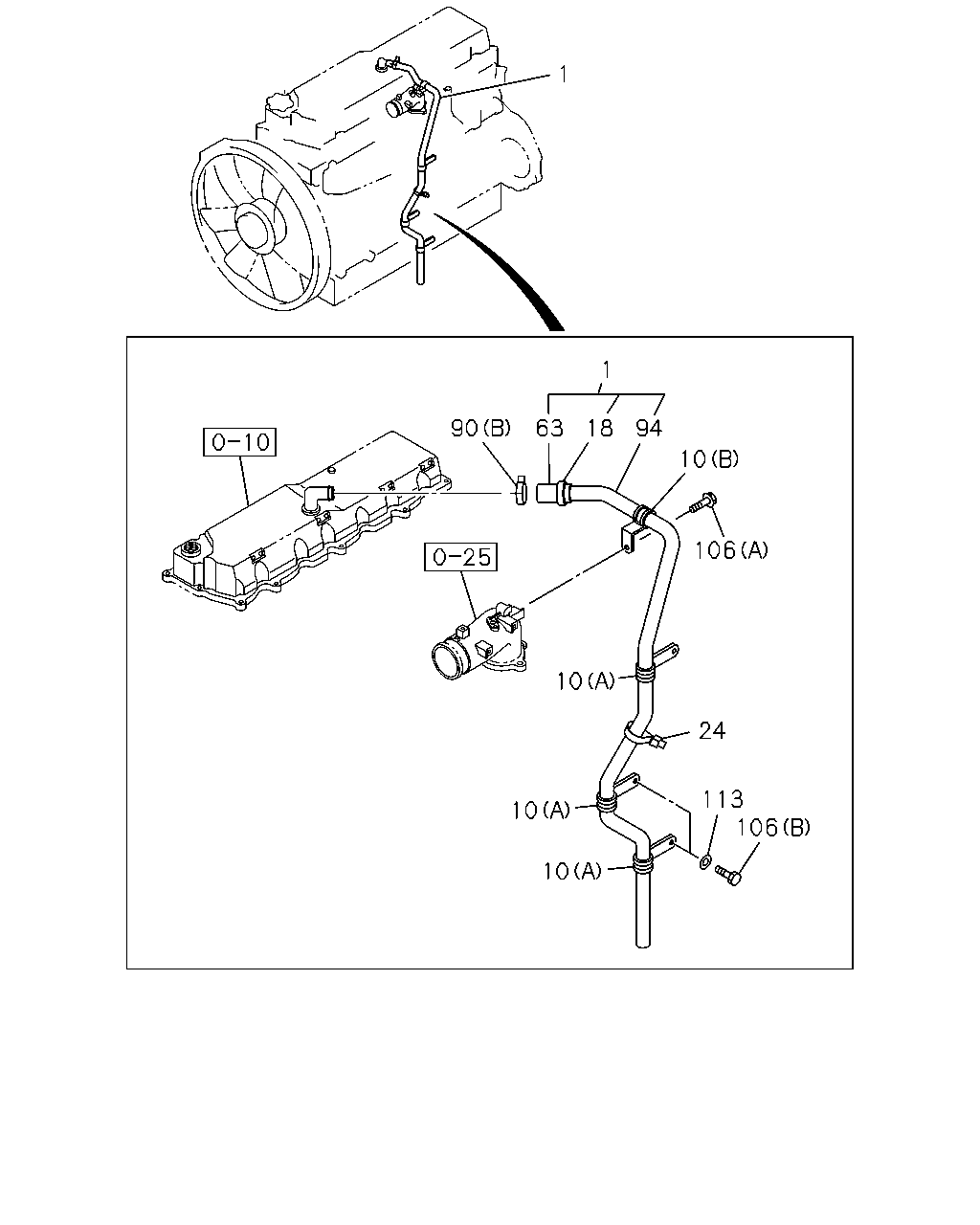

1 1 90 63 18 94 10 106 10 24 113 106 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BREATHER; AIR	8-94392-083-1	01	1	0809-0812
1	BREATHER; AIR EURO2 SPECIFICATION<NT2>	8-94392-083-3	01	1	0901-
10	CLIP; AIR BREATHER (A) ID=32 L=75	1-09700-704-1	03	1	0809-0812
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (A) ID=32 L=75	1-09700-704-1	03	1	0901-
10	CLIP; AIR BREATHER (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0809-0812
10	CLIP; AIR BREATHER EURO2 SPECIFICATION<NT2> (B) ID=31 H=30 L=35	1-09700-994-0	01	1	0901-
18	CLIP; RUBBER HOSE,AIR BREATHER ID=33.6	8-94362-518-0	01	1	0809-0812
18	CLIP; RUBBER HOSE,AIR BREATHER EURO2 SPECIFICATION<NT2> ID=33.6	8-94362-518-0	01	1	0901-
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	5-09707-030-1	01	1	0903-1205
24	CLIP; RUBBER HOSE,VENTILATOR EURO2 SPECIFICATION<NT2> L=250	8-98216-430-0	01	1	1206-
63	HOSE; RUBBER,AIR BREATHER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	1-09360-925-0	02	1	1212-
63	HOSE; RUBBER,AIR BREATHER L=70	0-02828-070-0	01	1	0809-0812
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02828-070-0	01	1	0901-1005
63	HOSE; RUBBER,AIR BREATHER EURO2 SPECIFICATION<NT2> L=70	0-02728-070-0	01	1	1006-
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=28.5	1-09707-150-0	01	1	1102-1112
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=14	1-09704-102-0	02	1	0901-
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-0812
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0901-
94	HOSE; BREATHER TO PIPE L=1260	8-94392-082-0	01	1	0809-0812
94	HOSE; BREATHER TO PIPE EURO2 SPECIFICATION<NT2> L=1260	8-94392-082-0	01	1	0901-
106	BOLT; DRAIN PIPE (A) M6X12 FLANGE	0-28050-612-0	01	1	0809-0812
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (A) M6X12 FLANGE	0-28050-612-0	01	1	0901-
106	BOLT; DRAIN PIPE (B) M10X16 FLANGE	0-28151-016-0	02	1	0809-0812
106	BOLT; DRAIN PIPE EURO2 SPECIFICATION<NT2> (B) M10X16 FLANGE	0-28151-016-0	02	1	0901-
113	WASHER; PL,CLIP ID=10.5	0-91610-510-0	02	1	0809-0812
113	WASHER; PL,CLIP EURO2 SPECIFICATION<NT2> ID=10.5	0-91610-510-0	02	1	0901-

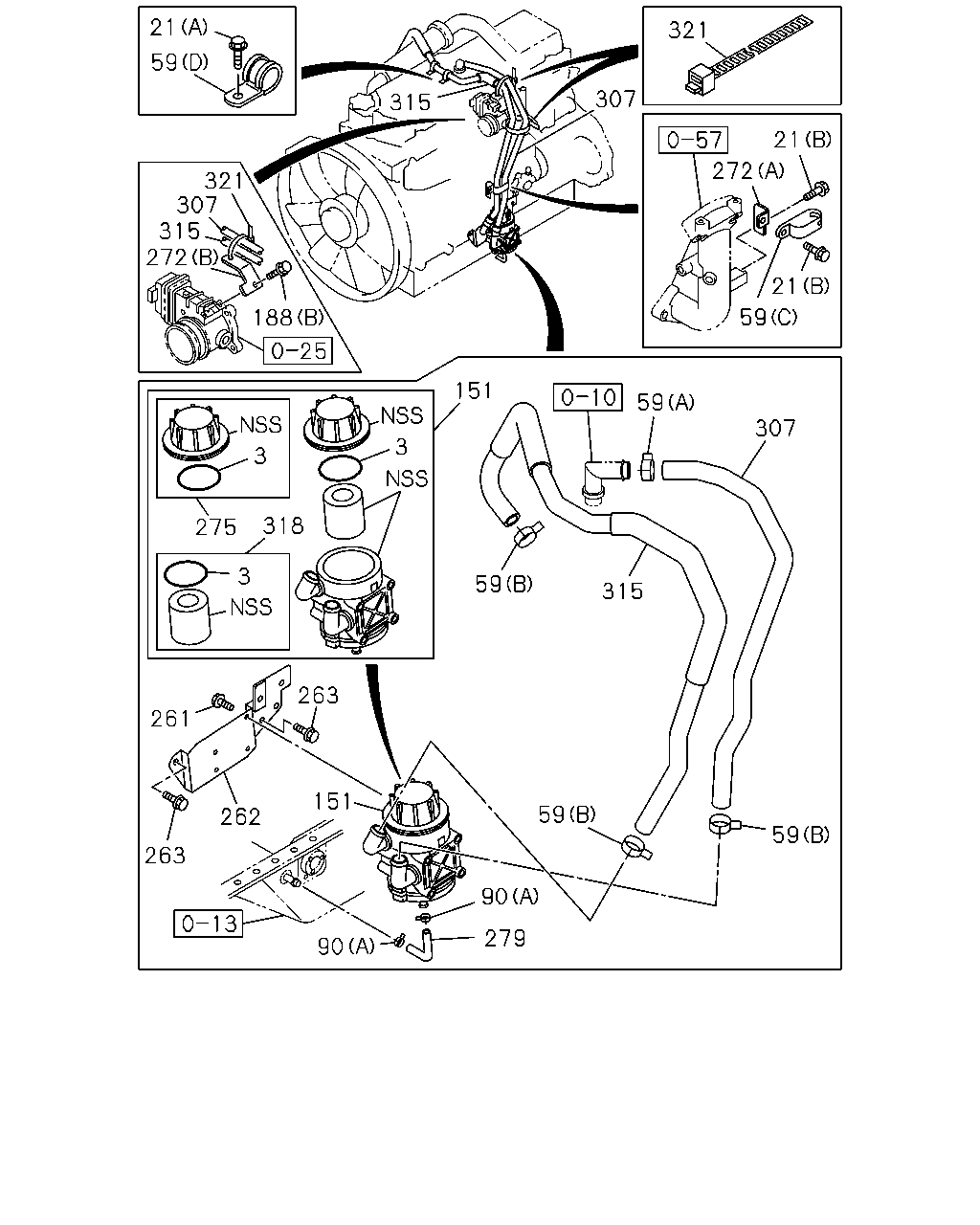

188 307 321 315 272 59 188 188 21 59 307 315 272 307 315 90 151 3 3 318 275 59 59 279 90 151 263 261 263 262 90 59 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	GASKET; BODY TO CAP EURO3 SPECIFICATION<NT3>	8-97385-921-0	01	1	0901-
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) M6X12 FLANGE	0-28050-612-0	01	1	1102-
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (A) M8X12 FLANGE	0-28050-812-0	02	1	0901-1101
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X12 FLANGE	0-28050-812-0	02	1	1102-
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
21	BOLT; CLIP EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	01	1	1201-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (E) ID=31 H=30 L=35	1-09700-994-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=30X2 L=28	1-09701-266-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	01	1	1102-1211
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) ID=33.6	8-94362-518-0	03	1	1212-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (D) ID=35 L=33	1-09700-945-0	02	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (D) ID=35 L=33	1-09700-945-0	02	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (C) ID=30X2 L=28	1-09701-266-0	01	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (C) ID=30X2 L=28	1-09701-266-0	01	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (B) ID=28.5	1-09707-150-0	03	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) ID=28.5	1-09707-150-0	03	1	1102-
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> (A) ID=31.2	8-97237-146-0	01	1	0901-1101
59	CLIP; HOSE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) ID=31.2	8-97237-146-0	01	1	1102-
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C) ID=28.5	1-09707-150-0	01	1	1102-1112
90	CLIP; RUBBER HOSE EURO3 SPECIFICATION<NT3> (A) ID=14	1-09704-102-0	02	1	0901-
90	CLIP; RUBBER HOSE (B) ID=33.6	8-94362-518-0	01	1	0809-0812
90	CLIP; RUBBER HOSE EURO2 SPECIFICATION<NT2> (B) ID=33.6	8-94362-518-0	01	1	0901-
151	SEPARATOR; OIL,PCV EURO3 SPECIFICATION<NT3>	8-97602-262-2	01	1	0901-
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (B) M8X16 FLANGE	0-28050-816-0	03	1	1102-
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X30 FLANGE	0-28050-830-0	03	1	1102-
188	BOLT; BRKT EURO3 SPECIFICATION<NT3> (B) M8X16 FLANGE	0-28050-816-0	01	1	0901-
261	BOLT; SEPARETOR EURO3 SPECIFICATION<NT3> M8X16 FLANGE	0-28050-816-0	04	1	0901-
262	BRACKET; OIL SEPARETOR EURO3 SPECIFICATION<NT3>	8-97610-919-1	01	1	0901-
263	BOLT; BRKT,OIL SEPARETOR EURO3 SPECIFICATION<NT3> M10X25 FLANGE	0-28751-025-0	02	1	0901-
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (C)	8-97616-083-0	01	1	1102-
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (A)	8-97607-396-1	01	1	0901-
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> (B)	8-97607-397-0	01	1	0901-1101
272	BRACKET; PIPE EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B)	8-97607-397-0	01	1	1102-
275	CAP; PCV EURO3 SPECIFICATION<NT3>	8-97606-319-0	01	1	0901-
279	HOSE; RUBBER,OIL DRAIN EURO3 SPECIFICATION<NT3> L=190	0-02709-190-0	01	1	0901-
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-935-0	01	1	1102-
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3>	8-98054-285-1	01	1	0901-1101
307	HOSE; RUBBER,HEAD COVER TO OIL SEPARAT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-285-2	01	1	1102-
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-98167-937-1	01	1	1102-
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3>	8-98054-286-1	01	1	0901-1101
315	HOSE; RUBBER EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98054-286-2	01	1	1102-
318	ELEMENT KIT; PCV EURO3 SPECIFICATION<NT3>	8-97606-318-0	01	1	0901-
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	01	1	1102-
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> L=300	1-09707-001-1	02	1	0901-1101
321	CLIP; HOSE,SEPARATOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> L=300	1-09707-001-1	02	1	1102-
