0-27 — EXHAUST MANIFOLD (#66484) — 140 parça

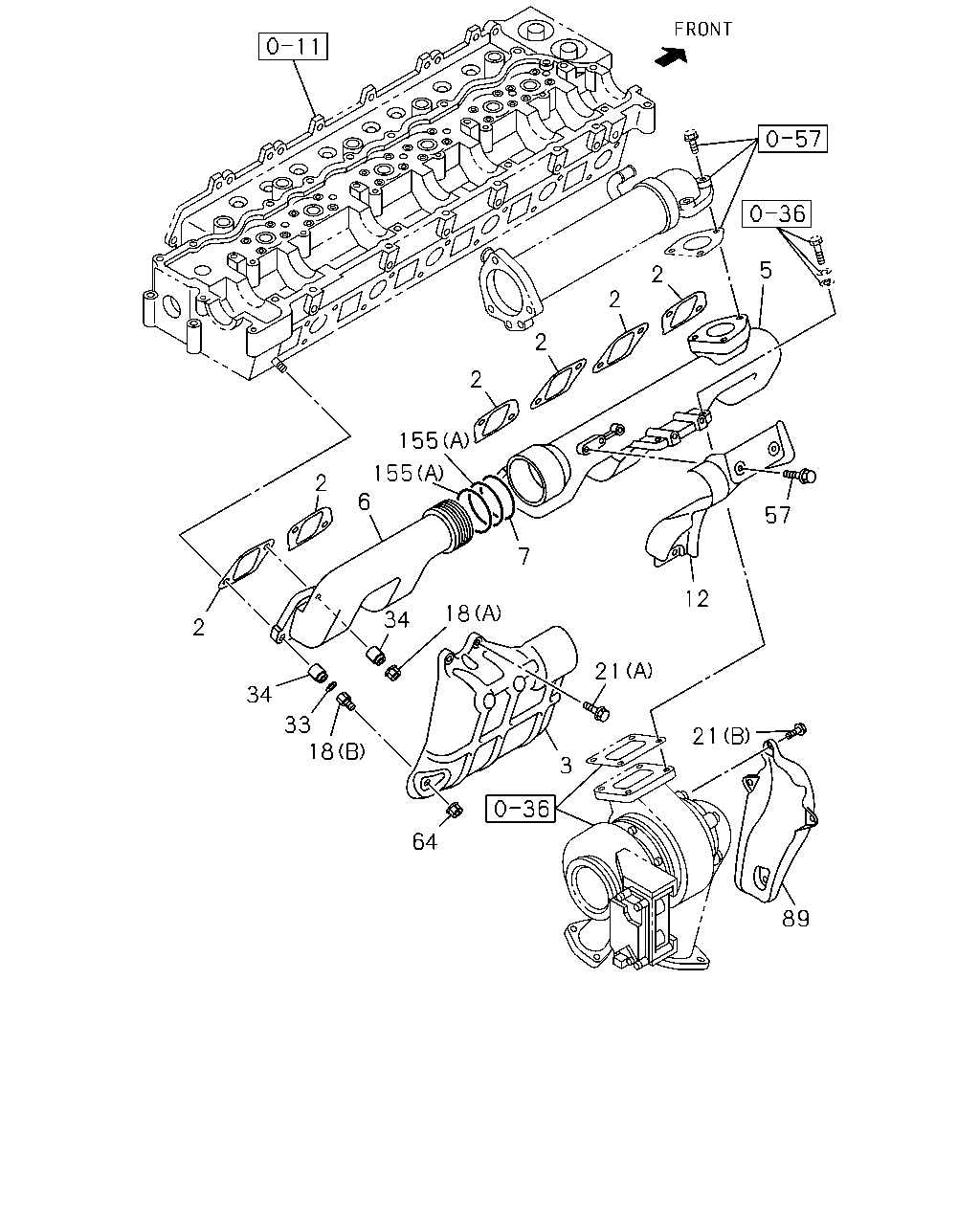

5 2 2 2 2 155 155 6 2 2 34 33 18 64 3 21 21 89 57 12 7 18 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0809-
3	PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION<NT3>	8-97611-986-1	01	1	0901-1101
3	PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97611-986-1	01	1	1102-1202
3	PROTECTOR; HEAT,EXH MANIF EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-98205-395-0	01	1	1203-
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3>	8-97604-942-0	01	1	0901-1101
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-942-1	01	1	1102-
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0809-0812
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	0901-1101
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	1102-
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97602-056-0	01	1	1102-
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97601-630-0	01	1	1102-
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3>	8-97604-944-0	01	1	0901-1101
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-944-0	01	1	1102-
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0809-0812
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	0901-
7	RING; SEAL,EXH MANIF EURO3 SPECIFICATION<NT3> STAMP RH	1-14149-151-0	01	1	0901-1107
7	RING; SEAL,EXH MANIF EURO3 SPECIFICATION<NT3> KD PREPARATORY PACK<6HF> STAMP RH	1-14149-151-0	01	1	1108-1110
7	RING; SEAL,EXH MANIF EURO3 SPECIFICATION<NT3> STAMP RH	1-14149-151-0	01	1	1111-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3>	8-97610-717-3	01	1	0901-1101
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97610-717-3	01	1	1102-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF	8-97601-632-0	01	1	0809-0812
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	0901-1101
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	1102-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97601-632-0	01	1	1102-
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	0809-
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0809-1202
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE	0-28050-816-0	02	1	1102-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> (B) M8X14 FLANGE	8-97378-075-0	04	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X14 FLANGE	8-97378-075-0	04	1	1102-
21	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-0812
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	1102-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE	0-28050-816-0	01	1	1102-
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	0809-
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0809-
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NT3> M8X14 FLANGE	8-97378-075-0	03	1	0901-1101
57	BOLT; HEAT PROTECTOR,EXH MANIF EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M8X14 FLANGE	8-97378-075-0	03	1	1102-
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0809-
89	PROTECTOR; HEAT EURO3 SPECIFICATION<NT3>	8-97611-985-2	01	1	0901-1101
89	PROTECTOR; HEAT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97611-985-3	01	1	1102-
155	RING; SEAL,EXH MANIF (B) STAMP RH	1-14149-151-0	01	1	0809-0812
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B) STAMP RH	1-14149-151-0	01	1	0901-
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	0809-

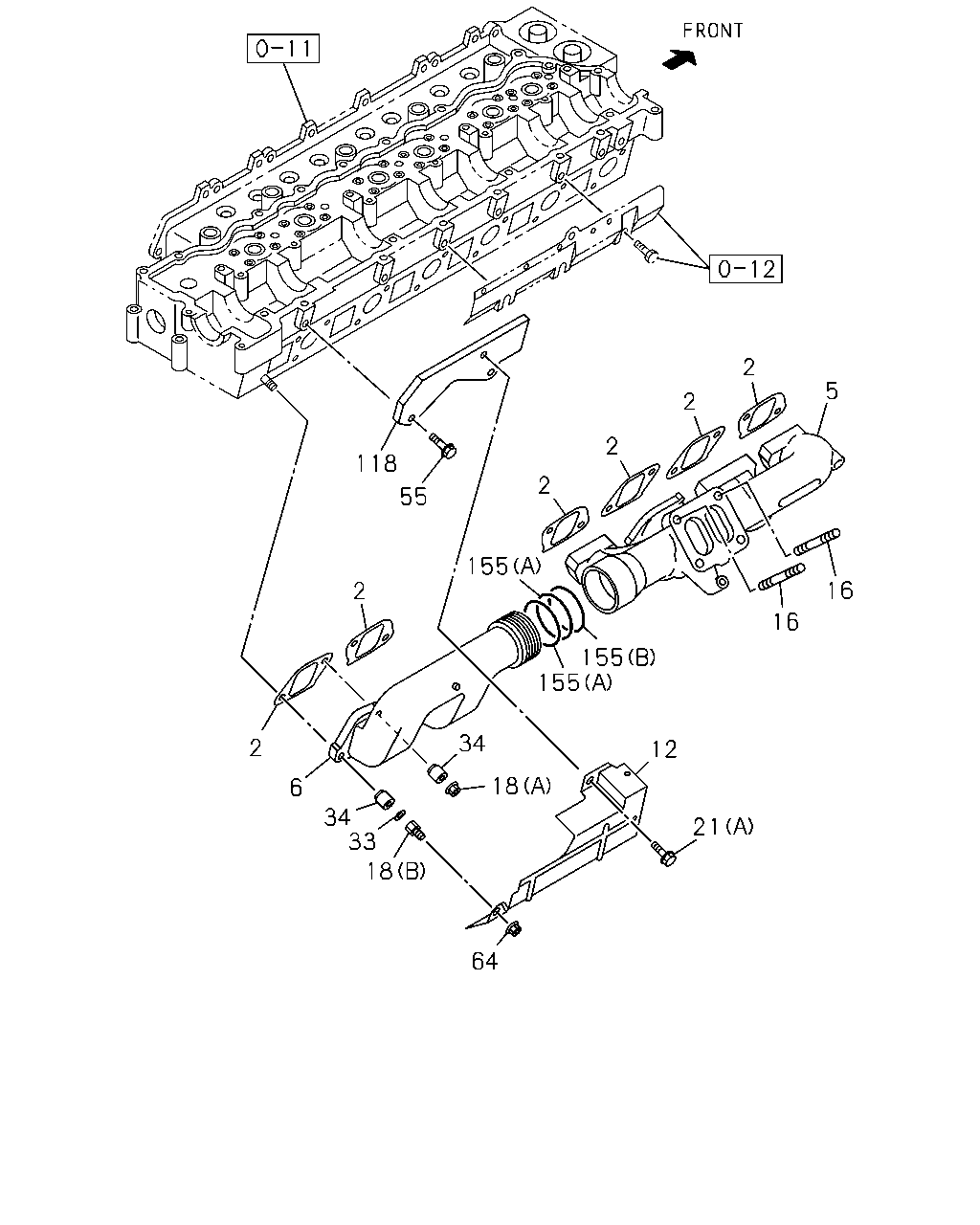

118 55 2 2 2 2 5 16 16 155 155 18 34 2 2 6 34 33 18 64 12 21 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0809-
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3>	8-97604-942-0	01	1	0901-1101
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-942-1	01	1	1102-
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0809-0812
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	0901-1101
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	1102-
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97602-056-0	01	1	1102-
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97601-630-0	01	1	1102-
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3>	8-97604-944-0	01	1	0901-1101
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-944-0	01	1	1102-
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0809-0812
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	0901-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3>	8-97610-717-3	01	1	0901-1101
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97610-717-3	01	1	1102-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF	8-97601-632-0	01	1	0809-0812
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	0901-1101
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	1102-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97601-632-0	01	1	1102-
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0809-0812
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	0901-1101
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1102-
16	STUD; EXH PIPE TO MANIF EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10X25 L=40	9-04731-025-0	02	1	1102-
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	0809-
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0809-1202
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE	0-28050-816-0	02	1	1102-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> (B) M8X14 FLANGE	8-97378-075-0	04	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X14 FLANGE	8-97378-075-0	04	1	1102-
21	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-0812
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	1102-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE	0-28050-816-0	01	1	1102-
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	0809-
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0809-
55	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0809-0812
55	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
55	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1102-
55	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X16 FLANGE	0-28050-816-0	02	1	1102-
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0809-
118	BRACKET; HEAT PROTECTOR	8-97603-366-0	01	1	0809-0812
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>	8-97603-366-0	01	1	0901-1101
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>	8-97603-366-0	01	1	1102-
118	BRACKET; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97603-366-0	01	1	1102-
155	RING; SEAL,EXH MANIF (B) STAMP RH	1-14149-151-0	01	1	0809-0812
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B) STAMP RH	1-14149-151-0	01	1	0901-
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	0809-

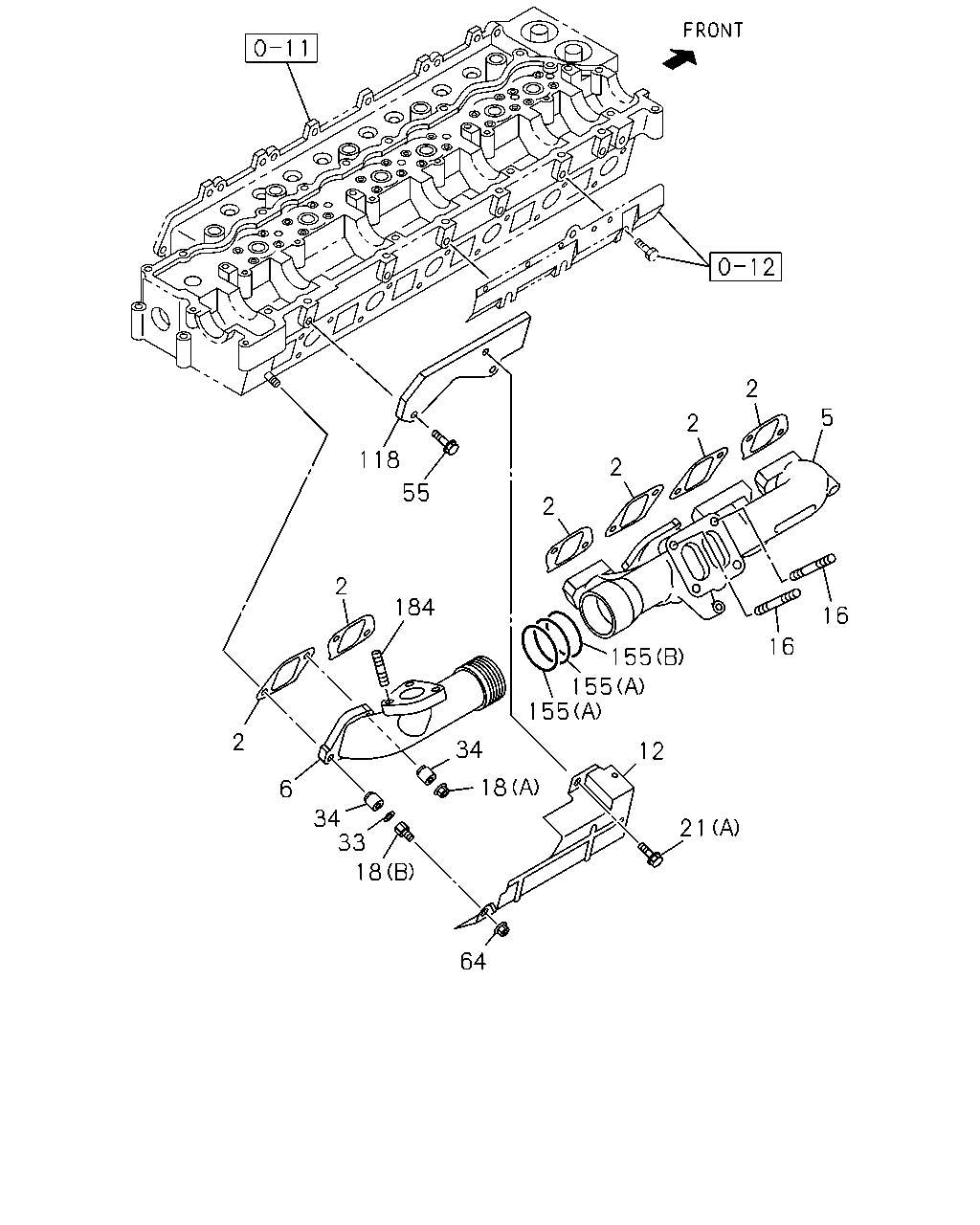

118 55 2 2 2 2 5 16 16 155 155 155 34 184 2 2 6 34 33 18 64 18 12 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0809-
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3>	8-97604-942-0	01	1	0901-1101
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-942-1	01	1	1102-
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0809-0812
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	0901-1101
5	MANIFOLD; EXH,FRT EURO2 SPECIFICATION<NT2>	8-97602-056-0	01	1	1102-
5	MANIFOLD; EXH,FRT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97602-056-0	01	1	1102-
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97601-630-0	01	1	1102-
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3>	8-97604-944-0	01	1	0901-1101
6	MANIFOLD; EXH,RR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97604-944-0	01	1	1102-
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0809-0812
6	MANIFOLD; EXH,RR EURO2 SPECIFICATION<NT2>	8-97600-970-0	01	1	0901-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3>	8-97610-717-3	01	1	0901-1101
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T>	8-97610-717-3	01	1	1102-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF	8-97601-632-0	01	1	0809-0812
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	0901-1101
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO2 SPECIFICATION<NT2>	8-97601-632-0	01	1	1102-
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97601-632-0	01	1	1102-
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0809-0812
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	0901-1101
16	STUD; EXH PIPE TO MANIF EURO2 SPECIFICATION<NT2> M10X25 L=40	9-04731-025-0	02	1	1102-
16	STUD; EXH PIPE TO MANIF EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M10X25 L=40	9-04731-025-0	02	1	1102-
18	NUT; EXH MANIF (A) M10 LOCK NUT	0-91370-010-0	10	1	0809-
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0809-1202
18	NUT; EXH MANIF (B) M10	8-98205-394-0	02	1	1203-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> (A) M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE	0-28050-816-0	02	1	1102-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> (B) M8X14 FLANGE	8-97378-075-0	04	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> (B) M8X14 FLANGE	8-97378-075-0	04	1	1102-
21	BOLT; HEAT PROTECTOR (A) M8X16 FLANGE	0-28050-816-0	01	1	0809-0812
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	0901-1101
21	BOLT; HEAT PROTECTOR EURO2 SPECIFICATION<NT2> (A) M8X16 FLANGE	0-28050-816-0	01	1	1102-
21	BOLT; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> (A) M8X16 FLANGE	0-28050-816-0	01	1	1102-
33	WASHER; EXH MANIF T=2.2	1-09556-015-0	02	1	0809-
34	COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	12	1	0809-
55	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0809-0812
55	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	0901-1101
55	BOLT; BRKT EURO2 SPECIFICATION<NT2> M8X16 FLANGE	0-28050-816-0	02	1	1102-
55	BOLT; BRKT EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X16 FLANGE	0-28050-816-0	02	1	1102-
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0809-
118	BRACKET; HEAT PROTECTOR	8-97603-366-0	01	1	0809-0812
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>	8-97603-366-0	01	1	0901-1101
118	BRACKET; HEAT PROTECTOR EURO2 SPECIFICATION<NT2>	8-97603-366-0	01	1	1102-
118	BRACKET; HEAT PROTECTOR EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T>	8-97603-366-0	01	1	1102-
155	RING; SEAL,EXH MANIF (B) STAMP RH	1-14149-151-0	01	1	0809-0812
155	RING; SEAL,EXH MANIF EURO2 SPECIFICATION<NT2> (B) STAMP RH	1-14149-151-0	01	1	0901-
155	RING; SEAL,EXH MANIF (A)	1-14149-184-0	02	1	0809-
184	STUD; EXH MANIFOLD EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> M8X25 L=36	8-97378-062-0	03	1	1102-
