Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-52 - OIL AND VACUUM PIPING; ENGINE
▶

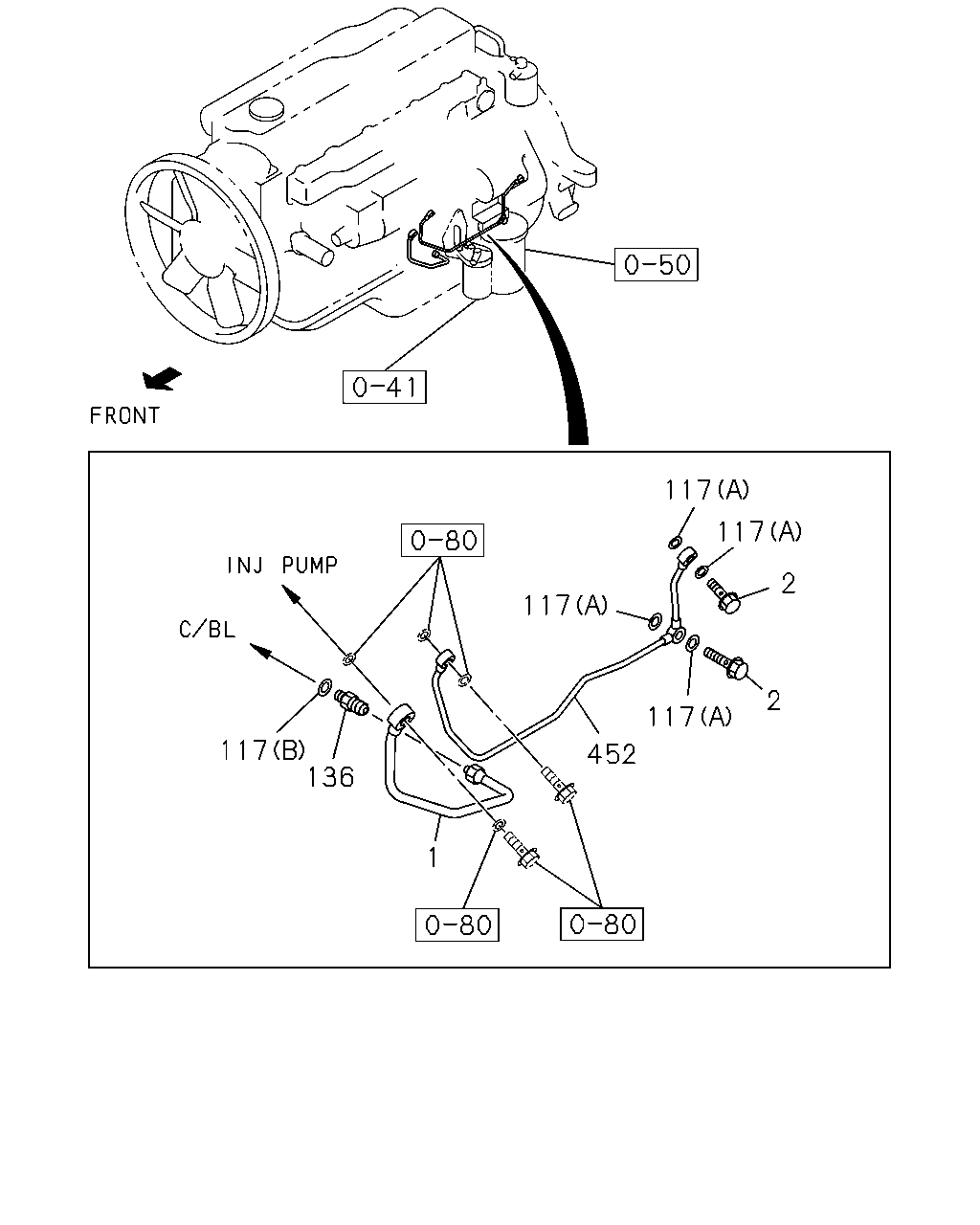

0-52 — OIL AND VACUUM PIPING; ENGINE
(#6648) — 6 parça
117
117
2
117
2
117
117
136
452
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; OIL,INJ PUMP TO C/BL
8-94392-964-0
01
1
0011-
2
BOLT; EYE,OIL PIPE
M10X21 FLANGE
1-09675-077-0
02
1
0011-
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2 THA
1-09630-083-0
04
1
0011-
117
GASKET; JOINT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=12.2
1-09630-084-0
01
1
0011-
136
UNION
8-94392-422-0
01
1
0011-
452
PIPE; OIL,OIL FILTER TO AIR CMPR
8-97600-571-0
01
1
0011-
