0-13 — OIL PAN AND LEVEL GAUGE (#66478) — 38 parça

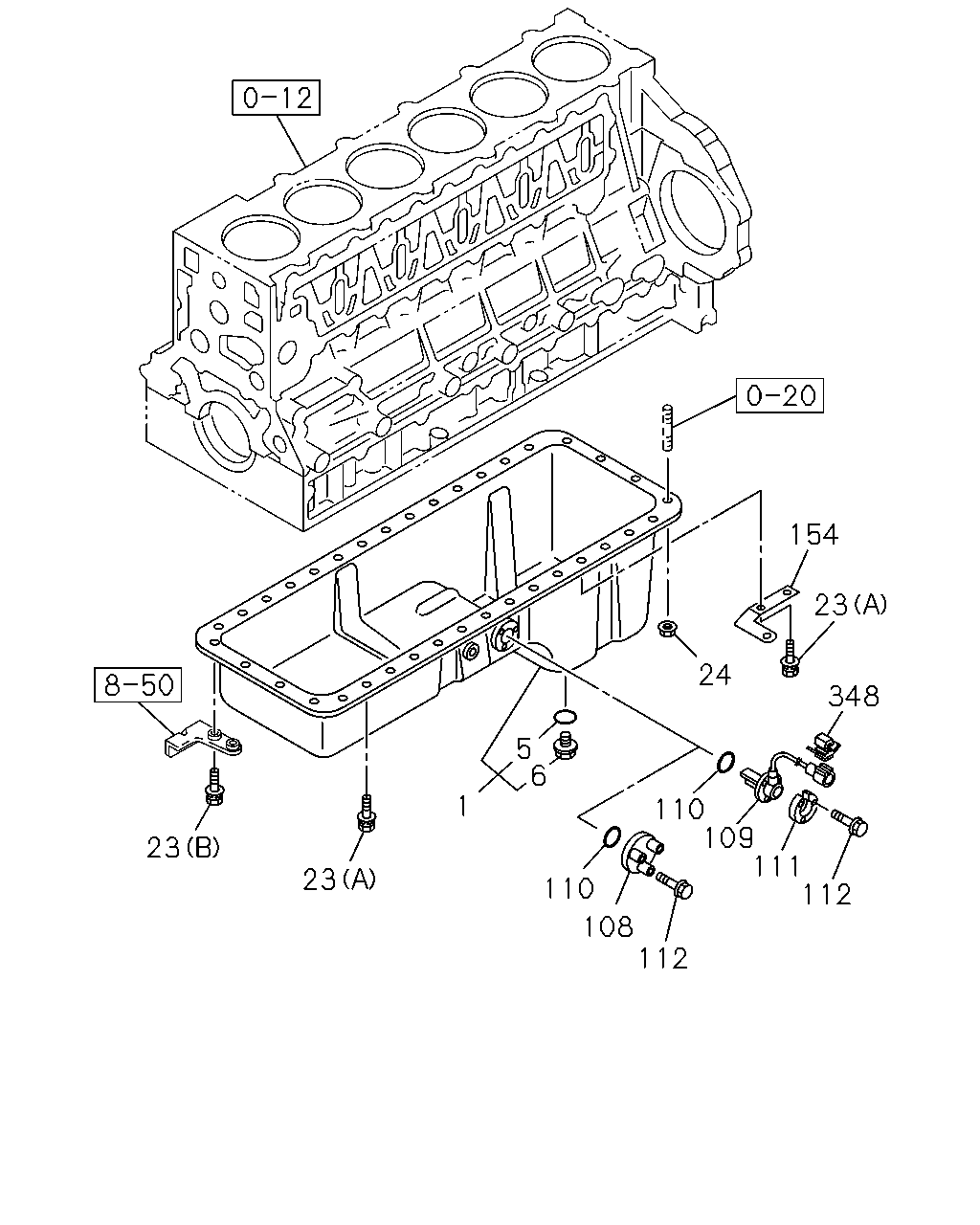

çizim 33401
154 23 24 348 5 6 1 110 109 111 112 23 23 110 108 112
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-98252-601-0 01 1 1403-
1 PAN ASM; OIL
EURO3 SPECIFICATION<NT3> 		8-98061-544-0 01 1 0901-1402
1 PAN ASM; OIL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98061-544-0 01 1 1403-
1 PAN ASM; OIL 8-97602-326-2 01 1 0809-0812
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-97602-326-2 01 1 0901-1010
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-98179-005-0 01 1 1011-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> ID=24.5 		8-94399-398-0 01 1 1403-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 0809-
6 PLUG; OIL DRAIN
M20X16.5 		9-09662-012-0 01 1 0809-
23 BOLT; OIL PAN
(A) M8X18 FLANGE 		0-28080-818-0 28 1 0809-
23 BOLT; OIL PAN
(B) M8X28 FLANGE 		8-97329-626-0 02 1 0809-
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 04 1 0809-
108 COVER; OIL PAN
EURO3 SPECIFICATION<NT3> TURBO - CONVENTIONAL<Q5T> 		8-97609-994-0 01 1 1102-1402
108 COVER; OIL PAN 8-97609-994-0 01 1 0809-0812
108 COVER; OIL PAN
EURO2 SPECIFICATION<NT2> 		8-97609-994-0 01 1 0901-1010
109 SWITCH; OIL LEVEL
EURO3 SPECIFICATION<NT3> 		8-97601-121-0 01 1 0901-1101
109 SWITCH; OIL LEVEL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-97601-121-0 01 1 1102-
110 GASKET; SW,OIL LEVEL
ID=27 		8-98056-488-0 01 1 0809-1010
110 GASKET; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> ID=27 		8-98056-488-0 01 1 1011-1402
110 GASKET; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> ID=27 		8-98056-488-0 01 1 1403-
111 SPACER; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> 		5-11369-072-0 01 1 0901-1101
111 SPACER; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		5-11369-072-0 01 1 1102-
112 BOLT; SW,OIL LEVEL
M6X25 FLANGE 		0-28050-625-0 03 1 0809-1010
112 BOLT; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> M6X25 FLANGE 		0-28050-625-0 03 1 1011-1402
112 BOLT; SW,OIL LEVEL
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> M6X25 FLANGE 		0-28050-625-0 03 1 1403-
154 BRACKET; CLIP,ENG HARNESS
EURO3 SPECIFICATION<NT3> 		8-98064-103-0 01 1 0901-1101
154 BRACKET; CLIP,ENG HARNESS
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> 		8-98064-103-0 01 1 1102-
348 CONNECTOR
EURO3 SPECIFICATION<NT3> OD=9 H=6 		1-09709-178-0 01 1 0901-1101
348 CONNECTOR
EURO3 SPECIFICATION<NT3> EXC. TURBO - CONVENTIONAL<Q5T> OD=9 H=6 		1-09709-178-0 01 1 1102-
çizim 34288
10 8 49 2 193 192 193 9 9 10 8
BalonParca AdiParca NoAdetTipApplied Date
2 GAUGE; OIL LEVEL 8-98092-600-0 01 1 0809-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(B) 		8-98063-554-0 01 1 0809-
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98084-773-0 01 1 0809-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0809-
10 BOLT; GUIDE TUBE
(A) M10X35 FLANGE 		0-28151-035-0 01 1 0809-
10 BOLT; GUIDE TUBE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0809-
49 NUT; GUIDE TUBE
M8 FLANGE 		0-91180-108-0 01 1 0809-
192 HOSE; GUIDE TUBE
L=463 		8-98054-844-1 01 1 0809-
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0809-
