Isuzu WW
▶
TRUCKS
▶
FRR
▶
11120 - FRR-L EU2/4 EXC.SPAC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

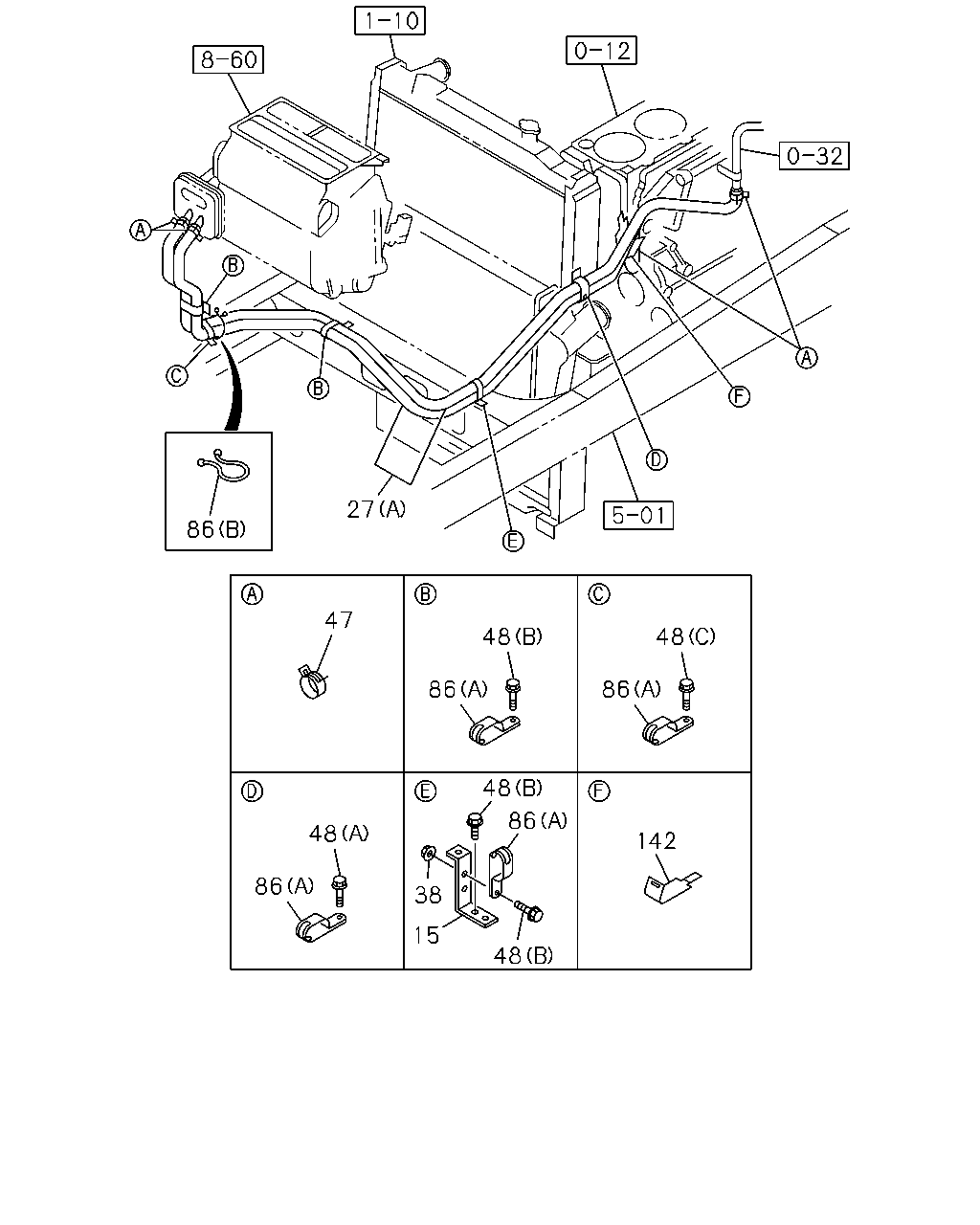

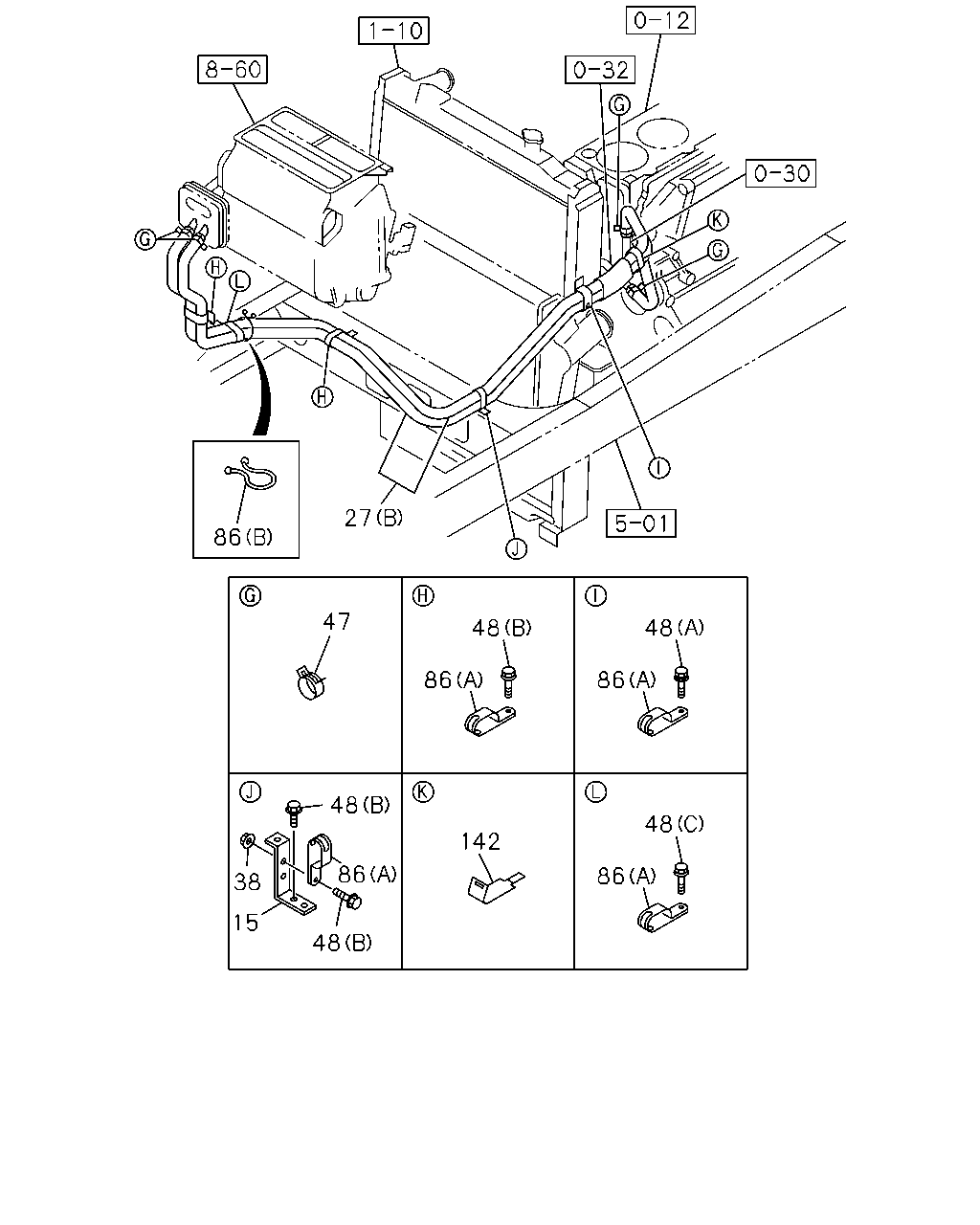

8-45 — HEATER PIPING
(#66462) — 60 parça
◀
[845A] EURO4 SPECIFICATION NO.1 (16 parça)
[845A] EURO2 SPECIFICATION NO.1 (16 parça)
[845A] EURO2 SPECIFICATION NO.2 (14 parça)
[845A] EURO4 SPECIFICATION NO.2 (14 parça)
▶
27
86
47
48
48
86
86
48
86
48
142
86
38
15
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-927-1
01
1
0803-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)
8-98085-572-2
01
1
0809-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98015-307-4
01
1
0803-0808
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)
8-98015-307-4
01
1
0809-
38
NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0803-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
0803-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE
0-28050-816-0
01
1
0803-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
05
1
0803-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0803-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
02
1
0803-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
0803-0906
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
0907-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-94463-508-0
01
1
0803-1008
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-94463-508-0
01
1
1009-
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170
1-83574-139-0
01
1
0803-1205
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170
8-98166-021-0
01
1
1206-
27
86
47
48
48
86
86
48
48
142
86
86
38
15
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BRACKET; WATER HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-83571-927-1
01
1
0803-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)
8-98085-572-2
01
1
0809-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98015-307-4
01
1
0803-0808
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)
8-98015-307-4
01
1
0809-
38
NUT; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) M8 FLANGE
0-91180-108-0
01
1
0803-
47
CLAMP; WATER HOSE,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
0803-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C) M8X16 FLANGE
0-28050-816-0
01
1
0803-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE
0-28650-825-0
05
1
0803-
48
BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M8X16 W/LK&PL WASHER
1-09980-498-0
01
1
0803-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
02
1
0803-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
0803-0906
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=24X2 L=25
1-09700-710-0
03
1
0907-
86
CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-94463-508-0
01
1
0803-1008
86
CLIP; HTR HOSE
AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-94463-508-0
01
1
1009-
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170
1-83574-139-0
01
1
0803-1205
142
CLIP; BAND
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=170
8-98166-021-0
01
1
1206-
27
56
103
56
56
63
103
56
63
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)
8-98085-572-2
01
1
0809-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98015-307-4
01
1
0803-0808
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)
8-98015-307-4
01
1
0809-
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
0803-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (D)
8-98113-087-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (E)
8-98113-088-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (F)
8-98113-089-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98112-653-0
01
1
0803-0808
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)
8-98112-653-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98112-654-0
01
1
0803-0808
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)
8-98112-654-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98112-655-0
01
1
0803-0808
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)
8-98112-655-0
01
1
0809-
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
9-09703-048-0
02
1
0803-
27
56
103
56
63
63
56
103
56
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (B)
8-98085-572-2
01
1
0809-
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98015-307-4
01
1
0803-0808
27
HOSE; WATER,HTR UNIT TO WATER PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)
8-98015-307-4
01
1
0809-
56
CLAMP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22
8-97359-141-0
04
1
0803-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (D)
8-98113-087-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (E)
8-98113-088-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO2 SPECIFICATION<NT2> (F)
8-98113-089-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)
8-98112-653-0
01
1
0803-0808
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (A)
8-98112-653-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)
8-98112-654-0
01
1
0803-0808
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (B)
8-98112-654-0
01
1
0809-
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (C)
8-98112-655-0
01
1
0803-0808
63
HOSE; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EURO4 SPECIFICATION<NT4> (C)
8-98112-655-0
01
1
0809-
103
CONNECTOR; HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
9-09703-048-0
02
1
0803-
