Sayfa 8-28 - Isuzu EPC

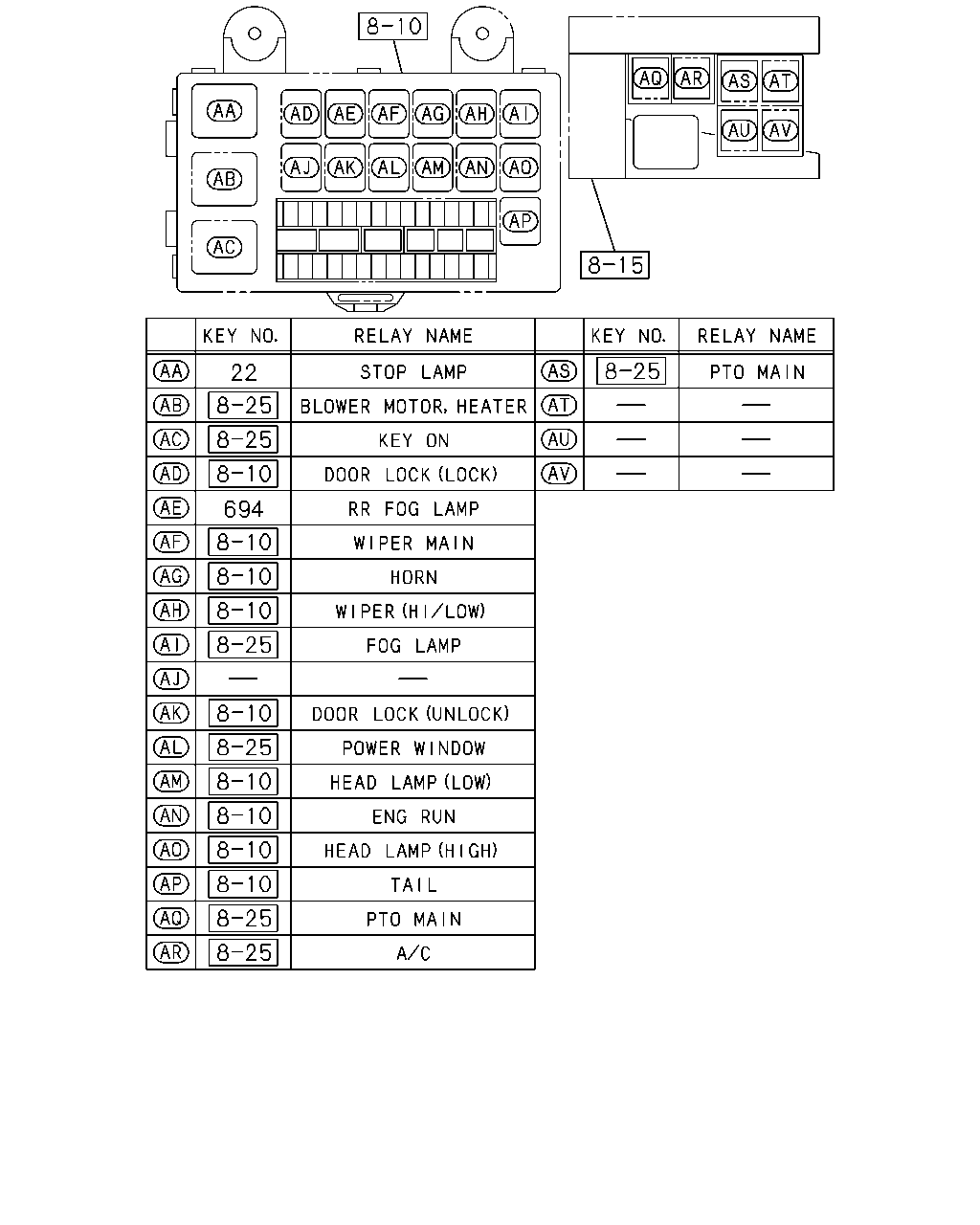

22 694

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0803-
	694	RELAY; RR FOG LAMP RR FOG LAMP<T79> 24V 10A PANASONIC	8-97173-035-1	01	1	0803-

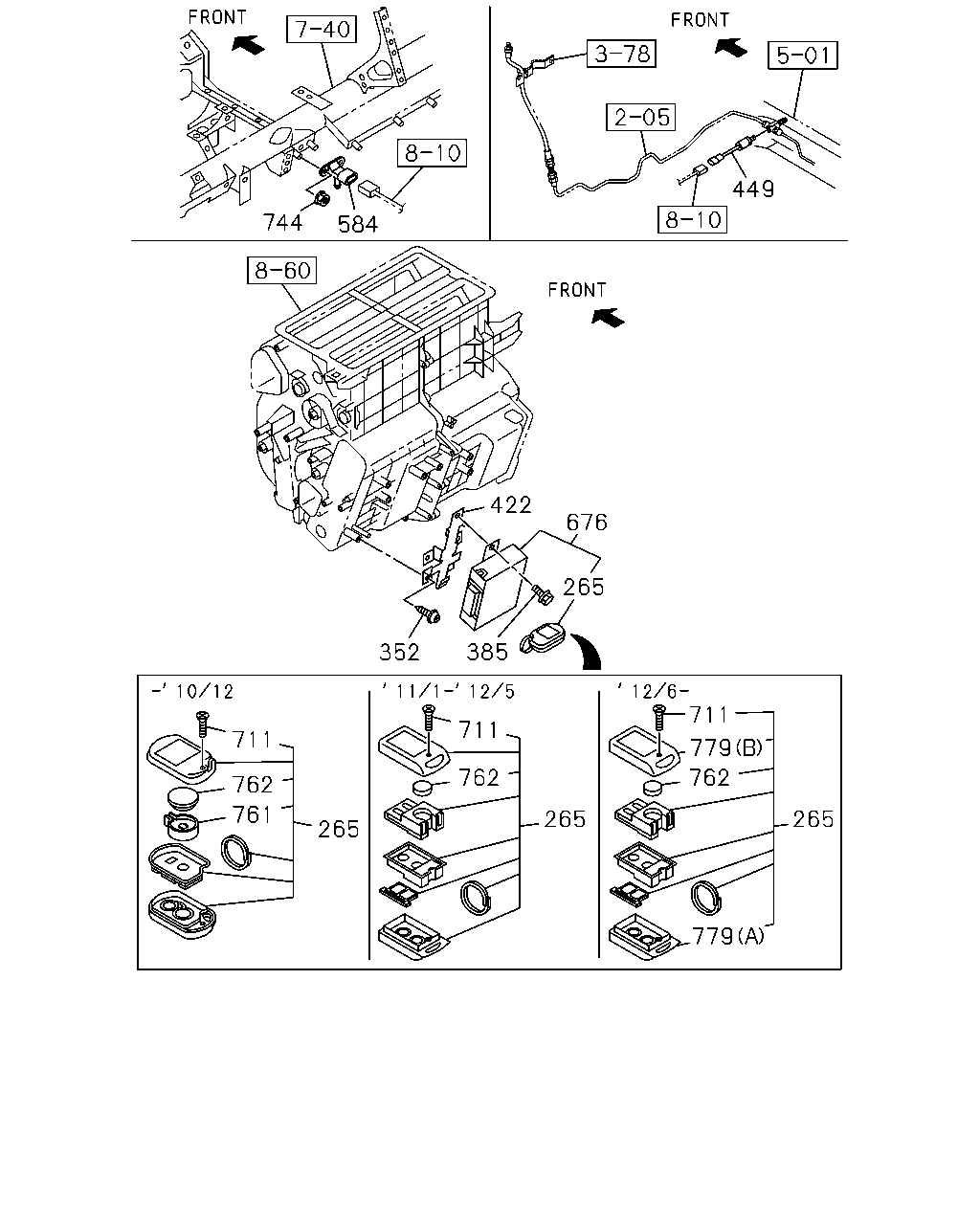

744 584 449 422 676 265 352 385 711 762 761 265 265 762 711 711 779 762 265 779

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98048-459-1	02	1	0809-1012
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98180-751-0	02	1	1101-1205
265	TRANSMITTER ASM; AUTO DOOR LOCK REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98218-236-0	02	1	1206-
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-462-1	02	1	0803-0808
265	TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98048-462-1	02	1	0809-1012
265	TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98178-860-0	02	1	1101-1205
265	TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98218-235-0	02	1	1206-1308
265	TRANSMITTER ASM; AUTO DOOR LOCK TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98249-522-0	02	1	1309-
352	SCREW; BRKT M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0803-0808
352	SCREW; BRKT REMOTE CONT DOOR LOCK<6NF> M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	0809-
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0803-0808
385	BOLT; CONT UNIT REMOTE CONT DOOR LOCK<6NF> M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0809-
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0803-0808
422	BRACKET; CONT UNIT REMOTE CONT DOOR LOCK<6NF>	8-98055-281-1	01	1	0809-
449	SWITCH; OIL PRESS,CLUTCH H.S.A SYSTEM<6EP> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82410-143-1	01	1	0803-
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0803-
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98017-258-1	01	1	0809-1012
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98181-809-0	01	1	1101-1205
676	CONTROL UNIT; KEYLESS ENTRY REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04)	8-98218-231-0	01	1	1206-
676	CONTROL UNIT; KEYLESS ENTRY	8-98048-468-2	01	1	0803-0808
676	CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98048-468-2	01	1	0809-1012
676	CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98181-811-0	01	1	1101-1205
676	CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98218-232-0	01	1	1206-1308
676	CONTROL UNIT; KEYLESS ENTRY TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF>	8-98249-782-0	01	1	1309-
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0803-0808
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98078-067-0	02	1	0809-1205
711	SCREW; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> M2X5	8-98218-239-0	02	1	1206-
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0803-
761	HOLDER; BATTERY	8-98078-063-0	02	1	0803-0808
761	HOLDER; BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-063-0	02	1	0809-1012
762	BATTERY	8-98078-061-0	02	1	0803-0808
762	BATTERY REMOTE CONT DOOR LOCK<6NF>	8-98078-061-0	02	1	0809-
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> (A)	8-98218-240-0	02	1	1206-
779	COVER; TRANSMITTER REMOTE CONT DOOR LOCK<6NF> EXC. TAIWAN EQUIPMENT(B04) (B)	8-98218-243-0	02	1	1206-
779	COVER; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> (B)	8-98218-241-0	02	1	1206-1308
779	COVER; TRANSMITTER TAIWAN EQUIPMENT(B04) REMOTE CONT DOOR LOCK<6NF> (B)	8-98250-559-0	02	1	1309-

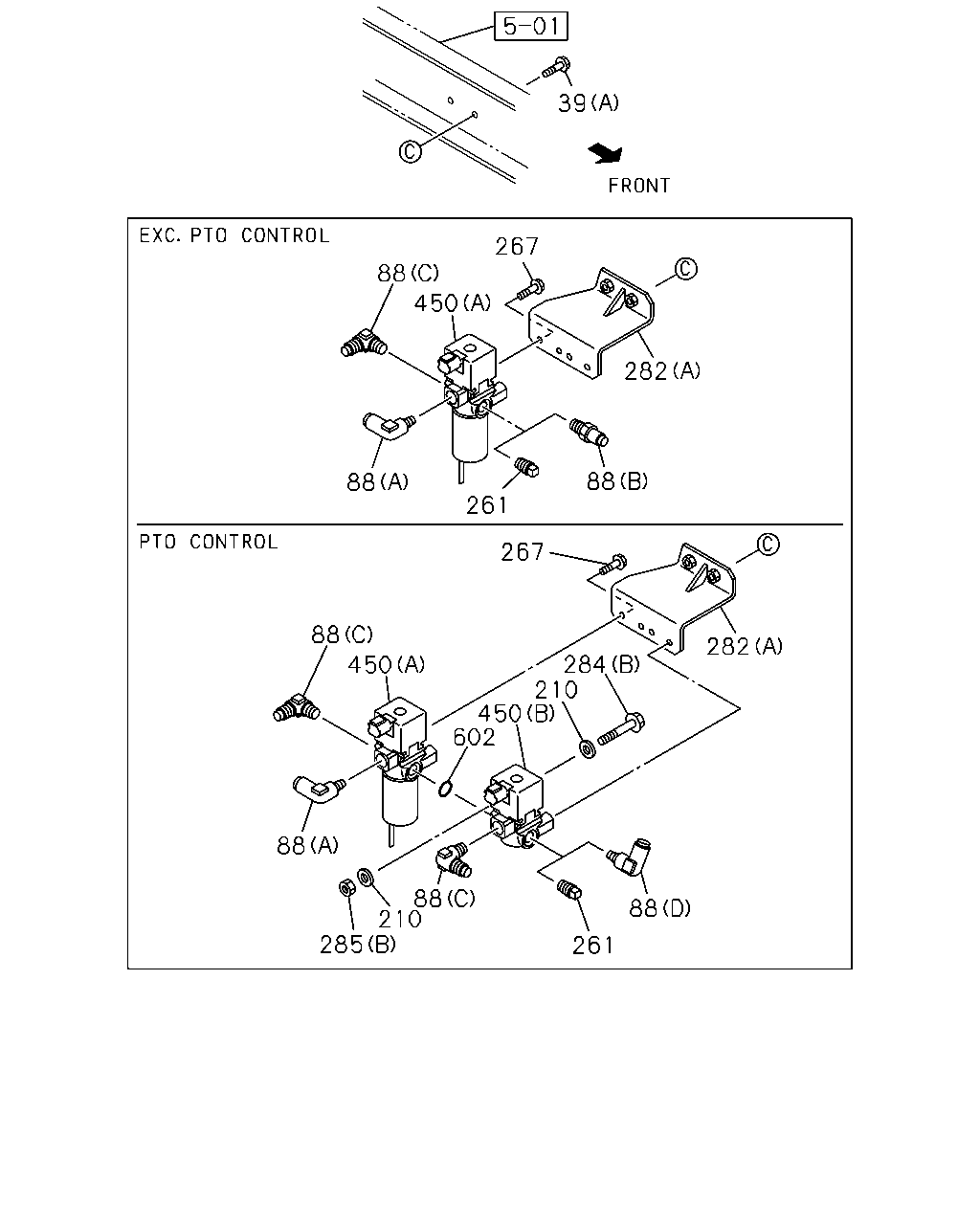

39 267 88 450 282 88 88 261 267 88 282 284 210 450 602 450 88 88 210 285 88 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0808
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0803-0808
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0803-0808
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-0808
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0808
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0803-0808
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-
210	WASHER; PL,BRKT PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-0808
210	WASHER; PL,BRKT PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM>	1-82569-266-0	02	1	0809-
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0803-0808
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-0808
267	BOLT; VLV TO BRKT CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0803-
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0803-0808
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0803-0808
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	0803-
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0803-0808
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0803-
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0808
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0803-
450	VALVE; MAG (A)	8-97376-939-3	01	1	0803-0808
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-
602	GASKET; MAG VLV PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-0808
602	GASKET; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> ID=16.8	9-09565-117-0	01	1	0809-

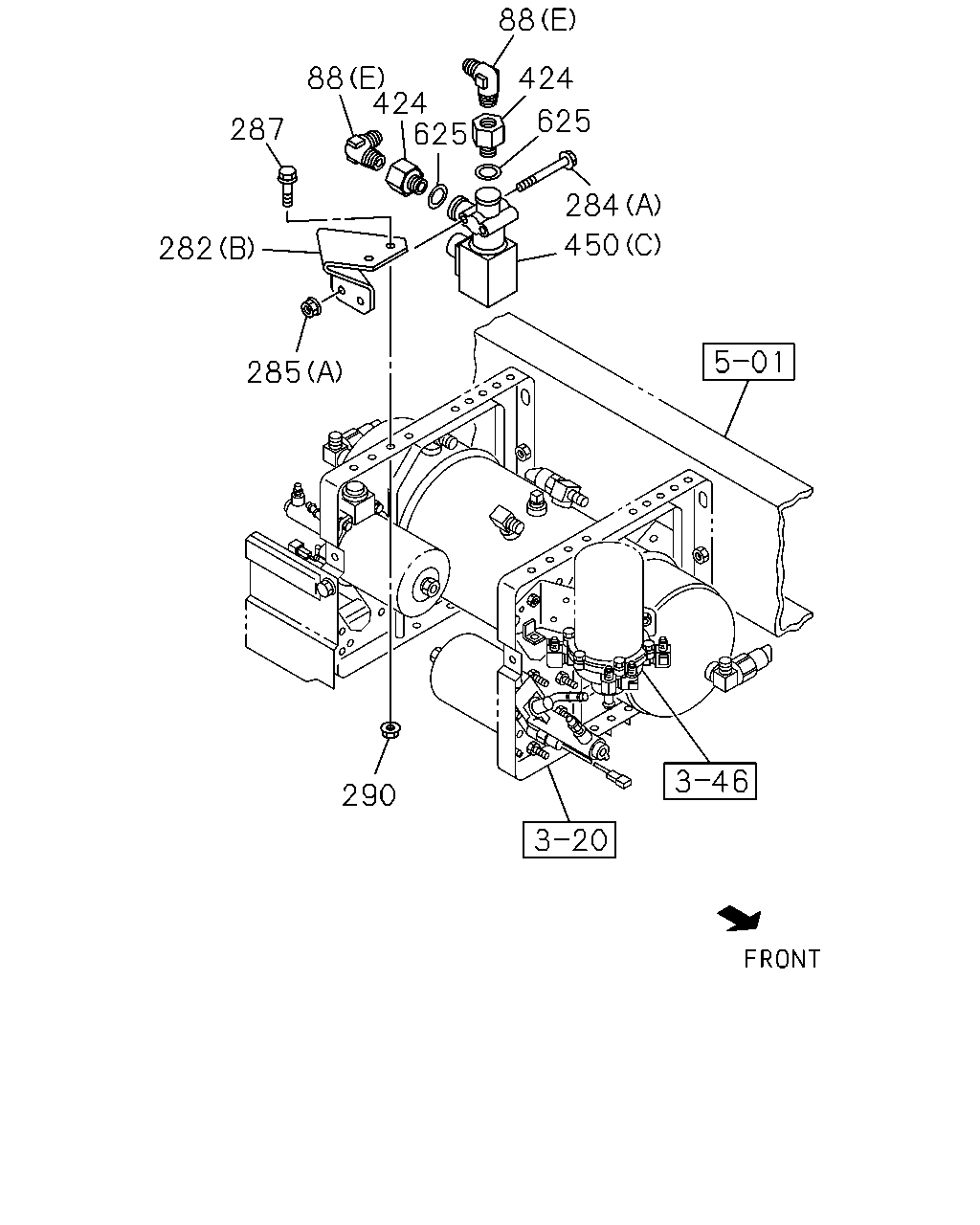

88 88 424 625 424 625 287 284 450 282 285 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0803-0808
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (C) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0803-0808
88	CONNECTOR; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-
88	CONNECTOR; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (E) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	0803-
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0803-0808
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0809-
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-0808
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0809-
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0803-0808
88	CONNECTOR; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & R1/4 STRAIGHT	1-09661-069-0	01	1	0809-
282	BRACKET; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (B)	8-98049-845-1	01	1	0803-
282	BRACKET; MAG VLV (A)	8-98034-702-0	01	1	0803-0808
282	BRACKET; MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A)	8-98034-702-0	01	1	0809-
284	BOLT; MAG VLV PTO CONTROL<SV6> (B) M6X50 FLANGE	0-28050-650-0	01	1	0803-0808
284	BOLT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6X50 FLANGE	0-28050-650-0	01	1	0809-
284	BOLT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8X60 FLANGE	0-28050-860-0	02	1	0803-
285	NUT; MAG VLV PTO CONTROL<SV6> (B) M6 FLANGE	0-91180-106-0	01	1	0803-0808
285	NUT; MAG VLV PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B) M6 FLANGE	0-91180-106-0	01	1	0809-
285	NUT; MAG VLV THROTTLE CONTROL SYSTEM(6XH) (A) M8 FLANGE	0-91180-108-0	02	1	0803-
287	BOLT; BRKT FIX THROTTLE CONTROL SYSTEM(6XH) M8X25 FLANGE	0-28650-825-0	02	1	0803-
290	NUT THROTTLE CONTROL SYSTEM(6XH) M8 FLANGE	0-91180-108-0	02	1	0803-
424	ADAPTER THROTTLE CONTROL SYSTEM(6XH) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	0803-
450	VALVE; MAG PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0808
450	VALVE; MAG PTO CONTROL<SV6> CATALYSIS CONTROL WITH DPD<8JM> (B)	1-82563-871-2	01	1	0809-
450	VALVE; MAG THROTTLE CONTROL SYSTEM(6XH) (C)	1-82564-278-0	01	1	0803-
450	VALVE; MAG (A)	8-97376-939-3	01	1	0803-0808
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97376-939-3	01	1	0809-0910
450	VALVE; MAG CATALYSIS CONTROL WITH DPD<8JM> (A)	8-97633-075-0	01	1	0911-
625	GASKET; CONNECTOR THROTTLE CONTROL SYSTEM(6XH) ID=16.2 OD=24	9-09571-416-0	02	1	0803-

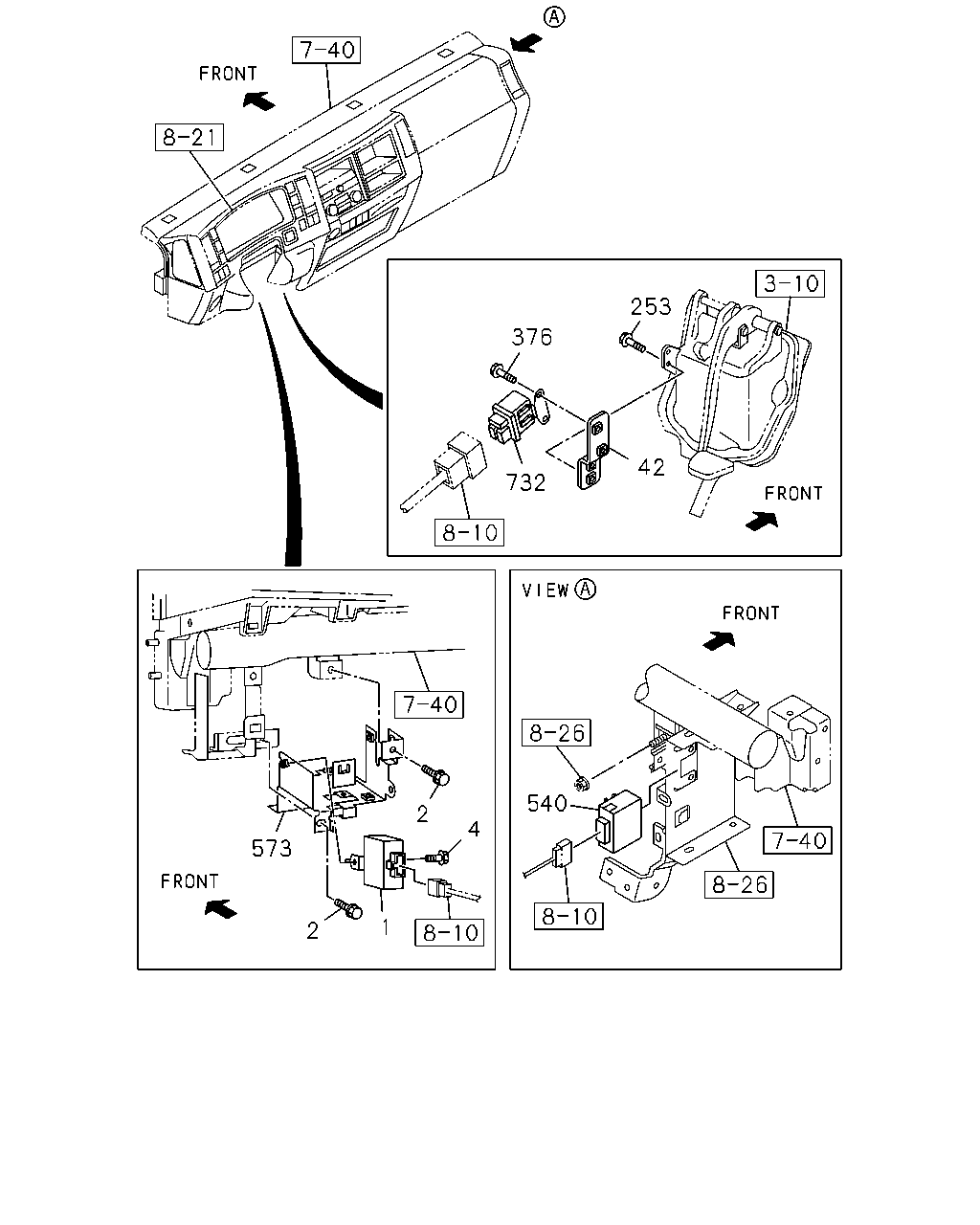

253 376 42 732 540 2 4 573 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	8-98025-533-1	01	1	0803-
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0803-
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0803-
42	BRACKET; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98048-051-2	01	1	0803-
253	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X16 FLANGE	0-28050-816-0	02	1	0803-
376	BOLT; RELAY TRANSMISSION CONTROL-SMOOTHER(8GF) M6X19.5 W/LK&PL WASHER	8-97360-226-0	02	1	0803-
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0803-0808
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98060-388-0	01	1	0809-1308
540	RELAY; WIPER INTERVAL INTERMITTENT WIPER<C13>	8-98233-976-0	01	1	1309-
573	BRACKET; FLASHER UNIT	8-97616-351-3	01	1	0803-
732	RELAY; EDS TRANSMISSION CONTROL-SMOOTHER(8GF)	1-82550-337-1	01	1	0803-

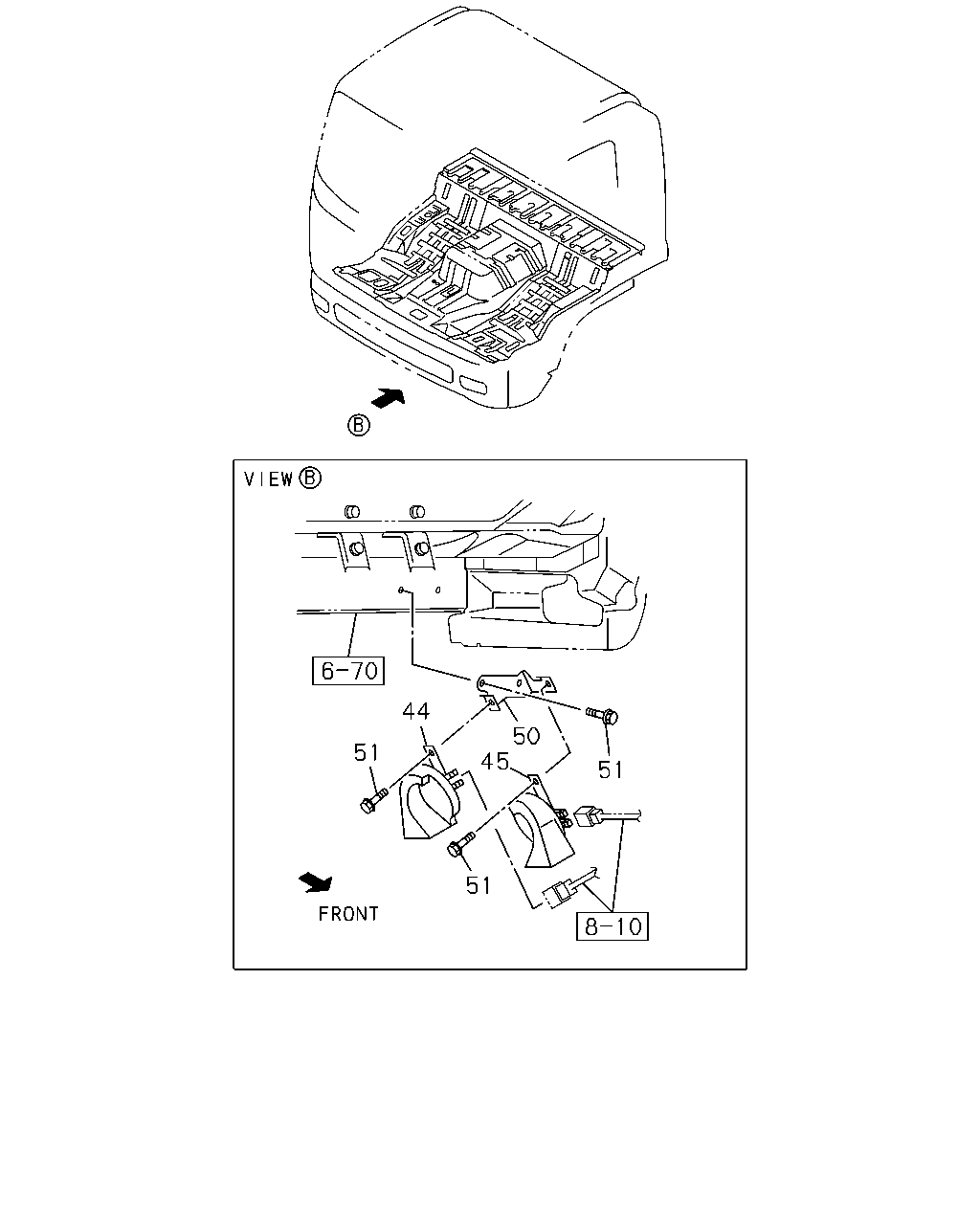

44 50 45 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	HORN; HIGH NOTE	8-98022-022-0	01	1	0803-1001
44	HORN; HIGH NOTE DUAL HEAVY DUTY HORN<6KK>	8-98022-022-0	01	1	1002-
45	HORN; LOW NOTE	8-98022-023-0	01	1	0803-
50	BRACKET; HORN	8-97616-529-2	01	1	0803-
51	BOLT; HORN TO BRKT EXC. DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	1002-
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0803-1001
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-
51	BOLT; HORN TO BRKT DUAL HEAVY DUTY HORN<6KK> M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-

39 36 33 34 35 34 34 261

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	1-82563-871-2	01	1	0809-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ>,CATALYSIS CONTROL WITH DPD<8JM> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0809-
34	CONNECTOR; MAG VLV,INL PORT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	0809-
35	BRACKET; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM>	8-98034-702-0	01	1	0809-
36	BOLT; MAG VLV,PTO CONT PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> M8X20 FLANGE	0-28650-820-0	02	1	0809-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (B) M10X25 FLANGE	0-28651-025-0	02	1	0809-1011
39	BOLT; BRKT,MAG VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0803-0808
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	0809-1011
39	BOLT; BRKT,MAG VLV CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> EXC. CATALYSIS CONTROL WITH DPD<8JM> (A) M10X30 FLANGE	0-28651-030-0	02	1	1012-
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> PT1/4	9-99204-513-0	01	1	0803-0808
261	PLUG; MAG VLV PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> EXC. CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-
261	PLUG; MAG VLV RIGID SEAT WO/ARM REST<TAZ> CATALYSIS CONTROL WITH DPD<8JM> PT1/4	9-99204-513-0	01	1	0809-

531

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	531	RELAY; MAIN 24V 30A MITSUBA	8-97238-540-0	01	1	0803-1402
	531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-
