Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#66455) — 491 parça

305 305 305 48 48 305 306 48 612 48 213 341 48 612 81 16 223 16 305 305 612 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

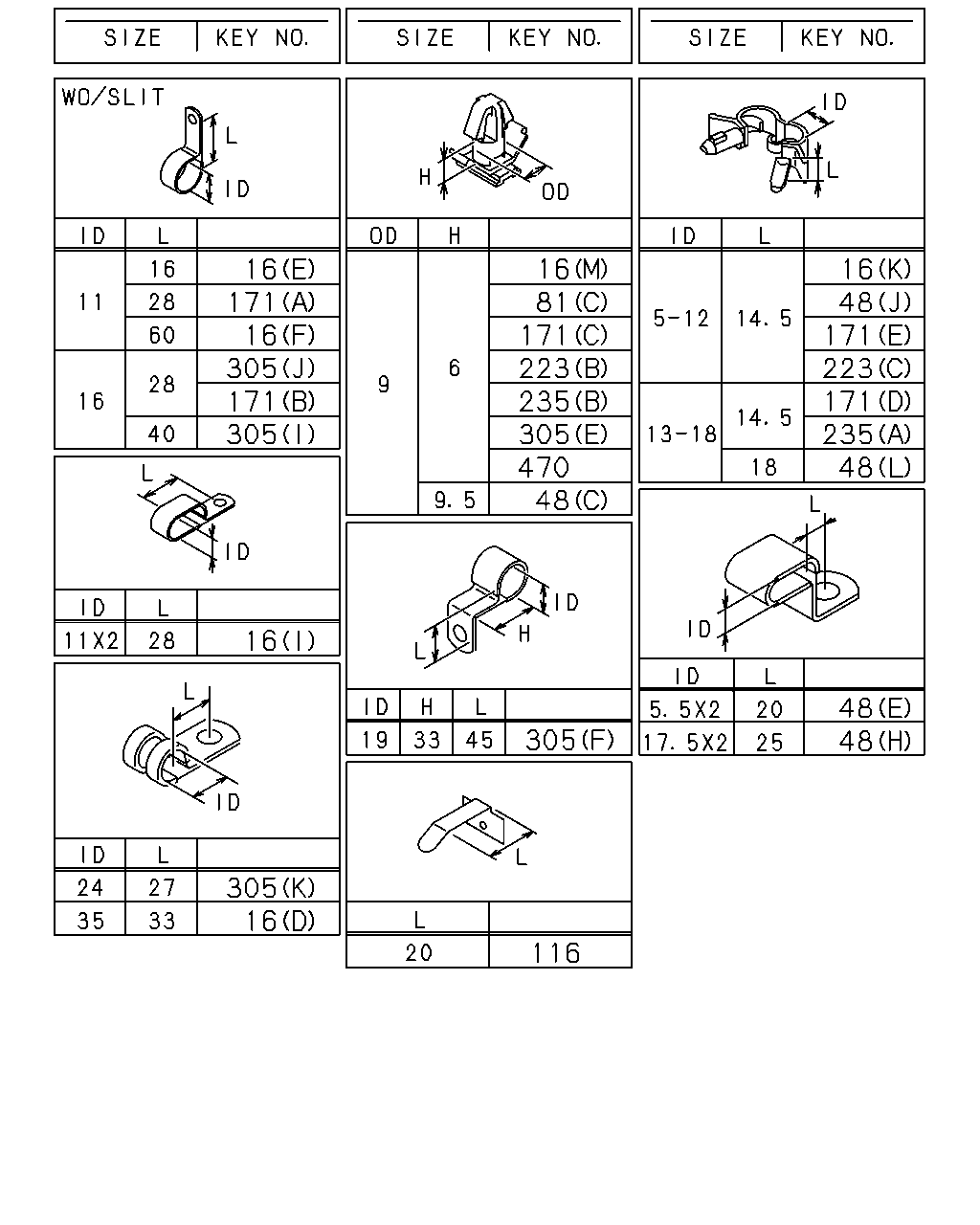

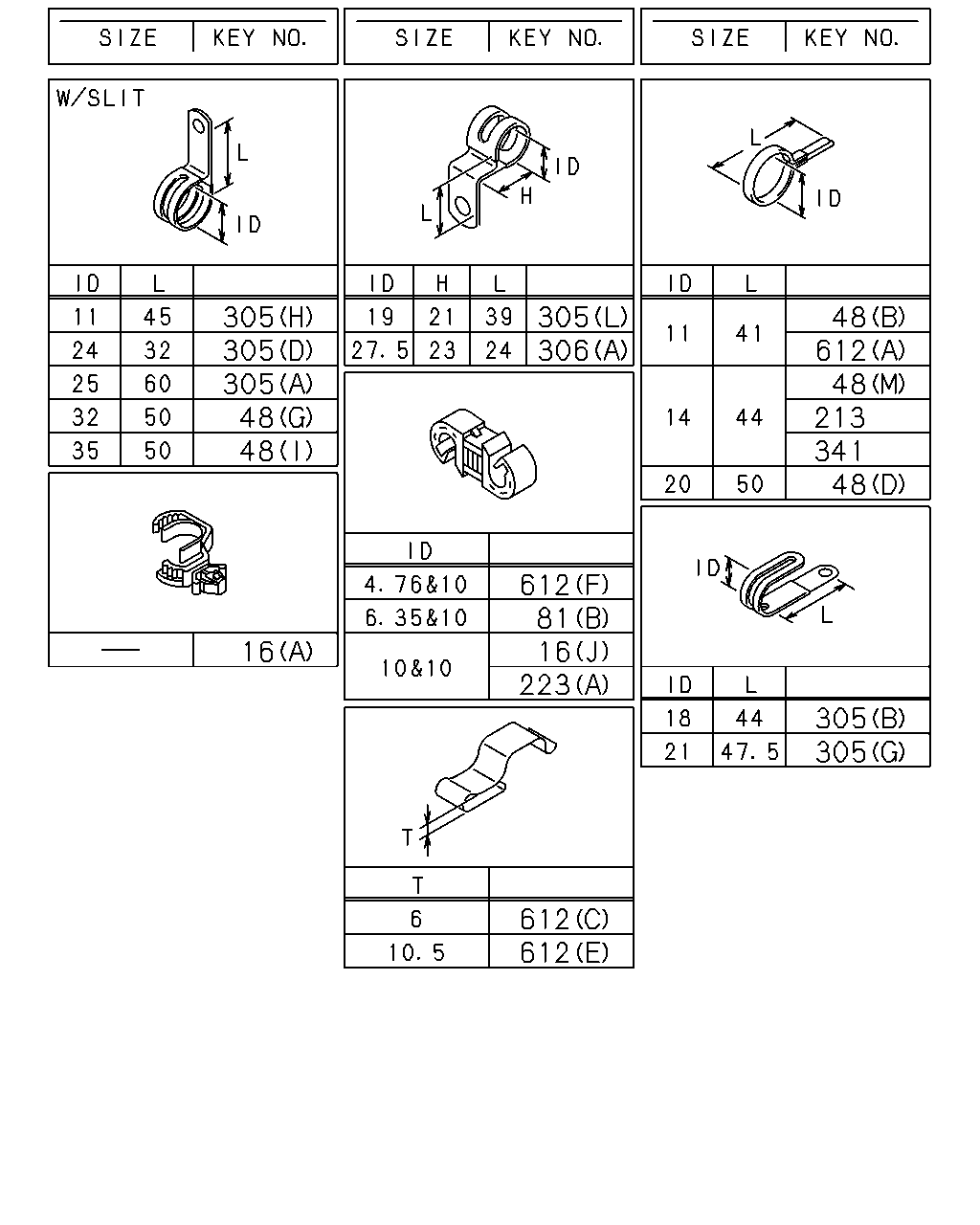

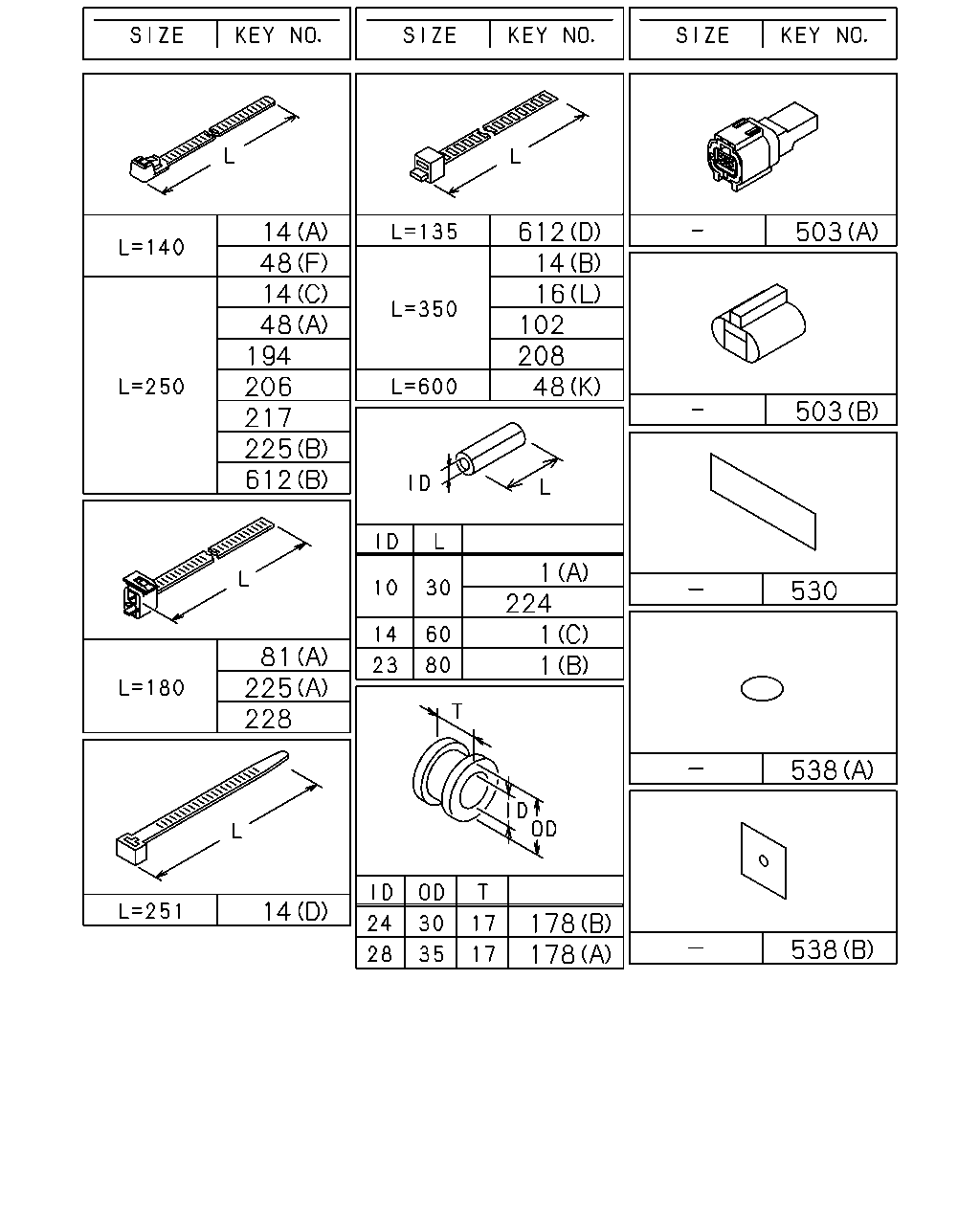

16	CLIP; HARNESS (L) L=350	1-09707-183-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	0804-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (F) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0803
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0803-0803
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0803-0803
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (L) ID=13-18 L=18	1-09709-291-0	01	1	0805-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (M) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	11	1	0803-0902
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	09	1	1008-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	14	1	0803-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (M) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	18	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	17	1	0805-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	20	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (M) ID=14 L=44	9-09917-427-0	20	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	0902-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0803-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0803-0808
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (M) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0803-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=35 L=50	1-09701-214-0	01	1	0803-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0803-0901
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0803-
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	02	1	0804-0905
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0803-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (K) ID=24 L=27	1-09700-809-0	03	1	0809-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0803-0908
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0909-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0803-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0803-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0803-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0803-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	0809-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0803-1310
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	0809-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-0908
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0909-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0803-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0803-
341	CLIP; BAND,STARTER RELAY ID=14 L=44	9-09917-427-0	01	1	0803-0803
612	CLIP; HARNESS DPD (F) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (F) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-
612	CLIP; HARNESS DPD WHEEL BASE 3700MM(37W) (C) T=6.0	8-97371-948-0	03	1	0803-0804
612	CLIP; HARNESS DPD WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (E) T=9 & 10.5	8-97371-949-0	03	1	0803-0804
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (A) ID=11 L=41	1-09700-403-0	01	1	0809-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) L=135	1-09987-143-1	01	1	0809-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) L=250	5-09707-030-1	01	1	0809-

304 304 139 304 38 304 516 304 139 516 377 38 386 38 386 127 139 313 139 38 139 38 139 139 38 38 38 524 219 294 525 294 84 184 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

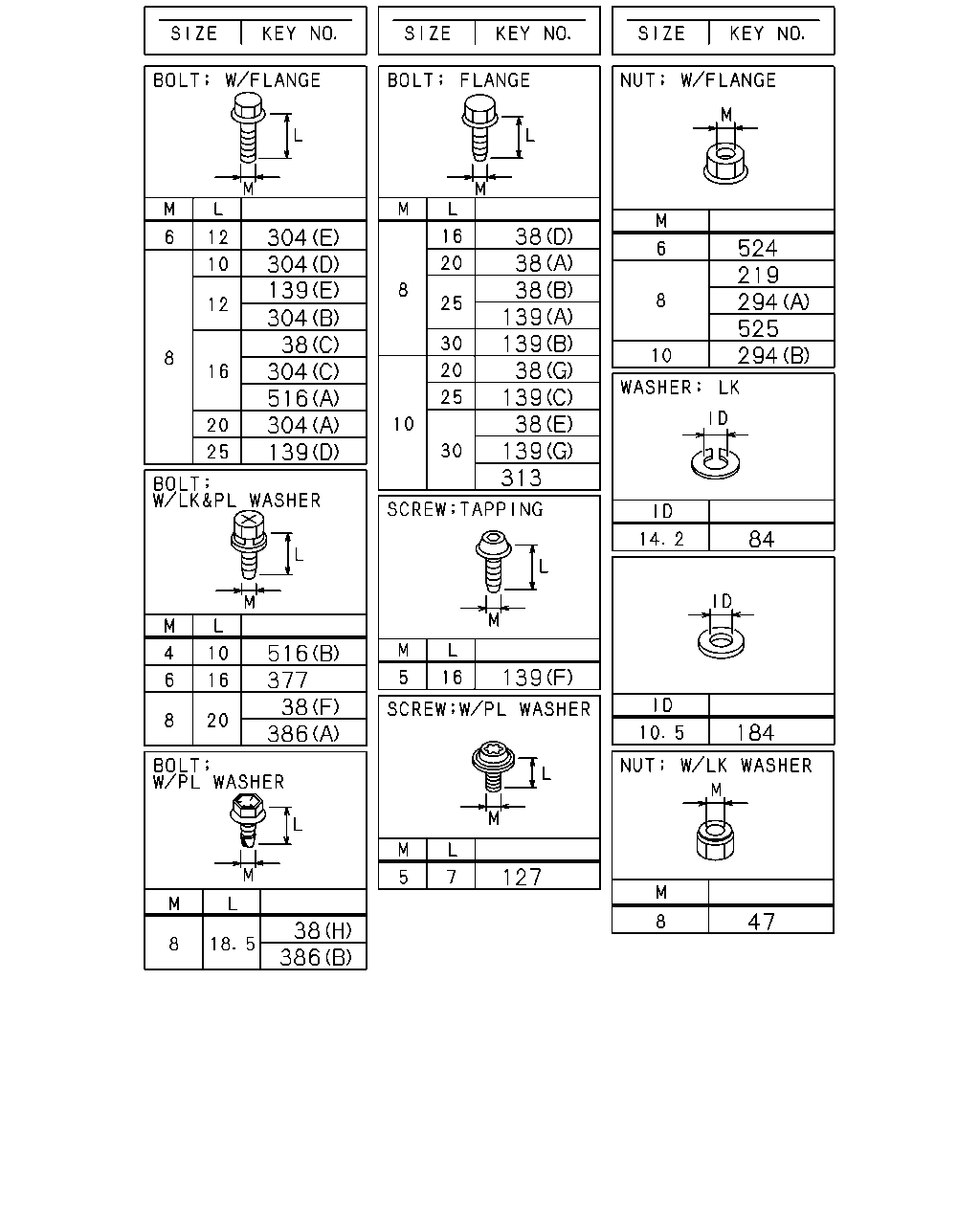

38	BOLT; CLIP,HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (G) M10X20 FLANGE	0-28751-020-0	01	1	0806-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (C) M8X16 FLANGE	0-28050-816-0	03	1	0803-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (A) M8X20 FLANGE	0-28650-820-0	01	1	0803-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0803-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0803-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0803-
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0803-1201
38	BOLT; CLIP,HARNESS (H) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS (D) M8X16 FLANGE	8-98076-109-0	01	1	0803-0807
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ANTI LOCK BRAKE(JE5) ID=14.2	0-91510-814-0	02	1	0803-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0803-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (D) M8X25 FLANGE	0-28050-825-0	02	1	0803-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	0803-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	0803-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0803-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-0803
139	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0803-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0803-0812
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	0803-0812
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0803-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	02	1	0803-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0803-0808
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0806-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0803-
219	NUT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	0803-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0902-
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	02	1	0803-0812
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0901-0901
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	02	1	0901-0901
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	0902-0906
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	06	1	0907-1107
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	05	1	1108-
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	06	1	0803-0906
294	NUT ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	0907-
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0803-0812
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0803-0808
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0809-0811
294	NUT EURO2 SPECIFICATION<NT2> (B) M10 FLANGE	0-91180-210-0	01	1	0809-0811
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-
294	NUT EURO2 SPECIFICATION<NT2> (B) M10 FLANGE	0-91180-210-0	01	1	0812-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0803-0811
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0812-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (C) M8X16 FLANGE	0-28050-816-0	04	1	0809-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION<NT2> (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-
304	BOLT; ENG HARNESS CLIP (E) M6X12 FLANGE	0-28050-612-0	01	1	0803-0808
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (E) M6X12 FLANGE	0-28050-612-0	01	1	0809-
304	BOLT; ENG HARNESS CLIP (D) M8X10 FLANGE	0-28050-810-0	01	1	0803-0808
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (D) M8X10 FLANGE	0-28050-810-0	01	1	0809-1010
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	03	1	0803-0808
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (B) M8X12 FLANGE	0-28050-812-0	03	1	0809-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	0803-0808
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (C) M8X16 FLANGE	0-28050-816-0	02	1	0809-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	01	1	0803-0808
304	BOLT; ENG HARNESS CLIP EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28050-820-0	01	1	0809-
313	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	02	1	0809-0811
313	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0812-
313	BOLT; BRKT EURO2 SPECIFICATION<NT2> M10X30 FLANGE	0-28651-030-0	01	1	0812-
313	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	01	1	0803-0811
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0803-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0803-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X16 FLANGE	0-28050-816-0	02	1	0806-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0803-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0803-
525	NUT; CLIP T=8.5 M8 FLANGE	5-09440-010-0	01	1	0803-0808
525	NUT; CLIP EURO4 SPECIFICATION<NT4> T=8.5 M8 FLANGE	5-09440-010-0	01	1	0809-
525	NUT; CLIP T=8.0 M8 FLANGE	0-91180-108-0	02	1	0803-

16 306 16 305 16 171 16 235 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) L=350	1-09707-183-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	0804-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (F) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0803
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0803-0803
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0803-0803
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 L=28	0-95235-055-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=16 L=28	0-95235-556-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) OD=9 H=6	1-09709-178-0	02	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 L=35	5-09700-206-0	01	1	0806-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (B) OD=9 H=6	1-09709-178-0	01	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0803-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (K) ID=24 L=27	1-09700-809-0	03	1	0809-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0803-0908
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0909-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0803-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0803-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0803-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0803-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	0809-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0803-1310
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	0809-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-0908
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0909-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0803-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0803-

16 171 16 305 171 305 16 81 171 223 235 305 470 48 16 48 171 223 171 235 48 16 48 48 305 305 16 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (L) L=350	1-09707-183-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	0804-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (F) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0803
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0803-0803
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0803-0803
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (L) ID=13-18 L=18	1-09709-291-0	01	1	0805-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (M) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	11	1	0803-0902
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	09	1	1008-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	14	1	0803-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (M) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	18	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	17	1	0805-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	20	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (M) ID=14 L=44	9-09917-427-0	20	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	0902-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0803-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0803-0808
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (M) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0803-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=35 L=50	1-09701-214-0	01	1	0803-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0803-0901
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	0803-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	0803-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=11 L=28	0-95235-055-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=16 L=28	0-95235-556-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) OD=9 H=6	1-09709-178-0	02	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0806-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0806-0809
223	CLIP; AIR TANK HARNESS (A) ID=10 & 10	1-09709-277-1	02	1	0804-0905
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0803-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C) ID=12 L=35	5-09700-206-0	01	1	0806-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (B) OD=9 H=6	1-09709-178-0	01	1	0803-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (A) ID=13-18 L=14.5	1-09709-290-0	01	1	0803-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (C) L=100	8-94443-021-1	02	1	1311-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (K) ID=24 L=27	1-09700-809-0	03	1	0809-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (L) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0803-0908
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	0909-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0803-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0803-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0803-
305	CLIP; ENG HARNESS (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (F) ID=19 H=33 L=45	1-09701-045-0	01	1	0809-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0803-
305	CLIP; ENG HARNESS (H) ID=11 L=45	8-94296-897-1	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (H) ID=11 L=45	8-94296-897-1	01	1	0809-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0803-1310
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (C) L=100	8-94443-021-1	01	1	1311-
305	CLIP; ENG HARNESS (B) ID=18 L=44	8-97367-985-1	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> (B) ID=18 L=44	8-97367-985-1	01	1	0809-
305	CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0803-0808
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-0908
305	CLIP; ENG HARNESS EURO4 SPECIFICATION<NT4> AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5	8-94178-108-0	01	1	0909-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION<NT2> (G) ID=21 L=47.5	8-94178-108-0	01	1	0909-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0803-

48 14 48 194 206 217 225 612 81 225 228 14 178 178 1 1 224 1 48 208 102 16 14 612 503 503 530 538 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0803-0808
1	SLEEVE; RUBBER EURO4 SPECIFICATION<NT4> (B) ID=23 OD=27 L=80	8-97608-976-0	06	1	0809-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0803-0808
1	SLEEVE; RUBBER EURO2 SPECIFICATION<NT2> (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> GLOW SYSTEM DELETE<7RK> (C) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (D) L=251	8-97619-917-0	01	1	0910-
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (C) L=250	5-09707-030-1	08	1	0809-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION<NT2> (C) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	14	1	0803-0808
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (C) L=250	5-09707-030-1	14	1	0809-0909
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (C) L=250	5-09707-030-1	13	1	0910-1205
14	CLIP; BAND,HARNESS EURO4 SPECIFICATION<NT4> (C) L=250	8-98216-430-0	13	1	1206-
14	CLIP; BAND,HARNESS TACHOGRAPH DIGITAL<EBB> KD PREPARATORY PACK<6HF> (C) L=250	5-09707-030-1	15	1	0803-0805
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0803-
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	01	1	0803-1109
16	CLIP; HARNESS (L) L=350	1-09707-183-0	02	1	0803-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (M) OD=9 H=6	1-09709-178-0	01	1	0804-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (E) ID=11 L=16	0-95235-025-0	02	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (I) ID=11X2 L=16	1-09700-734-0	01	1	0803-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (K) ID=5-12 L=14.5	1-09987-221-0	03	1	0803-
16	CLIP; HARNESS (F) ID=11 L=60	0-95235-096-0	01	1	0803-0807
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0803-
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	03	1	0803-0803
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	01	1	0803-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0803-
16	CLIP; HARNESS (G) L=60	8-94449-165-0	02	1	0803-0803
16	CLIP; HARNESS (N) L=40.6	8-97229-357-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (N) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (N) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS (H) L=36.5	8-97019-892-0	02	1	0803-0803
16	CLIP; HARNESS (B) L=155	8-97173-307-0	18	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	0803-0808
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W),WHEEL BASE 5500MM(55W) (L) ID=13-18 L=18	1-09709-291-0	01	1	0805-
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (D) ID=20 L=50	9-09917-430-0	02	1	0809-1201
48	CLIP; FRAME HARNESS EURO4 SPECIFICATION<NT4> (M) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	11	1	0803-0902
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	09	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	09	1	1008-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (H) ID=17.5X2 L=25	5-09700-358-0	01	1	0803-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	14	1	0803-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (M) ID=14 L=44	9-09917-427-0	13	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	18	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	17	1	0805-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (M) ID=14 L=44	9-09917-427-0	15	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	22	1	0803-0804
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	21	1	0805-0902
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (D) ID=20 L=50	9-09917-430-0	20	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 5500MM(55W) (M) ID=14 L=44	9-09917-427-0	20	1	1008-
48	CLIP; FRAME HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (G) ID=32 L=50	1-09701-055-1	01	1	0803-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0803-0901
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	0902-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0803-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0803-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0803-
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0803-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0803-
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	0803-0808
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION<NT2> (M) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0803-
48	CLIP; FRAME HARNESS EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (I) ID=35 L=50	1-09701-214-0	01	1	0803-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	0803-1010
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) OD=9 H=6	1-09709-178-0	01	1	1011-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=180	1-09707-162-1	01	1	0803-0901
81	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0803-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0803-0911
178	GROMMET; HARNESS EURO2 SPECIFICATION<NT2> (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0805-0806
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0807-0811
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-
178	GROMMET; HARNESS ANTI LOCK BRAKE(JE5) (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0803-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	04	1	0803-0804
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0805-0806
194	CLIP; BAND L=250	5-09707-030-1	01	1	0803-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	0803-0901
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	03	1	0902-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0803-0901
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0803-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0803-
224	SLEEVE; RUBBER,HARNESS ID=10 OD=14 L=30	9-09956-682-0	01	1	0803-0803
225	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0803-
225	CLIP; AIR TANK HARNESS (B) L=250	5-09707-030-1	01	1	0803-1011
228	CLIP; COOLER HARNESS L=180	1-09707-162-1	01	1	0804-0807
503	CONNECTOR EXC. AIR DRYER<PS7> (B)	1-82690-666-0	01	1	0809-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0804-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0803-0808
503	CONNECTOR EURO4 SPECIFICATION<NT4> EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0809-0908
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0909-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0803-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0803-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP>,REMOTE CONT DOOR LOCK<6NF> 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE (A) OD=25 BLACK	1-76798-019-0	01	1	0803-
538	SEAL; HOLE (B) 25X25	8-94272-533-0	01	1	0803-0807
612	CLIP; HARNESS DPD (F) ID=4.76 & 10.0	1-09709-305-0	03	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (F) ID=4.76 & 10.0	1-09709-305-0	03	1	0809-
612	CLIP; HARNESS DPD WHEEL BASE 3700MM(37W) (C) T=6.0	8-97371-948-0	03	1	0803-0804
612	CLIP; HARNESS DPD WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W), WHEELBASE 5500MM(55W) (E) T=9 & 10.5	8-97371-949-0	03	1	0803-0804
612	CLIP; HARNESS DPD (A) ID=11 L=41	1-09700-403-0	01	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (A) ID=11 L=41	1-09700-403-0	01	1	0809-
612	CLIP; HARNESS DPD (D) L=135	1-09987-143-1	01	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (D) L=135	1-09987-143-1	01	1	0809-
612	CLIP; HARNESS DPD (B) L=250	5-09707-030-1	01	1	0803-0808
612	CLIP; HARNESS DPD CATALYSIS CONTROL WITH DPD<8JM> (B) L=250	5-09707-030-1	01	1	0809-

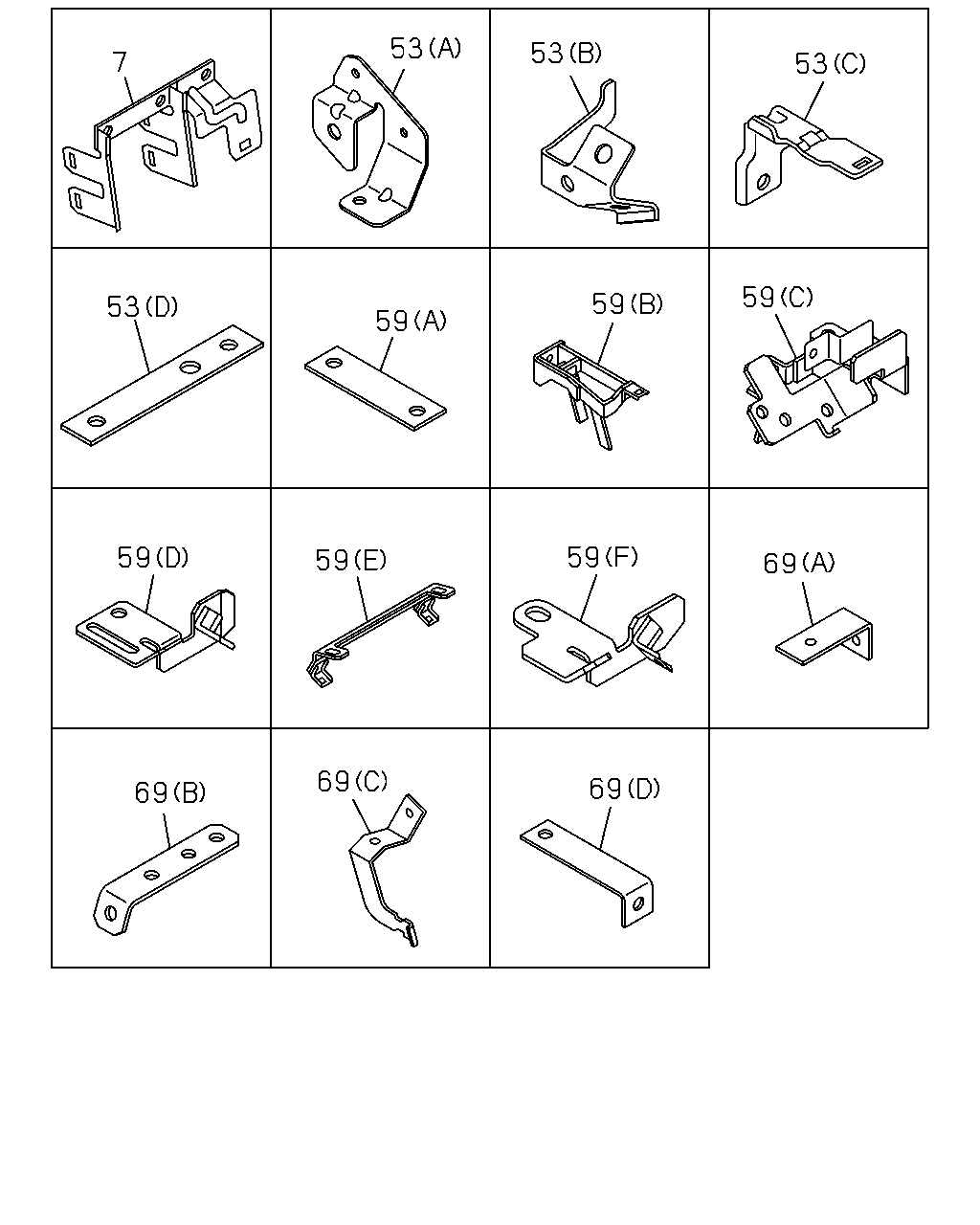

7 53 53 53 53 59 59 59 59 59 59 69 69 69 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0803-
53	BRACKET; HARNESS EURO2 SPECIFICATION<NT2> (D) L=170	1-47479-380-0	01	1	0809-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	0803-
53	BRACKET; HARNESS (B)	8-98074-502-0	01	1	0803-0807
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-98084-699-0	01	1	0803-0808
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS MLD6S M/T(X7W) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97627-325-0	01	1	0806-
59	BRACKET; FRAME HARNESS (B)	8-97609-264-2	01	1	0803-0803
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW) (B)	8-97609-264-2	01	1	0804-0906
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	0907-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0803-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0803-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	0803-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	0803-
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=55	1-47475-304-0	01	1	0803-0803
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-82698-167-0	01	1	0804-0812
69	BRACKET; CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (D) L=95	1-82699-085-0	01	1	0901-
69	BRACKET; CLIP (C)	8-97616-357-3	01	1	0803-

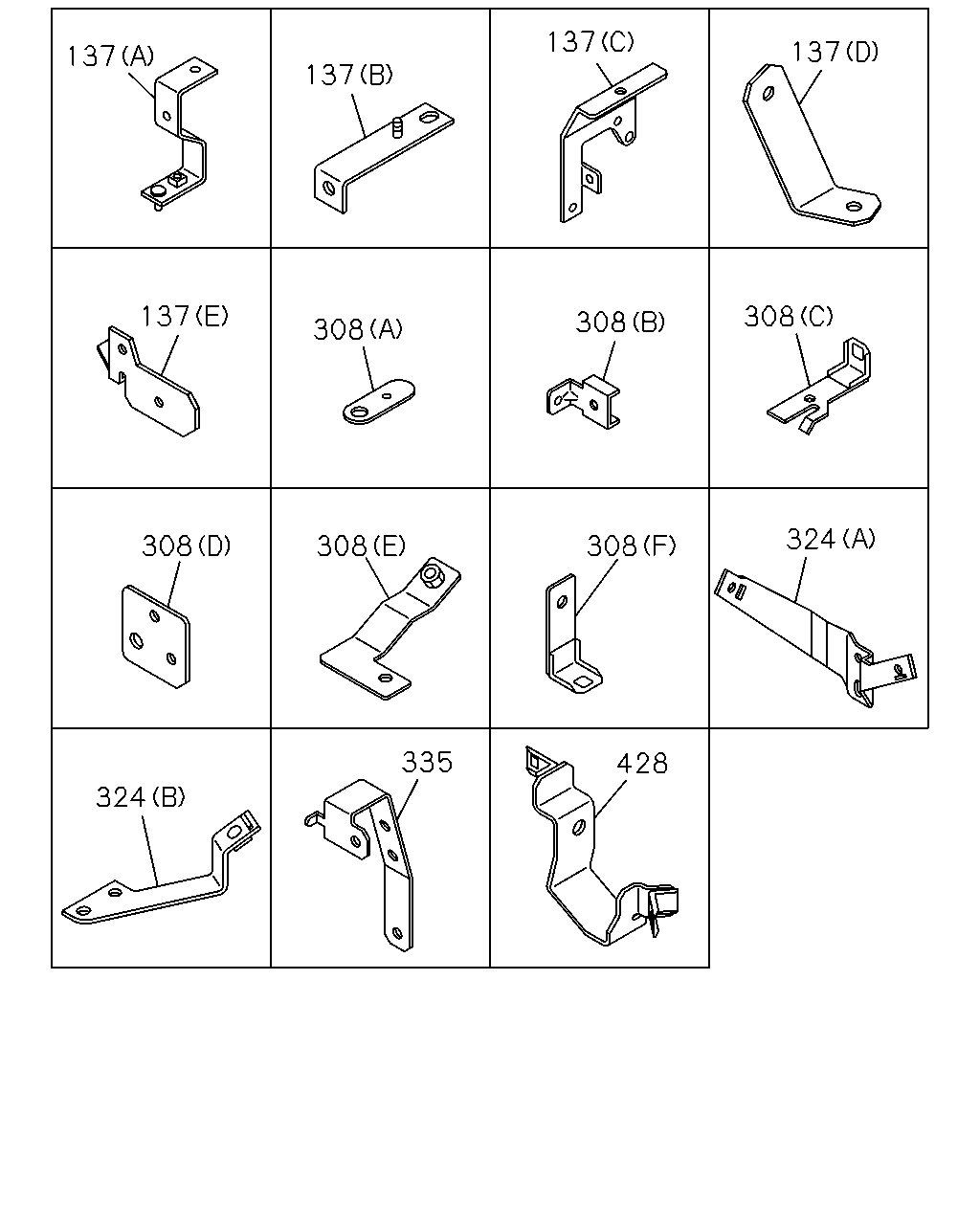

137 137 137 137 137 308 308 308 324 308 308 308 335 428 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (C)	8-97618-098-2	01	1	0803-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (E)	8-98059-231-1	01	1	0803-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (A)	8-98065-904-0	01	1	0803-
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	0803-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0803-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (A)	8-97601-310-0	02	1	0809-1010
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (E)	8-98032-178-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION<NT2> (F)	8-98075-824-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	03	1	0803-0808
308	BRACKET; CLIP,ENG HARNESS EURO4 SPECIFICATION<NT4> (A)	8-97601-310-0	03	1	0809-1010
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1011-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97614-078-0	01	1	0803-0808
308	BRACKET; CLIP,ENG HARNESS EURO4 SPECIFICATION<NT4> (B)	8-97614-078-0	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0803-0808
308	BRACKET; CLIP,ENG HARNESS EURO4 SPECIFICATION<NT4> (C)	8-98021-291-2	01	1	0809-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0803-0908
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	0909-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) (A)	8-98061-653-2	01	1	0803-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) (B)	8-98061-654-2	01	1	0803-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0803-
428	BRACKET	8-98090-952-0	01	1	0803-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
