8-01 — LAMP; FRONT AND FRONT SIDE (#66451) — 136 parça

1 4 339 338 408 420 20 23 457 382 5 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-483-2	01	1	0809-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-601-0	01	1	1209-1301
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-642-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1306-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-484-2	01	1	0809-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-602-0	01	1	1209-1301
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-643-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1306-
1	LAMP ASM; HEAD	8-98098-481-2	01	1	0803-0808
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-481-2	01	1	0809-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-597-0	01	1	1209-1301
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-638-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-323-0	01	1	1306-
1	LAMP ASM; HEAD	8-98098-482-2	01	1	0803-0808
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-482-2	01	1	0809-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-598-0	01	1	1209-1301
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-639-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-324-0	01	1	1306-
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-406-0	01	1	0809-1301
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-188-0	01	1	1302-
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-407-0	01	1	0809-1301
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-189-0	01	1	1302-
4	HEADLAMP UNIT	8-98051-404-0	01	1	0803-0808
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-404-0	01	1	0809-1301
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-184-0	01	1	1302-
4	HEADLAMP UNIT	8-98051-405-0	01	1	0803-0808
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-405-0	01	1	0809-1301
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98226-185-0	01	1	1302-
5	BULB; HEADLAMP (B) 24V 5W	1-82194-042-0	02	1	0803-
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	0803-
20	SCREW; HEADLAMP	8-97378-871-0	06	1	0803-
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	0803-
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1209-
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1209-
382	PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	0803-1208
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1209-
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	0803-
420	SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	0803-1301
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1302-
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1306-

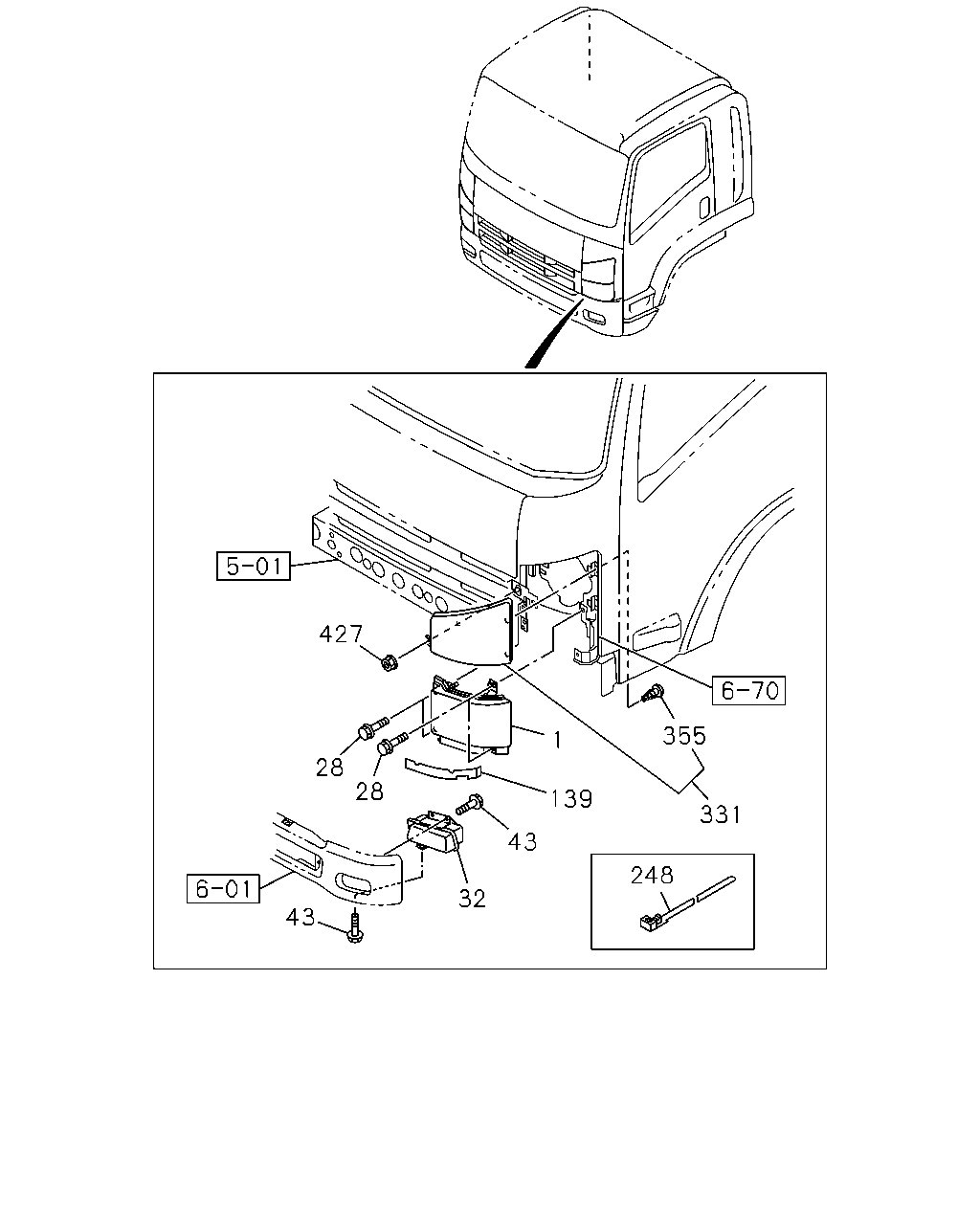

427 355 1 28 28 139 331 43 248 32 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-483-2	01	1	0809-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-601-0	01	1	1209-1301
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-642-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-327-0	01	1	1306-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-484-2	01	1	0809-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-602-0	01	1	1209-1301
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-643-0	01	1	1302-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-328-0	01	1	1306-
1	LAMP ASM; HEAD	8-98098-481-2	01	1	0803-0808
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-481-2	01	1	0809-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-597-0	01	1	1209-1301
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-638-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-323-0	01	1	1306-
1	LAMP ASM; HEAD	8-98098-482-2	01	1	0803-0808
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-482-2	01	1	0809-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-598-0	01	1	1209-1301
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-639-0	01	1	1302-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-324-0	01	1	1306-
28	BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	0803-1005
28	BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1006-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97378-908-1	01	1	0803-0906
32	LAMP ASM; FOG FOG LAMP<T96>	8-98149-143-1	01	1	0907-1301
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97378-909-1	01	1	0803-0906
32	LAMP ASM; FOG FOG LAMP<T96>	8-98149-144-1	01	1	0907-1301
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1302-
43	BOLT; FOG LAMP FOG LAMP<T96> M6X19.5 W/LK&PL WASHER	8-97360-226-0	06	1	0803-
139	COVER; HEADLAMP	8-98054-342-0	02	1	0803-
248	CLIP; HARNESS EXC. FOG LAMP<T96> L=140	5-09707-031-1	02	1	0803-
331	LAMP; TURN SIGNAL	8-97585-172-2	01	1	0803-0911
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	0912-
331	LAMP; TURN SIGNAL	8-97585-173-2	01	1	0803-0911
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	0912-
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	0803-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0803-0807
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0808-0808
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0808-0808
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0809-
427	NUT; TURN SIGNAL LAMP EXC. CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	0809-

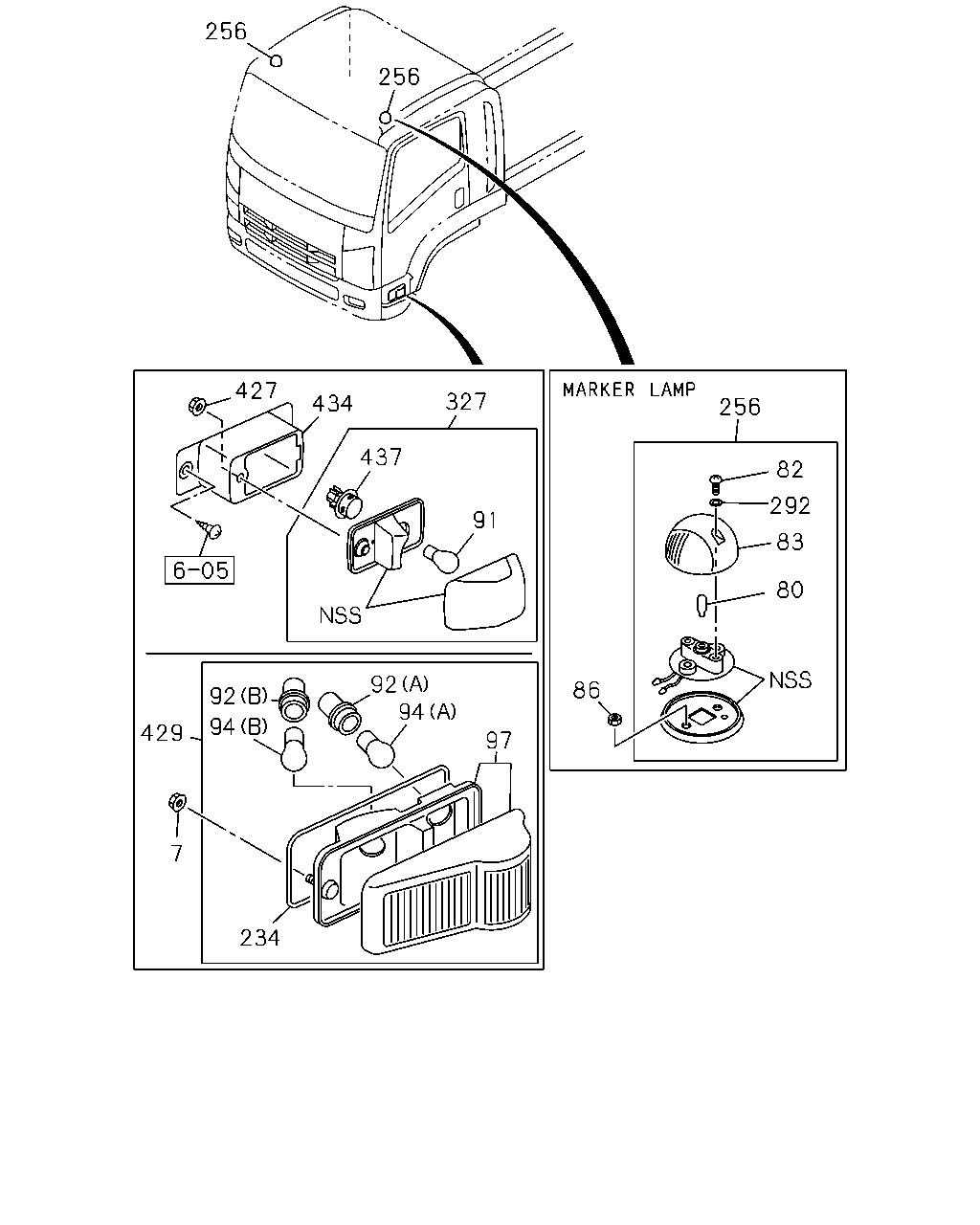

256 256 427 327 434 256 437 82 292 91 83 80 92 94 86 92 94 429 97 7 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	NUT; FRT COMB LAMP CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	0809-
7	NUT; FRT COMB LAMP M6 FLANGE	0-91180-106-0	02	1	0803-0807
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> 24V 5W	8-94135-397-0	02	1	0803-
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	0803-
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	8-98057-958-0	02	1	0803-
86	NUT; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> M6 FLANGE	0-91180-106-0	04	1	0803-
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	0803-0808
91	BULB; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87> 24V 21W	8-98051-495-0	02	1	0809-
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (B)	8-97172-959-0	02	1	0809-
92	SOCKET ASM; SIDE COMB LAMP CORNERING LAMP<T87> (A)	8-98051-390-0	02	1	0809-
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (A) 24V 21W	8-98051-495-0	02	1	0809-
94	BULB; SIDE COMB LAMP CORNERING LAMP<T87> (B) 24V 21W	8-98051-496-0	02	1	0809-
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-419-0	01	1	0809-
97	LAMP UNIT; COMB CORNERING LAMP<T87>	8-98051-420-0	01	1	0809-
234	GASKET; SIDE COMB LAMP CORNERING LAMP<T87>	8-98051-432-0	02	1	0809-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-98097-466-3	01	1	0803-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-98097-467-3	01	1	0803-
292	WASHER; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	0803-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	0803-0808
327	LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-180-4	01	1	0809-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	0803-0808
327	LAMP ASM; SIDE TURN SIGNAL EXC. CORNERING LAMP<T87>	8-97410-181-3	01	1	0809-
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0803-0807
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0808-0808
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0808-0808
427	NUT; TURN SIGNAL LAMP M6 FLANGE	0-91180-106-0	02	1	0809-
427	NUT; TURN SIGNAL LAMP EXC. CORNERING LAMP<T87> M6 FLANGE	0-91180-106-0	02	1	0809-
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-776-2	01	1	0809-
429	LAMP ASM; SIDE COMB CORNERING LAMP<T87>	8-98039-777-2	01	1	0809-
434	BASE; LAMP,SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	8-98063-726-1	01	1	0803-
434	BASE; LAMP,SIDE TURN SIGNAL LIGHTING SYSTEM ECE<SLC>	8-98063-727-1	01	1	0803-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	0803-0808
437	SOCKET; SIDE,TURN EXC. CORNERING LAMP<T87>	8-98051-390-0	02	1	0809-

331 431 357 399 355 432 32 49 44 47 15 421 448 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP FOG LAMP<T96> 24V 70W	1-82194-106-0	02	1	0803-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97378-908-1	01	1	0803-0906
32	LAMP ASM; FOG FOG LAMP<T96>	8-98149-143-1	01	1	0907-1301
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-058-1	01	1	1302-
32	LAMP ASM; FOG FOG LAMP<T96>	8-97378-909-1	01	1	0803-0906
32	LAMP ASM; FOG FOG LAMP<T96>	8-98149-144-1	01	1	0907-1301
32	LAMP ASM; FOG FOG LAMP<T96>	8-98232-059-1	01	1	1302-
36	CORD; FOG LAMP FOG LAMP<T96>	1-82118-015-0	01	1	0803-
36	CORD; FOG LAMP FOG LAMP<T96>	1-82118-016-0	01	1	0803-
44	NUT; FOG LAMP FOG LAMP<T96> M6	8-98217-430-0	02	1	1205-
47	WASHER; PL,FOG LAMP FOG LAMP<T96>	8-98217-429-0	02	1	1205-
49	BRACKET; LAMP FOG LAMP<T96>	8-98051-435-0	01	1	0803-
49	BRACKET; LAMP FOG LAMP<T96>	8-98051-436-0	01	1	0803-
331	LAMP; TURN SIGNAL	8-97585-172-2	01	1	0803-0911
331	LAMP; TURN SIGNAL	8-98155-458-0	01	1	0912-
331	LAMP; TURN SIGNAL	8-97585-173-2	01	1	0803-0911
331	LAMP; TURN SIGNAL	8-98155-459-0	01	1	0912-
355	SCREW; TURN SIGNAL	8-98051-428-0	04	1	0803-
357	BULB; TURN SIGNAL 24V 21W AMBER	8-97323-806-0	02	1	0803-
399	SOCKET; TURN SIGNAL	8-98051-387-0	02	1	0803-
421	TUBE; BREATHER,FOG LAMP FOG LAMP<T96>	8-97025-128-0	02	1	0803-0906
431	CAP; TURN SIGNAL,LAMP	8-97378-874-0	02	1	0803-
432	FASTENER; TURN SIGNAL,LAMP	8-98051-431-0	04	1	0803-
448	CAP ASM; LAMP FOG LAMP<T96>	8-97378-874-0	02	1	0907-
