Sayfa 7-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11120 - FRR-L EU2/4 EXC.SPAC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

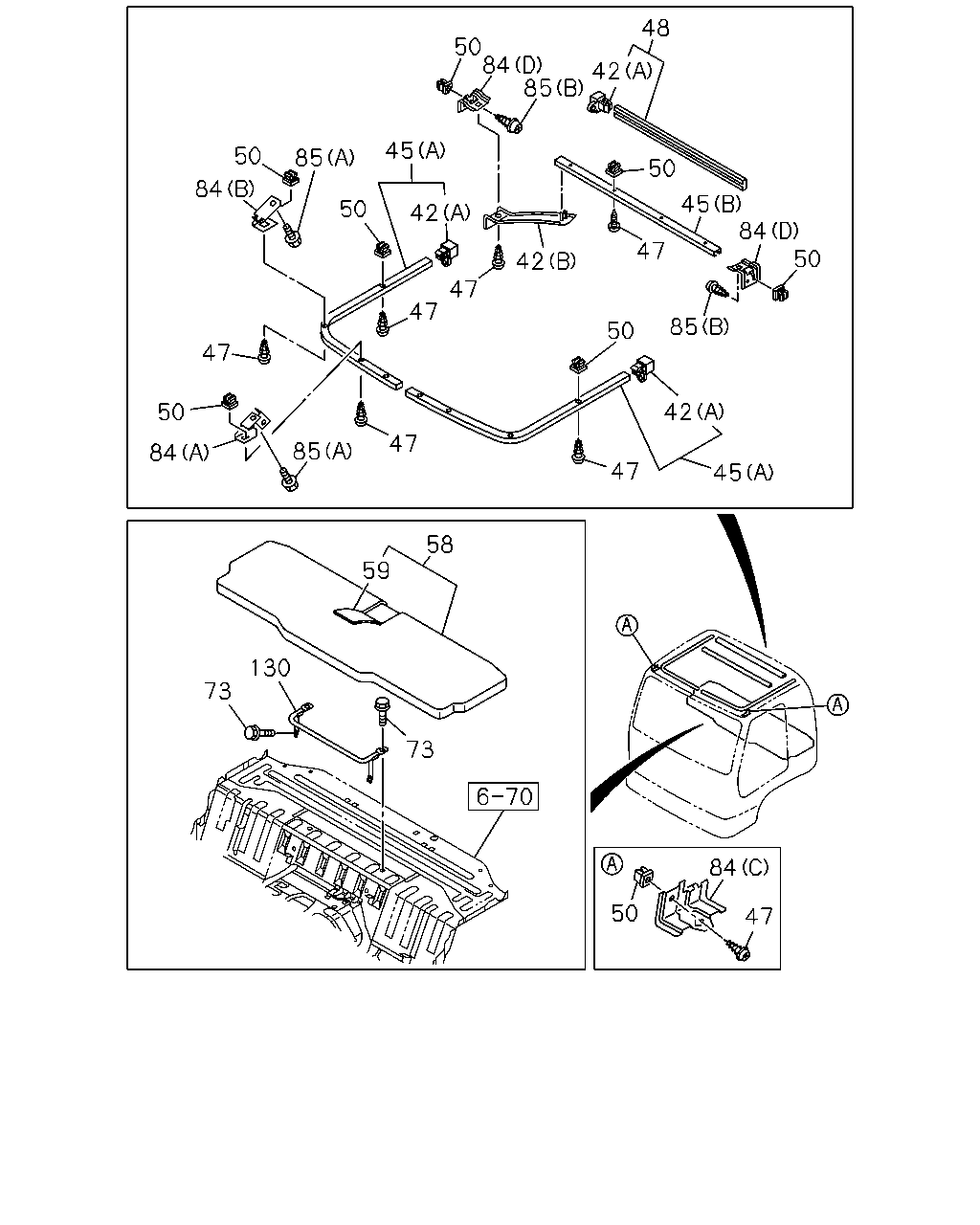

7-70 — SEPARATER AND BED (#66450) — 50 parça

48 50 84 42 85 45 50 85 50 84 45 84 50 50 42 42 47 47 47 85 50 47 42 50 47 85 84 47 45 58 59 130 73 73 84 50 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0803-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0803-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0803-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0803-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-491-4	01	1	0803-0804
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-671-0	01	1	0805-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-493-4	01	1	0803-0804
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-672-0	01	1	0805-
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-485-0	01	1	0803-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0805-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0805-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0803-0804
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0803-0804
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0803-0804
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	0805-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0803-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0803-0804
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0803-0804
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0803-0804
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0805-1405
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0803-0804
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-382-2	01	1	1001-
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	0803-0912
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-772-1	01	1	1001-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-045-1	01	1	1001-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	0803-0912
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-106-0	01	1	1001-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0803-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-289-1	01	1	0803-
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)	8-98074-739-0	01	1	0803-
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0803-1405
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	02	1	0803-0804
84	BRACKET; CURTAIN RAIL (D)	8-98042-152-0	04	1	0805-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0803-0804
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0803-0810
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0803-0810
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0803-
