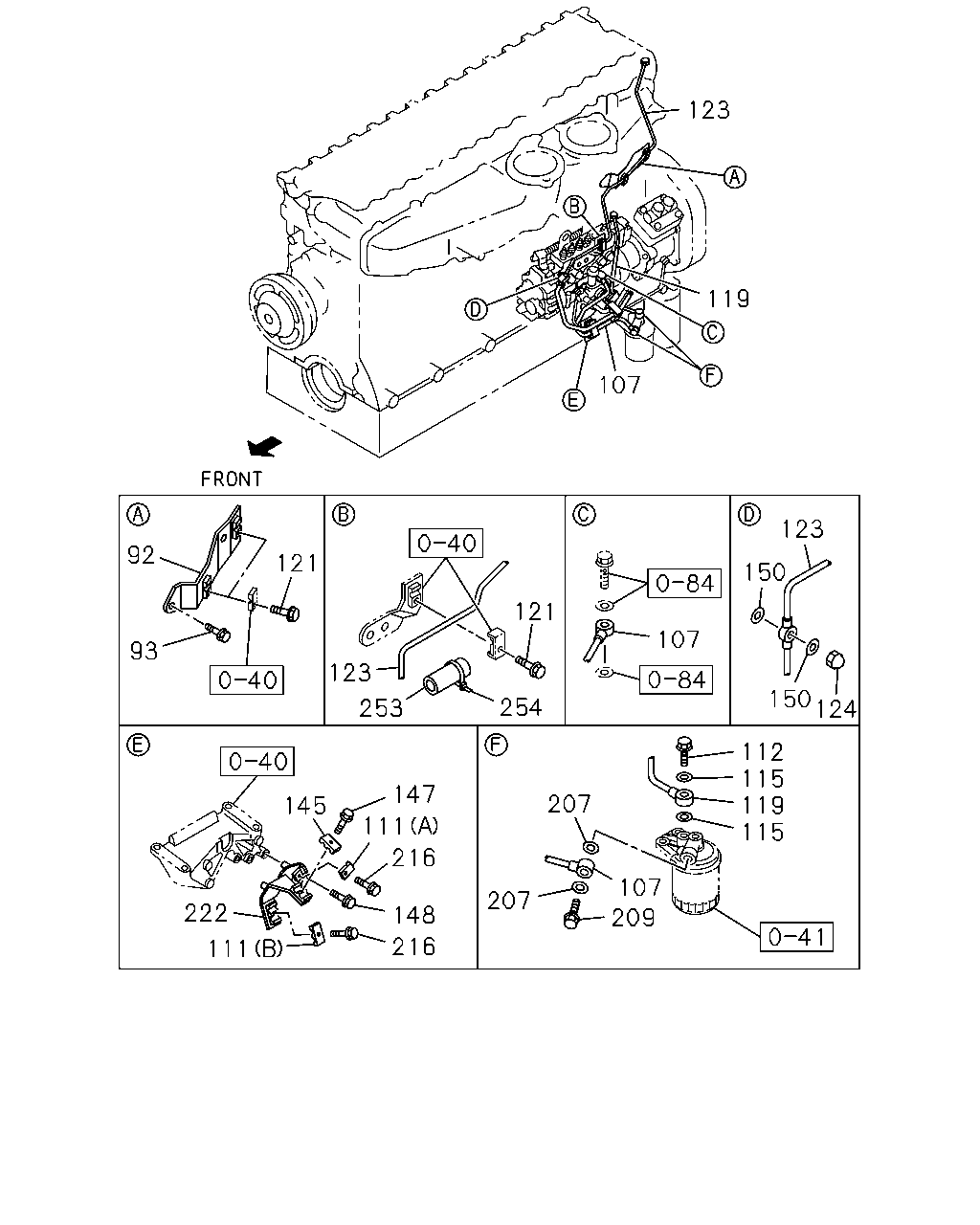

0-42 — FUEL PUMP AND PIPE (#6645) — 23 parça

123 119 107 123 92 121 150 121 107 93 123 150 124 254 253 112 115 119 115 147 207 145 111 216 107 209 207 222 148 216 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
92	BRACKET; FUEL PIPE	8-94391-980-0	01	1	0011-
93	BOLT; PIPE BRKT M8X14 FLANGE	0-28080-814-0	02	1	0011-
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-94392-069-0	01	1	0011-
108	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0201-
110	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0201-
111	CLIP; FUEL PIPE (A)	1-15419-215-1	01	1	0011-
111	CLIP; FUEL PIPE (B) ID=6.0 & 9.5	8-94100-359-0	01	1	0011-
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0011-
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-94392-959-0	01	1	0011-
121	BOLT; CLIP M6X22 FLANGE	0-28080-622-0	03	1	0011-
123	PIPE; FUEL,FUEL FILTER LEAK OFF	8-94392-617-1	01	1	0011-
124	NUT; CAP,FUEL PIPE M14	1-09468-002-1	01	1	0011-
145	CLIP; FUEL PIPE L=48	5-09709-103-0	01	1	0011-
147	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	01	1	0011-
148	BOLT; BRKT M8X50 FLANGE	0-28080-850-0	02	1	0011-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-
207	GASKET; EYE BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-0112
209	BOLT; EYE,FUEL FILTER	1-15619-310-0	01	1	0011-0112
216	BOLT; CLIP,FUEL PIPE M6X30 W/LK WASHER	0-50040-630-0	02	1	0011-
222	BRACKET; CLIP	8-94392-071-0	01	1	0011-
253	COVER; RUBBER ID=6 OD=10 L=70	1-09376-512-0	01	1	0011-
254	CLIP L=250	5-09707-030-1	01	1	0011-
