◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11120 - FRR-L EU2/4 EXC.SPAC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#66449) — 34 parça

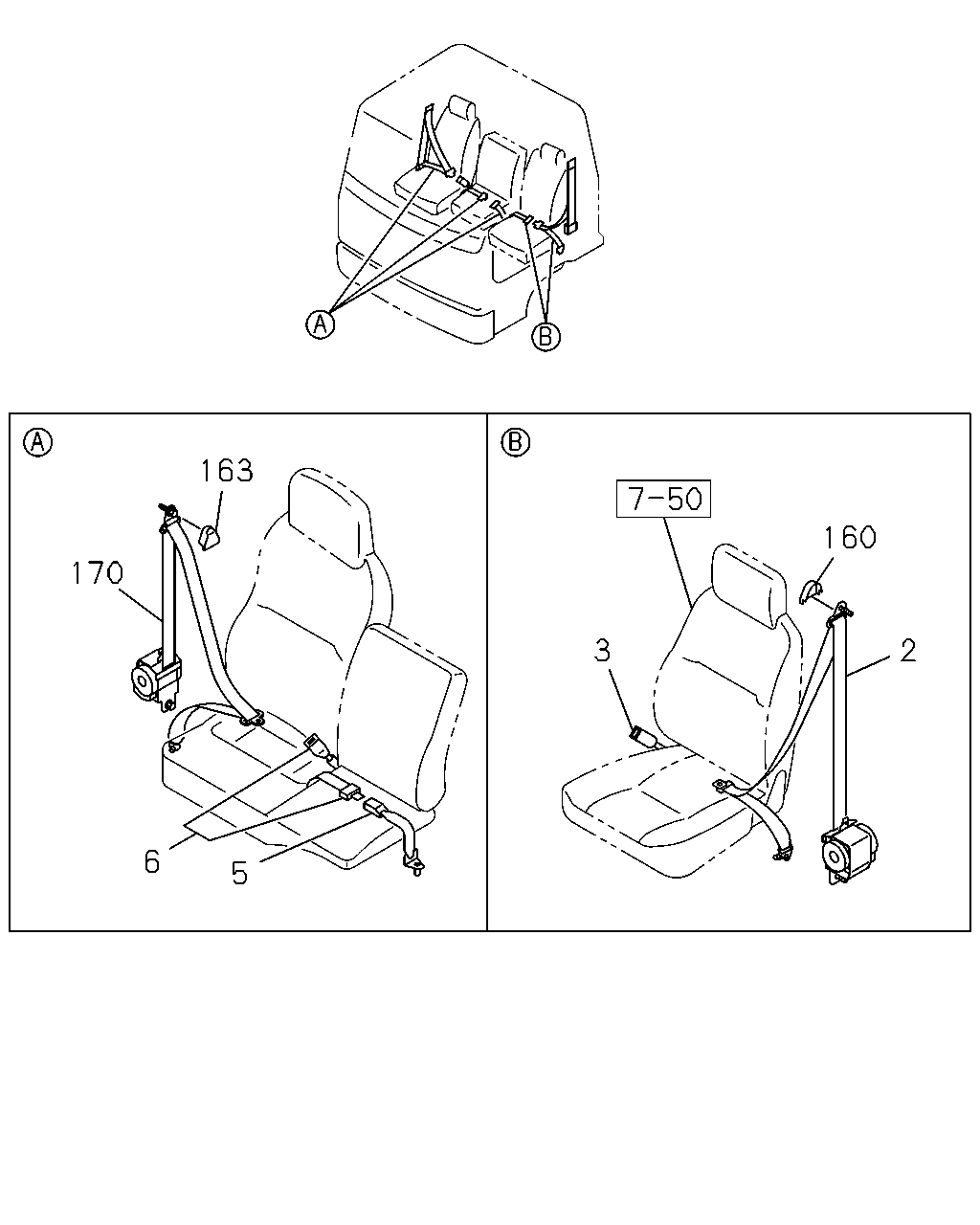

çizim 135846
163 160 170 2 3 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY 		8-97428-089-0 01 1 1311-
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0803-1209
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1310
2 BELT; SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97423-516-1 01 1 1311-1407
2 BELT; SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-435-0 01 1 1408-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 0803-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 0803-
6 BELT; CENTER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97428-090-0 01 1 1311-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-767-3 01 1 0803-1209
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1210-1310
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97423-660-1 01 1 1311-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0803-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0803-
170 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY 		8-97428-089-0 01 1 1311-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0803-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1310
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97423-516-1 01 1 1311-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-435-0 01 1 1408-

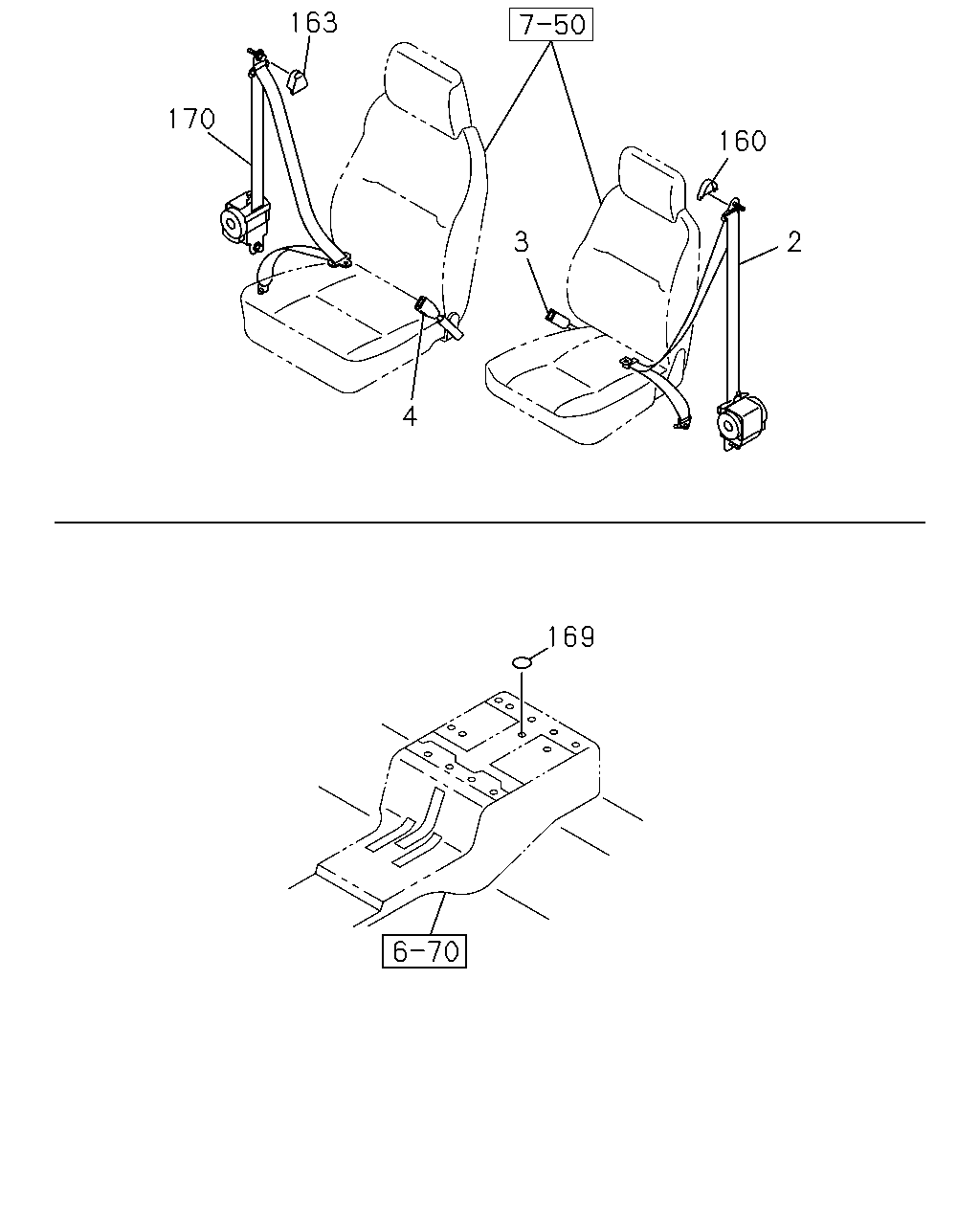

çizim 193087
170 160 2 3 4 169 163
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY 		8-97428-089-0 01 1 1311-
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0803-1209
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1310
2 BELT; SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97423-516-1 01 1 1311-1407
2 BELT; SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-435-0 01 1 1408-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 0803-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE 2 CREWS<SP9> GRAY 		8-97409-769-1 01 1 0803-1310
4 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97409-769-1 01 1 1311-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0803-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0803-
169 SEAL
CENTER SEAT DELETE 2 CREWS<SP9> OD=25 BLACK 		1-76798-019-0 01 1 0803-
170 BELT; PASSENGER SEAT,TONGUE SIDE
TAIWAN EQUIPMENT(B04) GRAY 		8-97428-089-0 01 1 1311-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 0803-1209
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1210-1310
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97423-516-1 01 1 1311-1407
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. TAIWAN EQUIPMENT(B04) GRAY 		8-97428-435-0 01 1 1408-
