Isuzu WW
▶
TRUCKS
▶
FRR
▶
11120 - FRR-L EU2/4 EXC.SPAC
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

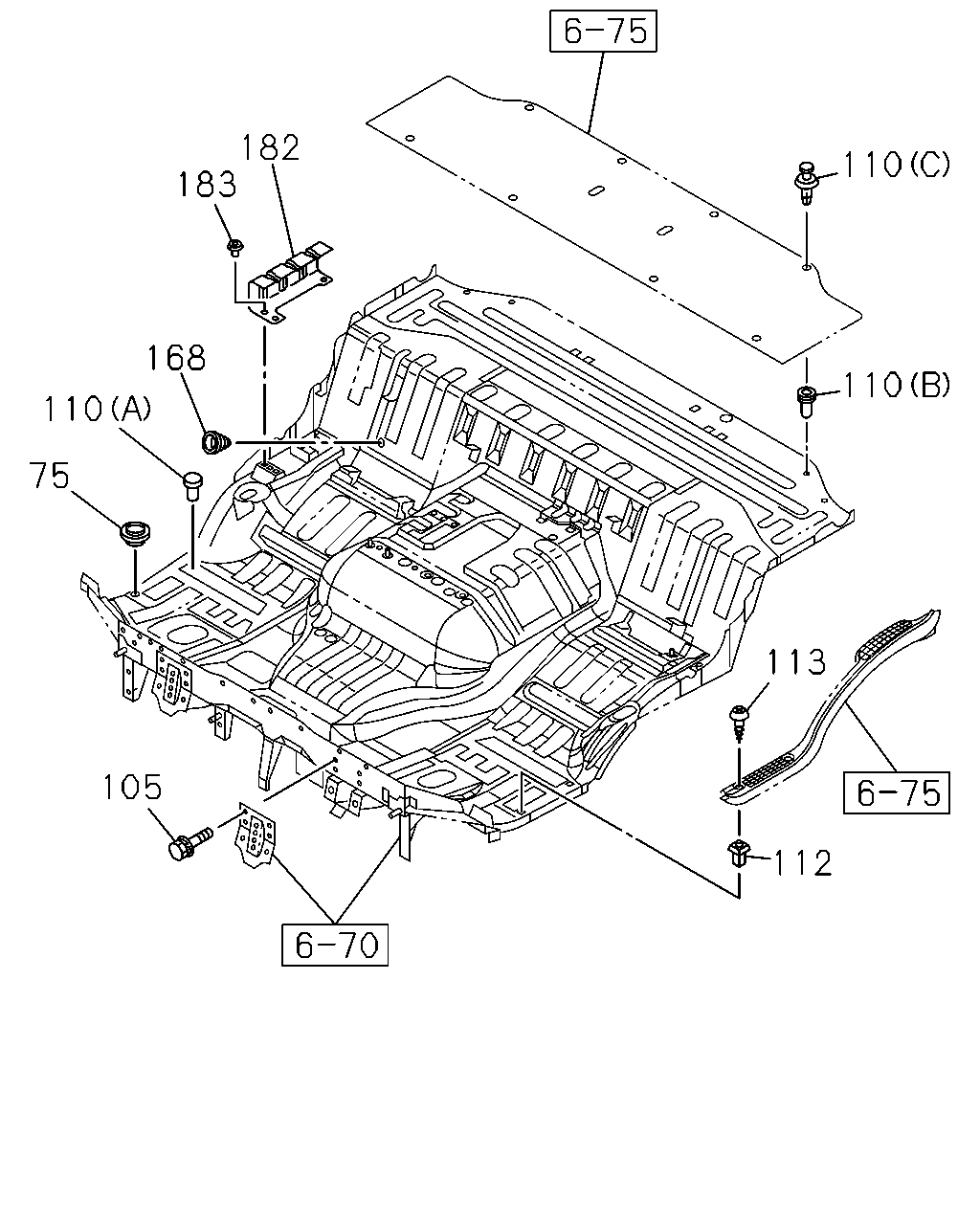

6-78 - FLOOR HOLE PLUG
▶
6-78 — FLOOR HOLE PLUG
(#66435) — 12 parça
182
183
110
168
110
110
75
113
105
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
75
PLUG; RUBBER,FLOOR
OD=23.5
1-09983-101-0
04
1
0803-
105
BOLT; FLOOR
M10X30 FLANGE
0-28661-030-0
16
1
0803-
110
FASTENER; FLOOR MAT
(A) BLACK
8-94279-089-0
08
1
0803-
110
FASTENER; FLOOR MAT
(B)
8-97319-495-0
04
1
0803-
110
FASTENER; FLOOR MAT
(C) GRAY
8-97405-247-0
04
1
0803-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0803-
113
SCREW; TRIM COVER
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
08
1
0803-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0803-
182
REINFORCEMENT; SILL SIDE
8-98056-071-1
01
1
0803-
182
REINFORCEMENT; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4>
8-98056-072-1
01
1
0803-
183
SCREW; SILL SIDE
DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR
8-98066-813-0
03
1
0803-
183
SCREW; SILL SIDE
EXC. DUMP CONTROL LEVER<RC4> T40 M8X16.5 HEXALOBULAR
8-98066-813-0
06
1
0803-
