◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11120 - FRR-L EU2/4 EXC.SPAC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#66432) — 62 parça

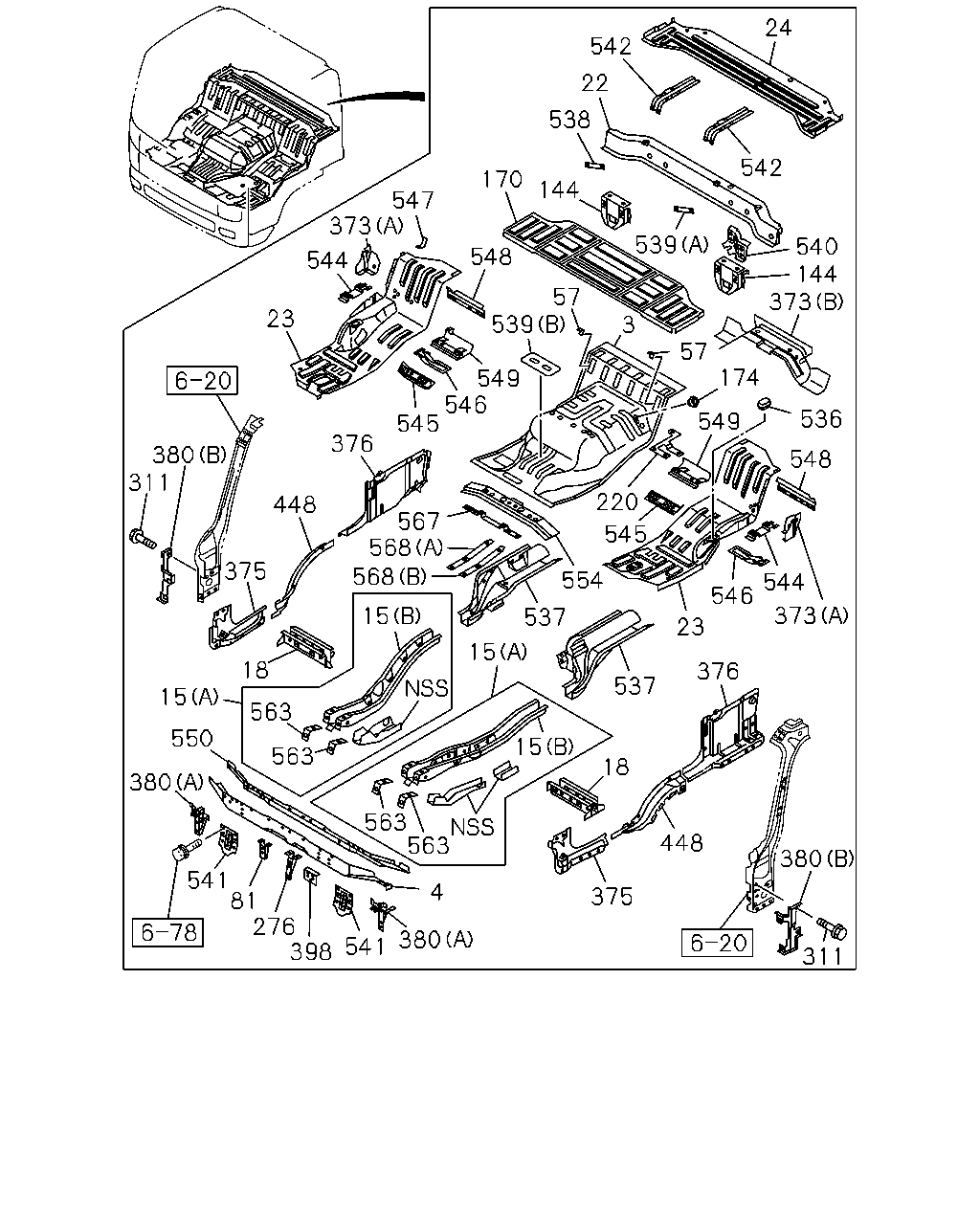

çizim 193076
311 380 448 375 18 376 373 546 23 537 15 563 563 541 4 398 276 81 541 380 15 550 18 563 563 375 568 15 568 567 537 15 380 544 548 536 549 174 373 144 540 542 24 542 22 538 170 547 144 539 57 548 373 544 23 380 311 448 376 545 546 549 539 3 220 554 545 57
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98036-244-5 01 1 0803-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98066-819-3 01 1 0803-
4 FRAME; FLOOR,FRT 8-98077-806-1 01 1 0803-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0803-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0803-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0803-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0803-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0803-
18 FRAME; FLOOR,CENTER SIDE 8-98017-380-2 01 1 0803-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0803-
23 PANEL; FLOOR,SIDE 8-98080-738-0 01 1 0803-
23 PANEL; FLOOR,SIDE 8-98017-358-5 01 1 0803-
24 PANEL; BED PAN 8-97584-377-6 01 1 0803-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0803-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0803-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0803-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0803-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 0803-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0803-
220 PATCH 8-97589-704-0 01 1 0803-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0803-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0803-
373 REINFORCEMENT; SEAT BELT
(B) 		8-98017-308-4 01 1 0803-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0803-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0803-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0803-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0803-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0803-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0803-
380 BRACKET; HEAD LAMP
(A) 		8-97589-707-1 01 1 0803-
380 BRACKET; HEAD LAMP
(A) 		8-97589-708-1 01 1 0803-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0803-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0803-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0803-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0803-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0803-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0803-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0803-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0803-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0803-
539 PATCH ASM; SAFTY HOOK
KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98131-661-0 01 1 0809-
539 PATCH ASM; SAFTY HOOK
(A) 		8-97584-440-2 01 1 0803-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0803-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0803-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0803-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0803-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0803-
545 BRACKET; SEAT FRT 8-97589-705-0 01 1 0803-
545 BRACKET; SEAT FRT 8-97589-706-0 01 1 0803-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0803-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0803-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0803-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0803-
549 BRACKET; SEAT RR 8-98017-363-1 01 1 0803-
549 BRACKET; SEAT RR 8-98017-370-1 01 1 0803-
550 CLOSING ASM; MTG,FRT 8-97589-709-3 01 1 0803-
554 REINFORCEMENT; FLOOR CENTER 8-98017-330-1 01 1 0803-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0803-
567 REINFORCEMENT; CONT LEVER 8-98046-522-3 01 1 0803-
568 BRACKET; ACCEL STOPPER
(A) 		8-98089-177-0 01 1 0803-
568 BRACKET; ACCEL STOPPER
(B) 		8-98089-178-0 01 1 0803-
