6-20 — SIDE PANEL AND STEP (#66423) — 81 parça

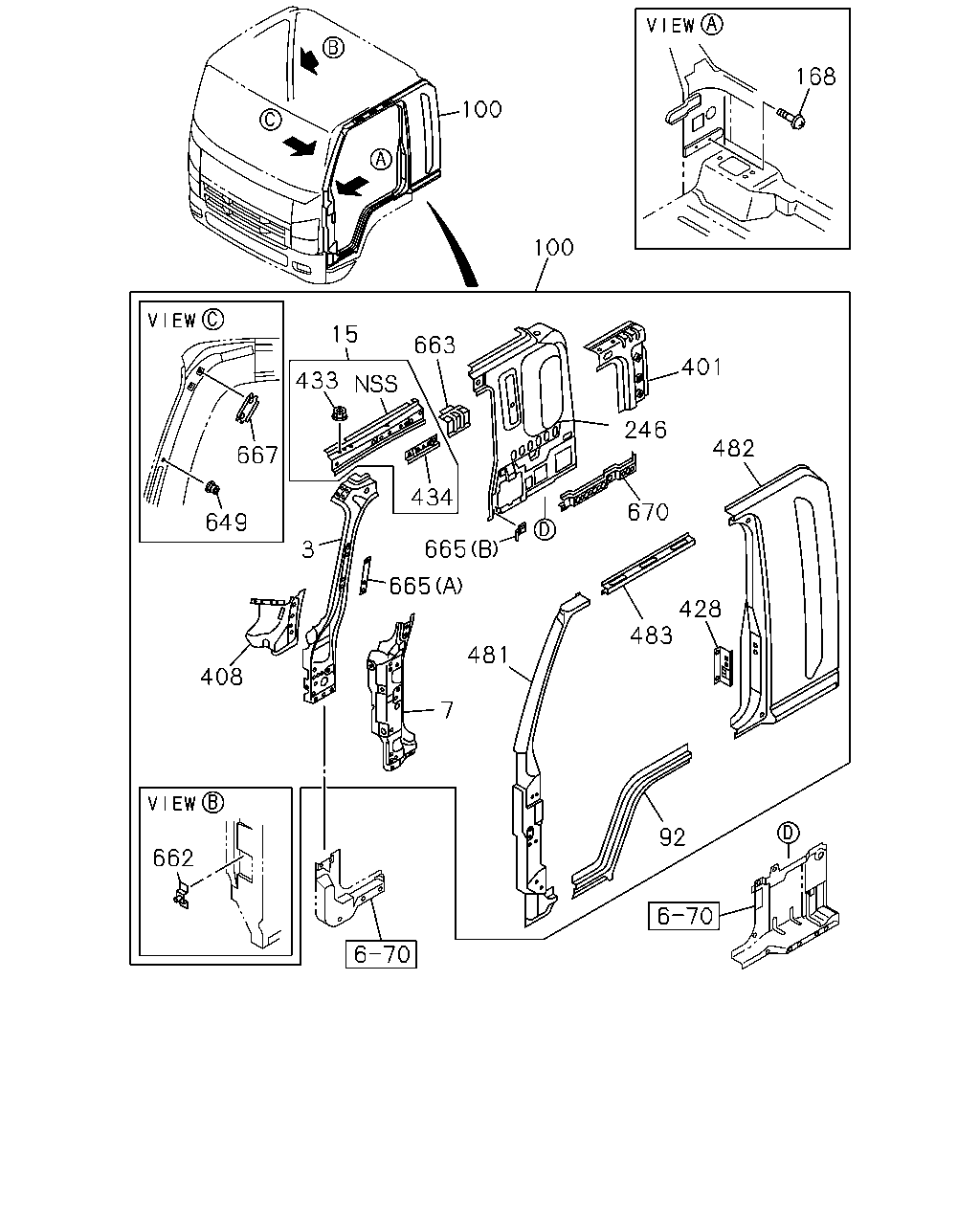

çizim 126492
168 100 100 15 663 401 433 246 482 667 434 670 649 665 3 665 428 483 481 408 7 92 662
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0803-
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0803-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0803-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0803-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0803-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0803-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0803-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0803-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-068-5 01 1 1510-
100 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04) LAMPS TWO ROOF MARKER<TEC> KD PREPARATORY PACK<6HF> 		8-97586-076-6 01 1 0811-1509
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. TAIWAN EQUIPMENT(B04),KD PREPARATORY PACK<6HF> 		8-97586-076-6 01 1 1510-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> KD PREPARATORY PACK<6HF> 		8-97586-076-6 01 1 1510-
100 PANEL ASM; BODY SIDE
EXC. TAIWAN EQUIPMENT(B04),LAMPS TWO ROOF MARKER<TEC> 		8-97586-074-5 01 1 0809-0810
100 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04) KD PREPARATORY PACK<6HF> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-074-6 01 1 0811-
100 PANEL ASM; BODY SIDE
EXC. TAIWAN EQUIPMENT(B04),LAMPS TWO ROOF MARKER<TEC> 		8-97586-074-6 01 1 0811-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-97586-067-5 01 1 0809-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-98020-223-7 01 1 0803-0808
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98020-223-7 01 1 0809-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> 		8-98088-589-3 01 1 0803-0808
100 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04) LAMPS TWO ROOF MARKER<TEC> 		8-98088-589-3 01 1 0809-0810
100 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04) LAMPS TWO ROOF MARKER<TEC> EXC. KD PREPARATORY PACK<6HF> 		8-98088-589-4 01 1 0811-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 0803-0808
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98059-479-7 01 1 0809-
100 PANEL ASM; BODY SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98088-588-3 01 1 0803-0808
100 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04) EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98088-588-3 01 1 0809-0810
100 PANEL ASM; BODY SIDE
TAIWAN EQUIPMENT(B04) EXC. LAMPS TWO ROOF MARKER<TEC>,KD PREPARATORY PACK<6HF> 		8-98088-588-4 01 1 0811-
168 BOLT; BODY SIDE PANEL
M6X16 		0-38050-616-0 08 1 0803-0803
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0803-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0803-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0803-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0803-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0803-
408 GUSSET; PILLAR 8-97586-193-3 01 1 0803-
408 GUSSET; PILLAR 8-97586-194-2 01 1 0803-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0803-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0803-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0803-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0803-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0803-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0803-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-715-1 01 1 1510-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9>,LAMPS TWO ROOF MARKER<TEC> 		8-98072-787-0 01 1 0809-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98092-911-0 01 1 0803-0808
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-98092-911-0 01 1 0809-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> 		8-98093-581-0 01 1 0803-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98072-802-0 01 1 0803-
481 PANEL; SIDE FRT PILLAR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98092-912-0 01 1 0803-0808
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98092-912-0 01 1 0809-
482 PANEL; SIDE RR PILLAR
EXC. TAIWAN EQUIPMENT(B04) 		8-98055-469-0 01 1 0809-0810
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0811-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0803-
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 0803-0808
482 PANEL; SIDE RR PILLAR
TAIWAN EQUIPMENT(B04) 		8-98092-925-0 01 1 0809-0810
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0803-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0803-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0803-
662 BRACKET; DUCT 8-97584-611-1 01 1 0803-
663 BRACKET; AIR 8-97585-207-2 01 1 0803-
663 BRACKET; AIR 8-97585-208-2 01 1 0803-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0803-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0803-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0803-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0803-
667 BRACKET; MIRROR
LAMPS TWO ROOF MARKER<TEC> 		8-98005-264-0 02 1 0803-0806
667 BRACKET; MIRROR 8-98109-948-0 01 1 0807-0808
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 0809-
667 BRACKET; MIRROR
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98005-264-0 01 1 0803-0806
670 STIFFENER; PANEL,SIDE
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98015-044-1 01 1 0803-1007
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0803-1007
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1008-1509
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1008-1509
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1510-

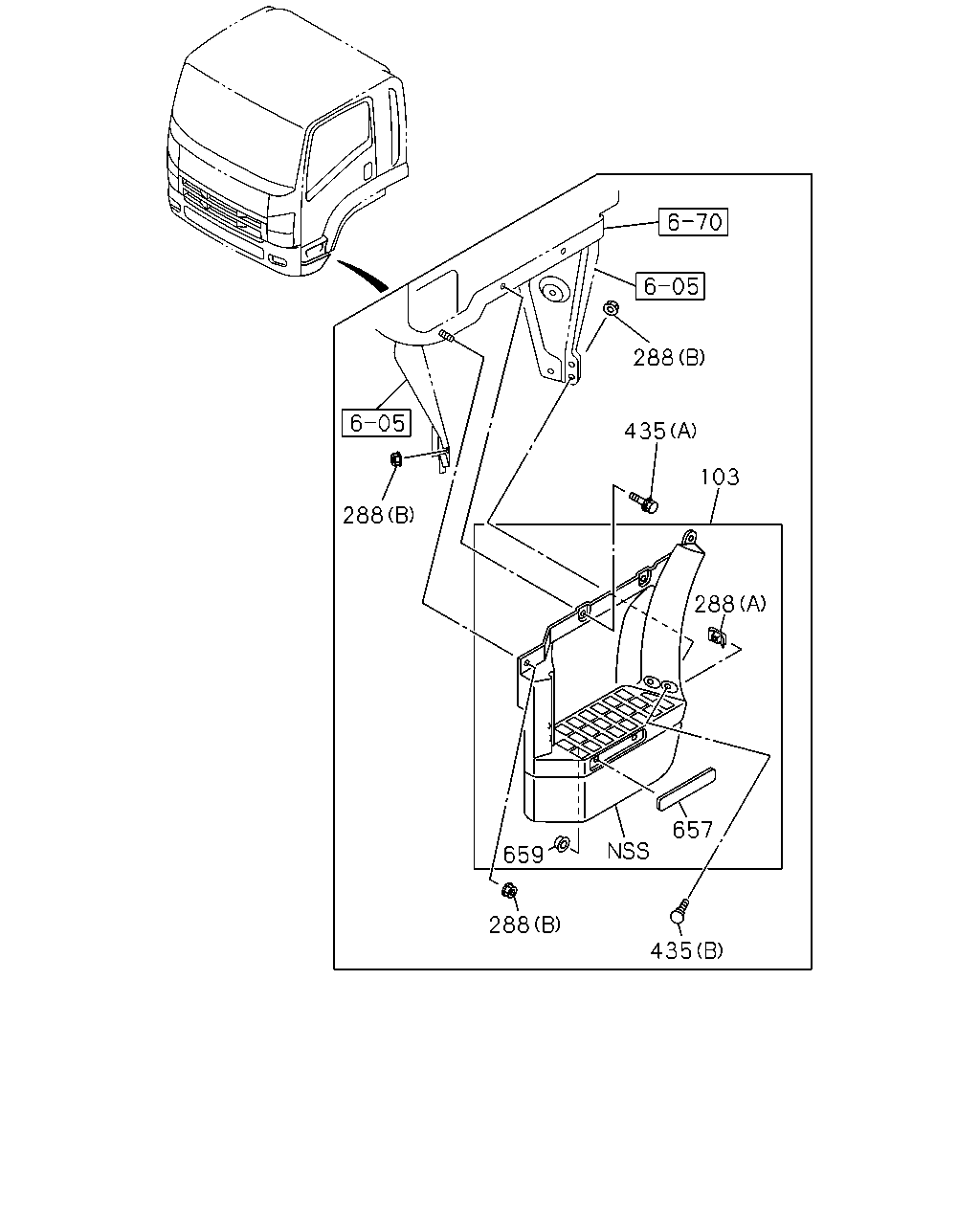

çizim 193069
288 435 103 288 288 657 659 288 435
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-325-3 01 1 0803-
103 PLATE; STEP 8-98037-326-3 01 1 0803-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0803-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0803-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0803-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0803-
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 0803-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0803-
