Isuzu WW
▶
TRUCKS
▶
FTR
▶
10781 - FTR(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

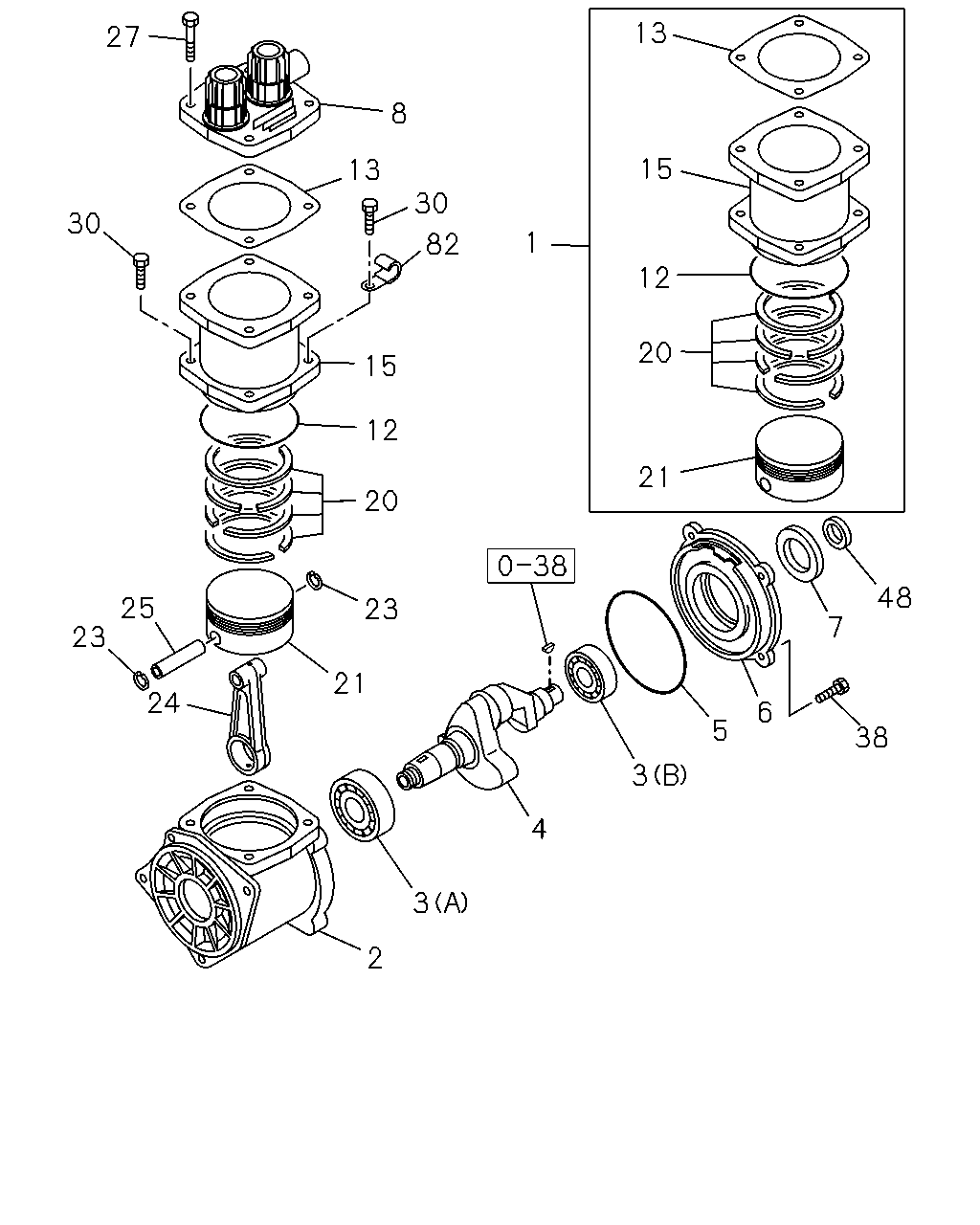

0-39 — AIR COMPRESSOR; BRAKE
(#6642) — 22 parça
13
27
8
15
13
30
30
1
82
12
20
15
12
21
20
48
25
23
7
23
21
24
6
5
38
3
4
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-063-0
01
1
0011-
2
CRANKCASE; AIR CMPR
1-19151-282-2
01
1
0011-
3
BEARING; AIR CMPR
(A)
1-19177-009-0
01
1
0011-
3
BEARING; AIR CMPR
(B)
1-19177-010-0
01
1
0011-
4
CRANKSHAFT; AIR CMPR
1-19171-077-1
01
1
0011-
5
GASKET; AIR CMPR
1-09623-627-0
01
1
0011-
6
COVER ASM; BRG,AIR CMPR
1-19156-075-1
01
1
0011-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
0011-
8
HEAD ASM; CYL,AIR CMPR
1-19110-019-0
01
1
0011-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0011-
13
GASKET; AIR CMPR
1-19115-006-1
01
1
0011-
15
CYLINDER; AIR CMPR
1-19151-285-0
01
1
0011-
20
RING KIT; PISTON,AIR CMPR
1-19163-043-0
01
1
0011-
21
PISTON; AIR CMPR
1-19161-021-0
01
1
0011-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
0011-
24
ROD ASM; CONN,AIR CMPR
1-19173-020-0
01
1
0011-
25
PIN; PISTON,AIR CMPR
9-19167-006-0
01
1
0011-
27
BOLT; HD
1-19119-031-0
04
1
0011-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
0011-
38
BOLT; COVER FIX
1-09100-018-0
02
1
0011-
48
SLEEVE; CR/SHF
1-19179-024-0
01
1
0011-
82
CLIP; AIR COMPRESSOR
1-19159-017-0
01
1
0011-
