Isuzu WW
▶
TRUCKS
▶
FRR
▶
11120 - FRR-L EU2/4 EXC.SPAC
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

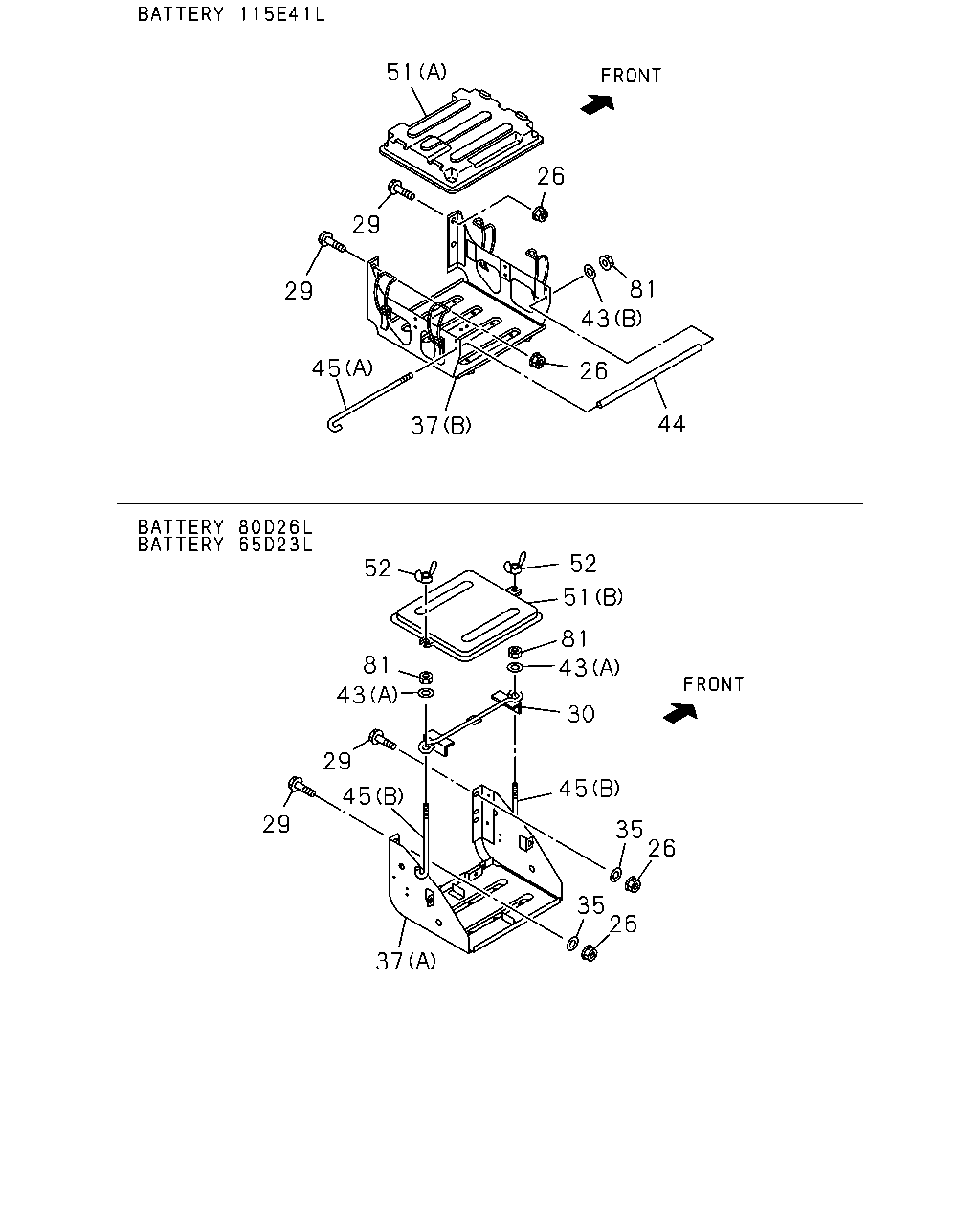

5-20 — BATTERY CARRIER
(#66416) — 17 parça
51
26
29
29
45
37
26
43
81
44
52
52
51
81
43
29
29
45
81
43
30
45
35
26
35
26
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0803-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
0803-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
0803-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
0803-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
0803-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
0803-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
0803-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
0803-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
0803-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
0803-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
0803-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
0803-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
0803-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
0803-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0803-
