◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11120 - FRR-L EU2/4 EXC.SPAC ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#66413) — 76 parça

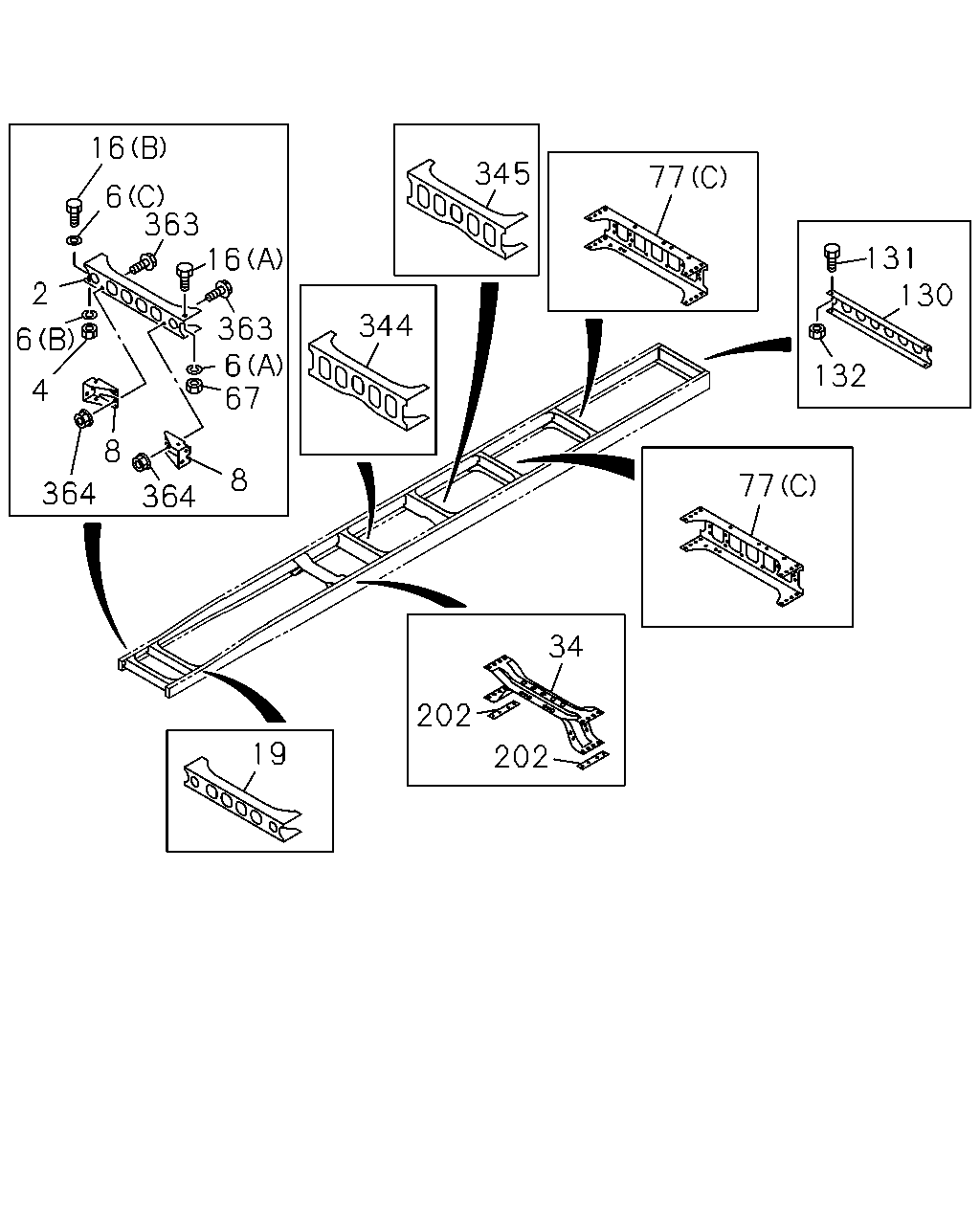

çizim 125400
16 345 77 6 363 16 131 130 2 344 363 6 67 6 132 4 8 8 77 364 364 34 202 19 202
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0803- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0803- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0803- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0803- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0803- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 0803- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 0803- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0803- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0803- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 0803- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0803- ● ● ● ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0803- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0803- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0803- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0803- ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 0803- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0803- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0803- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0803- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0803- ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0803- ● ● ●
345 MEMBER; CROSS,5TH 8-97609-472-2 01 1 0803- ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0803- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0803- ● ● ● ●

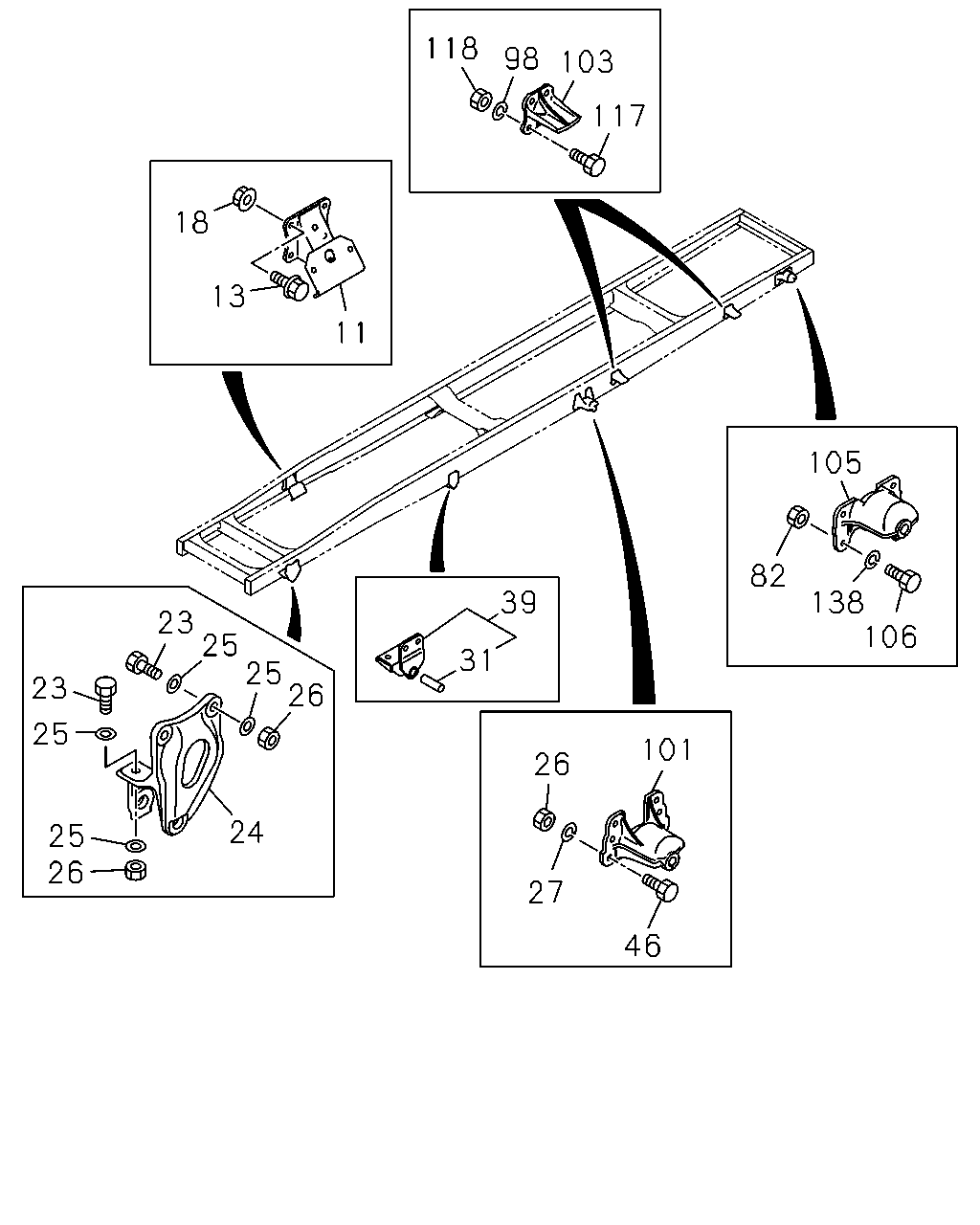

çizim 125577
118 98 103 117 18 13 11 105 82 138 106 39 23 25 25 26 31 23 25 101 26 24 25 26 27 46
BalonParca AdiParca NoAdetTipApplied Date A B C D
11 BRACKET; ENG MTG 8-97609-502-0 02 1 0803- ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0803- ● ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0803- ● ● ● ●
23 BOLT; BRKT,SPR
M14X50 		0-20951-450-0 08 1 0803- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-201-0 01 1 0803- ● ● ● ●
24 BRACKET; FRT SPR,FRT 8-98059-203-0 01 1 0803- ● ● ● ●
25 WASHER; PL,BRKT
ID=15 		8-98010-627-1 16 1 0803- ● ● ● ●
26 NUT; BRKT,SPR
M14 		0-91110-514-0 20 1 0803- ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
ID=14.2 		0-91510-614-0 12 1 0803- ● ● ● ●
31 BUSHING; FRT SPR,RR
ID=25 		8-98082-176-0 02 1 0803- ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-154-2 02 1 0803- ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 12 1 0803- ● ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 10 1 0803- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-614-0 16 1 0803- ● ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-090-4 02 1 0803- ● ● ● ●
103 STOPPER; SUB SPR 1-53356-059-1 04 1 0803- ● ● ● ●
105 BRACKET; RR SPR,RR 1-53354-074-0 02 1 0803- ● ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 10 1 0803- ● ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 0803- ● ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0803- ● ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-614-0 10 1 0803- ● ● ● ●

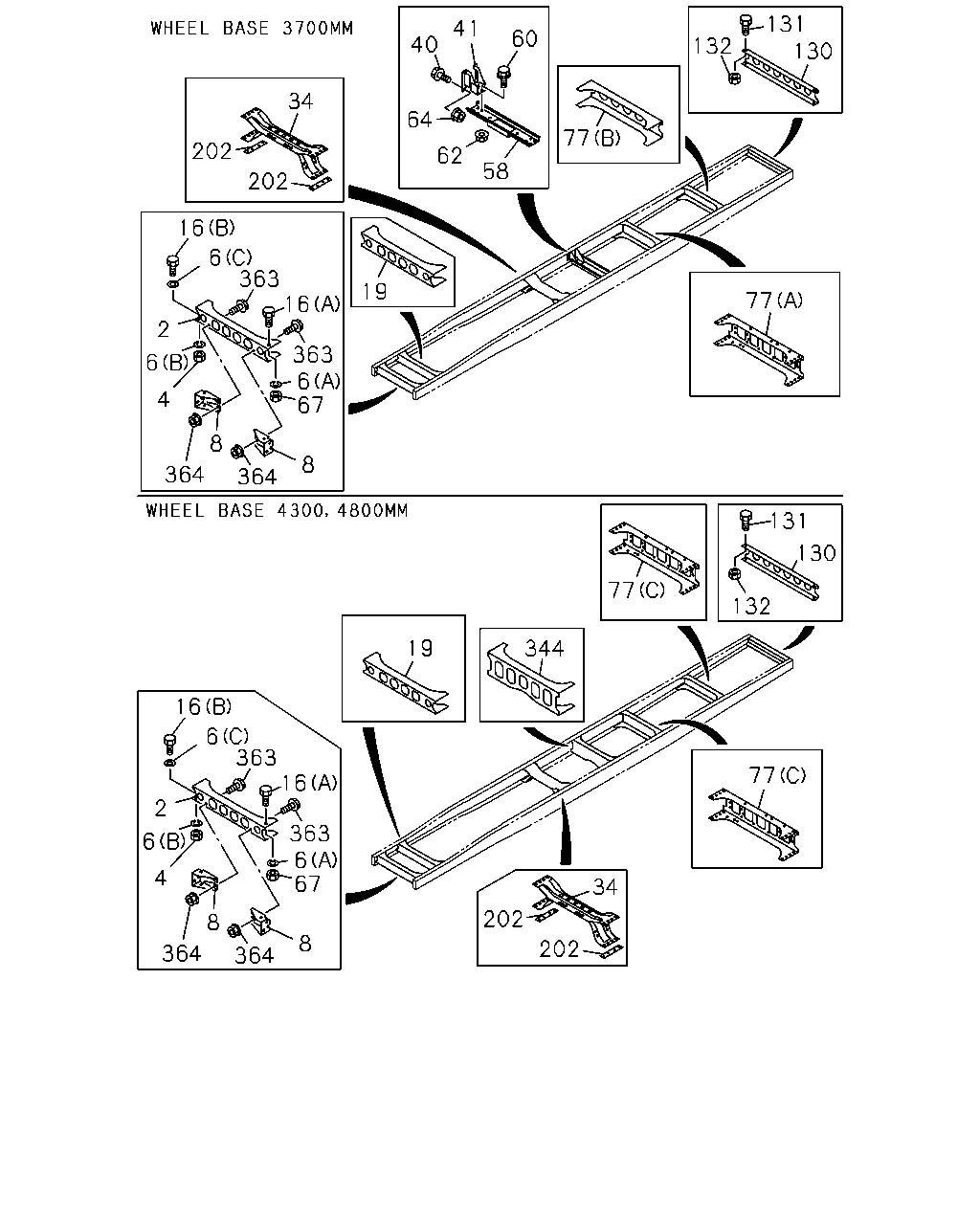

çizim 193058
131 132 130 41 60 40 34 64 77 202 62 58 202 16 6 363 16 19 77 2 363 6 67 6 4 8 8 364 364 131 130 77 132 19 344 16 6 363 16 77 2 363 6 67 6 4 34 202 8 8 202 364 364
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 MEMBER; CROSS,1ST 8-97615-669-3 01 1 0803- ● ● ● ●
4 NUT; 1ST C/MBR TO S/MBR
M14 		0-91110-514-0 02 1 0803- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(A) ID=12.2 		0-91510-512-0 02 1 0803- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(B) ID=14.2 		0-91510-814-0 02 1 0803- ● ● ● ●
6 WASHER; LK,1ST C/MBR
(C) ID=15 		8-98010-627-1 02 1 0803- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-912-2 01 1 0803- ● ● ● ●
8 GUSSET; 1ST C/MBR 8-97617-913-3 01 1 0803- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(A) M12X30 		0-20851-230-0 02 1 0803- ● ● ● ●
16 BOLT; 1ST C/MBR TO S/MBR
(B) M14X40 		0-20851-440-0 02 1 0803- ● ● ● ●
19 MEMBER; CROSS,2ND 8-97620-866-6 01 1 0803- ● ● ● ●
34 MEMBER; CROSS,3RD 8-97609-755-0 01 1 0803- ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 08 1 0803-0803 ●
40 BOLT; BRKT TO FRAME
M10X30 FLANGE 		0-28651-030-0 08 1 0803- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-973-2 01 1 0803- ●
41 BRACKET; CENTER BRG,FRAME SIDE 8-97615-974-2 01 1 0803- ●
58 MEMBER; CENTER BRG 8-97619-112-0 01 1 0803- ●
60 BOLT; MBR
M10X25 FLANGE 		0-28651-025-0 08 1 0803- ●
62 NUT; MBR
M10 FLANGE 		0-91180-110-0 08 1 0803- ●
64 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 08 1 0803- ●
67 NUT; C/MBR
M12 		0-91110-512-0 02 1 0803- ● ● ● ●
77 MEMBER; CROSS,TRUNNION RR
(B) 		8-97609-475-2 01 1 0803- ●
77 MEMBER; CROSS,TRUNNION RR
(A) 		8-97609-478-4 01 1 0803- ●
77 MEMBER; CROSS,TRUNNION RR
(C) 		8-97610-935-1 02 1 0803- ● ● ●
130 MEMBER; CROSS,END 8-97609-469-0 01 1 0803- ●
130 MEMBER; CROSS,END 8-97609-470-0 01 1 0803- ● ● ●
131 BOLT; END C/MBR
M10X25 W/LK WASHER 		0-50541-025-0 04 1 0803- ● ● ● ●
132 NUT; END C/MBR
M10 		0-91110-510-0 04 1 0803- ● ● ● ●
202 SPACER; 3RD C/MBR 8-97609-757-0 02 1 0803- ● ● ● ●
344 MEMBER; CROSS,4TH 8-97609-472-2 01 1 0803- ● ● ●
363 BOLT; GUSSET
M12X25 FLANGE 		0-28661-225-0 04 1 0803- ● ● ● ●
364 NUT; GUSSET
M12 FLANGE 		0-91180-212-0 04 1 0803- ● ● ● ●
