◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11120 - FRR-L EU2/4 EXC.SPAC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#66412) — 20 parça

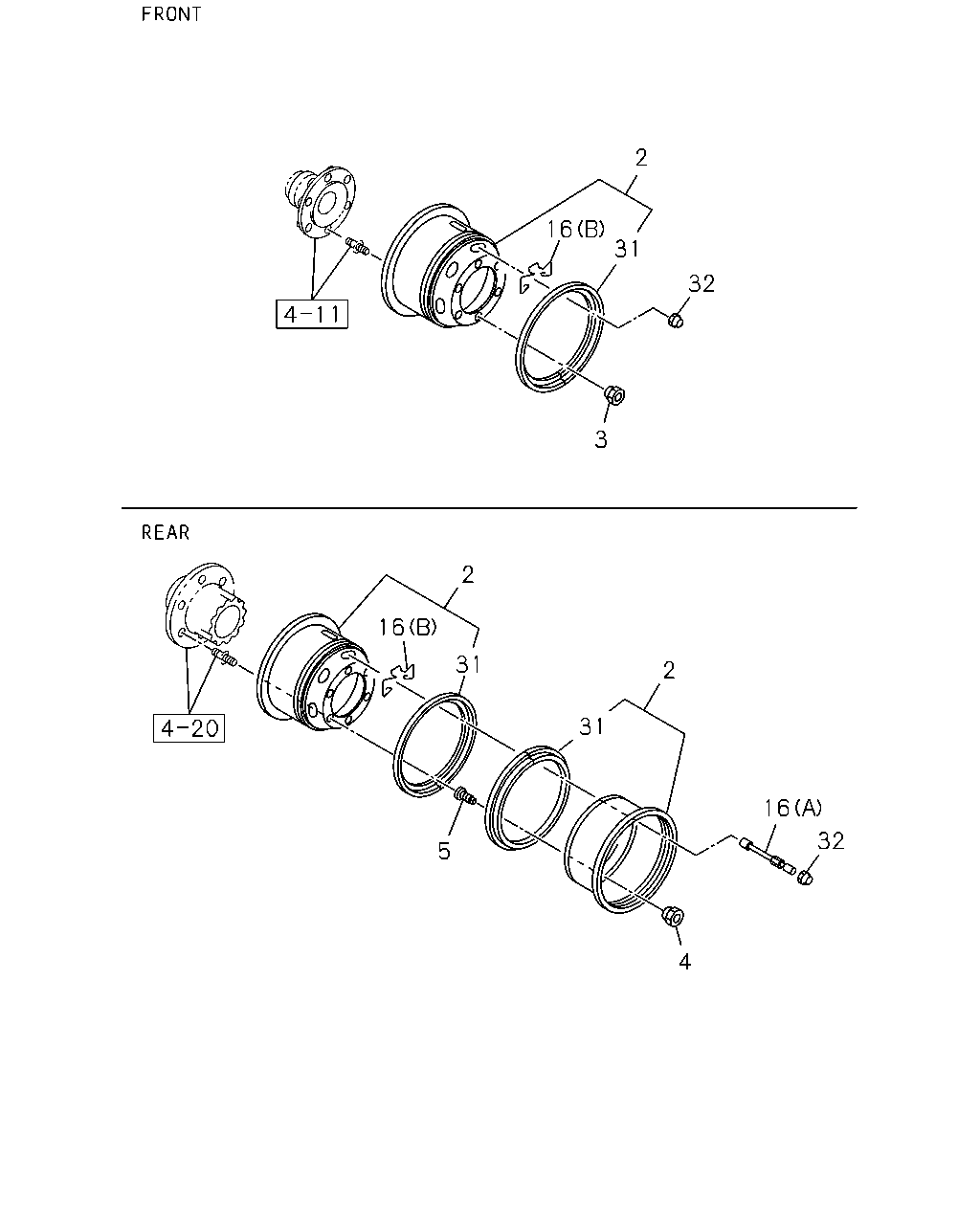

çizim 193048
2 16 31 32 3 2 16 31 31 2 16 32 4 5
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0803-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 01 1 0803-
2 WHEEL; DISC
FRONT,REAR 6.00GSX16 OFFSET=135 BLACK 6-HOLE 		1-42350-417-0 06 1 0803-
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 06 1 0803-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 06 1 0803-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 06 1 0803-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 06 1 0803-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 06 1 0803-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 06 1 0803-
16 HOLDER; TIRE VALVE,DISC WHEEL
TAIWAN EQUIPMENT(B04) DISC WHEEL SPARE<N79> KD PREPARATORY PACK<6HF> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) 		8-97017-494-1 07 1 0908-
16 HOLDER; TIRE VALVE,DISC WHEEL
TAIWAN EQUIPMENT(B04) SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> KD PREPARATORY PACK<6HF> EXC. DISC WHEEL SPARE<N79> (B) 		8-97017-494-1 07 1 0908-
16 HOLDER; TIRE VALVE,DISC WHEEL
TAIWAN EQUIPMENT(B04) KD PREPARATORY PACK<6HF> EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) 		8-97017-494-1 06 1 0908-
16 HOLDER; TIRE VALVE,DISC WHEEL
(A) L=115 		1-42370-015-2 02 1 0803-1003
16 HOLDER; TIRE VALVE,DISC WHEEL
(A) L=115 		8-98167-051-0 02 1 1004-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0803-
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE 16X6.00GS STAMP, BLACK 		1-42355-015-2 01 1 0803-
31 RING; SIDE,DISC WHEEL
FRONT,REAR 16X6.00GS STAMP, BLACK 		1-42355-015-2 06 1 0803-
32 CAP; VALVE
DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 05 1 0803-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 05 1 0803-
32 CAP; VALVE
EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 04 1 0803-
