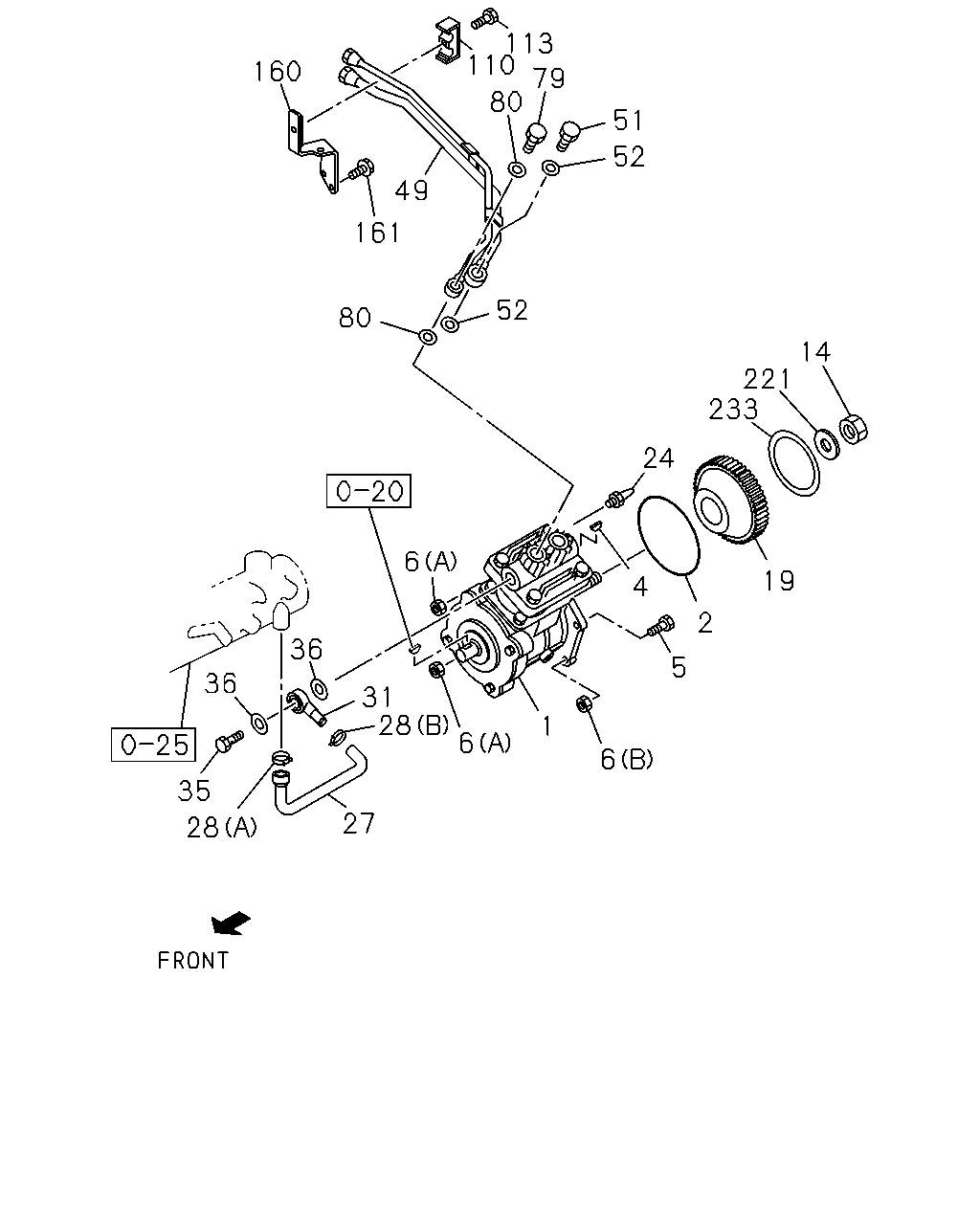

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#6641) — 27 parça
çizim 41806
113 110 160 79 80 51 52 49 161 52 80 14 221 233 24 6 19 4 2 36 5 36 31 28 6 1 6 35 27 28
BalonParca AdiParca NoAdetTipApplied Date
1 COMPRESSOR ASM; AIR
SEE FIG-NO 0-39 FOR COMPONENT. 		8-97600-699-1 01 1 0011-
2 GASKET; AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6 		1-09623-464-0 01 1 0011-
4 KEY; INJ PUMP GEAR 9-08055-519-0 01 1 0011-
5 BOLT; AIR CMPR FIX
M12X110 		0-28186-211-0 01 1 0011-
6 NUT; AIR CMPR
(A) M10 FLANGE 		0-91150-110-0 02 1 0011-
6 NUT; AIR CMPR
(B) M12 FLANGE 		0-91150-112-0 01 1 0011-
14 NUT; GEAR
M24 		9-99110-524-0 01 1 0011-
19 GEAR; INJ PUMP
Z=35 		8-94390-998-2 01 1 0011-
24 POINTER; AIR CMPR
L=21 		9-11327-602-0 01 1 0011-
27 HOSE; AIR CMPR,SUCTION 8-94390-542-2 01 1 0011-
28 CLIP; HOSE,AIR CMPR
(A) ID=26 		1-09707-091-0 01 1 0011-
28 CLIP; HOSE,AIR CMPR
(B) ID=22.7 		8-94466-382-0 01 1 0011-
31 PIPE; AIR,AIR CMPR SUCTION 8-94390-949-0 01 1 0011-
35 BOLT; EYE,AIR PIPE
M24X39 		1-09675-132-0 01 1 0011-
36 GASKET; AIR PIPE TO AIR CMPR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32 		9-09571-424-0 02 1 0011-
49 PIPE; AIR,CHARGE 8-94392-087-0 01 1 0011-
51 BOLT; EYE,AIR PIPE TO CMPR
M20X38 		1-09675-133-0 01 1 0011-
52 GASKET; EYE BOLT,AIR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0 		9-09571-420-0 02 1 0011-
79 BOLT; EYE,AIR PIPE TO CMPR
M18X33 		1-09675-058-0 01 1 0011-
80 GASKET; AIR PIPE TO CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2 OD=24.4 		1-09630-087-0 02 1 0011-
110 CLIP; AIR PIPE 8-94393-037-0 01 1 0011-
113 BOLT; CLIP,AIR PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 0011-
160 BRACKET; AIR PIPE 8-94394-569-0 01 1 0011-
161 BOLT; BRKT,AIR PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0011-
221 WASHER; PL,GEAR
ID=25 		9-09160-524-0 01 1 0011-
233 RING; FRICTION 8-94390-562-0 01 1 0011-0311
233 RING; FRICTION 8-97603-297-0 01 1 0312-
