4-50 — FRONT SUSPENSION (#66408) — 46 parça

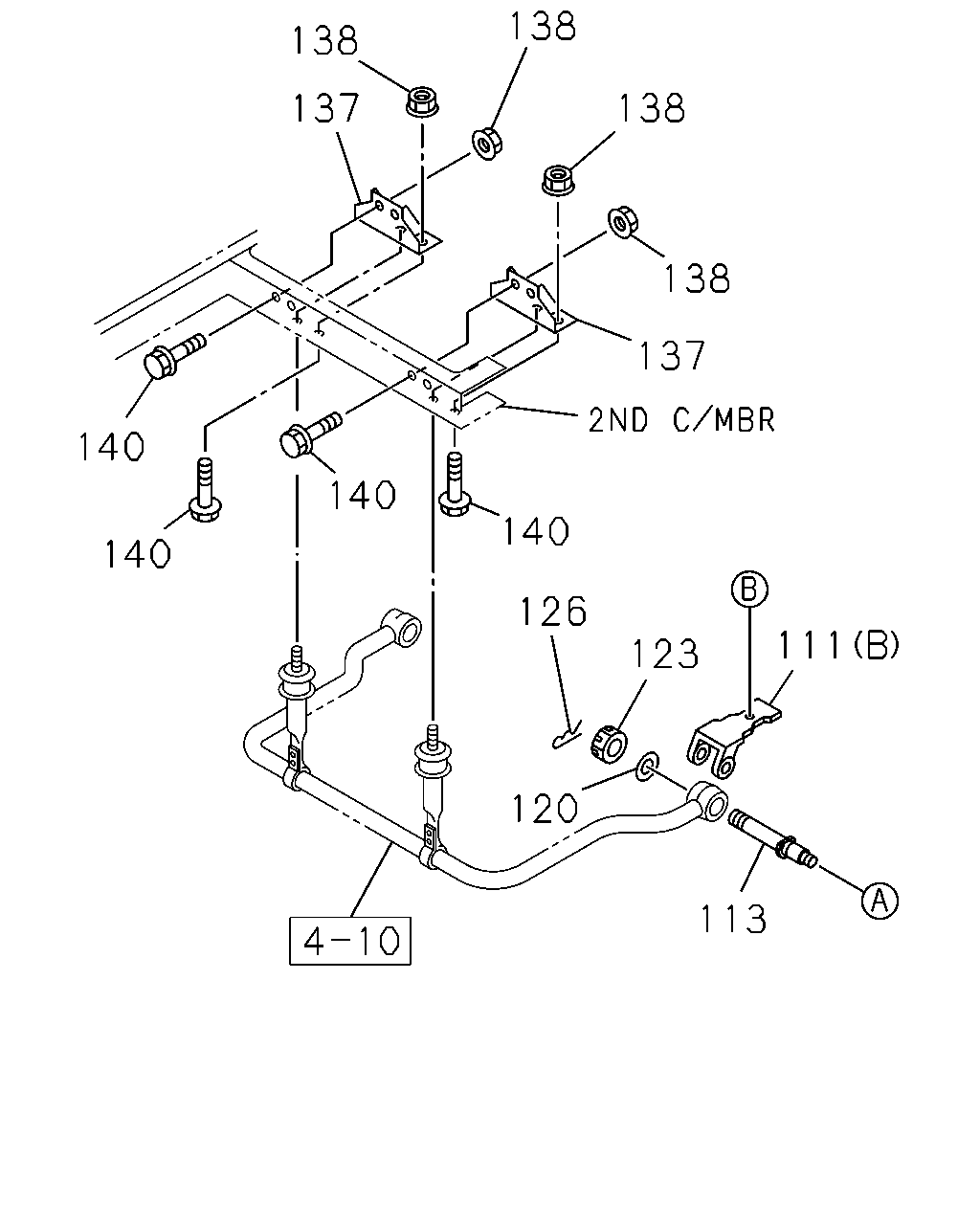

138 138 138 137 138 137 140 140 140 140 126 111 123 120 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (B)	1-51681-590-1	01	1	0803-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (B)	1-51681-591-1	01	1	0803-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-586-4	01	1	0803-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-587-4	01	1	0803-
113	PIN; SUPPORTER FRONT STABILIZER SHAFT<F59>	8-98010-654-0	02	1	0803-
120	WASHER; PL,SUPPORT BRKT TO BODY FRONT STABILIZER SHAFT<F59> ID=23	0-91614-522-0	02	1	0803-
123	NUT; PIN TO SUPPORTER FRONT STABILIZER SHAFT<F59> M22	0-91116-522-0	02	1	0803-
126	PIN; SPLIT,STAB FRONT STABILIZER SHAFT<F59> OD=4.6 L=45	0-81125-045-0	02	1	0803-
137	BRACKET; STAB BAR TO FRAME FRONT STABILIZER SHAFT<F59>	1-51781-060-2	02	1	0803-
138	NUT; BRKT FRONT STABILIZER SHAFT<F59> M10 FLANGE	0-91180-210-0	08	1	0803-
140	BOLT; BRKT FRONT STABILIZER SHAFT<F59> M10X25 FLANGE	0-28651-025-0	08	1	0803-

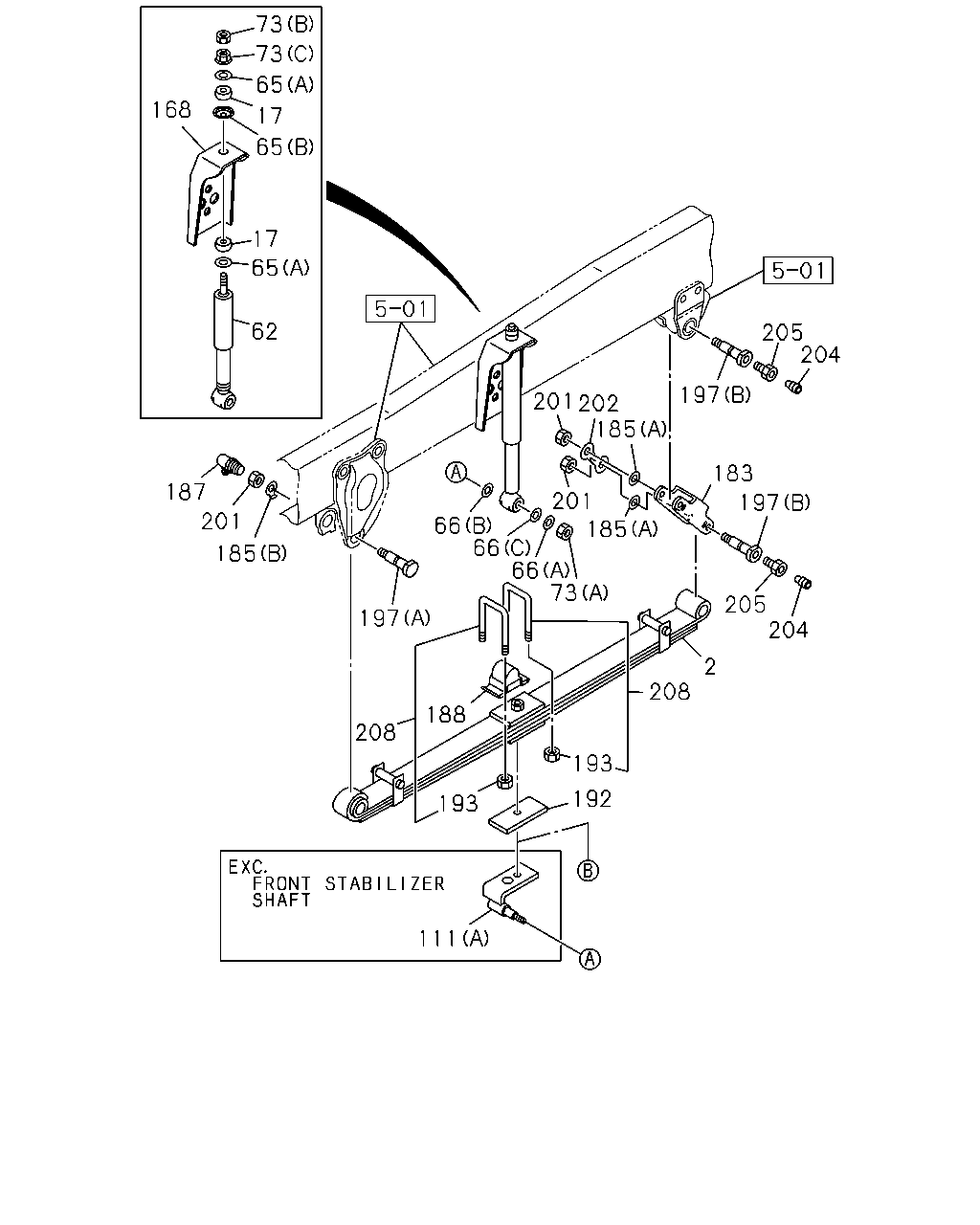

73 73 65 168 17 65 17 65 62 205 204 197 201 202 185 183 187 201 197 201 66 66 66 73 185 185 205 204 197 2 208 188 208 193 192 193 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF	8-98017-554-0	01	1	0803-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> 6-LEAF	8-98017-555-0	01	1	0803-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98080-779-0	01	1	0803-0806
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98111-360-0	01	1	0807-
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98080-780-0	01	1	0803-0806
2	SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF	8-98111-361-0	01	1	0807-
17	BUSHING; RUBBER,S/ABS	1-51631-004-0	04	1	0803-
62	ABSORBER ASM; SHOCK,FRT	8-98060-332-0	02	1	0803-
65	WASHER; S/ABS (B)	1-51631-023-0	02	1	0803-
65	WASHER; S/ABS (A) ID=10.5 OD=40 T=3.2	8-98010-405-0	04	1	0803-
66	WASHER; LK,S/ABS SETTING (A) ID=12.2	0-91510-812-0	02	1	0803-
66	WASHER; LK,S/ABS SETTING (B) ID=17 OD=30	0-91610-516-0	02	1	0803-
66	WASHER; LK,S/ABS SETTING (C) ID=12.5	1-09503-171-0	02	1	0803-
73	NUT; BRKT,SHOCK (A) M12	0-91110-512-0	02	1	0803-
73	NUT; BRKT,SHOCK (B) M10	0-91111-510-0	02	1	0803-
73	NUT; BRKT,SHOCK (C) M10 FLANGE	0-91180-210-0	02	1	0803-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (B)	1-51681-590-1	01	1	0803-
111	SUPPORTER; S/ABS,FRT SUSP FRONT STABILIZER SHAFT<F59> (B)	1-51681-591-1	01	1	0803-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-586-4	01	1	0803-
111	SUPPORTER; S/ABS,FRT SUSP EXC. FRONT STABILIZER SHAFT<F59> (A)	1-51681-587-4	01	1	0803-
168	BRACKET; S/ABS,FRT SUSP	8-98060-258-0	02	1	0803-
183	SHACKLE; FRT SUSP	1-51162-037-0	02	1	0803-
185	WASHER; LK,PIN (A) ID=25.5	8-98010-404-0	04	1	0803-
185	WASHER; LK,PIN (B) ID=23	8-98010-411-0	02	1	0803-
187	NIPPLE; GREASE,FRT PT1/8 ELBOW	0-90301-610-0	02	1	0803-
188	RUBBER; CLAMP,U-BOLT,FRT SPR	1-51172-112-0	02	1	0803-
192	PIECE; DIST T=4.5	1-51177-149-0	AR	1	0803-
193	NUT; U BOLT M16	8-97360-121-0	08	1	0803-
197	PIN; FRT SPR,FRT (B)	8-98060-333-0	04	1	0803-
197	PIN; FRT SPR,FRT (A)	8-98060-335-0	02	1	0803-
201	NUT; PIN LK M22	0-91111-522-0	06	1	0803-
202	PLATE; LK,SPR PIN	8-98010-648-0	02	1	0803-
204	NIPPLE; GREASE,RR PT1/8 STRAIGHT	0-90301-410-0	04	1	0803-
205	ATTACHMENT; GREASE NIPPLE	9-43165-001-0	04	1	0803-
208	U-BOLT SET; FRT SPRING L=150	1-87870-466-0	04	1	0803-
