8-40 — HEATER SYSTEM (#664) — 62 parça

91 92 253 249 248 249 247 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
91	GRILLE ASM; AIR OUTLET,METER CLUSTER	1-76367-050-1	02	1	9202-	●	●
92	BUSHING; AIR OUTLET GRILLE,METER CLUST	1-72547-048-1	02	1	9202-	●	●
246	COVER; BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-71997-533-3	01	1	9202-	●	●
247	SEAL; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-71997-549-0	01	1	9202-	●	●
248	NUT; COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	01	1	9202-9210	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	02	1	9211-	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	02	1	9202-9210	●	●
249	WASHER; PL,COVER,BLOWER MOTOR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	01	1	9211-	●	●
253	KNOB; CONT LEVER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-82346-072-0	03	1	9202-	●	●
253	KNOB; CONT LEVER VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-82346-072-0	02	1	9202-	●	●

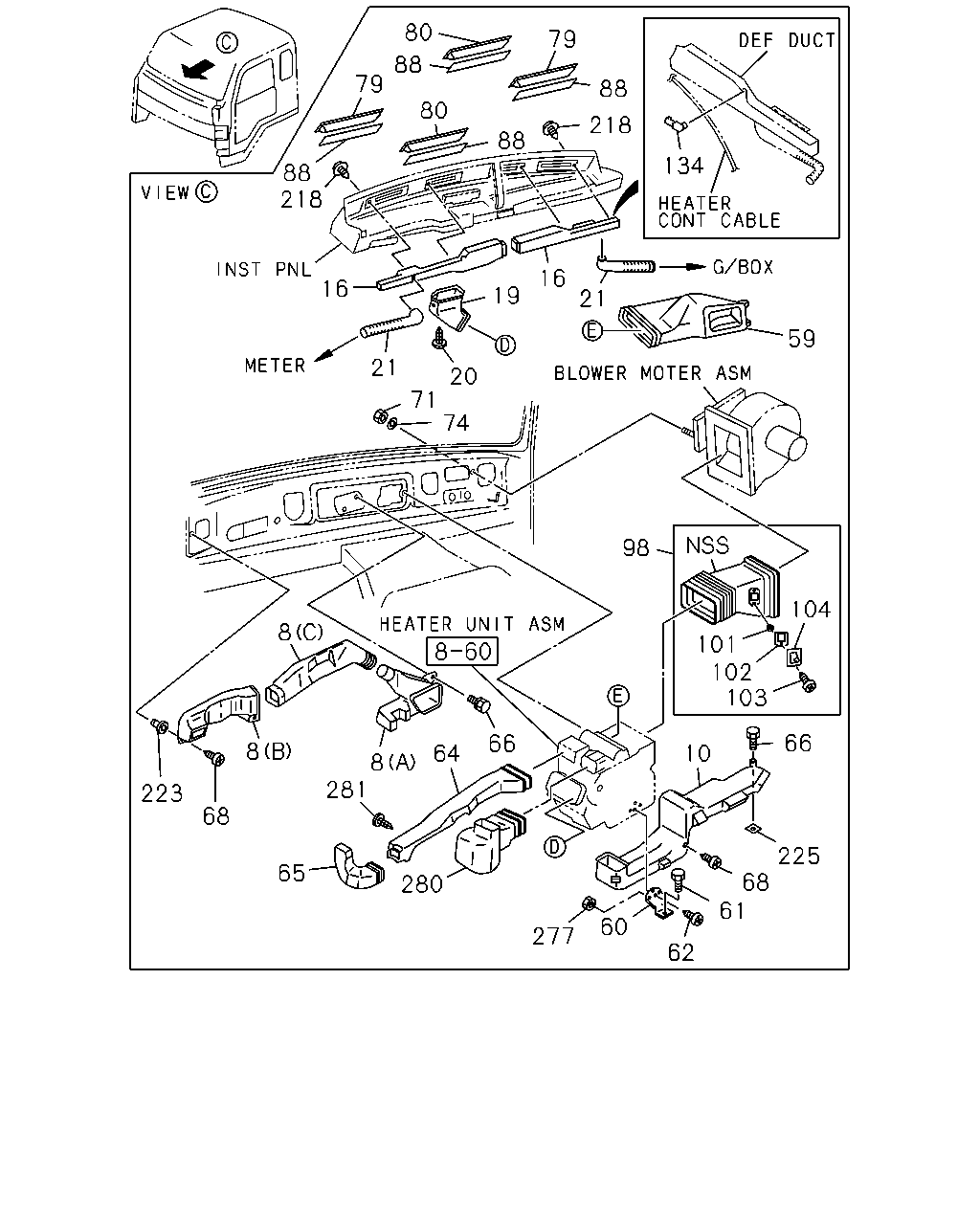

80 79 88 218 134 88 80 79 88 218 88 16 21 20 71 74 19 16 21 59 98 104 101 102 103 66 10 225 68 61 62 60 277 66 64 8 281 280 65 68 8 223 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	1-83542-074-0	01	1	9202-	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	1-83542-075-2	01	1	9202-	●	●
8	DUCT; HTR AIR,DRIVER FOOT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	1-83542-085-3	01	1	9202-	●	●
10	DUCT; HTR AIR,ASSIST FOOT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83542-076-0	01	1	9202-	●	●
16	DUCT ASM; DEFROSTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-190-4	01	1	9202-	●	●
16	DUCT ASM; DEFROSTER HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-207-2	01	1	9202-	●	●
19	DUCT; DEFROSTER,HTR JOINT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-219-2	01	1	9202-	●	●
20	FASTENER; DEFROSTER DUCT,HTR JOINT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BLACK	8-94104-935-0	01	1	9407-	●	●
21	HOSE; DEFROSTER,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) WO/URETHANE	1-76377-085-4	02	1	9202-	●	●
59	DUCT; VENT,ASSIST SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-218-4	01	1	9202-	●	●
60	SUPPORT; HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-73998-449-4	01	1	9202-	●	●
61	BOLT; SUPPORT,HTR UNIT VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 W/LK&PL WASHER	1-09980-586-0	01	1	9202-	●	●
62	SCREW; STAY,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER	0-74110-514-0	03	1	9202-	●	●
62	SCREW; STAY,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16	1-09981-453-0	01	1	9202-	●	●
64	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-216-3	01	1	9202-	●	●
65	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-221-1	01	1	9202-	●	●
66	BOLT; DUCT	1-09980-538-0	04	1	9202-	●	●
68	SCREW; HTR DUCT M5X16 TAPPING W/PL WASHER	0-74105-516-0	01	1	9202-	●	●
68	SCREW; HTR DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 TAPPING W/PL WASHER	0-74110-514-0	01	1	9202-	●	●
71	NUT; BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	01	1	9202-9210	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	02	1	9211-	●	●
74	WASHER; PL,BLOWER UNIT TO DASH HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	02	1	9202-	●	●
79	GRILLE; DEFROSTER,INST OUTSIDE	1-76368-022-0	02	1	9202-	●	●
80	GRILLE; DEFROSTER,INSIDE	1-76368-023-0	02	1	9202-	●	●
88	SEAL; DEFROSTER,GRILLE SIDE	1-76778-012-1	04	1	9202-	●	●
98	DUCT; BLOWER UNIT TO HTR UNIT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83542-078-3	01	1	9202-	●	●
101	NUT; RESISTOR FIX HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-370-0	01	1	9202-	●	●
102	LINING; HTR DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-368-0	01	1	9202-	●	●
103	SCREW; TAPPING,RESISTOR FIX HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83579-369-0	01	1	9202-	●	●
104	RESISTOR; HTR DUCT HEATER & DEFROSTER(C41),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-83519-028-1	01	1	9202-	●	●
134	CLIP; CONT CABLE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-09987-147-0	01	1	9202-	●	●
218	SCREW; DEFROSTER DUCT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X14 W/PL WASHER	5-09981-050-0	04	1	9202-	●	●
223	GROMMET; SCREW	5-09983-012-0	01	1	9202-	●	●
225	SEAL; WATER 25X25	8-94272-533-0	01	1	9202-	●	●
277	NUT; HTR EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5 FLANGE	5-09440-003-0	01	1	9202-	●	●
280	DUCT; VENT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-76378-217-2	01	1	9202-	●	●
281	FASTENER; VENT DUCT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BLACK	8-94104-935-0	01	1	9407-	●	●
281	FASTENER; VENT DUCT,DRIVER SIDE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) BLACK	8-94104-935-0	02	1	9407-	●	●

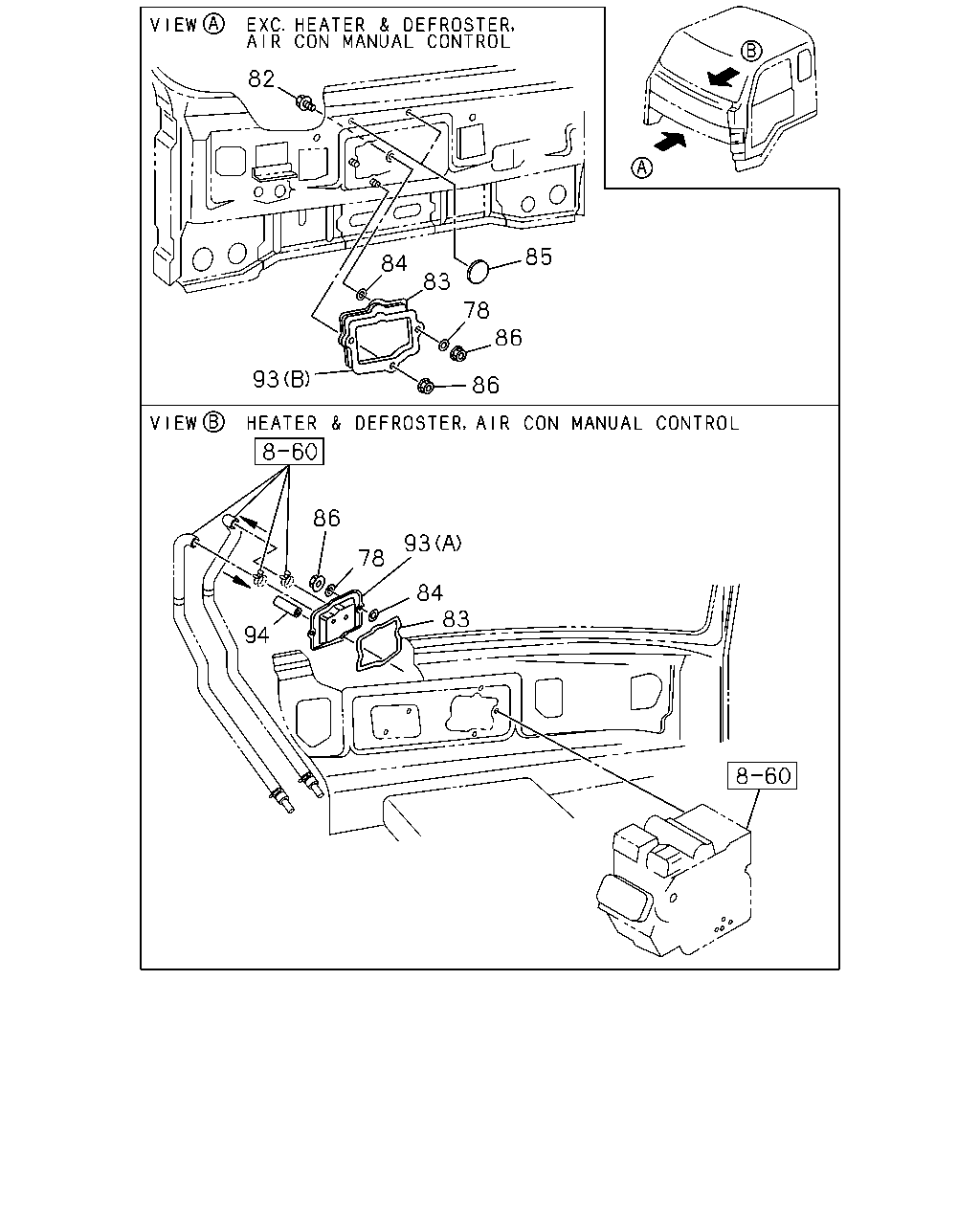

82 84 85 83 86 78 86 93 86 84 83 93 78 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20	1-09509-047-0	01	1	9202-	●	●
78	WASHER; PL,HTR UNIT HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	02	1	9202-	●	●
78	WASHER; PL,HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=14	1-09509-048-0	01	1	9202-	●	●
82	BOLT; COVER,HTR CORE EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ)	1-09980-538-0	01	1	9202-	●	●
83	SEAL; COVER,HTR HOLE	1-71998-222-0	01	1	9202-	●	●
84	SHEET; COVER,HTR CORE	1-71998-224-0	01	1	9202-	●	●
85	SEAL; HTR UNIT EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) OD=20 T=0.4 BLACK	1-76798-020-0	02	1	9202-	●	●
86	NUT; COVER,HTR HOLE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	02	1	9202-	●	●
86	NUT; COVER,HTR HOLE EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6 FLANGE	1-09984-141-0	03	1	9202-	●	●
93	COVER; HTR CORE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (A)	1-71998-194-1	01	1	9202-	●	●
93	COVER; HTR CORE EXC. HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) (B)	1-71998-180-1	01	1	9202-	●	●
94	CAP; HTR CORE HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60)	1-71998-399-0	01	1	9202-	●	●
