◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11120 - FRR-L EU2/4 EXC.SPAC ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#66397) — 109 parça

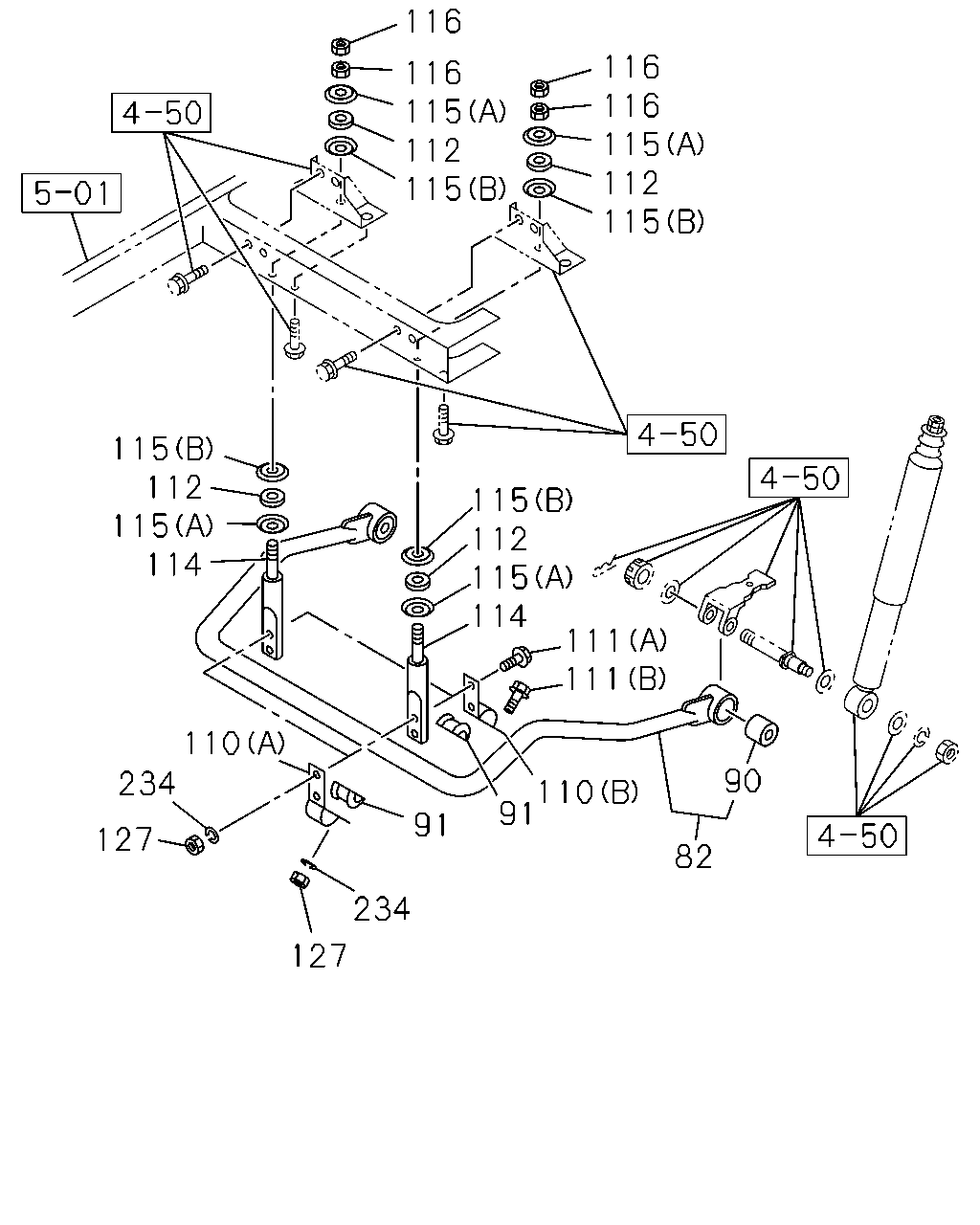

çizim 122806
116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 111 111 110 90 234 110 91 91 127 82 234 127
BalonParca AdiParca NoAdetTipApplied Date
82 BAR; STAB,FRT SUSP
FRONT STABILIZER SHAFT<F59> 		1-51770-114-0 01 1 0803-
90 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-066-0 02 1 0803-
91 BUSHING; RUBBER,STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51779-079-1 04 1 0803-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (A) 		1-51789-027-2 02 1 0803-
110 CLAMP; STAB TO ROD
FRONT STABILIZER SHAFT<F59> (B) 		1-51789-028-1 02 1 0803-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (B) M12X30 FLANGE 		0-28051-230-0 02 1 0803-
111 BOLT; CLAMP TO ROD
FRONT STABILIZER SHAFT<F59> (A) M12X50 FLANGE 		0-28051-250-0 04 1 0803-
112 BUSHING; ROD
FRONT STABILIZER SHAFT<F59> 		9-51631-050-0 04 1 0803-
114 ROD; STAB BAR
FRONT STABILIZER SHAFT<F59> 		1-51773-082-0 02 1 0803-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (B) ID=16.8 		1-51631-022-0 04 1 0803-
115 WASHER; CENTER,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> (A) ID=14.5 		9-51631-051-0 04 1 0803-
116 NUT; LK,STAB TO FRAME
FRONT STABILIZER SHAFT<F59> M14 		0-91111-514-0 04 1 0803-
127 NUT; CLAMP
FRONT STABILIZER SHAFT<F59> M12 		0-91110-512-0 06 1 0803-
234 WASHER; STAB
FRONT STABILIZER SHAFT<F59> ID=12.2 		0-91510-812-0 06 1 0803-
çizim 191903
105
BalonParca AdiParca NoAdetTipApplied Date
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 04 1 0803-0804
105 BOLT; BRKT FIX
ANTI LOCK BRAKE(JE5) M8X12 FLANGE 		0-28050-812-0 04 1 0805-0805
105 BOLT; BRKT FIX
M8X12 FLANGE 		0-28050-812-0 04 1 0805-0805
105 BOLT; BRKT FIX
ANTI LOCK BRAKE(JE5) M8X12 FLANGE 		0-28050-812-0 04 1 0806-

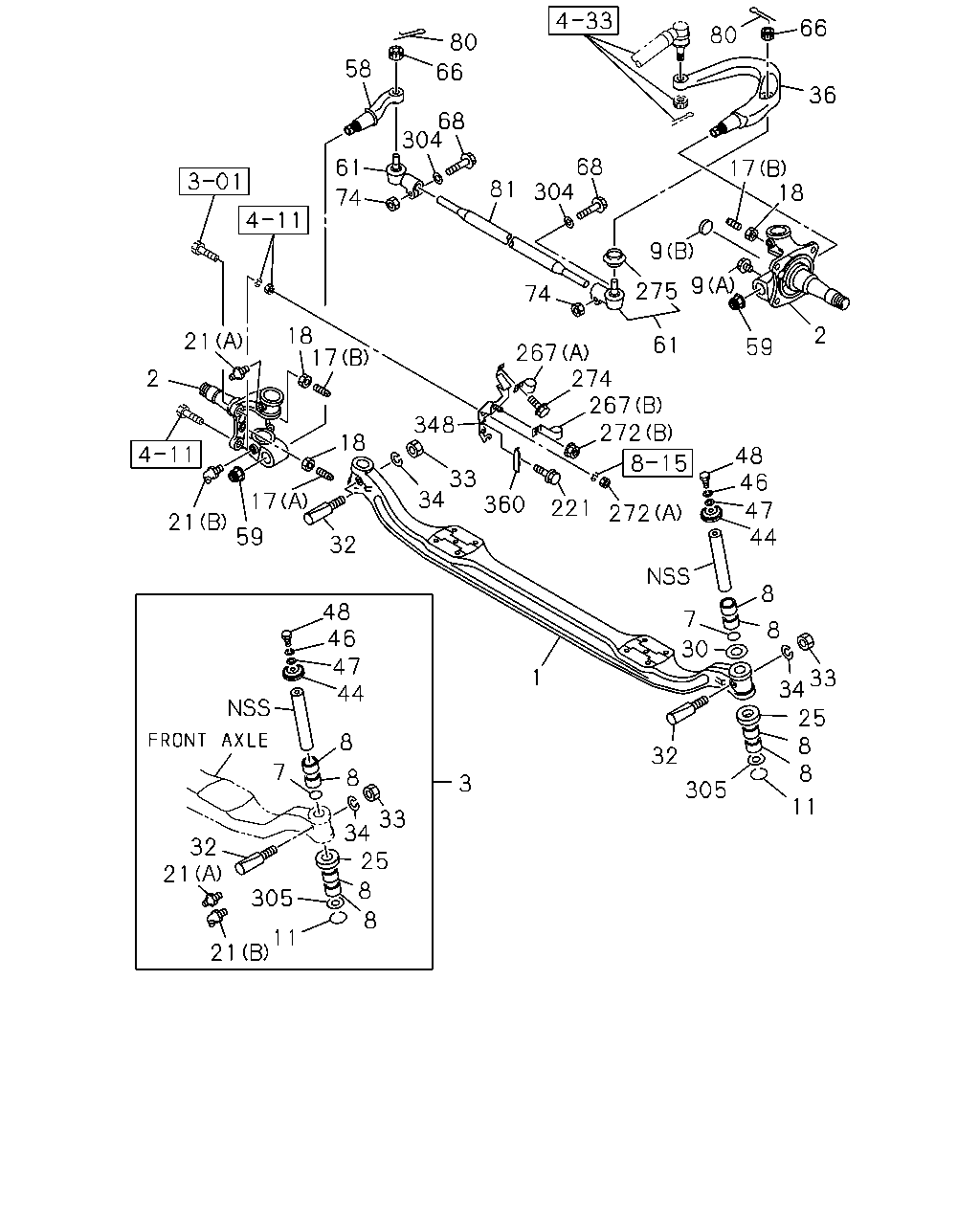

çizim 193053
66 80 80 58 66 36 68 304 68 304 61 17 18 81 74 9 9 275 74 2 18 17 21 61 59 267 274 267 272 2 348 18 48 46 47 44 33 34 360 17 221 272 21 59 32 8 48 46 47 44 7 8 1 33 34 25 8 8 8 32 7 8 33 34 25 3 305 11 32 21 8 305 8 11 21 30
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 8-98057-479-2 01 1 0803-
2 KNUCKLE; FRT AXLE
BRAKE ADJUSTER MANUAL<BJR> 		8-98172-431-1 01 1 1012-
2 KNUCKLE; FRT AXLE
BRAKE ADJUSTER MANUAL<BJR> 		8-98172-432-1 01 1 1012-
2 KNUCKLE; FRT AXLE 1-43131-127-1 01 1 0803-1011
2 KNUCKLE; FRT AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-43131-127-1 01 1 1012-
2 KNUCKLE; FRT AXLE 1-43132-127-1 01 1 0803-1011
2 KNUCKLE; FRT AXLE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-43132-127-1 01 1 1012-
3 KING PIN SET 1-87831-295-2 01 1 0803-
3 KING PIN SET 1-87831-296-2 01 1 0803-
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 0803-
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 0803-
9 PLUG; KNUCKLE
(A) M14X14 		8-97329-621-0 01 1 0803-
9 PLUG; KNUCKLE
EXC. ANTI LOCK BRAKE(JE5) (B) OD=22 		1-09600-011-2 02 1 0803-1011
9 PLUG; KNUCKLE
EXC. BRAKE ADJUSTER MANUAL<BJR>,ANTI LOCK BRAKE(JE5) (B) OD=22 		1-09600-011-2 02 1 1012-
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 0803-
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-058-0 01 1 0803-0805
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 0806-
17 BOLT; STOPPER KNUCKLE
(B) M14X53 		8-98065-261-0 02 1 0803-
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 0803-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 0803-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0803-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 0803-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 0803-
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 0803-
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 0803-
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 0803-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 0803-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 0803-
36 ARM; KNUCKLE 8-98057-563-0 01 1 0803-
44 COVER; KING PIN 1-43175-031-0 02 1 0803-
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 0803-
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 0803-
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 0803-
58 ARM; TIE ROD 8-98057-564-2 01 1 0803-
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 0803-
61 ROD END; TIE ROD 1-43150-748-1 01 1 0803-
61 ROD END; TIE ROD 1-43150-749-1 01 1 0803-
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-021-1 02 1 0803-0805
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 0806-
68 BOLT; TIE ROD END
M12X45 FLANGE 		0-28061-245-0 02 1 0803-
74 NUT; TIE ROD END
M12 		0-91110-512-0 02 1 0803-
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 0803-
81 ROD; TIE 8-98038-703-1 01 1 0803-
221 BOLT; BRKT,SENSOR
ANTI LOCK BRAKE(JE5) M8X16 FLANGE 		0-28050-816-0 04 1 0803-
267 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (A) ID=11 L=16 		0-95235-025-0 02 1 0803-
267 CLIP; HARNESS
ANTI LOCK BRAKE(JE5) (B) ID=11 H=20 L=20 		8-98033-780-0 02 1 0803-
272 NUT; CLIP
ANTI LOCK BRAKE(JE5) (A) M14 		0-91110-514-0 02 1 0803-
272 NUT; CLIP
ANTI LOCK BRAKE(JE5) (B) M8 FLANGE 		0-91180-108-0 02 1 0803-
274 BOLT; CLIP
ANTI LOCK BRAKE(JE5) M8X16 FLANGE 		0-28050-816-0 02 1 0803-
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 0803-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 0803-
305 COVER; KNUCKLE 1-43175-030-0 02 1 0803-
348 BRACKET; CLIP
ANTI LOCK BRAKE(JE5) 		8-98055-137-1 01 1 0803-
348 BRACKET; CLIP
ANTI LOCK BRAKE(JE5) 		8-98055-138-1 01 1 0803-
360 COVER; SENSOR
ANTI LOCK BRAKE(JE5) 		8-98018-400-0 01 1 0803-
360 COVER; SENSOR
ANTI LOCK BRAKE(JE5) 		8-98018-401-0 01 1 0803-
